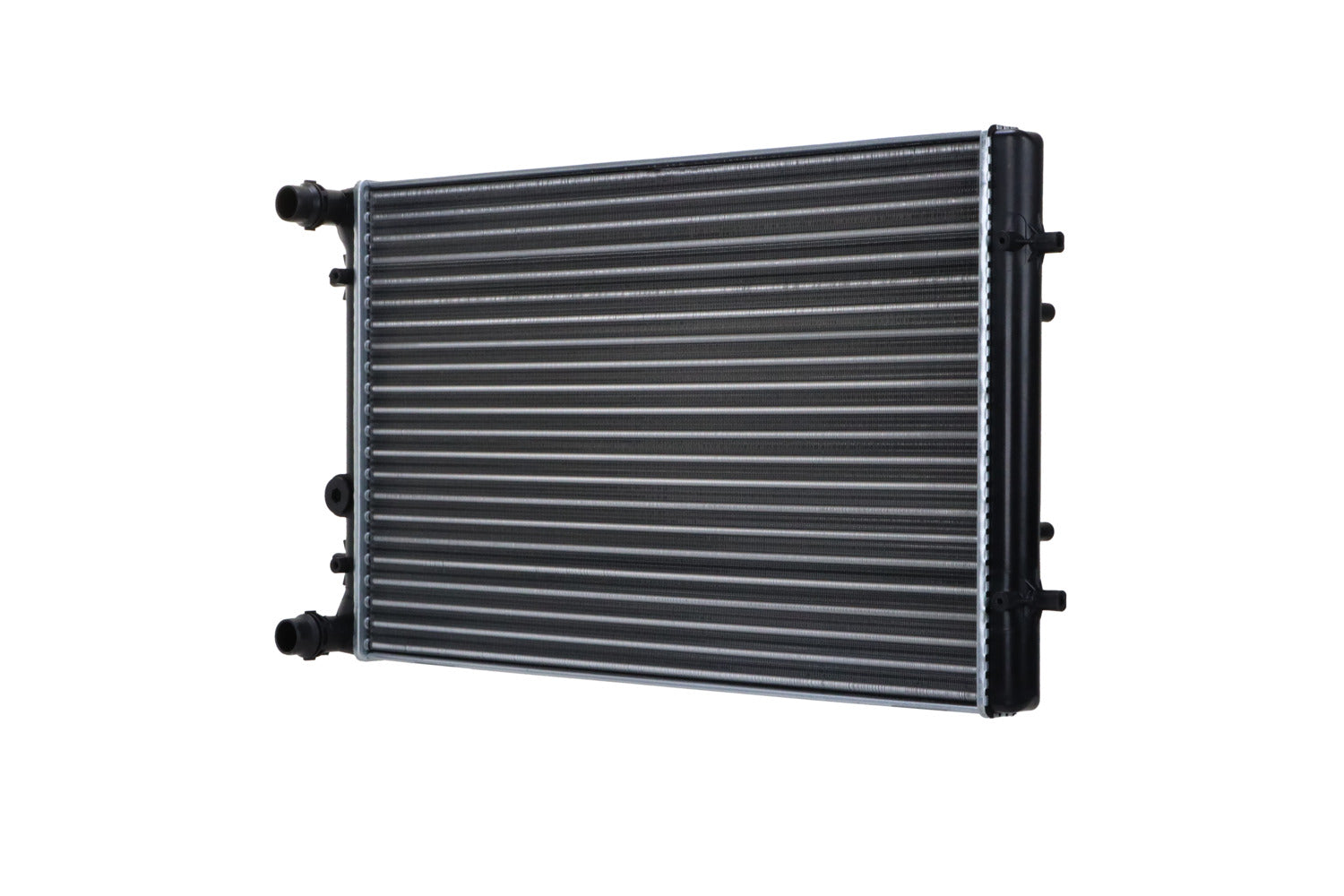

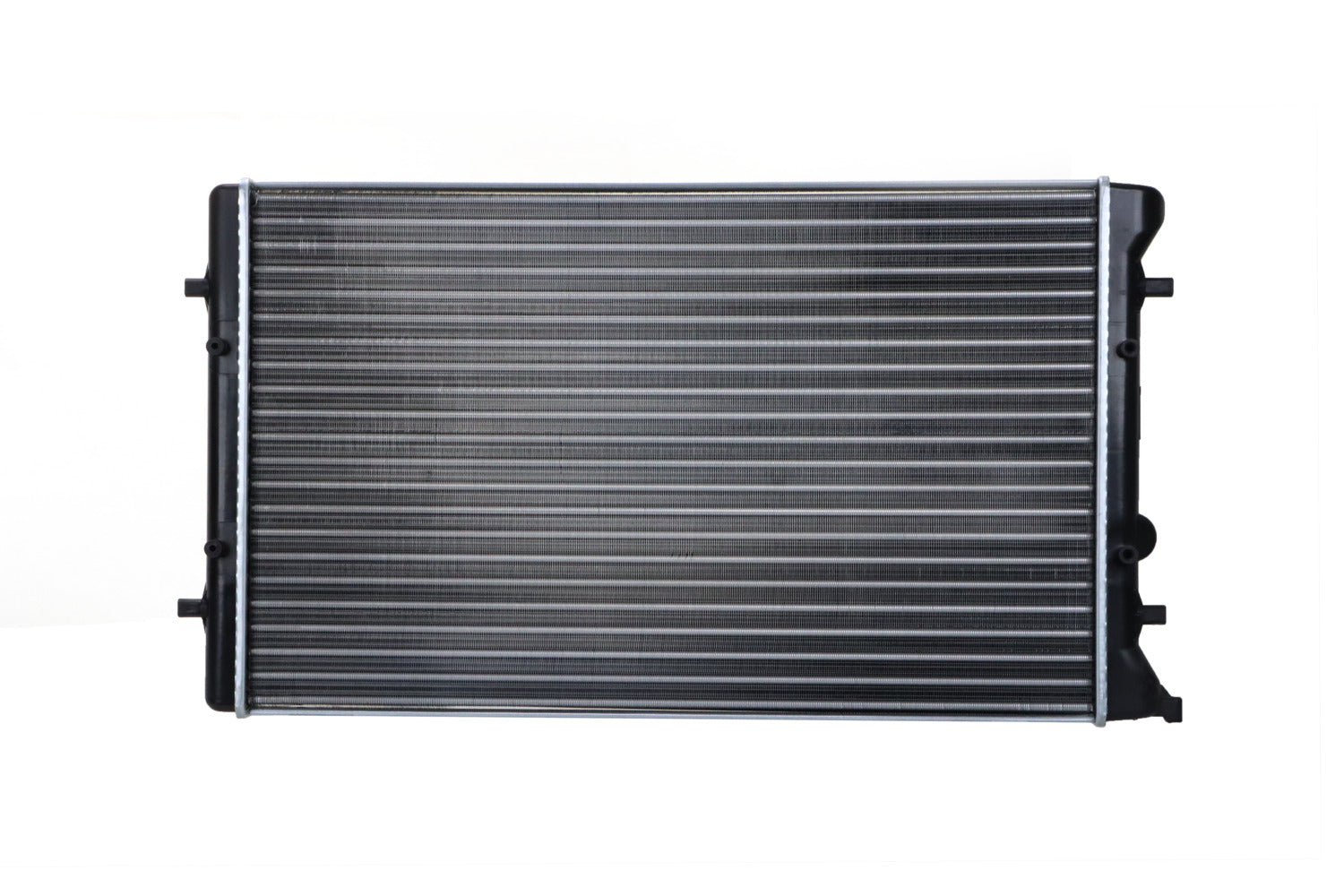

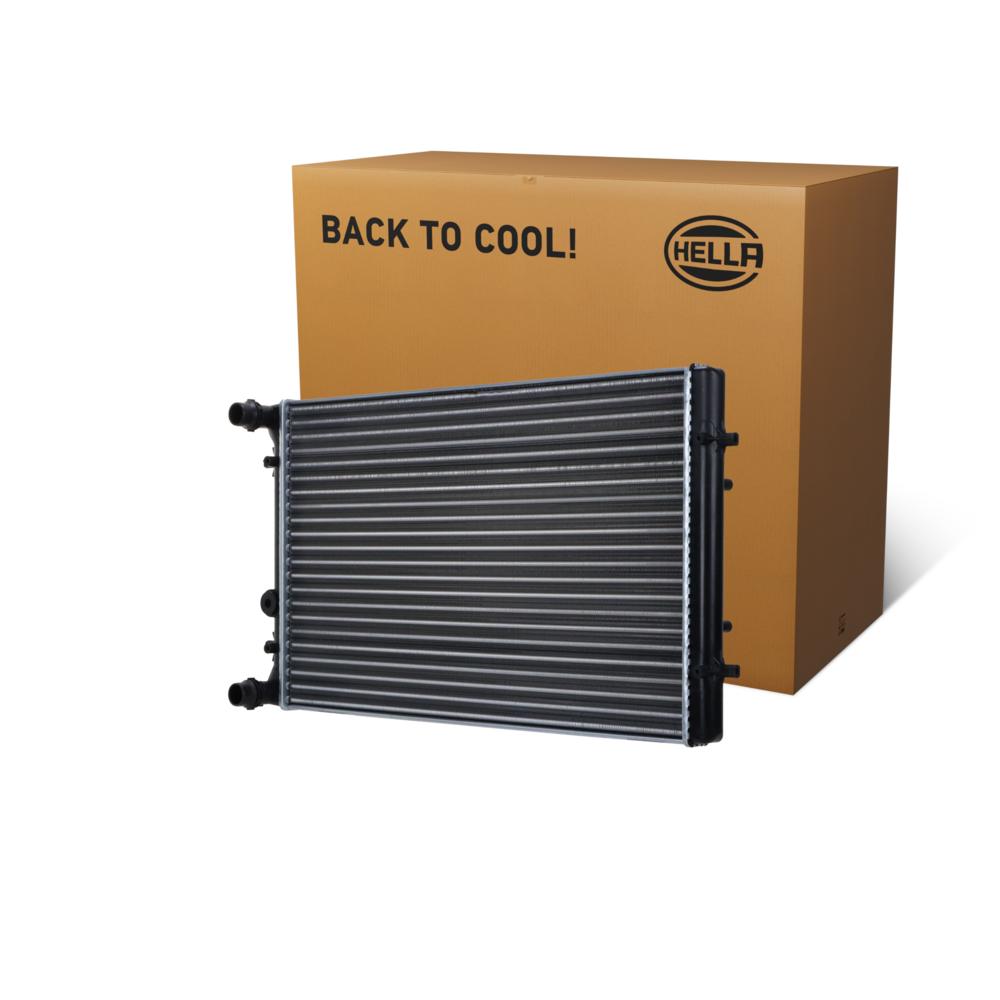

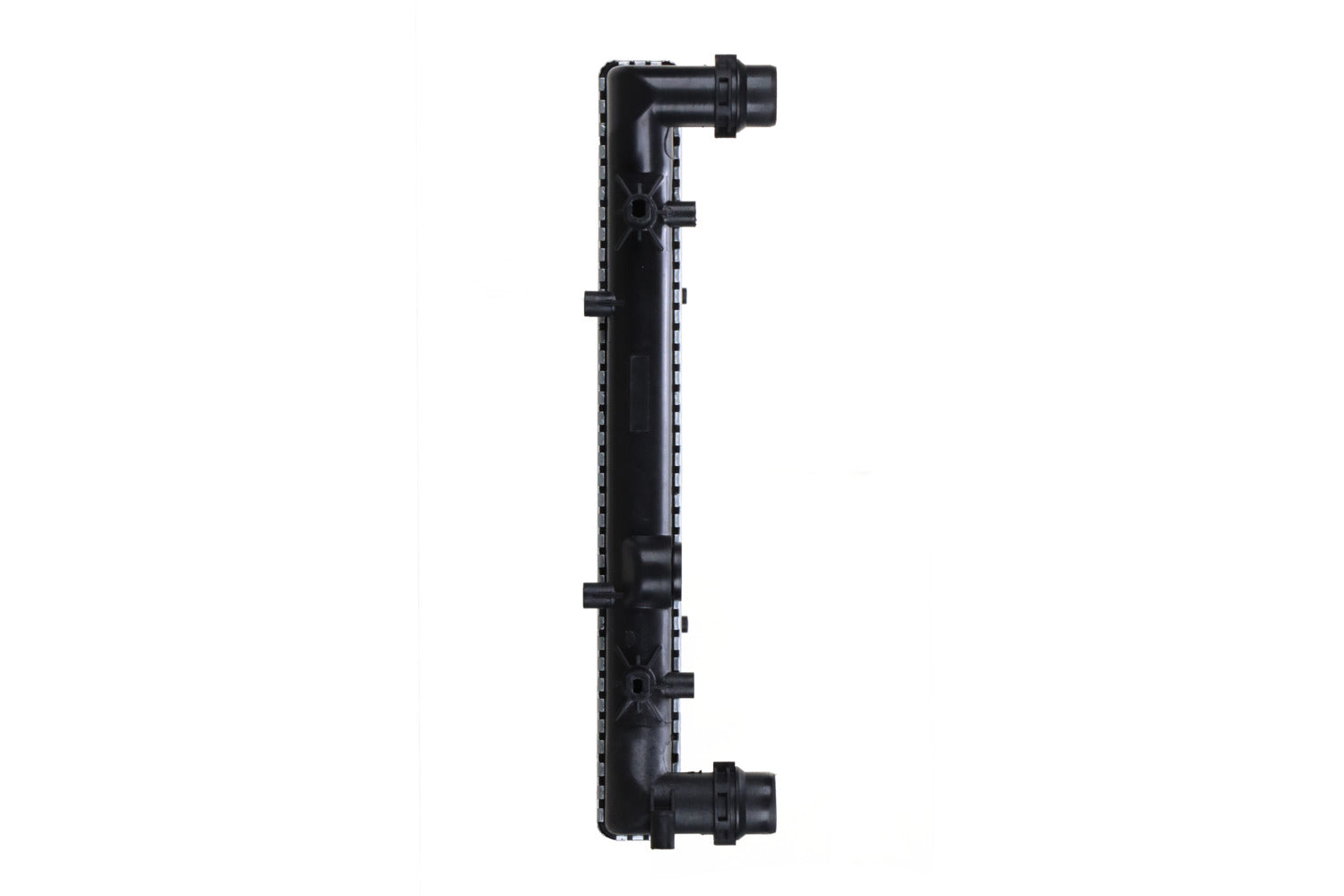

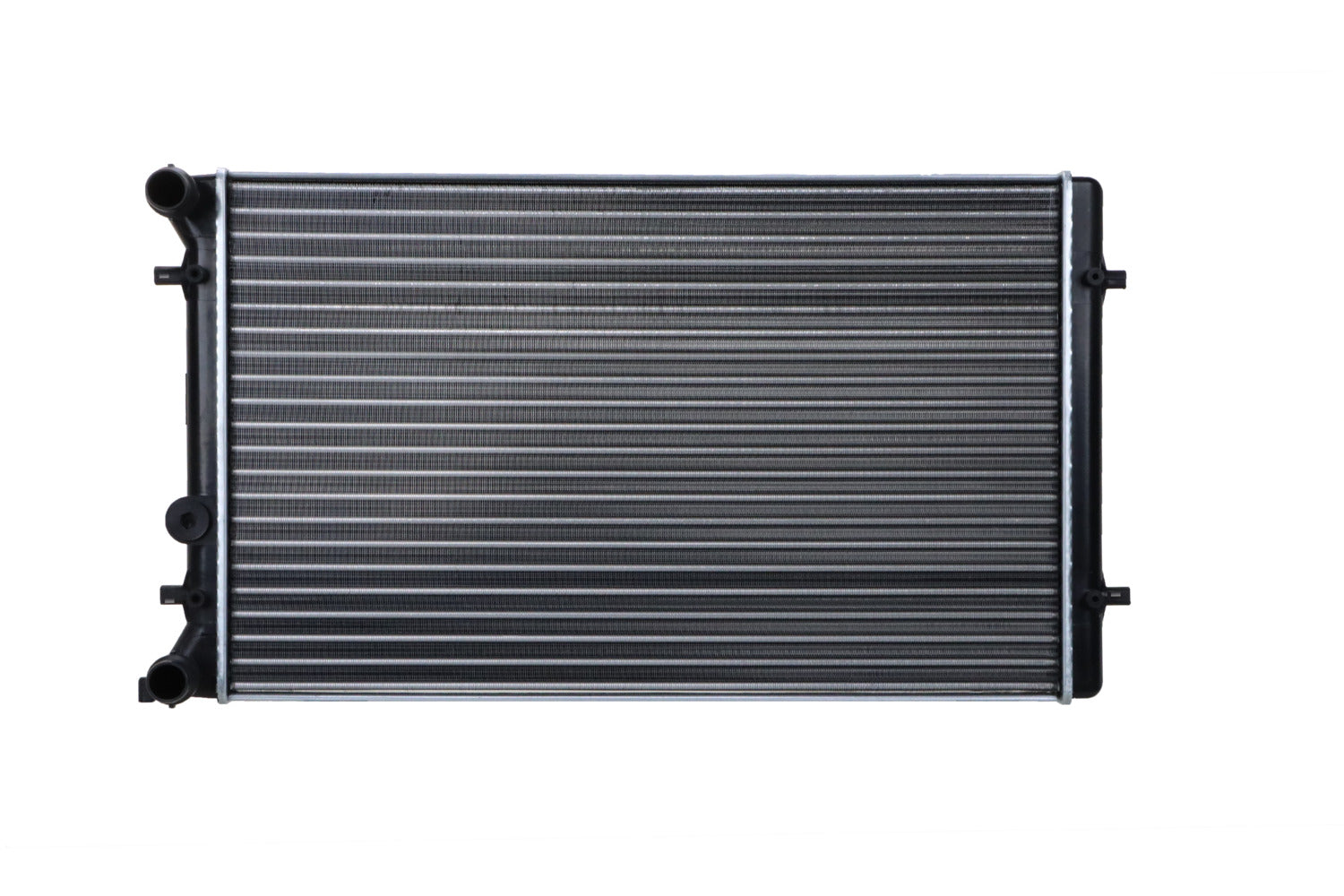

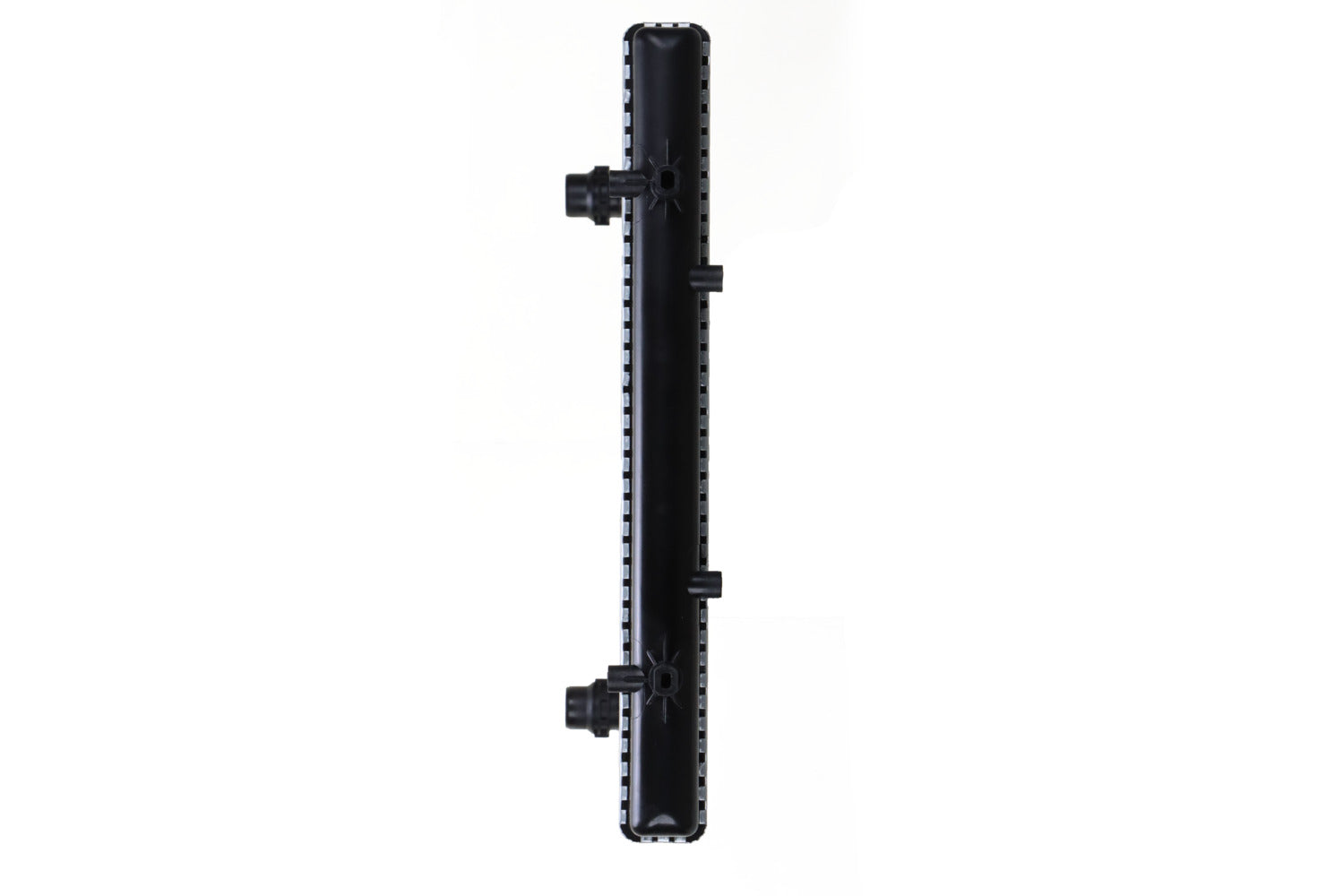

Hella Engine Coolant Radiator 8MK366302-601

Radiator, engine cooling - Mechanically jointed cooling fins - Aluminium/Plastic - with gaskets/seals - without expansion tank

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. VW GOLF IV Variant (1J5) 1.9 TDI (please check exact vehicle application)
• Type: Mechanically jointed cooling fins - Cooling fins material: Aluminium - Water Tank Material (radiator): Plastic
• Core Length: 650mm - Core Width: 415mm - Core Depth: 23mm - Inlet Ø: 34.5mm - Outlet Ø: 34.5mm
• with gaskets/seals - without expansion tank
• High quality: HELLA radiators are designed to fulfil the highest quality requirements, thereby ensuring compatibility and high performance across a variety of vehicle models and conditions.
• Easy installation: Thanks to a precise fit and a complete range of accessories, HELLA radiators enable quick and smooth installation and reduce vehicle downtime.
• Reliable and durable: Manufactured from high-quality materials, HELLA radiators undergo rigorous testing, including corrosion resistance, vibration resistance and thermal performance evaluations, to ensure long-lasting operation and optimum efficiency.

Item Attributes:
Type: Mechanically jointed cooling fins
Cooling fins material: Aluminium
Water Tank Material (radiator): Plastic
Core Length: 650 mm
Core Width: 415 mm
Core Depth: 23 mm
Inlet Ø: 34.5 mm
Outlet Ø: 34.5 mm
Supplementary Article/Supplementary Info: with gaskets/seals
Supplementary Article/Supplementary Info 2: without expansion tank
Assembly by qualified personnel required!

Replaces OEM reference(s):
AUDI 1J0 121 253 A; AUDI 1J0 121 253 AB; AUDI 1J0 121 253 AD; AUDI 1J0 121 253 AF; AUDI 1J0 121 253 AH; AUDI 1J0 121 253 AJ; AUDI 1J0 121 253 AN; AUDI 1J0 121 253 AP; AUDI 1J0 121 253 AQ; AUDI 1J0 121 253 B; AUDI 1J0 121 253 H; AUDI 1J0 121 253 J; AUDI 1J0 121 253 L; AUDI 1J0 121 253 M; AUDI 1J0 121 253 N; AUDI 1J0 121 253 P; AUDI 1J0 121 253 Q; AUDI 1J0 121 253 R; CUPRA 1J0 121 253 A; CUPRA 1J0 121 253 AB; CUPRA 1J0 121 253 AD; CUPRA 1J0 121 253 AF; CUPRA 1J0 121 253 AH; CUPRA 1J0 121 253 AJ; CUPRA 1J0 121 253 AN; CUPRA 1J0 121 253 AP; CUPRA 1J0 121 253 AQ; CUPRA 1J0 121 253 B; CUPRA 1J0 121 253 H; CUPRA 1J0 121 253 J; CUPRA 1J0 121 253 L; CUPRA 1J0 121 253 M; CUPRA 1J0 121 253 N; CUPRA 1J0 121 253 P; CUPRA 1J0 121 253 Q; CUPRA 1J0 121 253 R; SEAT 1J0 121 253 AB; SEAT 1J0 121 253 AD; SEAT 1J0 121 253 AF; SEAT 1J0 121 253 AH; SEAT 1J0 121 253 AJ; SEAT 1J0 121 253 AN; SEAT 1J0 121 253 AP; SEAT 1J0 121 253 AQ; SEAT 1J0 121 253 AT; SEAT 1J0 121 253 H; SEAT 1J0 121 253 J; SEAT 1J0 121 253 N; SEAT 1J0 121 253 P; SEAT 1J0 121 253 Q; SEAT 1J0 121 253 R; SKODA 1J0 121 253 AB; SKODA 1J0 121 253 AD; SKODA 1J0 121 253 AF; SKODA 1J0 121 253 AH; SKODA 1J0 121 253 AJ; SKODA 1J0 121 253 AN; SKODA 1J0 121 253 AP; SKODA 1J0 121 253 AQ; SKODA 1J0 121 253 AT; SKODA 1J0 121 253 H; SKODA 1J0 121 253 J; SKODA 1J0 121 253 N; SKODA 1J0 121 253 P; SKODA 1J0 121 253 Q; SKODA 1J0 121 253 R; VW 1J0 121 253 A; VW 1J0 121 253 AB; VW 1J0 121 253 AD; VW 1J0 121 253 AF; VW 1J0 121 253 AH; VW 1J0 121 253 AJ; VW 1J0 121 253 AN; VW 1J0 121 253 AP; VW 1J0 121 253 AQ; VW 1J0 121 253 AT; VW 1J0 121 253 B; VW 1J0 121 253 H; VW 1J0 121 253 J; VW 1J0 121 253 L; VW 1J0 121 253 M; VW 1J0 121 253 N; VW 1J0 121 253 P; VW 1J0 121 253 Q; VW 1J0 121 253 R; VW (FAW) 1J0 121 253 A; VW (FAW) 1J0 121 253 AD; VW (FAW) 1J0 121 253 B; VW (FAW) 1J0 121 253 L; VW (FAW) 1J0 121 253 M; VW (FAW) 1J0 121 253 R

Replaces aftermarket reference(s):
AUTOGAMMA: 101155, AVA: AI2129, AVA: AI2155, DENSO: DRM02007, J DEUS: M0010190, J DEUS: M001019A, MAHLE BEHR INDUSTRY: CR368001S, NISSENS: 652011, NISSENS: 692235, NRF: 509529, NRF: 509529A, TYC: 7020015, TYC: 7020033, VALEO: 731606, VAN WEZEL: 3002129, VAN WEZEL: 3002155, VEMO: V15605022
