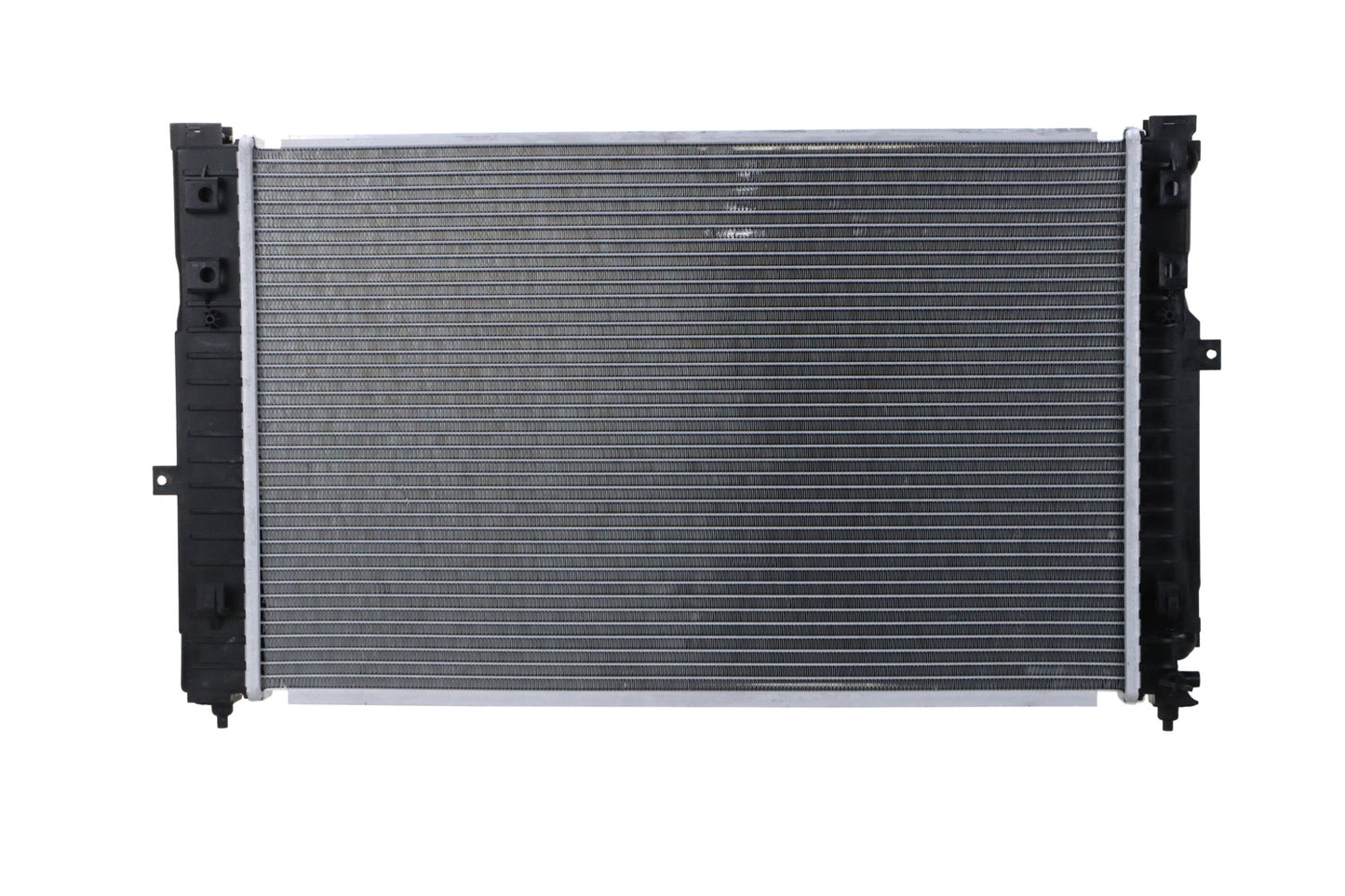

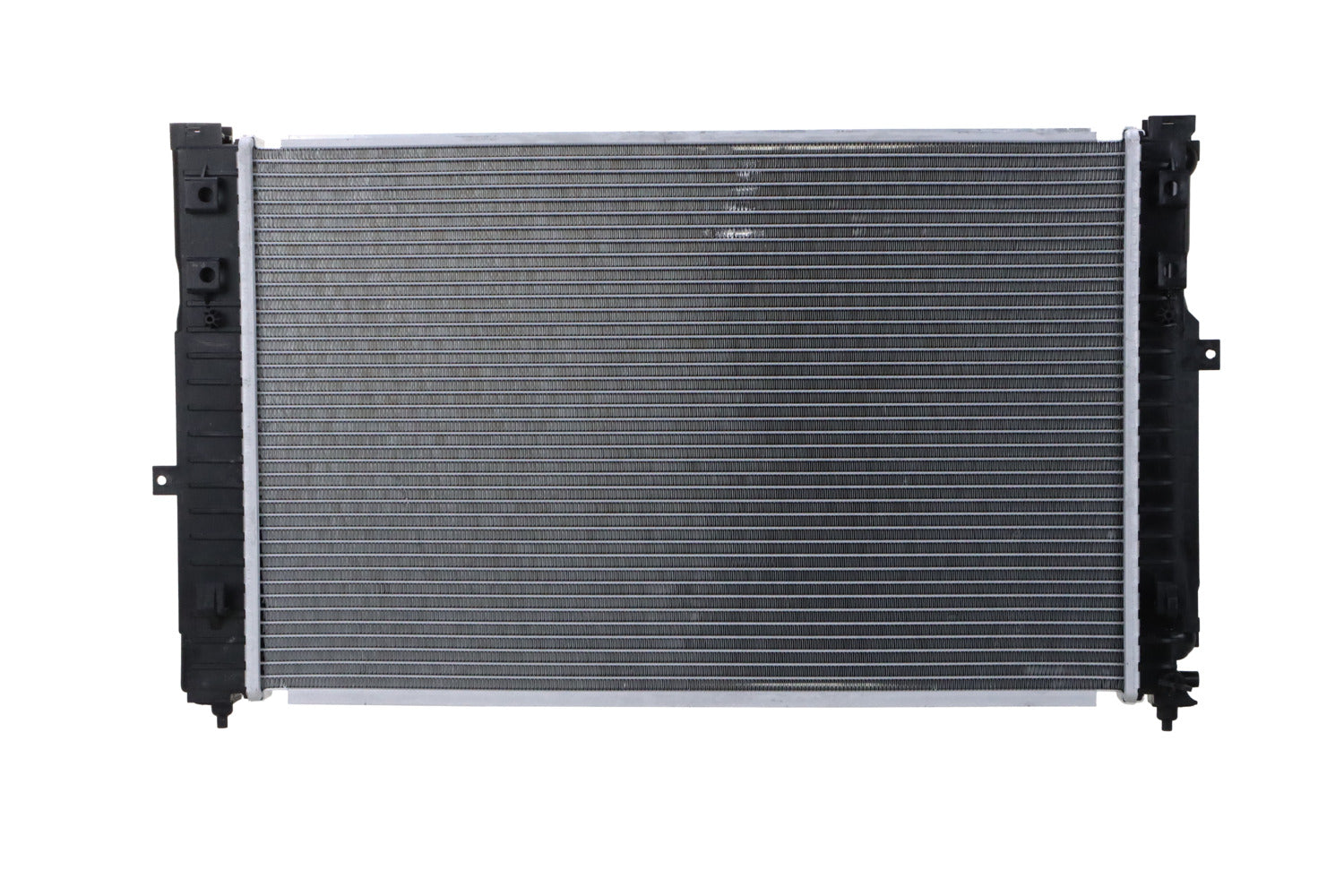

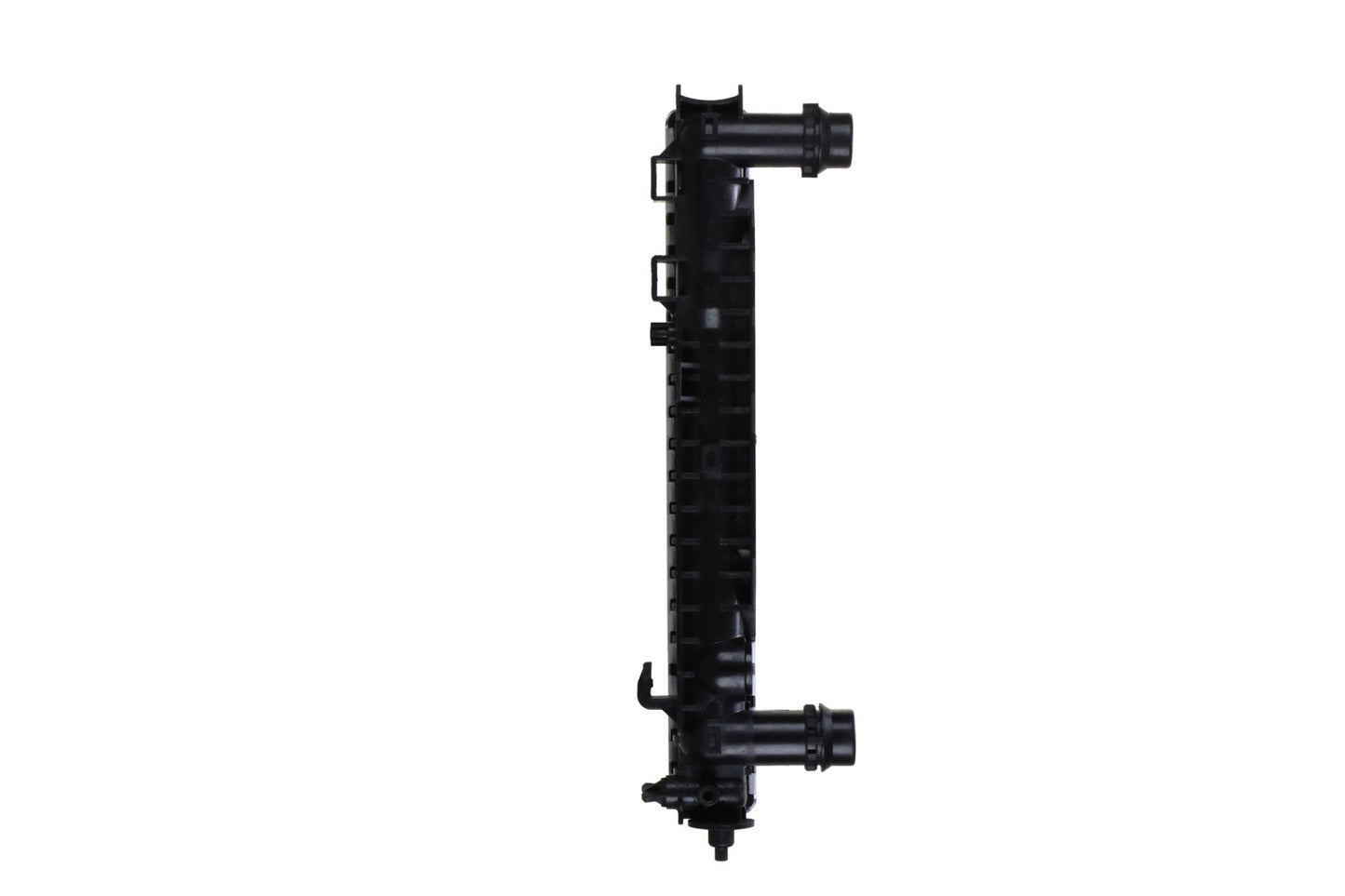

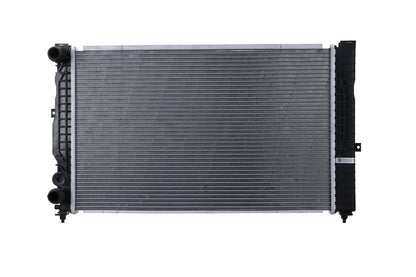

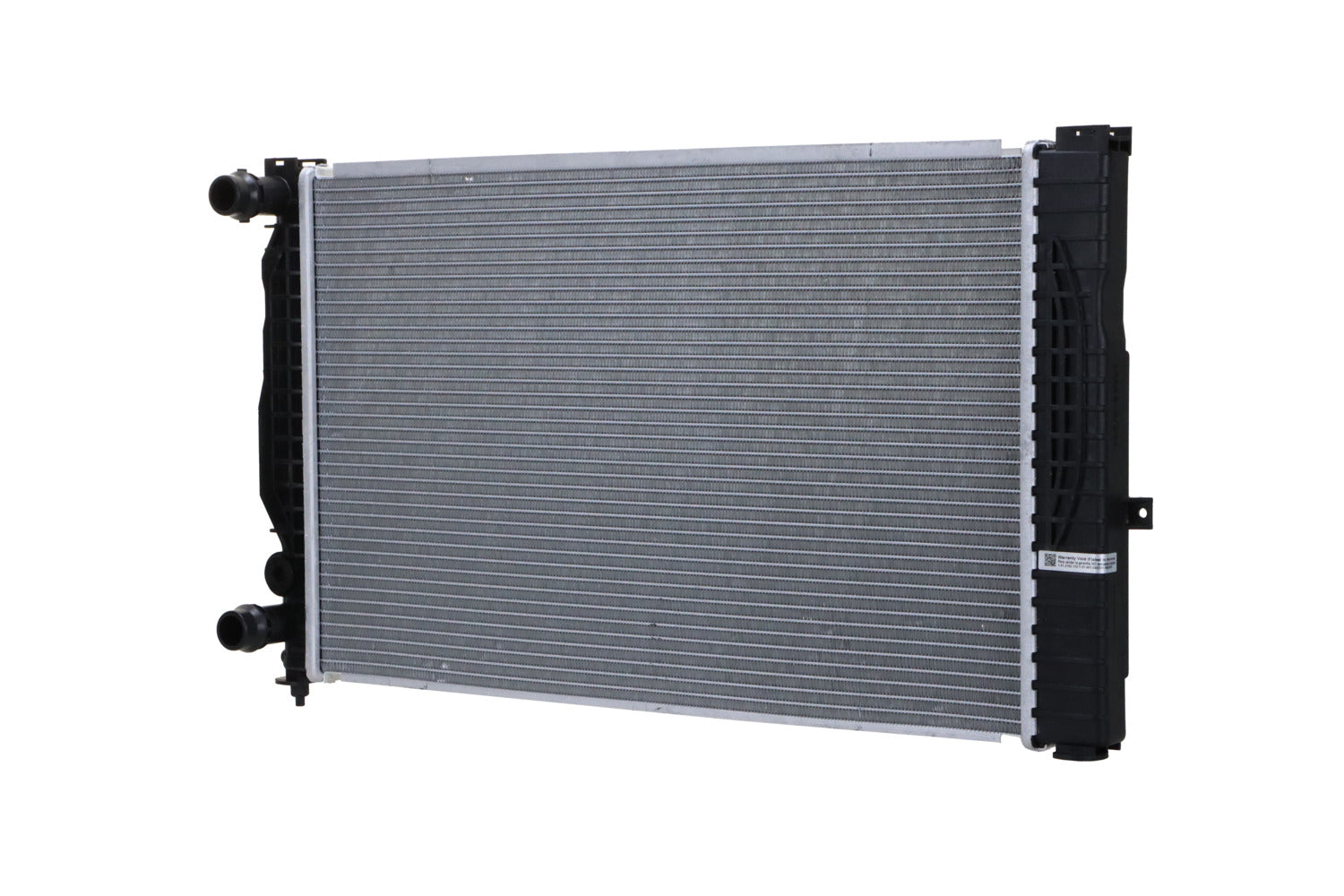

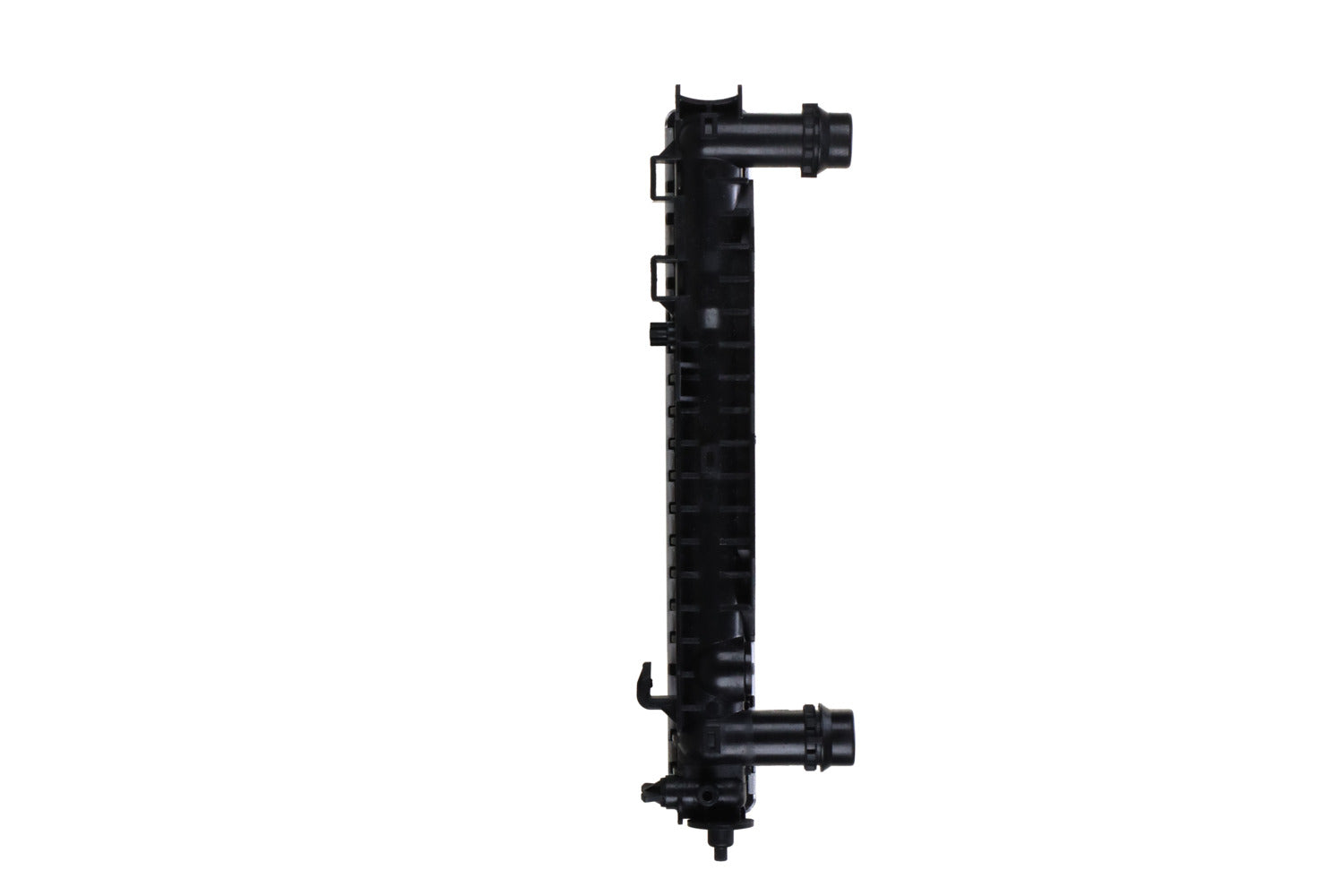

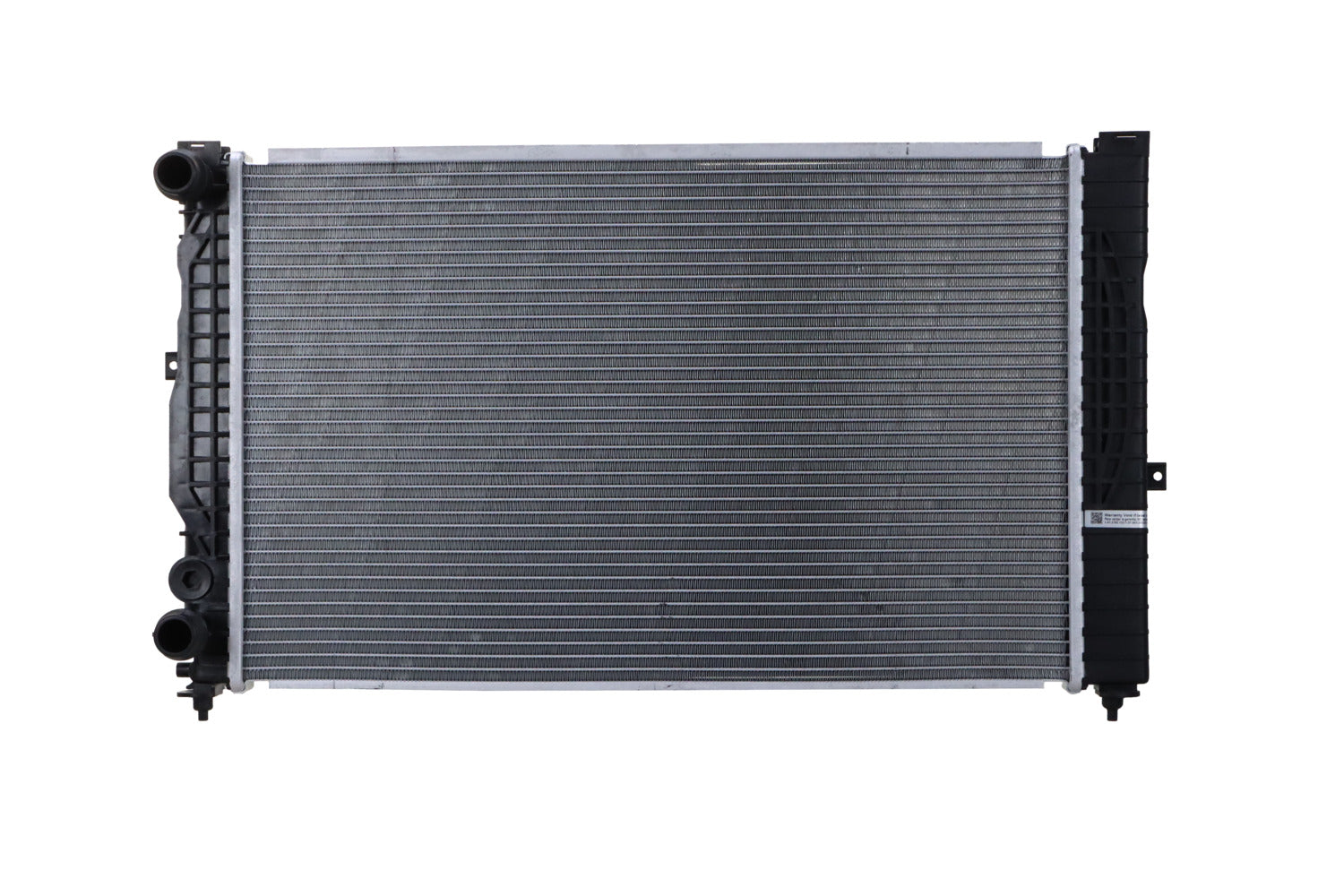

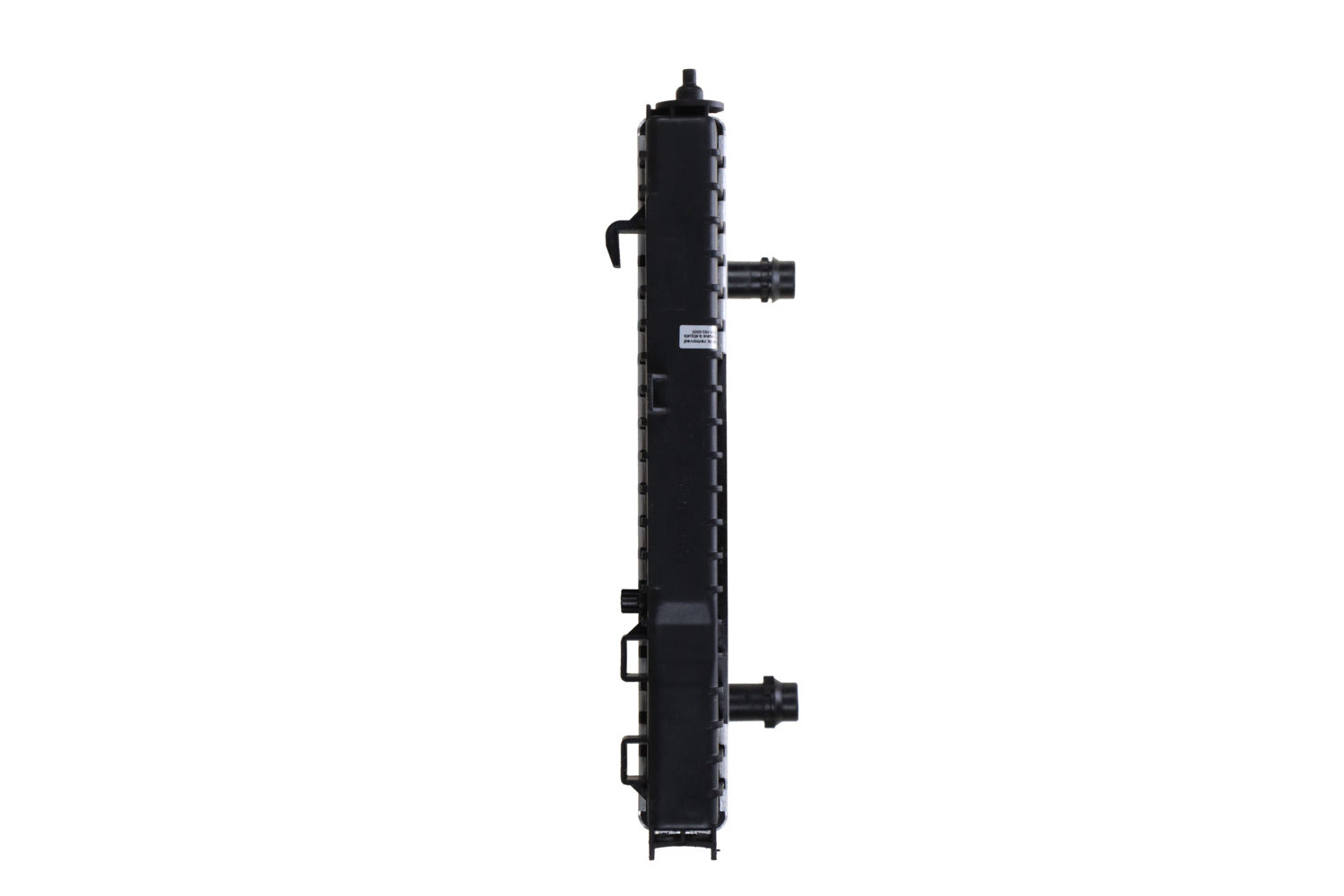

Hella Engine Coolant Radiator 8MK366302-751

Radiator, engine cooling - Brazed cooling fins - Aluminium/Plastic - with gaskets/seals - without expansion tank

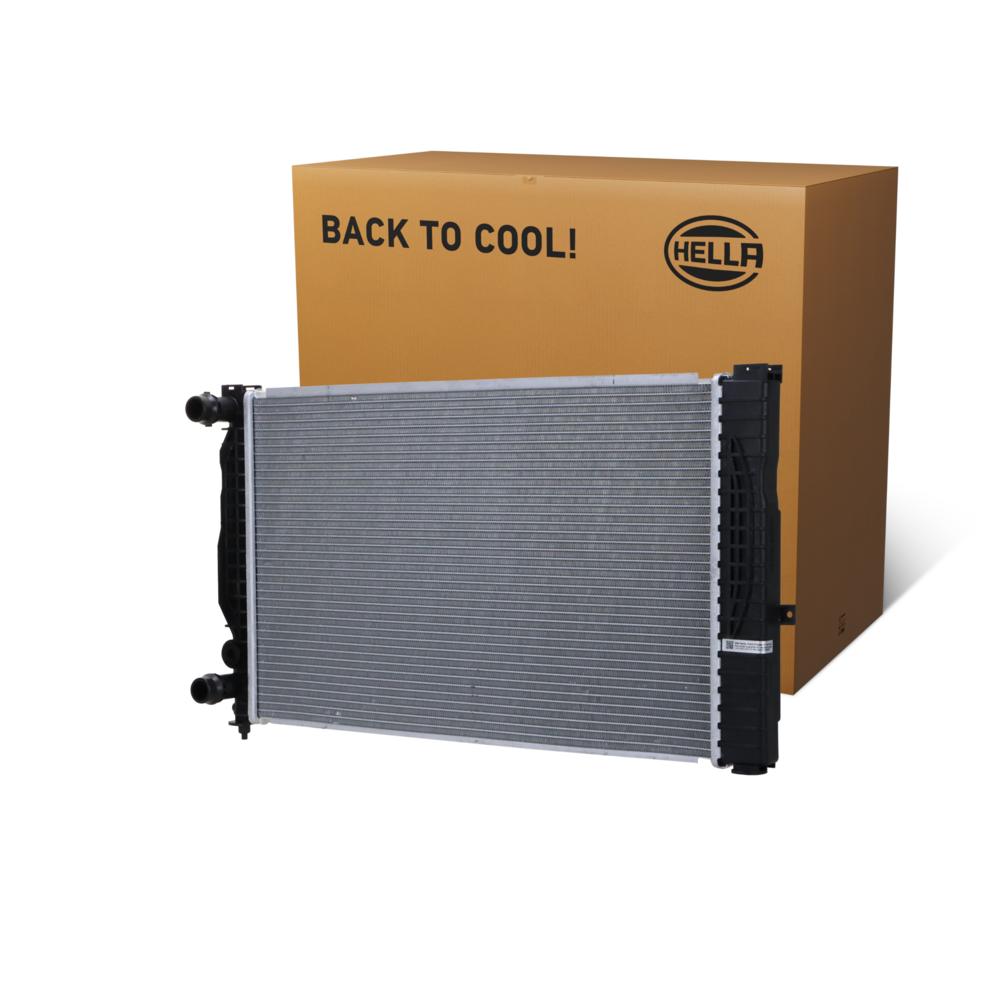

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. VW PASSAT B5.5 2.0 (please check exact vehicle application)
• Type: Brazed cooling fins - Cooling fins material: Aluminium - Water Tank Material (radiator): Plastic
• Core Length: 632mm - Core Width: 398mm - Core Depth: 32mm - Inlet Ø: 32.5mm - Outlet Ø: 32.5mm
• with gaskets/seals - without expansion tank
• High quality: HELLA radiators are designed to fulfil the highest quality requirements, thereby ensuring compatibility and high performance across a variety of vehicle models and conditions.
• Easy installation: Thanks to a precise fit and a complete range of accessories, HELLA radiators enable quick and smooth installation and reduce vehicle downtime.
• Reliable and durable: Manufactured from high-quality materials, HELLA radiators undergo rigorous testing, including corrosion resistance, vibration resistance and thermal performance evaluations, to ensure long-lasting operation and optimum efficiency.

Item Attributes:
Type: Brazed cooling fins
Cooling fins material: Aluminium
Water Tank Material (radiator): Plastic
Core Length: 632 mm
Core Width: 398 mm
Core Depth: 32 mm
Inlet Ø: 32.5 mm
Outlet Ø: 32.5 mm
Supplementary Article/Supplementary Info: with gaskets/seals
Supplementary Article/Supplementary Info 2: without expansion tank
Assembly by qualified personnel required!

Replaces OEM reference(s):
AUDI 4B0 121 251 G; AUDI 8D0 121 251 AC; AUDI 8D0 121 251 AJ; AUDI 8D0 121 251 AL; AUDI 8D0 121 251 AT; AUDI 8D0 121 251 BA; AUDI 8D0 121 251 BH; AUDI 8D0 121 251 BJ; AUDI 8D0 121 251 E; AUDI 8D0 121 251 J; AUDI 8D0 121 251 K; AUDI 8D0 121 251 P; AUDI 8D0 121 251 Q; AUDI (FAW) 4B0 121 251 G; AUDI (FAW) 8D0 121 251 AC; AUDI (FAW) 8D0 121 251 AJ; AUDI (FAW) 8D0 121 251 AL; AUDI (FAW) 8D0 121 251 AT; AUDI (FAW) 8D0 121 251 BA; AUDI (FAW) 8D0 121 251 BH; AUDI (FAW) 8D0 121 251 BJ; AUDI (FAW) 8D0 121 251 E; AUDI (FAW) 8D0 121 251 J; AUDI (FAW) 8D0 121 251 K; AUDI (FAW) 8D0 121 251 P; AUDI (FAW) 8D0 121 251 Q; CUPRA 4B0 121 251 G; CUPRA 8D0 121 251 AC; CUPRA 8D0 121 251 AJ; CUPRA 8D0 121 251 AL; CUPRA 8D0 121 251 AT; CUPRA 8D0 121 251 BA; CUPRA 8D0 121 251 BH; CUPRA 8D0 121 251 BJ; CUPRA 8D0 121 251 E; CUPRA 8D0 121 251 J; CUPRA 8D0 121 251 K; CUPRA 8D0 121 251 P; CUPRA 8D0 121 251 Q; SEAT 4B0 121 251 G; SEAT 8D0 121 251 BH; SEAT 8D0 121 251 E; SEAT 8D0 121 251 P; SEAT 8D0 121 251 Q; SKODA 4B0 121 251 G; SKODA 8D0 121 251 BH; SKODA 8D0 121 251 E; SKODA 8D0 121 251 P; SKODA 8D0 121 251 Q; SKODA 8D0121251AT; SKODA 8D0121251BA; VW 4B0 121 251 G; VW 8D0 121 251 AC; VW 8D0 121 251 AJ; VW 8D0 121 251 AL; VW 8D0 121 251 AT; VW 8D0 121 251 BA; VW 8D0 121 251 BH; VW 8D0 121 251 BJ; VW 8D0 121 251 E; VW 8D0 121 251 J; VW 8D0 121 251 K; VW 8D0 121 251 P; VW 8D0 121 251 Q; VW (SVW) 4B0 121 251 G; VW (SVW) 8D 0121 251 BH; VW (SVW) 8D0 121 251 AC; VW (SVW) 8D0 121 251 AJ; VW (SVW) 8D0 121 251 AL; VW (SVW) 8D0 121 251 AT; VW (SVW) 8D0 121 251 BA; VW (SVW) 8D0 121 251 BJ; VW (SVW) 8D0 121 251 E; VW (SVW) 8D0 121 251 J; VW (SVW) 8D0 121 251 K; VW (SVW) 8D0 121 251 P; VW (SVW) 8D0 121 251 Q

Replaces aftermarket reference(s):
AUTOGAMMA: 100062, AVA: AI2189, AVA: AIA2123, J DEUS: M0010160, J DEUS: M0010180, MAHLE BEHR INDUSTRY: CR647000S, NISSENS: 60299, NISSENS: 698526, NISSENS: 699844, NISSENS: 60308A, NRF: 53175, NRF: 56127, NRF: 58259, NRF: 509504, TYC: 7020011, TYC: 7020034, VALEO: 731537, VALEO: 732811, VAN WEZEL: 3002123, VAN WEZEL: 3002189, VEMO: V10600001, VEMO: V15605046
