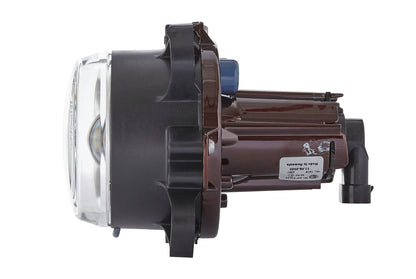

HELLA FF/DE/Halogen-Headlight - 90mm Performance - 12V 1BL247042-001

FF/DE/Halogen-Headlight - 90mm Performance - 12V - round - ECE/CCC - Hardened diffusing lens/Clear diffusing lens - transparent - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light

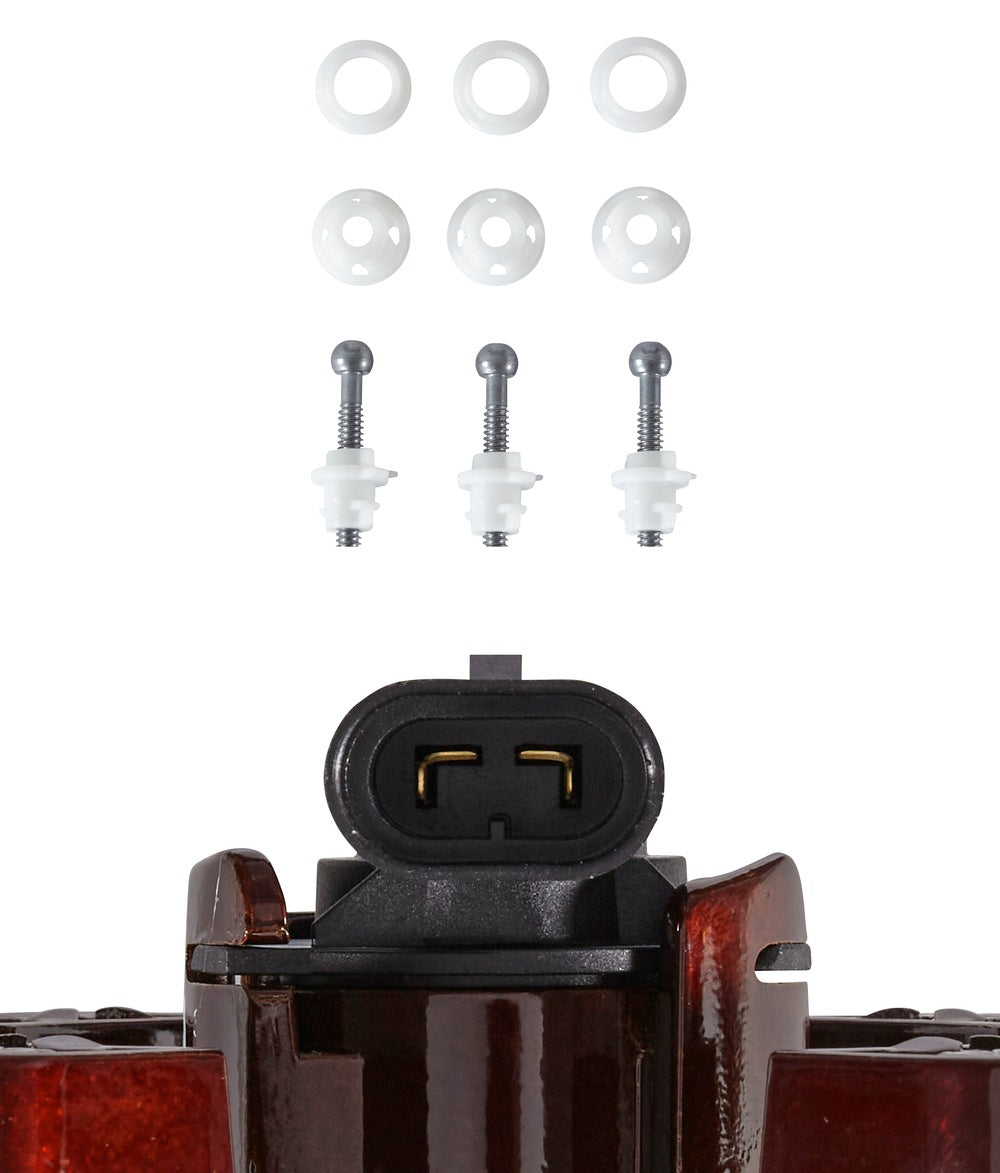

• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 160mm - Lamp Type: H1 - with accessories/with bulb - Electromagnetic Compatibility (EMC)
• Light functions: 1 - with low beam
• Registration Type: ECE/CCC - for right-hand traffic - Prot.type (IP Code): IPX4K/IPX9K

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Fitting Position: right / left
Lamp Type: H1
Light Function: with low beam
Light Design: DE / Halogen / FF
Voltage: 12 V
Width: 113 mm
Height: 113 mm
Depth: 160 mm
Diffusing Lens Material: Glass
Housing Colour: black
Diffusing Lens Type: Clear diffusing lens / Hardened diffusing lens
Lens Colour: transparent
Prot.type (IP Code): IPX4K / IPX9K
Illuminated Area: 90 mm
Light functions: 1
Registration Type: CCC / ECE
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info: with accessories / with bulb
Dust Cover: with dust cover
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: CLAAS 11244100; CLAAS 30767280; DELVANO 8041329; DURSO IE4307.05033; FIAT 5801342346; HITACHI YA0005923800; IVECO 5801342346; IVECO 5802981998; IVECO 5802981998/5801342346; JCB 333/W7815; KNAUS R01010165; RENAULT 11244100; SCANIA 2053966; YANMAR 1A8330-53210-2
