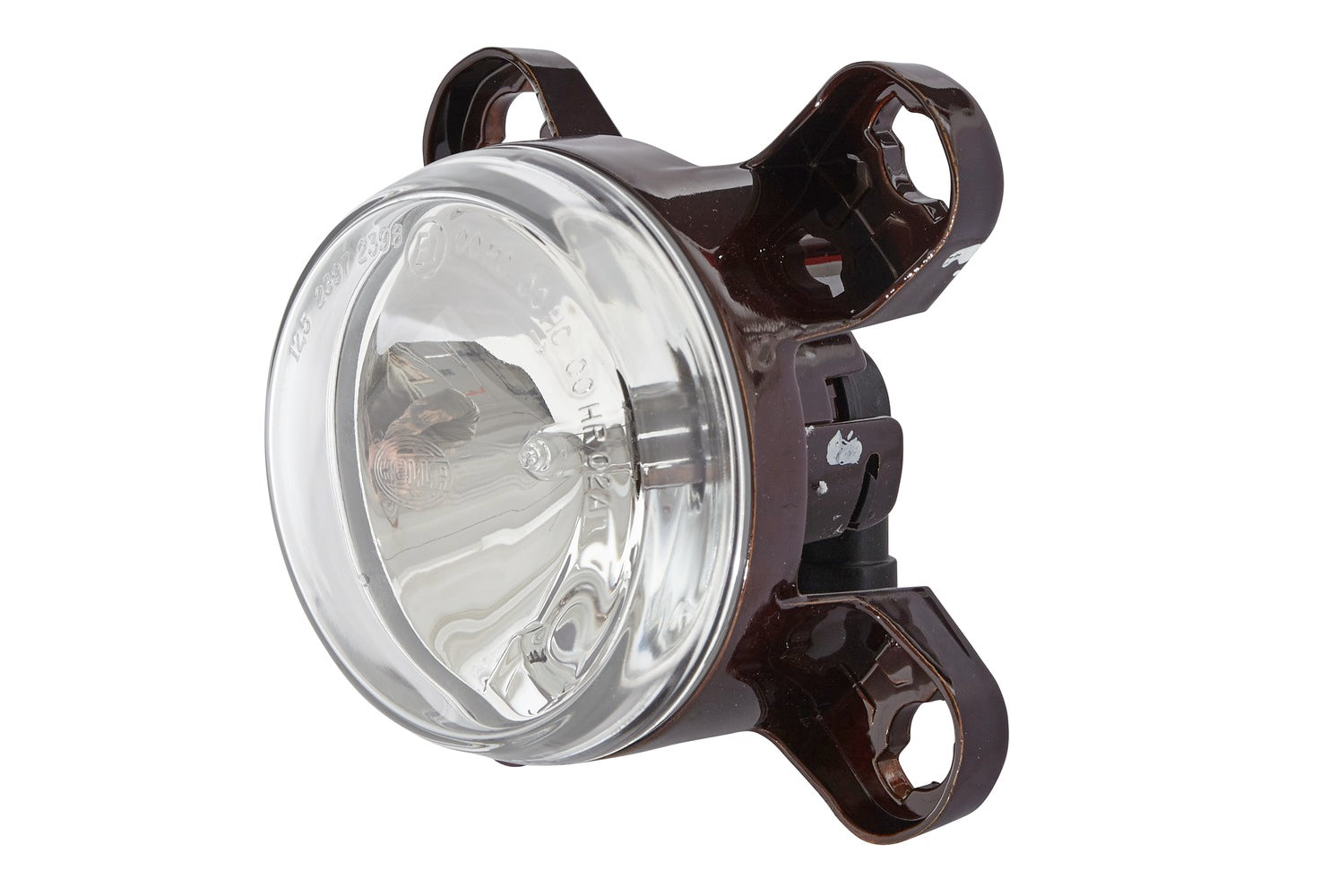

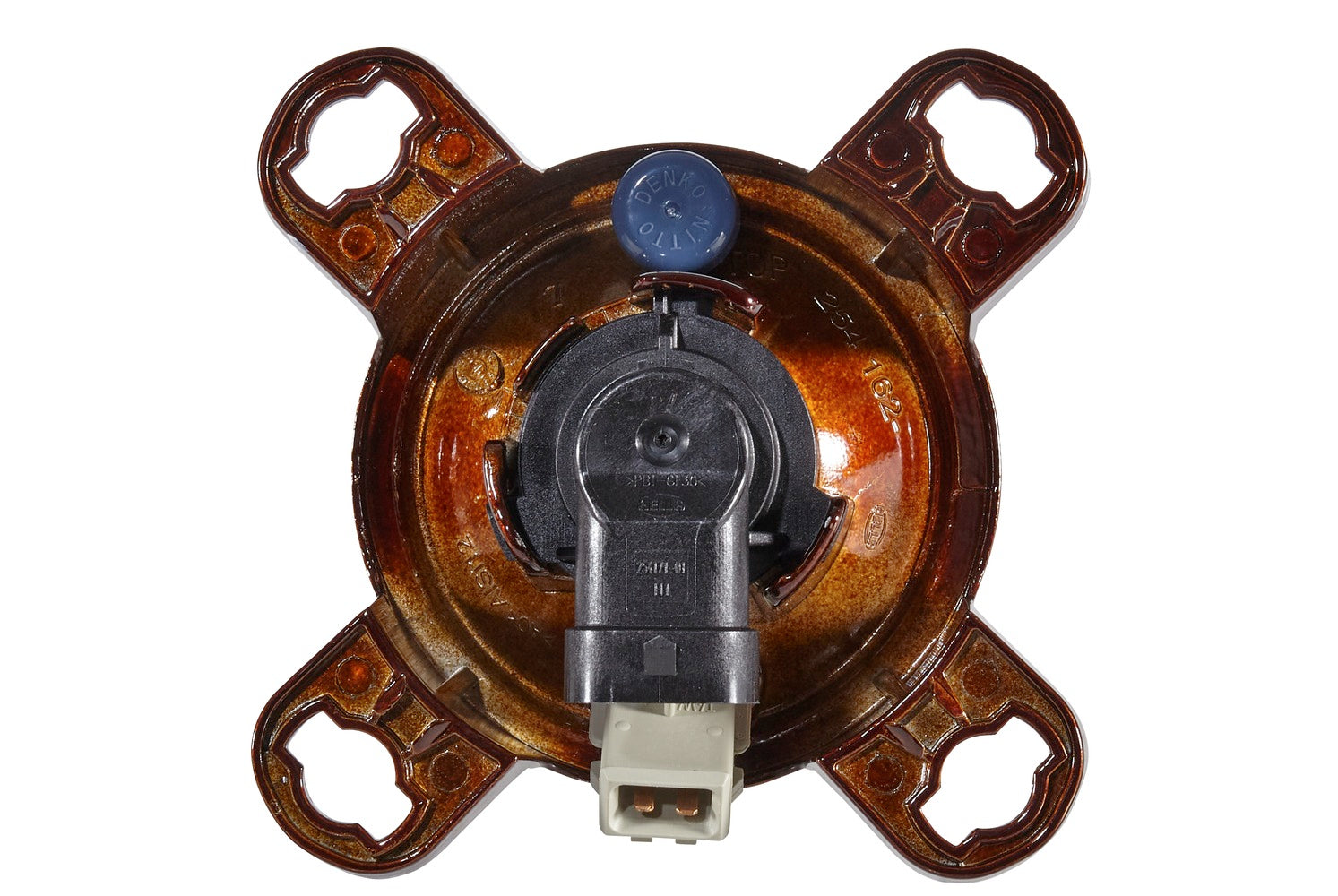

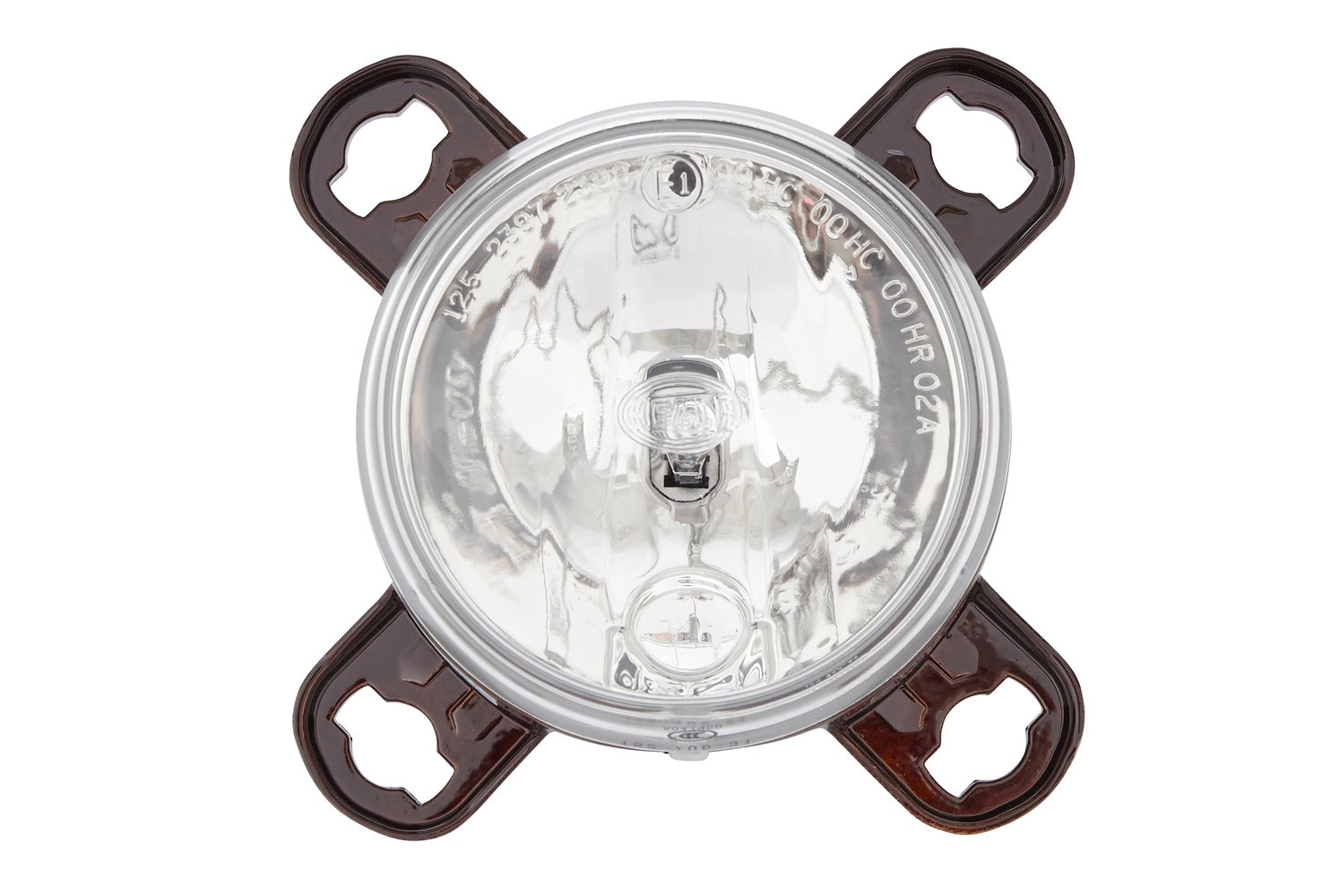

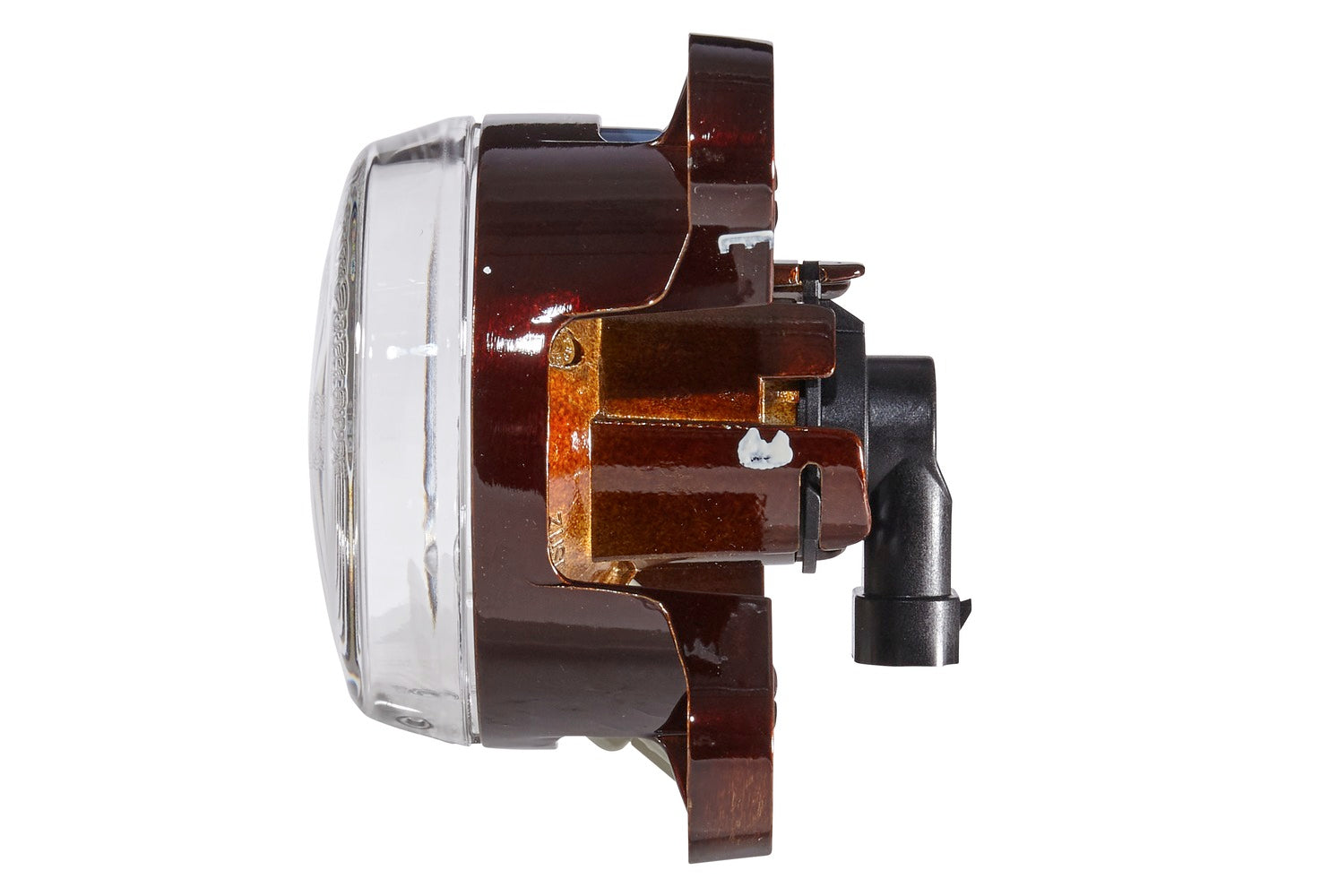

HELLA FF/DE/Halogen-Headlight - 90mm Performance - 12V 1K0247043-001

FF/DE/Halogen-Headlight - 90mm Performance - 12V - round - Reference number: 12.5 - ECE/CCC - Hardened diffusing lens - transparent - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light

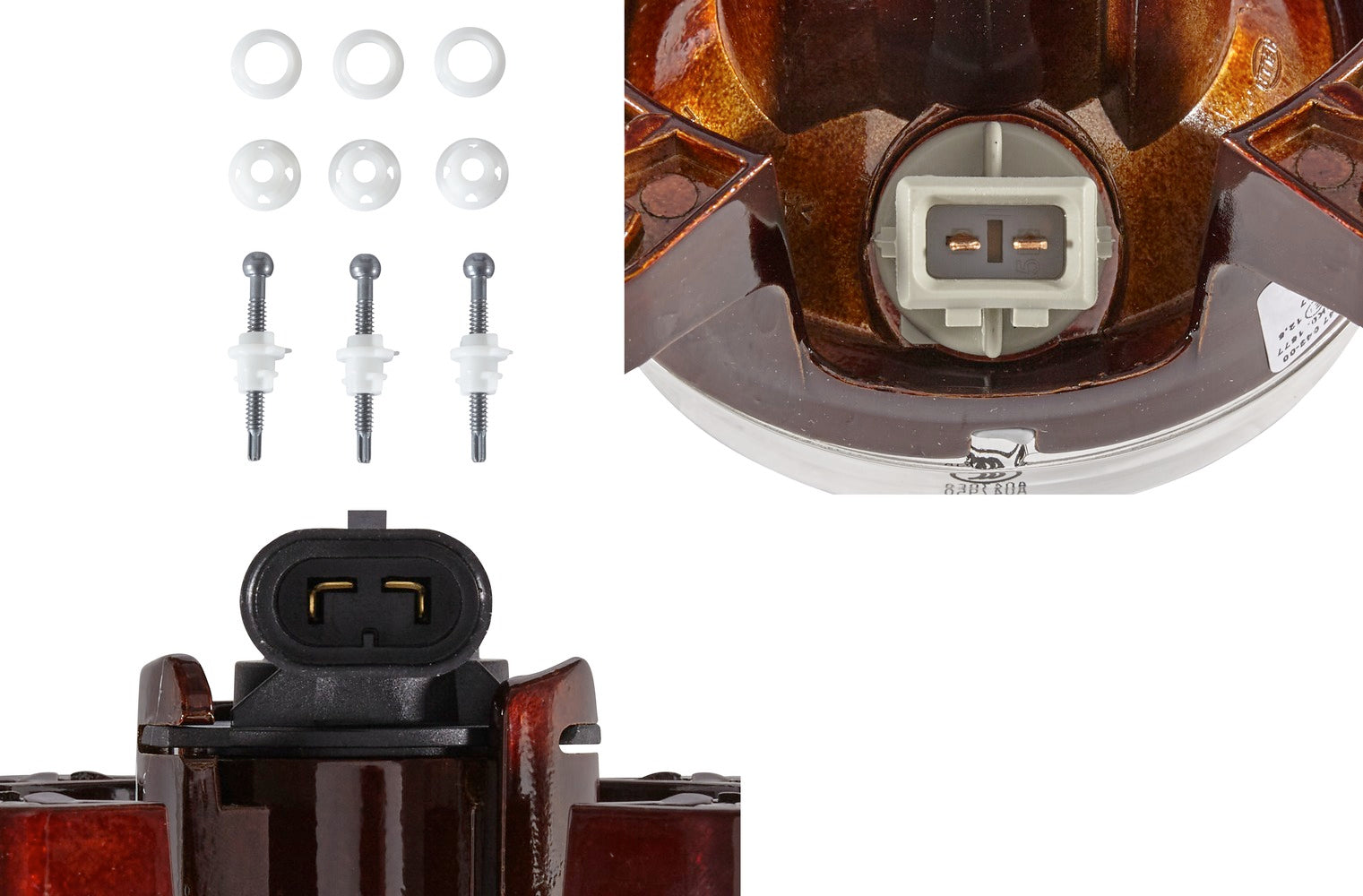

• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1/T4W - with bulbs/Electromagnetic Compatibility (EMC)
• Light functions: 2 - with high beam/with position light
• Registration Type: ECE/CCC - for right-hand traffic/for left-hand traffic - Prot.type (IP Code): IPX4K/IPX9K

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Fitting Position: left / right
Lamp Type: T4W / H1
Light Function: with position light / with high beam
Light Design: Halogen / DE / FF
Voltage: 12 V
Width: 113 mm
Height: 113 mm
Depth: 97 mm
Diffusing Lens Material: Glass
Housing Colour: black
Diffusing Lens Type: Hardened diffusing lens
Lens Colour: transparent
Prot.type (IP Code): IPX4K / IPX9K
Illuminated Area: 90 mm
Light functions: 2
Reference number: 12.5
Registration Type: ECE / CCC
Shape: round
Left-hand/Right-hand Traffic: for left-hand traffic / for right-hand traffic
Dust Cover: with dust cover
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC) / with bulbs
Assembly by qualified personnel required!

OE references: DURSO IE4307.05034; HITACHI YA0005923700; IVECO 5801 342354; IVECO 5802455750; KNAUS R01010166
