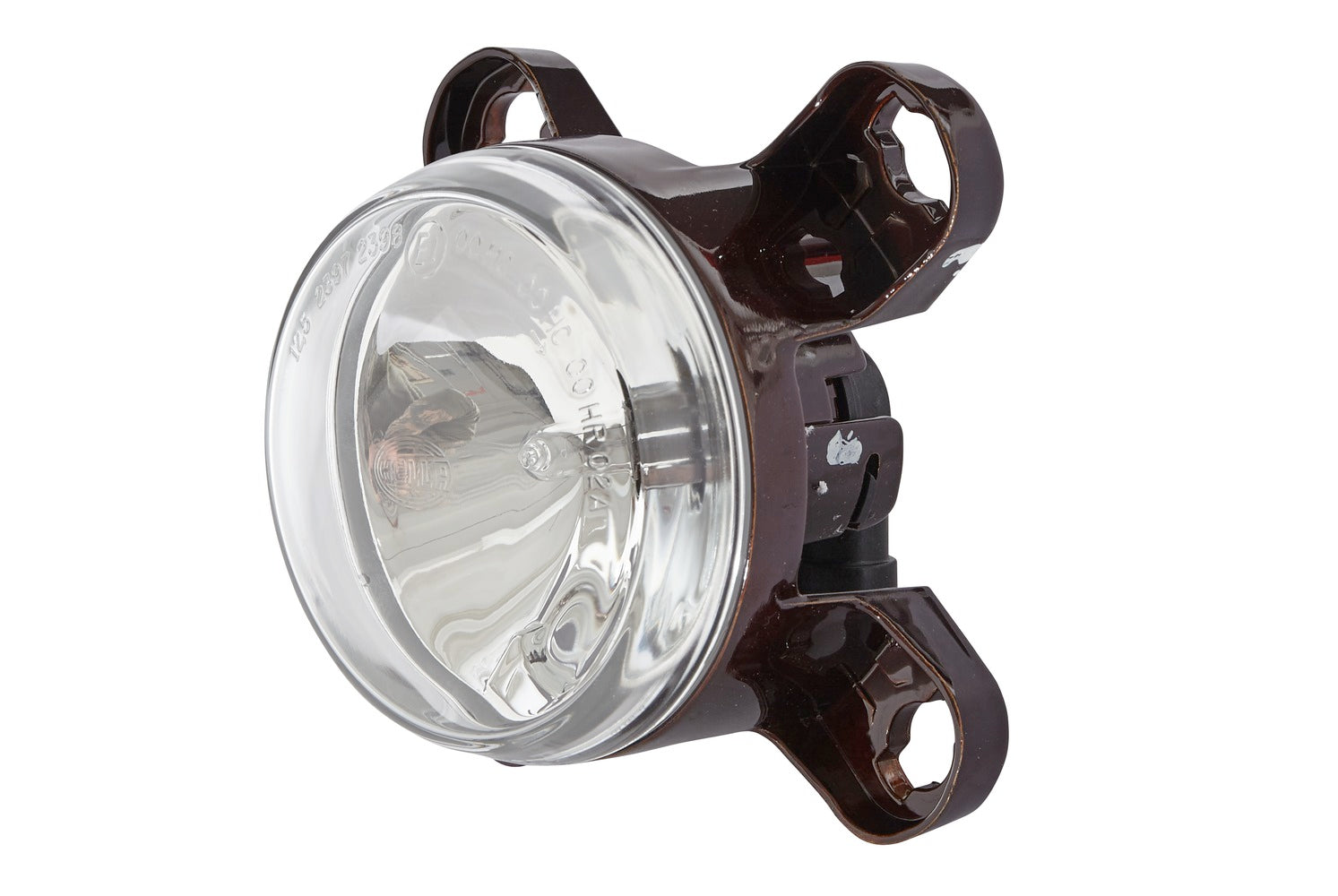

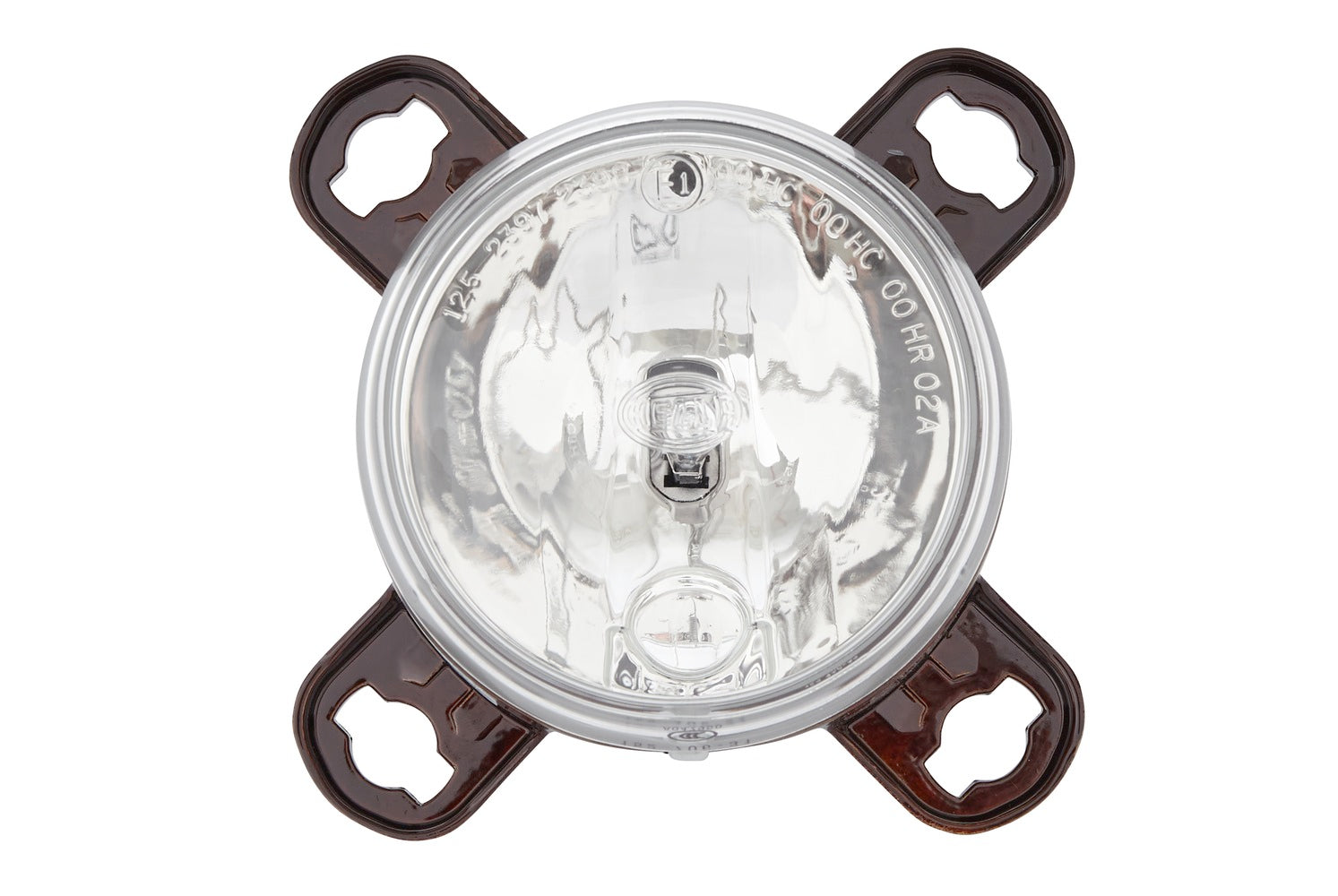

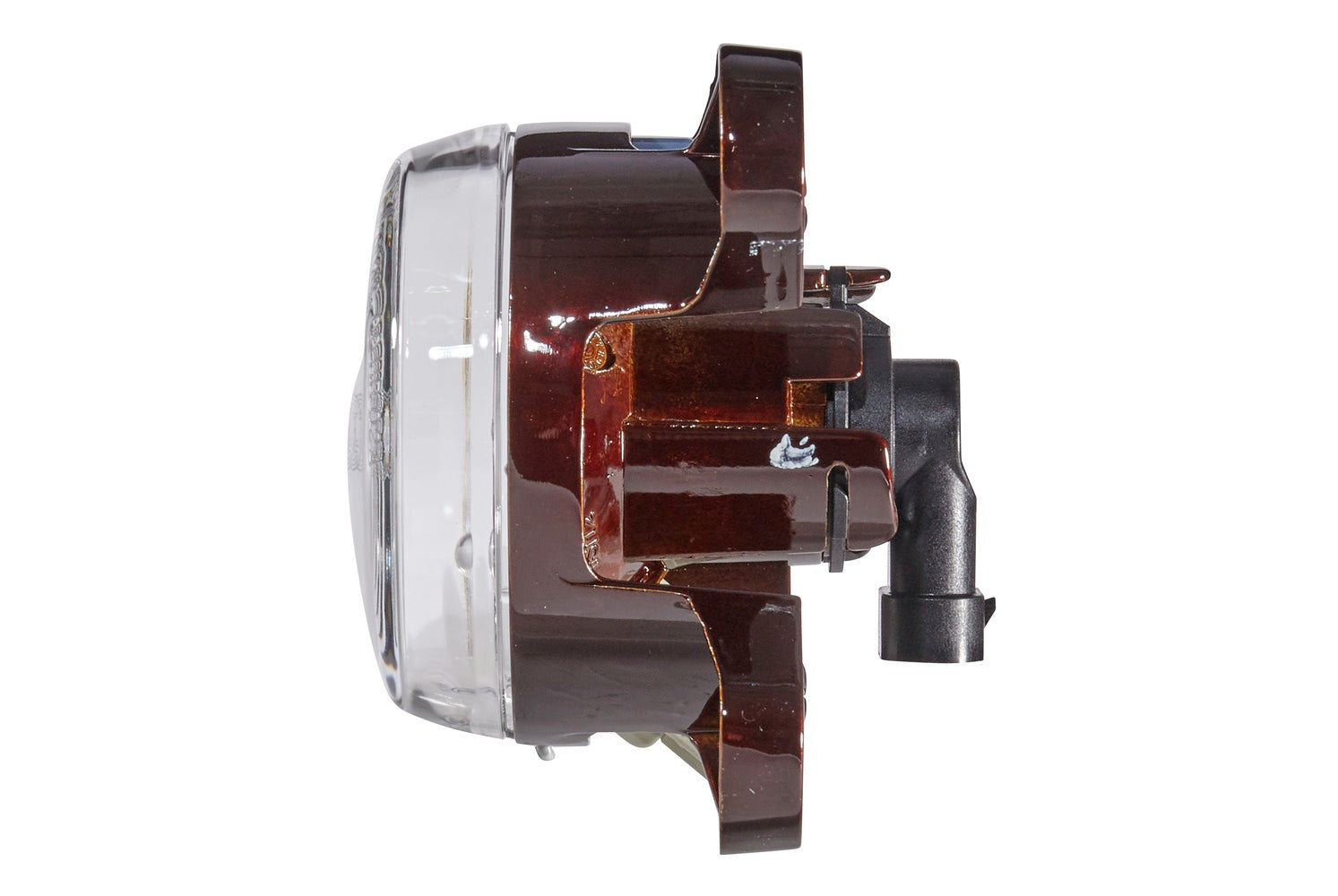

HELLA FF/DE/Halogen-Headlight - 90mm Performance - 24V 1K0247043-021

FF/DE/Halogen-Headlight - 90mm Performance - 24V - round - Reference number: 12.5 - ECE/CCC - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light

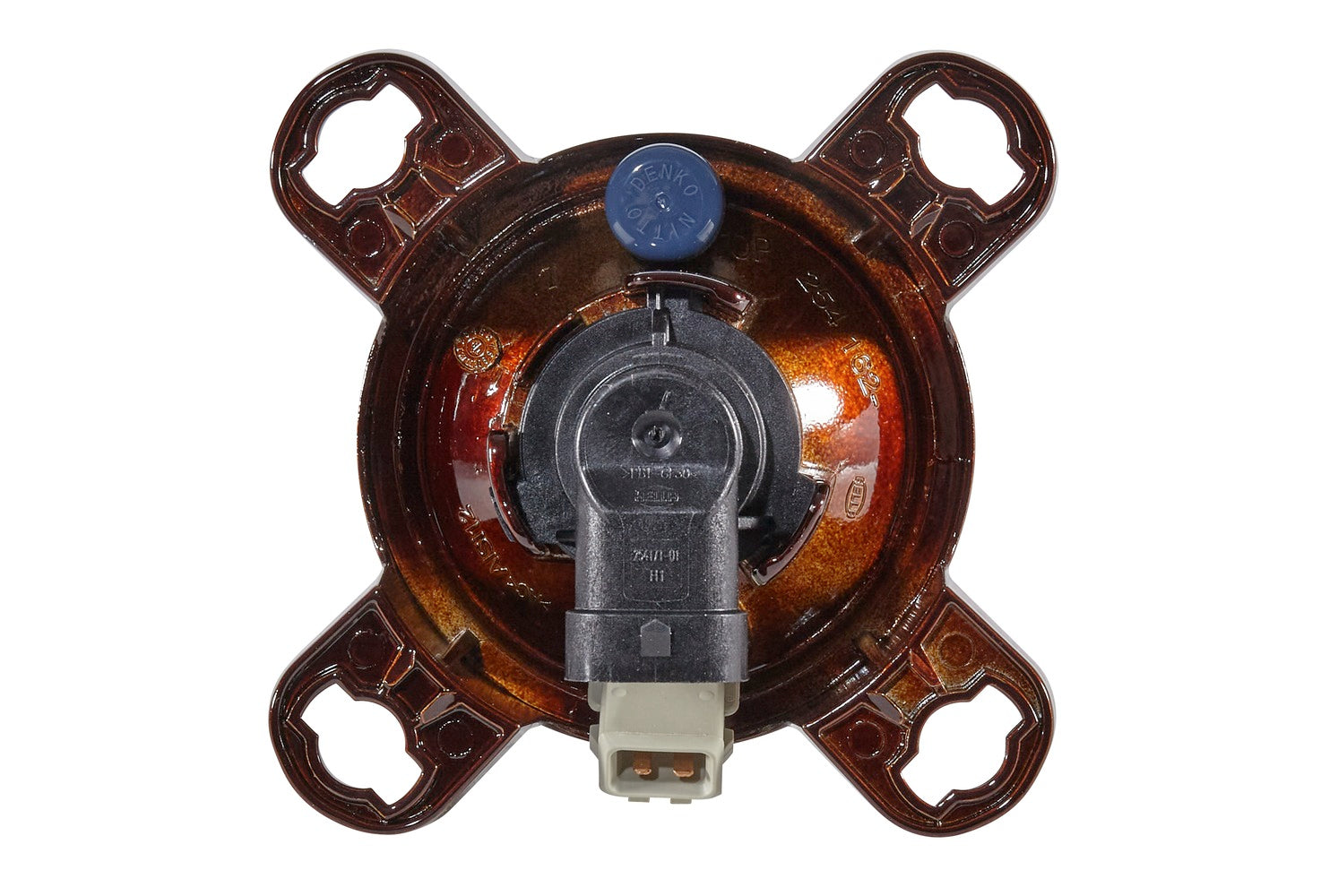

• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1/T4W - with bulbs
• Light functions: 2 - with high beam/with position light
• Registration Type: ECE/CCC - for right-hand traffic/for left-hand traffic

Item Attributes:
Mounting Type: Fitting

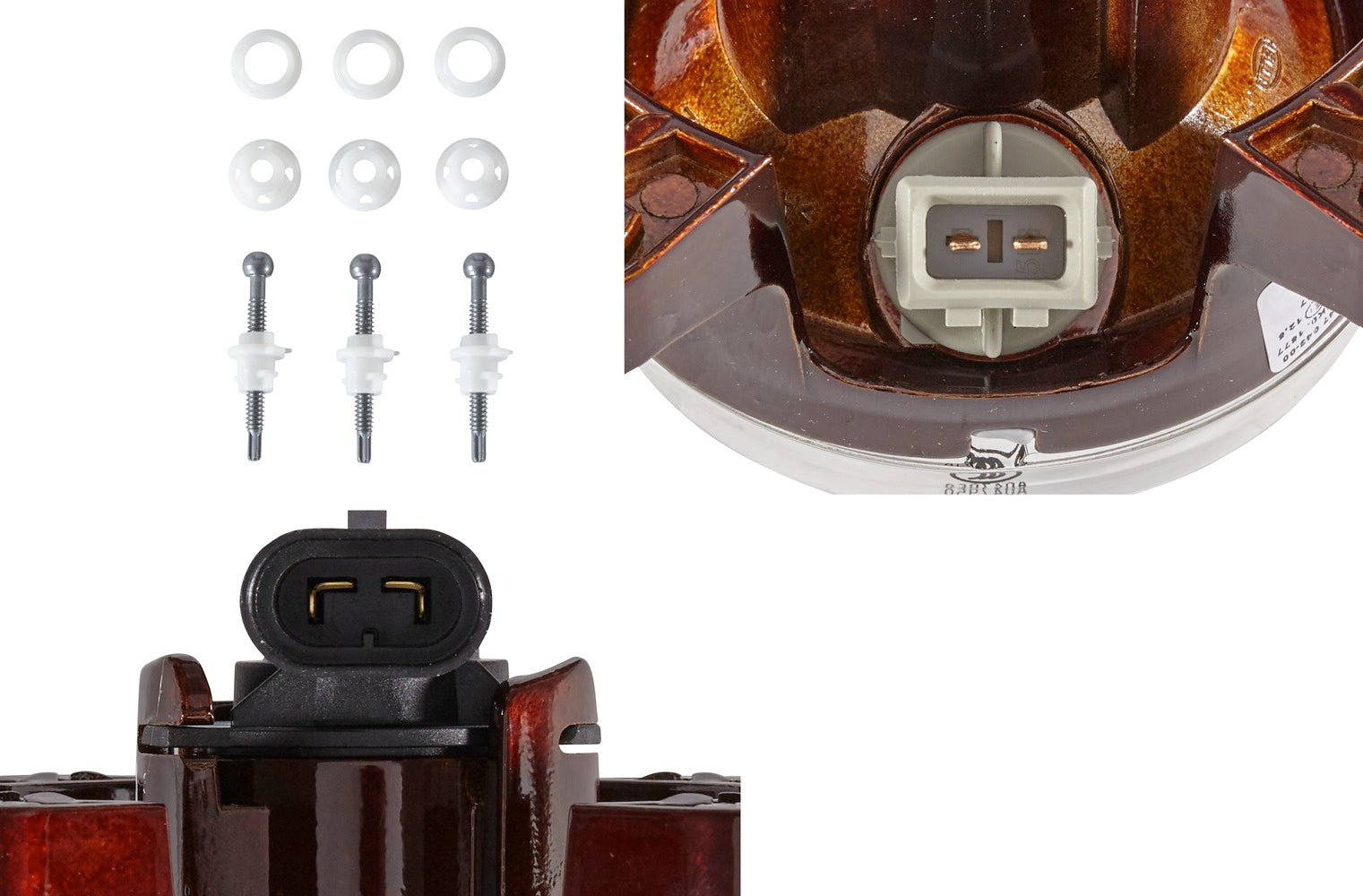

Fastening Type: 3-point attachment
Fitting Position: left / right
Lamp Type: H1 / T4W
Light Function: with position light / with high beam
Light Design: FF / Halogen / DE
Voltage: 24 V
Width: 113 mm
Height: 113 mm
Depth: 97 mm
Illuminated Area: 90 mm
Light functions: 2
SVHC: 7439-92-1; Lead
Reference number: 12.5
Registration Type: ECE / CCC
Shape: round
Left-hand/Right-hand Traffic: for left-hand traffic / for right-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!

OE references: ALEXANDER DENNIS 7610001L46; GOLDHOFER 260529; HEULIEZ 5801342354; HEULIEZ HZ5801342354; IRIZAR 591586MA; IVECO 5801342354; KRAUSS-MAFFEI 10356824; LIEBHERR 11341458; MERCEDES-BENZ 956 820 02 39; MERCEDES-BENZ A 956 820 02 39; VAN HOOL 11063953; VOLVO 15122942; VOLVO 21464473
