HELLA FF/DE/Halogen-Headlight - 90mm Performance - 24V 1K0247043-031

FF/DE/Halogen-Headlight - 90mm Performance - 24V - round - Reference number: 12.5 - ECE - left/right - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1 - Electromagnetic Compatibility (EMC)
• Light functions: 2 - with high beam/without position light
• Registration Type: ECE - for right-hand traffic/for left-hand traffic

Item Attributes:
Mounting Type: Fitting

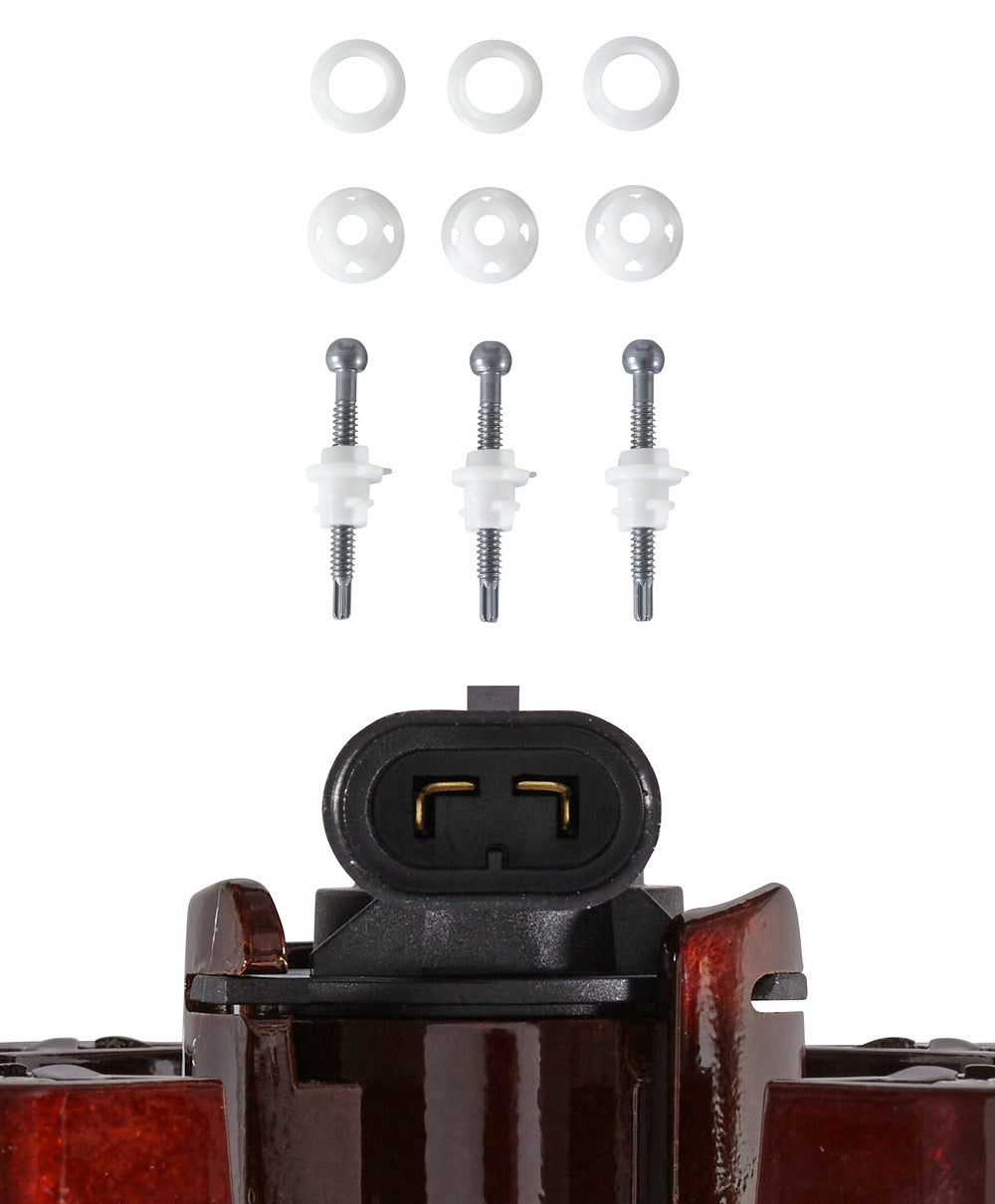

Fastening Type: 3-point attachment
Fitting Position: left / right
Lamp Type: H1
Light Function: without position light / with high beam
Light Design: FF / Halogen / DE
Voltage: 24 V
Width: 113 mm
Height: 113 mm
Depth: 97 mm
Quantity: 1
Illuminated Area: 90 mm
Light functions: 2
Reference number: 12.5
Registration Type: ECE
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic / for left-hand traffic
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: AEBI 1312300-5; ALEXANDER DENNIS 103755C; MERCEDES-BENZ 949 820 00 39; MERCEDES-BENZ A 949 820 00 39; PLAXTON 103755C.; SCANIA 2053967; VDL 30040169; VOLVO TEL15391165
