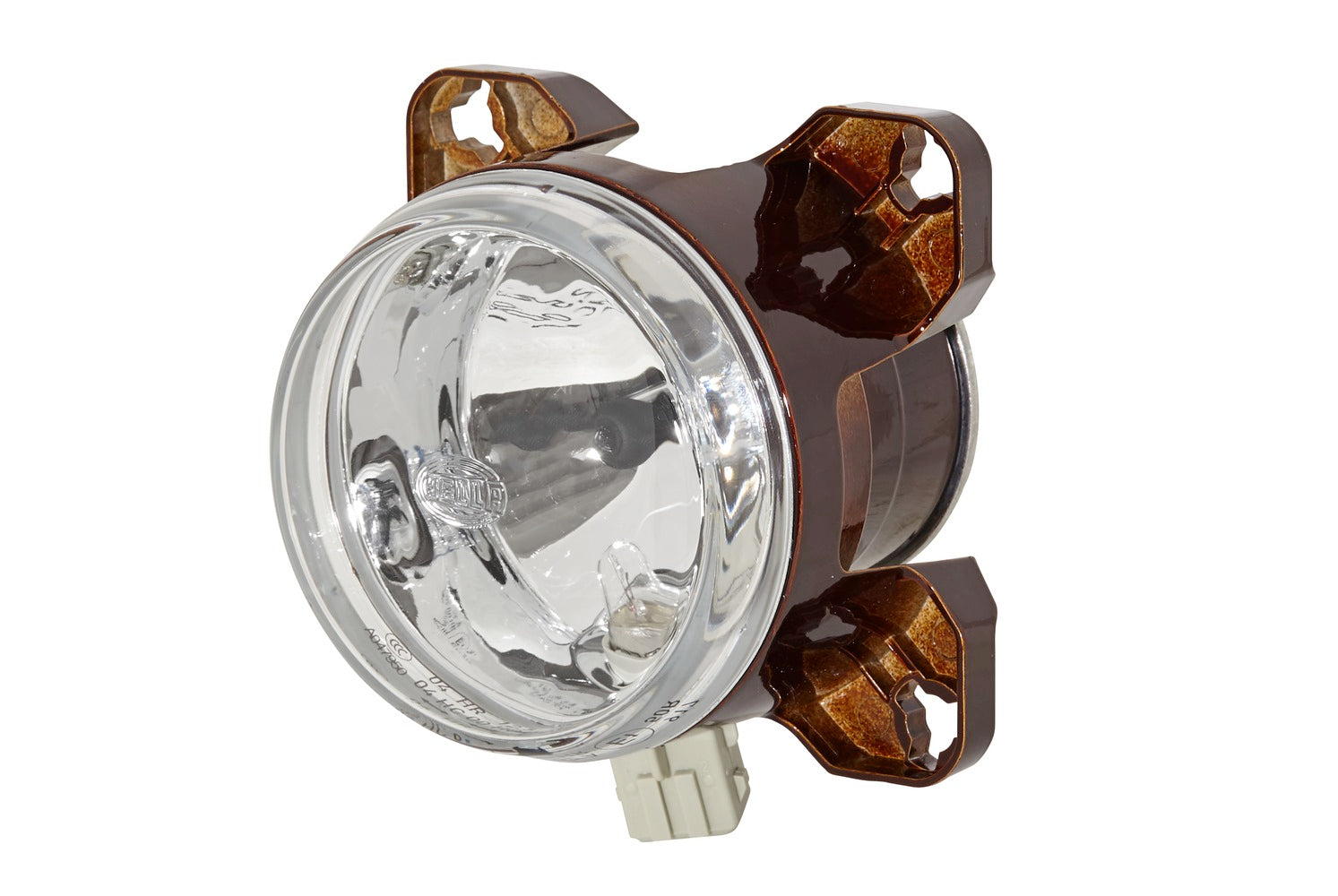

HELLA FF/Halogen-Insert, spotlight - 90mm Essential - 12V 1K0008191-001

FF/Halogen-Insert, spotlight - 90mm Essential - 12V - round - Reference number: 12.5 - CCC - Clear diffusing lens - left/right - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Lamp Type: H7/T4W - with bulb - with bulbs
• Light functions: 2 - with high beam/with position light
• Registration Type: CCC - fulfils ECE standard: R112/R50/R7/R8 - Prot.type (IP Code): IP5KX/IPX9K
• Mounting Type: Fitting/Screw Connection - Fastening Type: Four-point attachment

Item Attributes:
Mounting Type: Fitting / Screw Connection
Fastening Type: Four-point attachment
Fitting Position: right / left
Lamp Type: H7 / T4W
Light Function: with high beam / with position light
Light Design: Halogen / FF
Voltage: 12 V
Diffusing Lens Type: Clear diffusing lens
Prot.type (IP Code): IPX9K / IP5KX
fulfils ECE standard: R7 / R8 / R112 / R50
Quantity: 1
Illuminated Area: 90 mm
Light functions: 2
SVHC: 7439-92-1; Lead / 1330-43-4; Disodium tetraborate, anhydrous
Reference number: 12.5
Registration Type: CCC
Shape: round
Supplementary Article/Supplementary Info: with bulb
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!

OE references: BMC 58RS111462; CLAAS 7700066388; HAKO 45604150000; HAKO 45604150001; HYMER 0417287; HYMER 0417287-00; HYMER 0827175; HYMER 0879950; HYMER 0879950-00; HYMER 1017244; HYMER 1025825; HYMER 1453701; HYMER 1603.15.116; IVECO 71701727MO; JCB 700/50141; KTM X1214001001; LAIKA 0417287-00; LAIKA 38917; LAIKA 417287; LINDNER 3005548; MITSUBISHI SMME31640S6; SCANIA SP1068233; VOLVO 11117173; VOLVO 15071289; VW KSP 941 781 A; WIESMANN 063-05-03-ET-003
