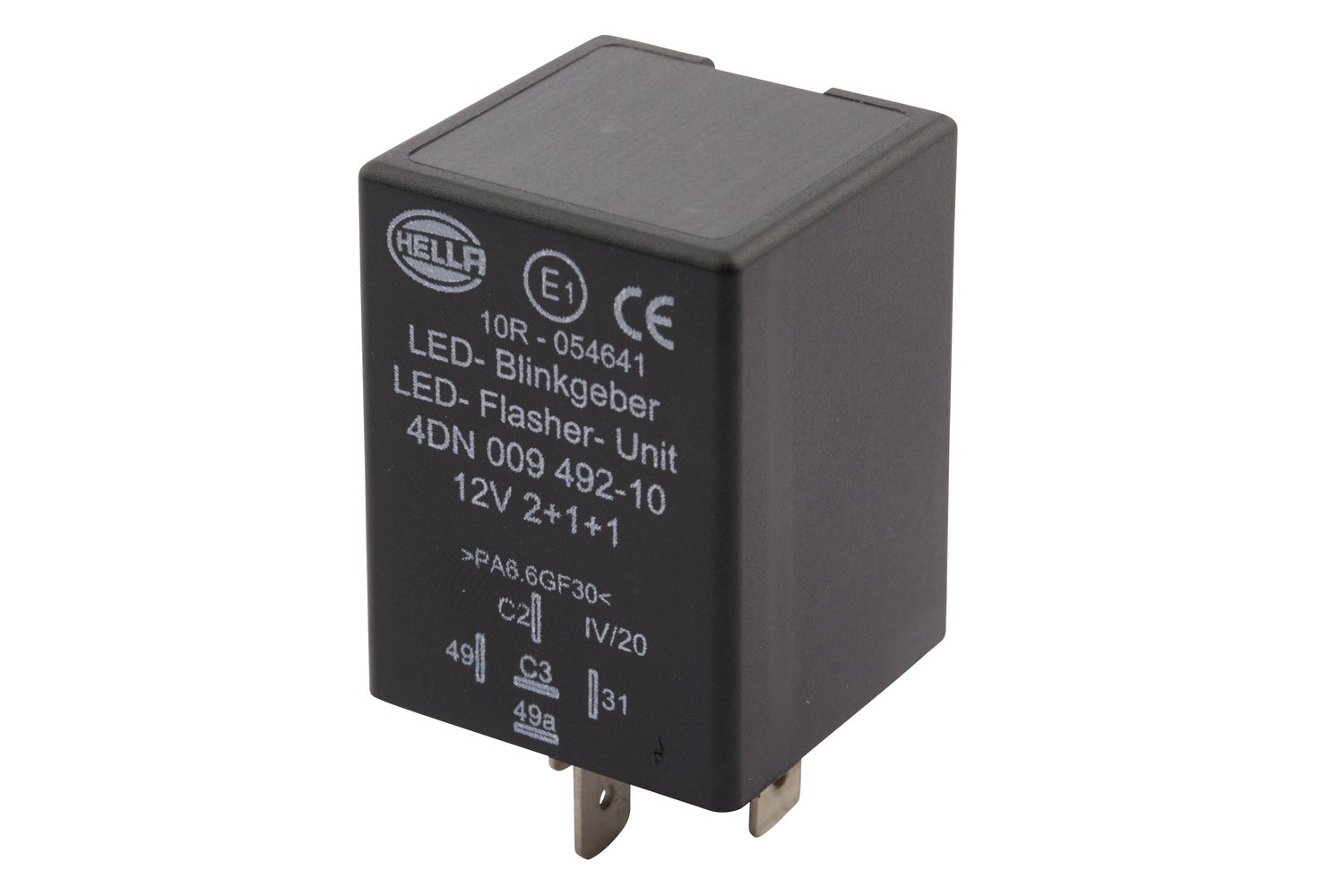

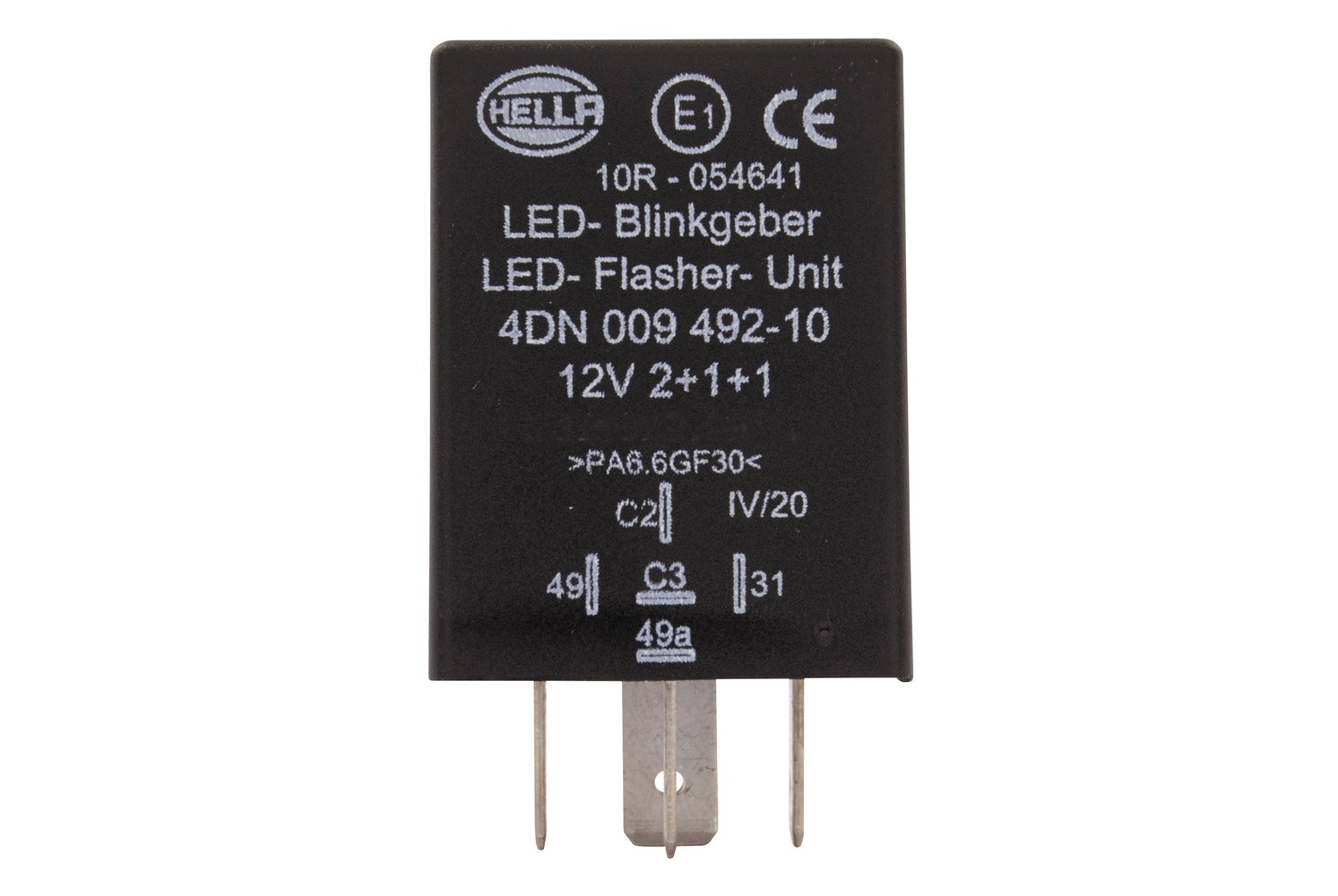

HELLA Flasher Unit - 12V - 5-pin connector 4DN009492-101

Flasher Unit - 12V - 5-pin connector - Plugged - ECE - LED - with holder

Control function: The failure of a direction indicator in a motor vehicle or trailer has to be shown to the driver either acoustically or by means of warning indicator lamps. HELLA flasher units ensure such control by means of the following: 1. Doubling of the flashing frequency (e-controller) or 2. Control lamp switch-off system (p-control). LED direction indicators conforming to ISO 13207 can "communicate" with the flasher unit. The flasher unit checks a firmly defined energy requirement at a firmly defined time: Exactly 21 W at the time of 100 – 130 ms after each switching on of the direction indicator. The energy requirement or "pulse" corresponds to that of a bulb in this case, meaning that the flasher unit notices no difference between a bulb and an LED lamp that conforms to ISO 13207. The advantage: Bulbs and ISO LED lamps can be operated in any combination on a flasher unit that conforms to ISO 13207. This is relevant both for vehicles that are frequently operated with different trailers and also for manufacturers who wish to offer several variants of the lighting system without having to modify the underlying electronics.

• HELLA flasher unit is an advanced relay that controls your vehicle’s turn signals by opening and closing circuits at a precise, predefined frequency.
• Built for durability—HELLA relays are resistant to dirt, moisture, and vibration, ensuring long-term, reliable operation.
• Designed for thousands of cycles, making it a dependable solution for signal control in daily driving conditions.
• Please always check the original part number to ensure correct fitment for your vehicle system.
• Temperature range from: -40°C - Temperature range to: +85°C
• Registration Type: ECE - Prot.type (IP Code): IP53
• for trailer

Item Attributes:
Mounting Type: Plugged
Switching Capacity: 2+1+1 W
Number of pins: 5 -pin connector
Voltage: 12 V
Supplementary Article/Supplementary Info 2: for trailer

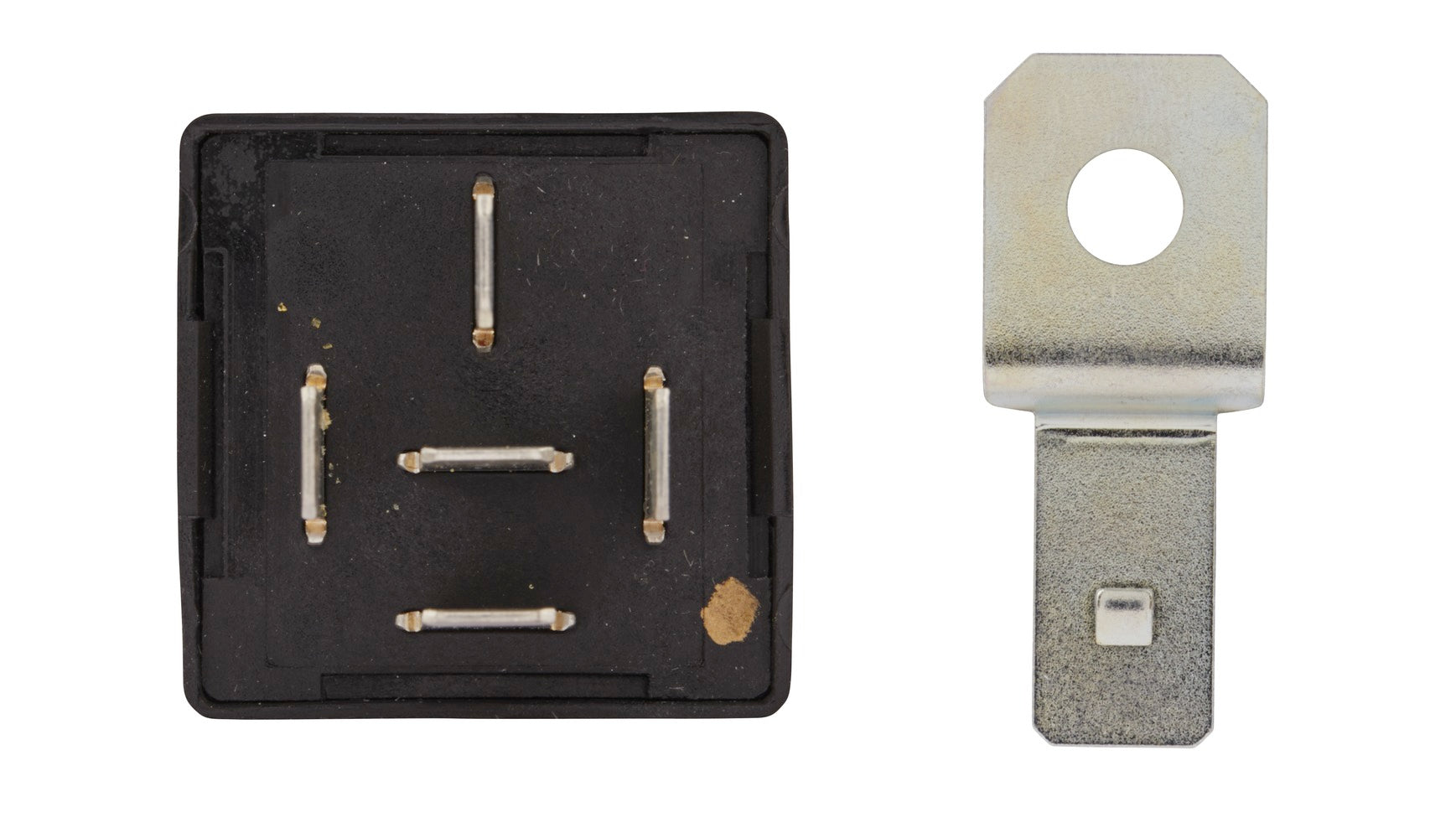

Supplementary Article/Supplementary Info: with holder
Light Design: LED
Lamp Type: LED
Registration Type: ECE
Prot.type (IP Code): IP53
Temperature range from: -40 °C
Temperature range to: +85 °C
Assembly by qualified personnel required!

OE references: AEBI 1217858-2; AGCO ACV0271640; AMMANN 1540324; ATLAS COPCO 8084963; CASE IH 92119704; CLAAS 001 634 60; CLAAS 112 426 80; FENDT A CV0 271 640; HAKO 00004180014; HOLDER 159694; KÄSSBOHRER 7.371.093.000.0; KUBOTA W21TS09728; LANDINI 6517650J90/P; LANDINI 6517650M91; LIEBHERR 1 222 1489; LINDNER 3010090; MANITOU 52557480; MASSEY FERGUSON ENQ27419; SAME 2.8639.015.0; SOLARIS 1082-007907-00; STILL 0009732511; STILL 0009732521; VOLVO 15228972; YANMAR 5350247539
