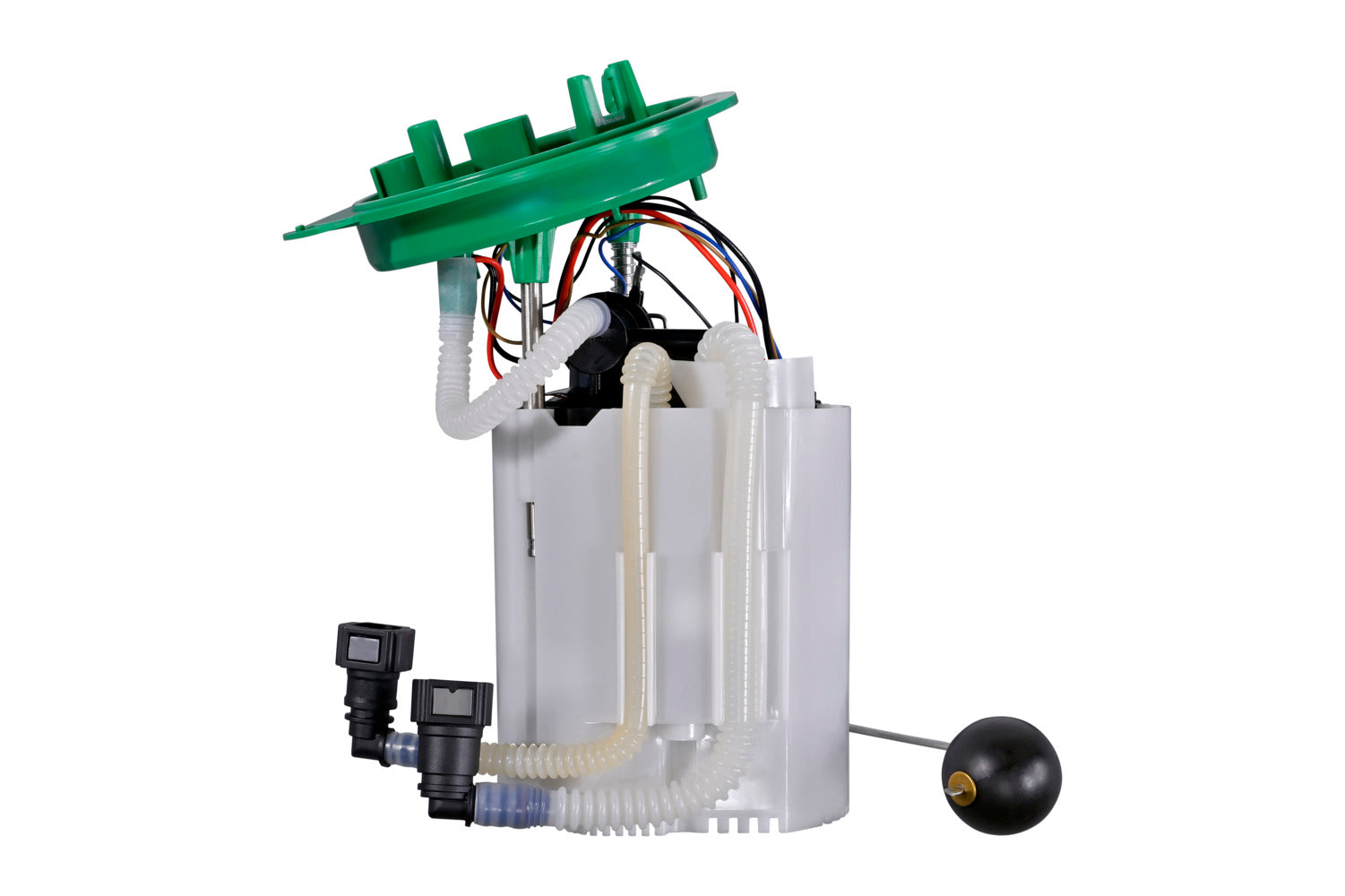

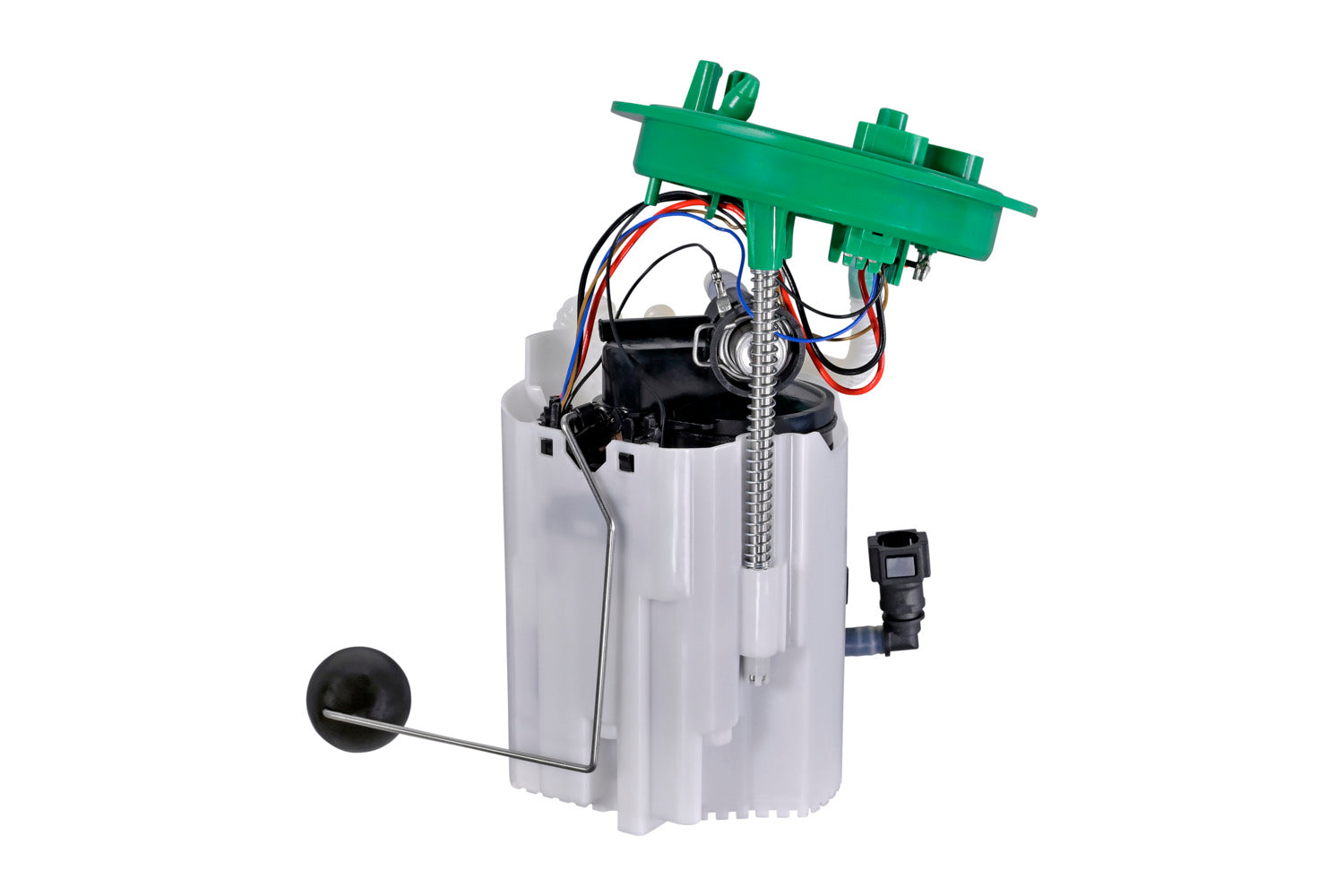

HELLA Fuel Feed Unit - Electric 8TF358316-801

Fuel Feed Unit - Electric - with fuel sender unit

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits from this long-standing original equipment expertise with the successful transfer of its OE know-how. Fuel pumps have the important task of ensuring the supply of fuel to the engine under all conditions. HELLA fuel pumps are located inside the fuel tank, are electrically driven and designed for easy installation.

• fits e.g. VW GOLF VII Variant (BA5, BV5) 2.0 R 4mo (please check exact vehicle application)
• HELLA fuel pumps ensure a reliable supply of fuel to the engine, while having a high pumping capacity with a very low energy consumption.
• HELLA fuel pumps undergo rigorous stress tests during development and production: tested across a wide range of temperature & humidity conditions to ensure superior performance in any conditions.
• Plug & play full assembly product, that servs as an 1:1 replacement for the original part.
• Robust design, incorporating high quality materials to meet the highest production standards and ensuring the performance across the whole lifespan of the product
• Mounting instructions are available in the box. Always check the fuel system, before installing the new pump.

Item Attributes:
Operating Mode: Electric

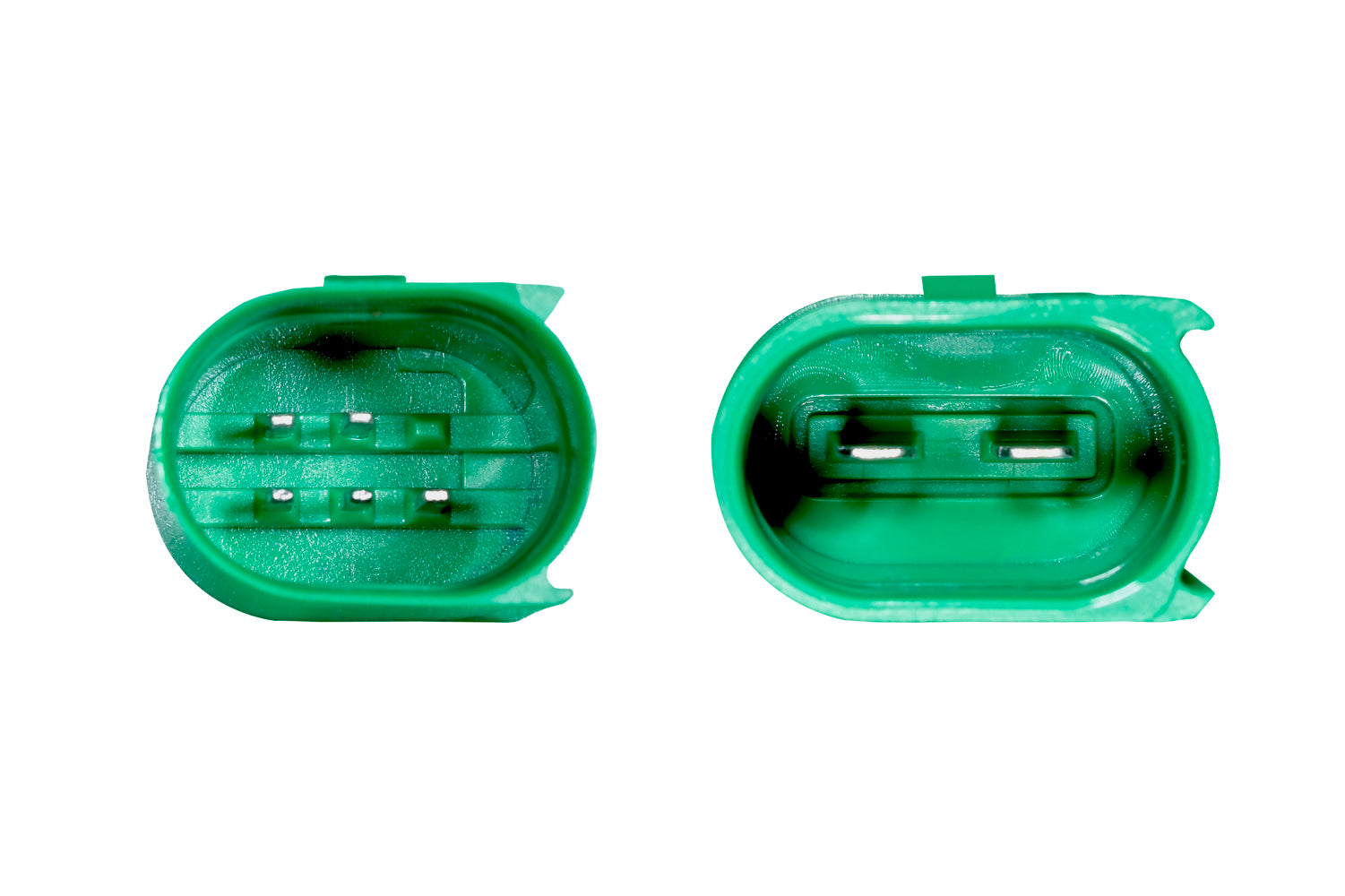

Number of pins (connector 1): 6
Number of pins (connector 2): 2
Supplementary Article/Supplementary Info: with fuel sender unit
Fuel Type: Diesel / Petrol
Assembly by qualified personnel required!

OE references: AUDI 5Q0919051AS; AUDI 5Q0919051BL; AUDI 5Q0919051BP; AUDI 5Q0919087AH; AUDI 5Q0919087H; AUDI 5Q0919087R; SEAT 5Q0 919 673 F; SEAT 5Q0919051AS; SEAT 5Q0919051BL; SEAT 5Q0919051BP; SEAT 5Q0919087AH; SEAT 5Q0919087R; SKODA 5Q0 919 051 AS; SKODA 5Q0 919 051 BL; SKODA 5Q0 919 051 BP; SKODA 5Q0 919 051 S; SKODA 5Q0919087AH; SKODA 5Q0919087H; SKODA 5Q0919087R; VW 5Q0 919 051 BM; VW 5Q0 919 087 AH; VW 5Q0 919 087 H; VW 5Q0 919 087 R; VW 5Q0 919 673 AK; VW 5Q0919051AS; VW 5Q0919051BL; VW 5Q0919051BP
