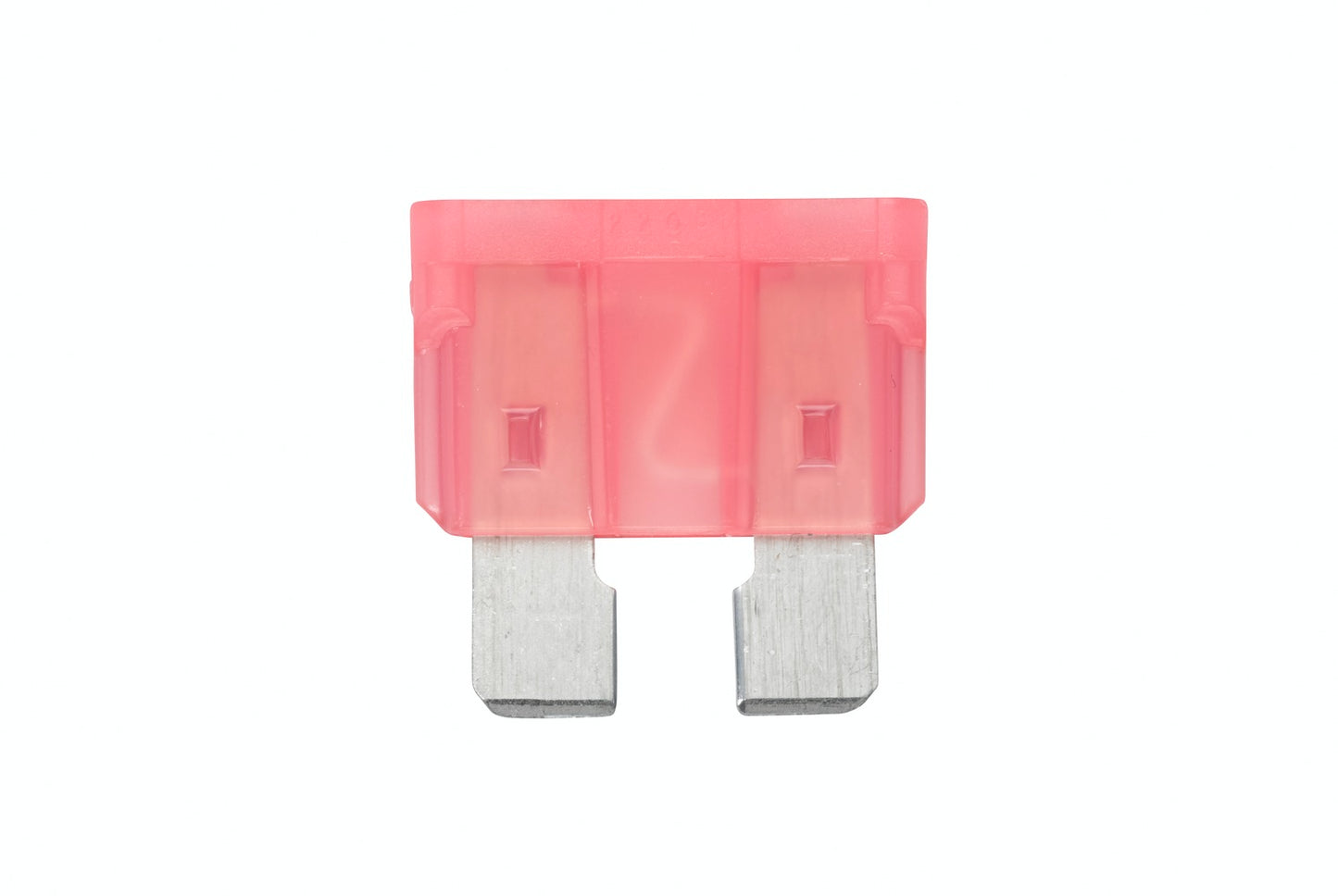

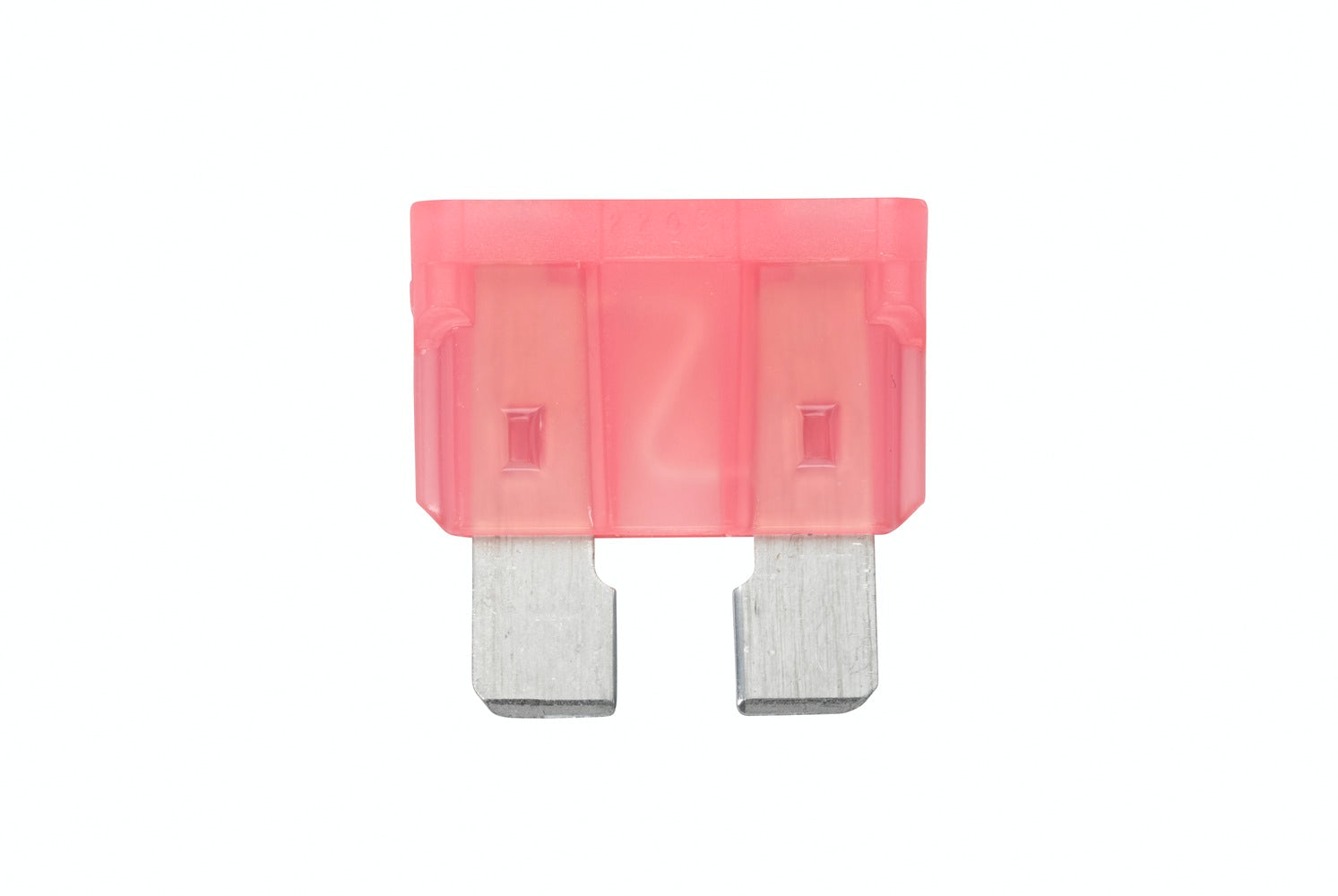

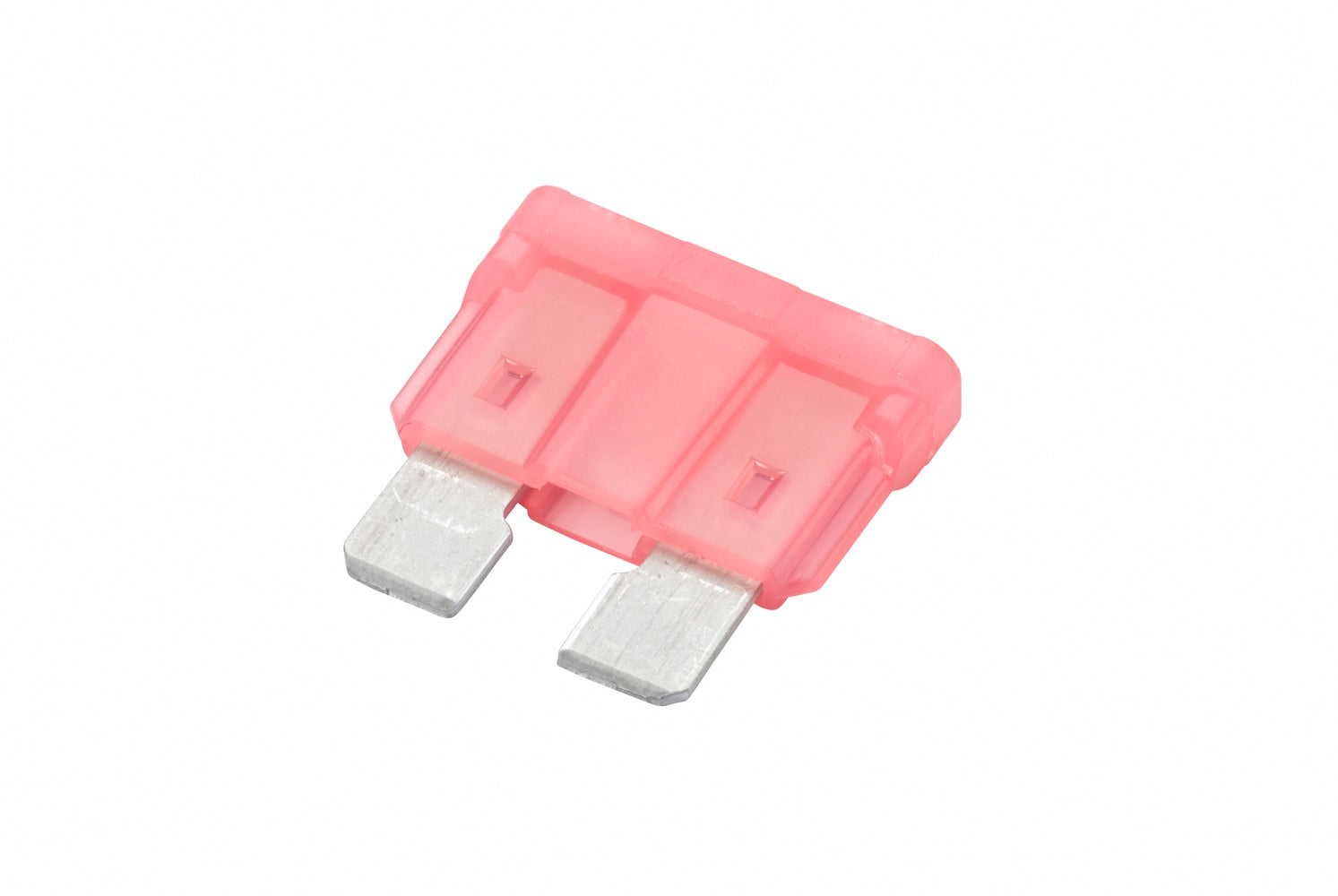

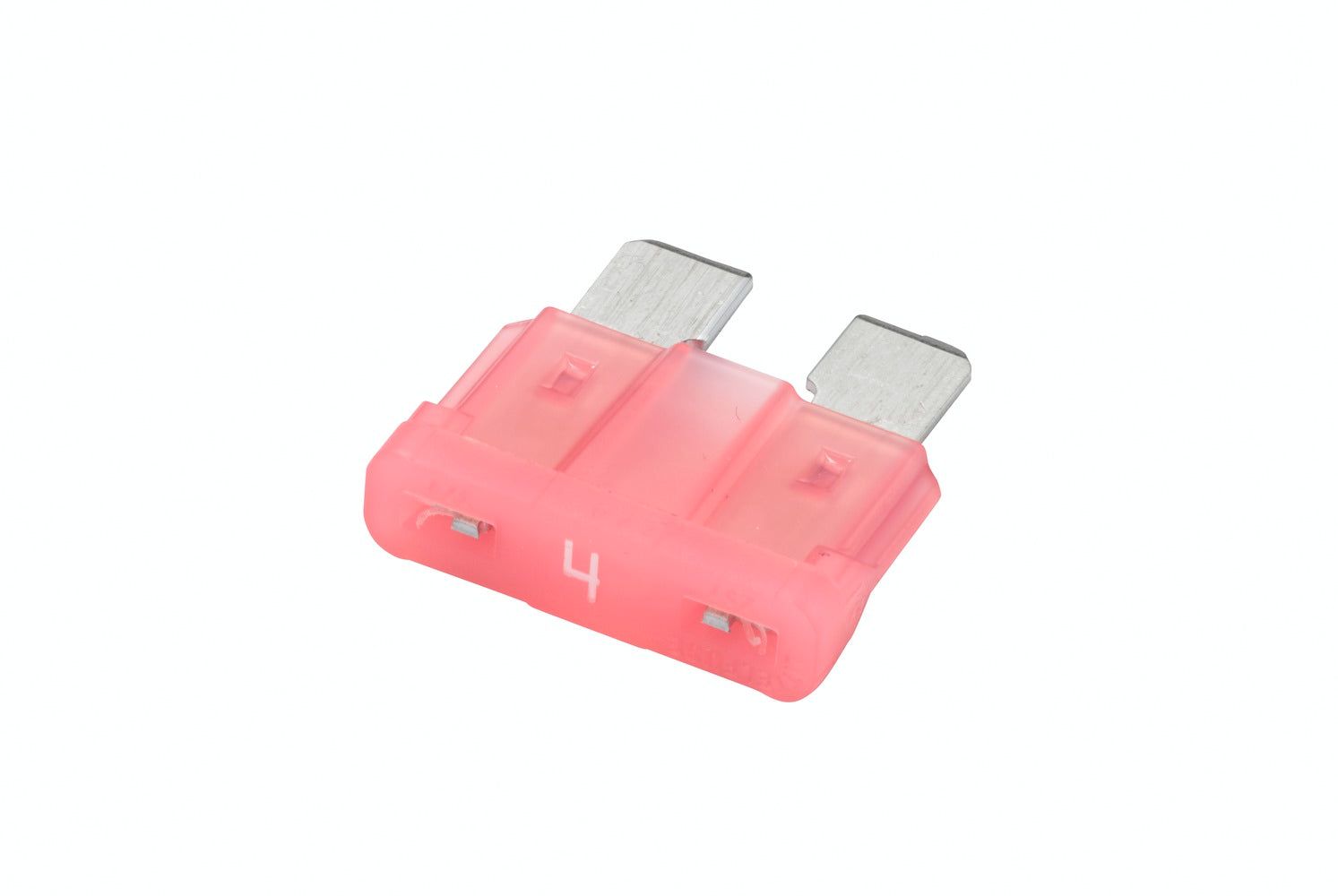

HELLA Fuse - ATO fuse - 4A - light pink 8JS711683-881

Fuse - ATO fuse - 4A - Voltage to: 32V - light pink

Flat blade fuses are primarily used in automotive electrical fuse systems. A distinction is made between: 1. The widely used standard version ATO (up to max. 40 A), 2. the large-format MAXI flat fuse for the high-current range (up to max. 80 A), 3. the small-format MINI flat fuse for single consumer protection (up to max. 30 A), and 4. the even more space-saving low-profile MINI version (also up to 30 A). HELLA offers a complete range including special variants for electric vehicles and LED fuses for quick replacement even at night.

• Original equipment quality according to the requirements of ISO 8820-3
• Compact design
• Easy, reliable handling due to colour coding and easy-to-read labelling
• Width: 19.1mm - Height: 18.8mm
• DIN/ISO: 8820-3

Item Attributes:
Fuse Type: ATO fuse
Rated Current: 4 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 19.1 mm
Depth: 5.1 mm
Height: 18.8 mm
DIN/ISO: 8820-3
fulfils SAE standard: J1284
Contact surface: Tin-plated
Colour: light pink
Housing material: PA (polyamide)
Packaging: Blister
Assembly by qualified personnel required!
