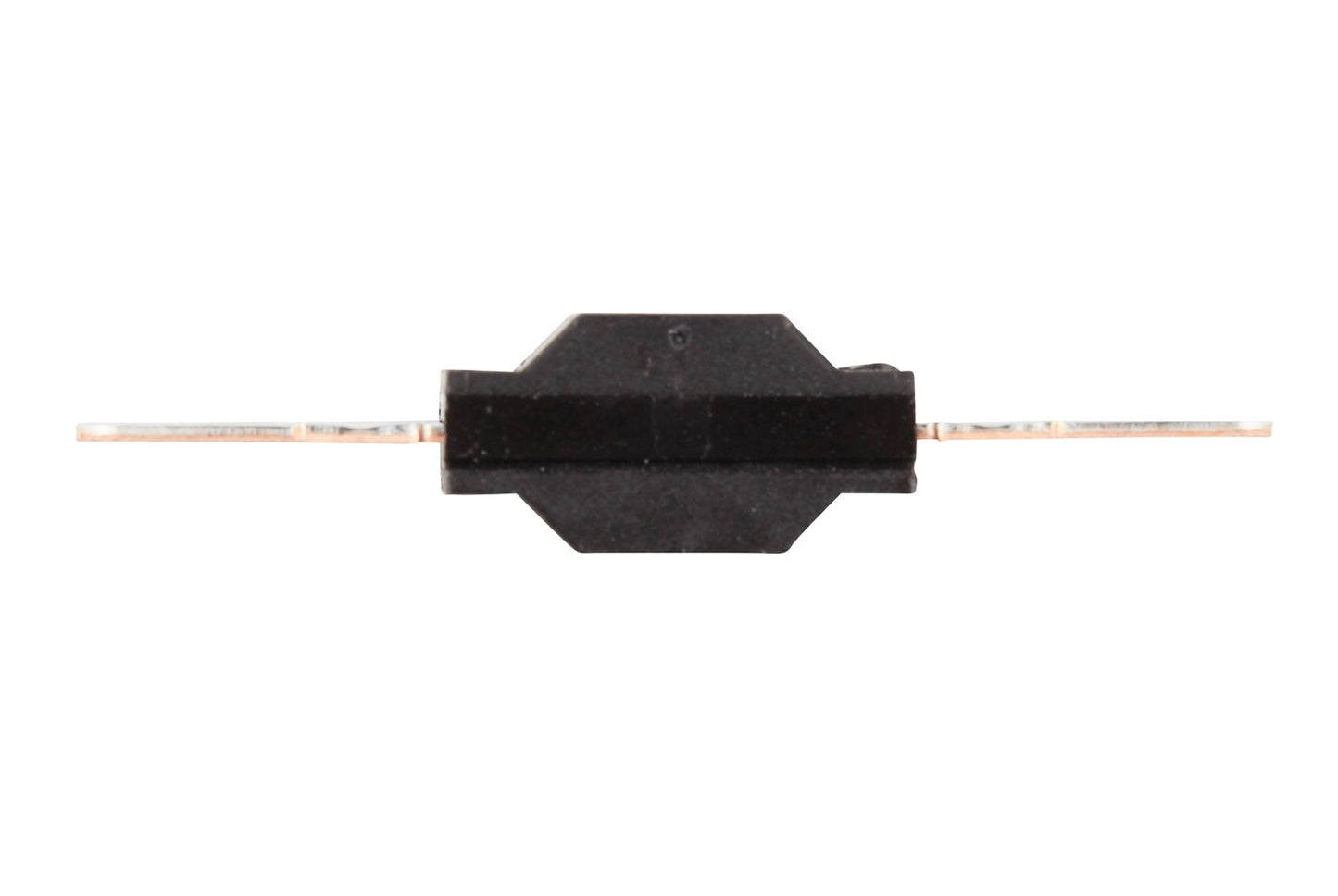

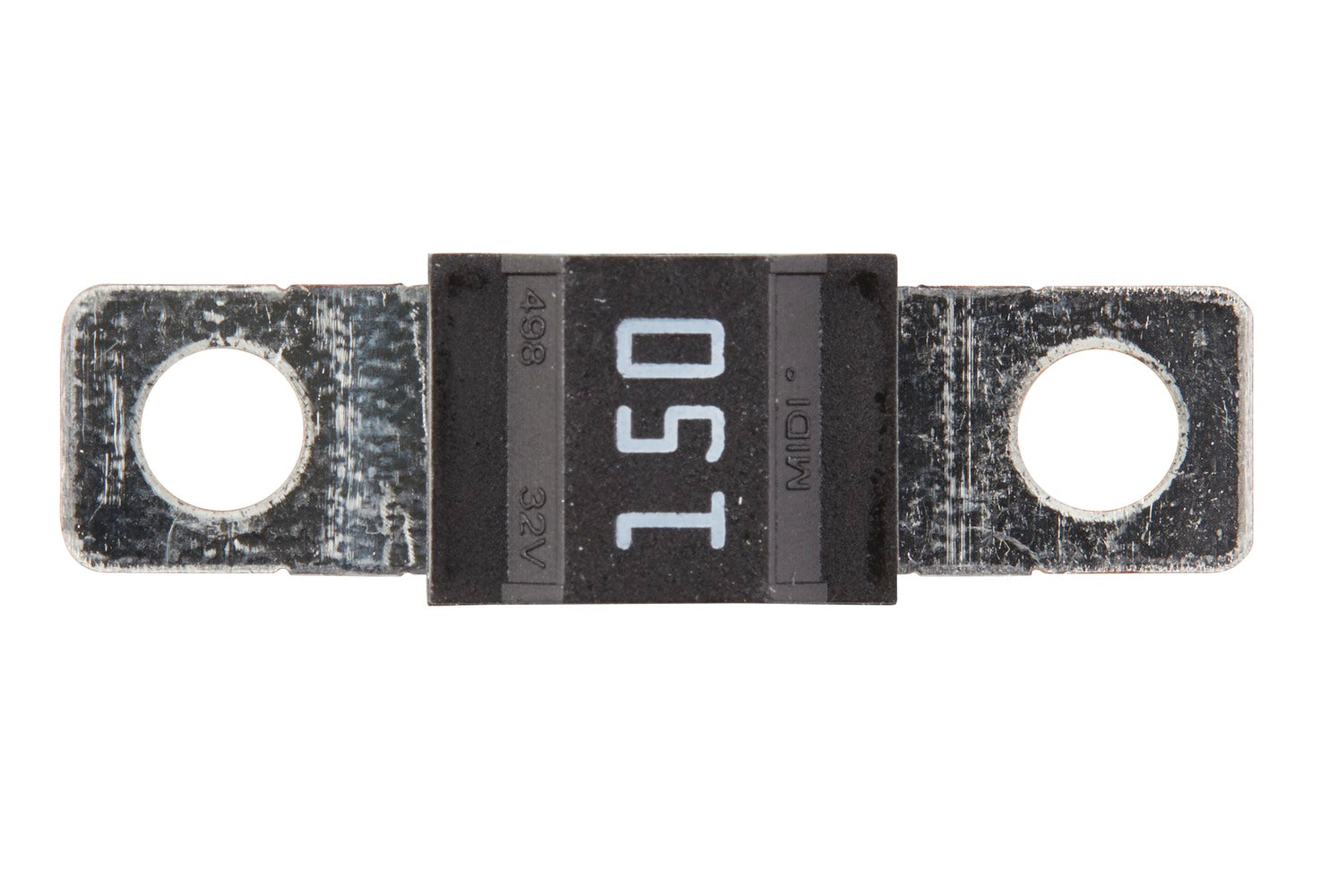

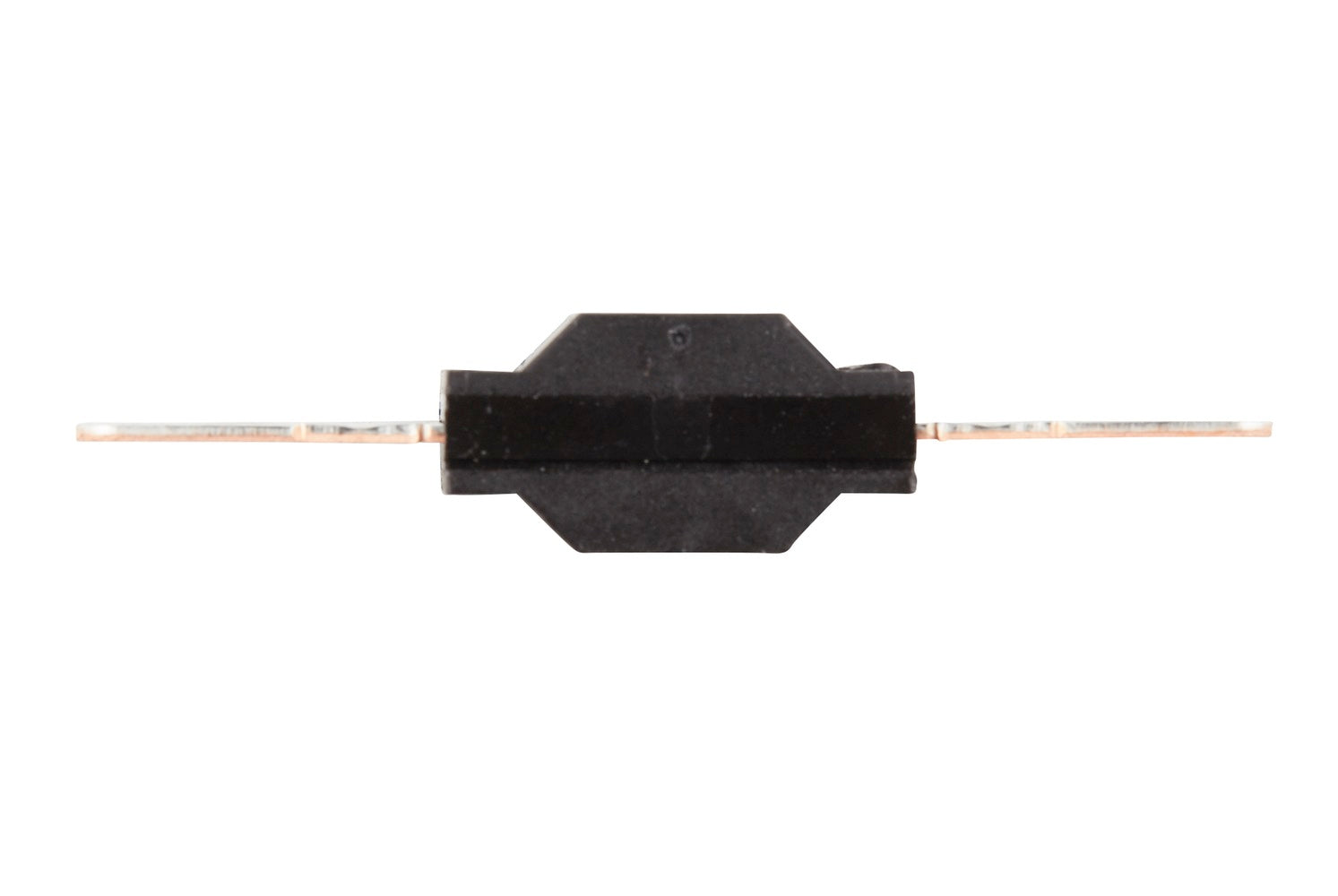

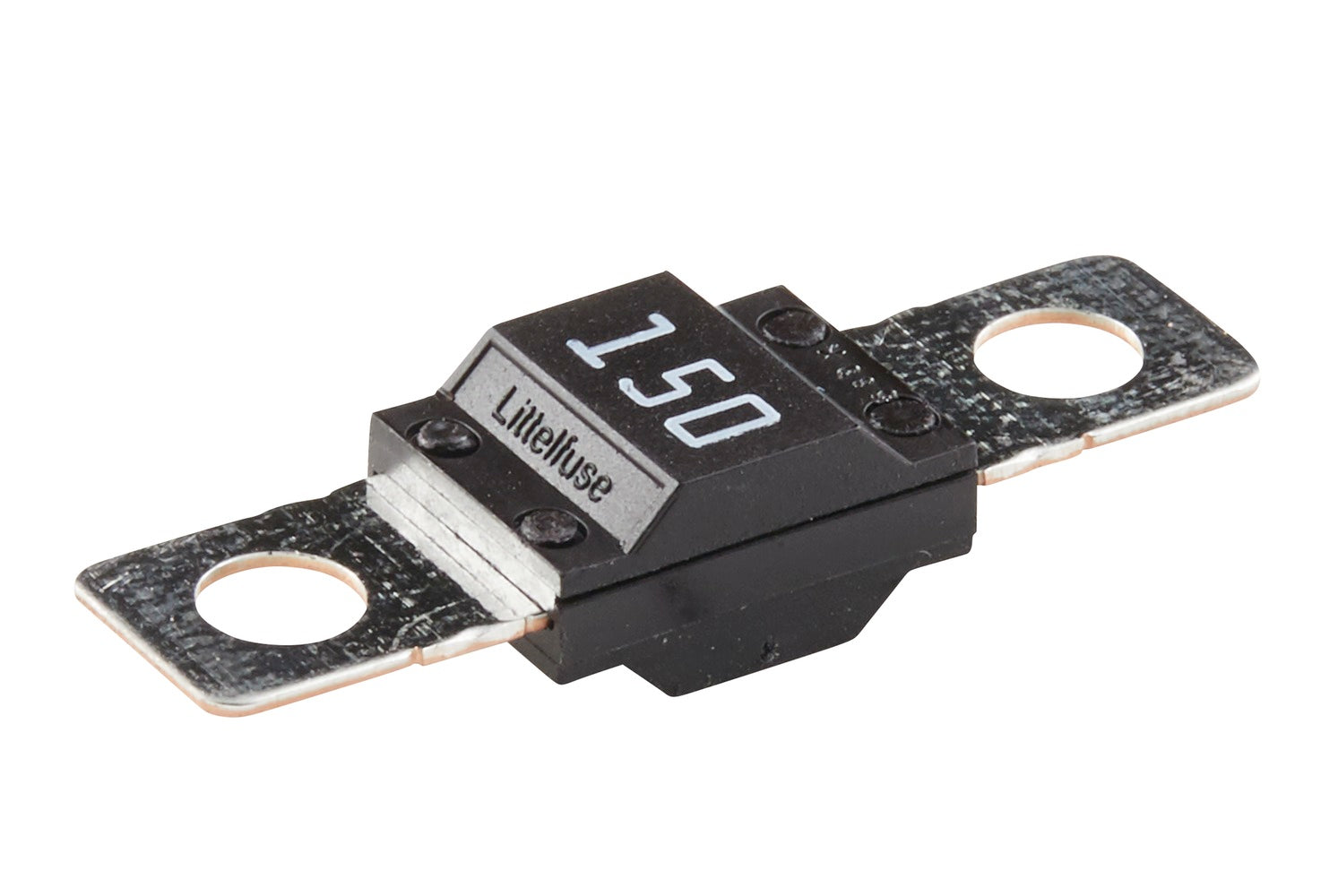

HELLA Fuse - Bolt Type Fuse - 150A - grey 8JS742901-081

Fuse - Bolt Type Fuse - 150A - grey

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 41mm - Height: 8.3mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: Bolt Type Fuse
Rated Current: 150 A
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 41 mm
Depth: 12 mm
Height: 8.3 mm
Bolt Distance: 30 mm
Bore Ø: 5.5 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: grey
Packaging: Blister
Assembly by qualified personnel required!

OE references: AMMANN 1708190; SCANIA 20223768; TEREX 5350246867; VOLVO 192435
