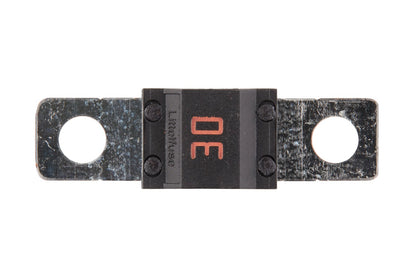

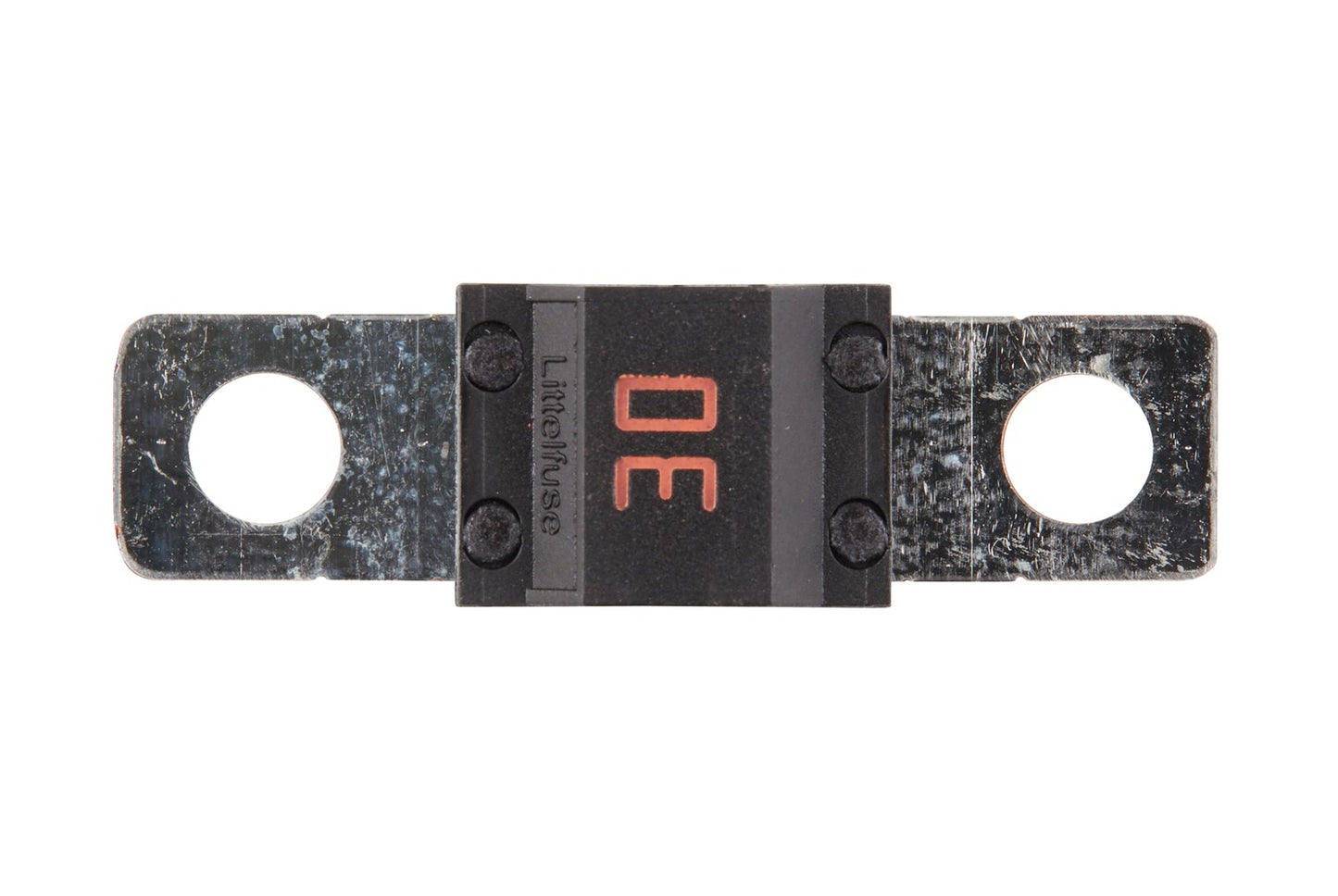

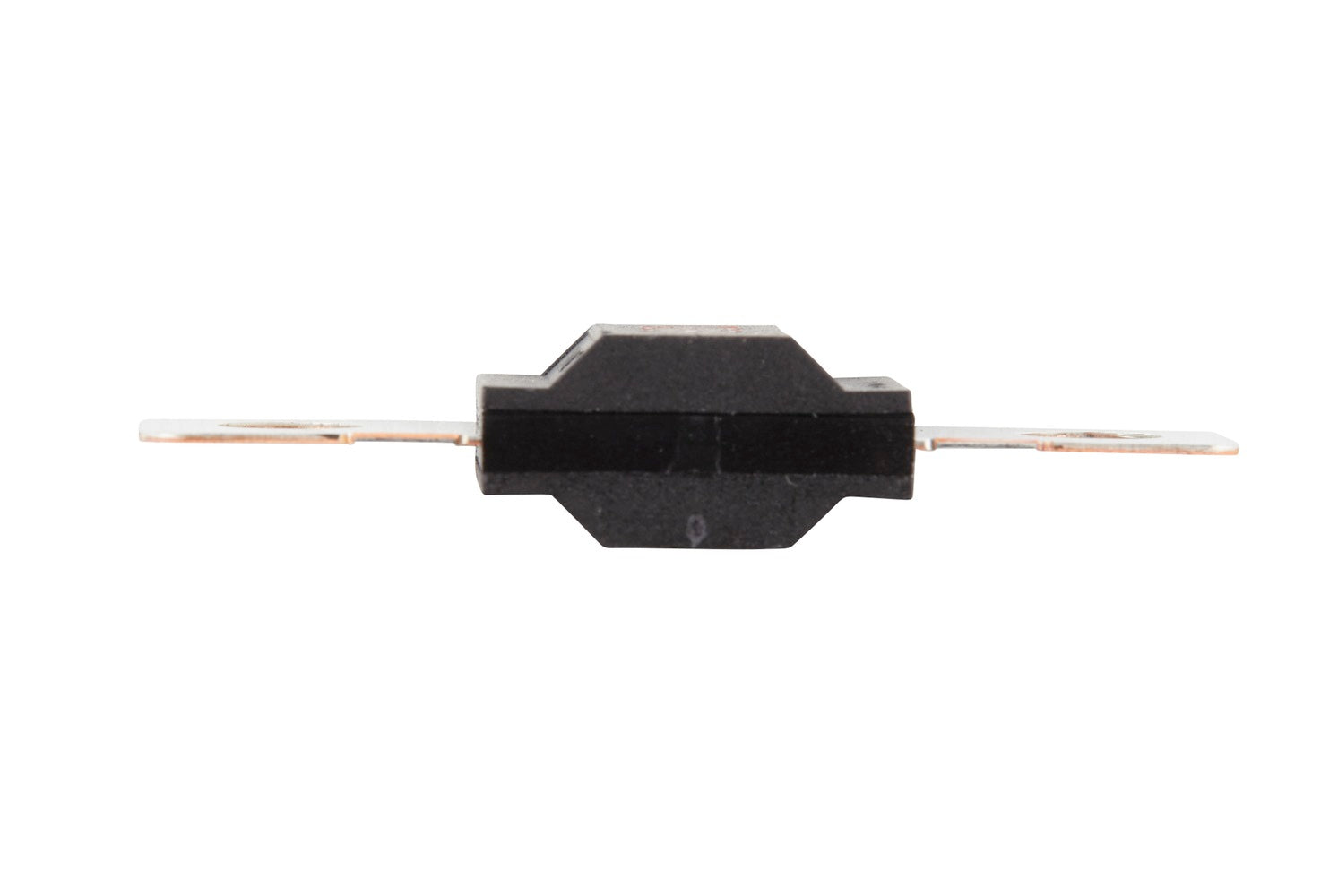

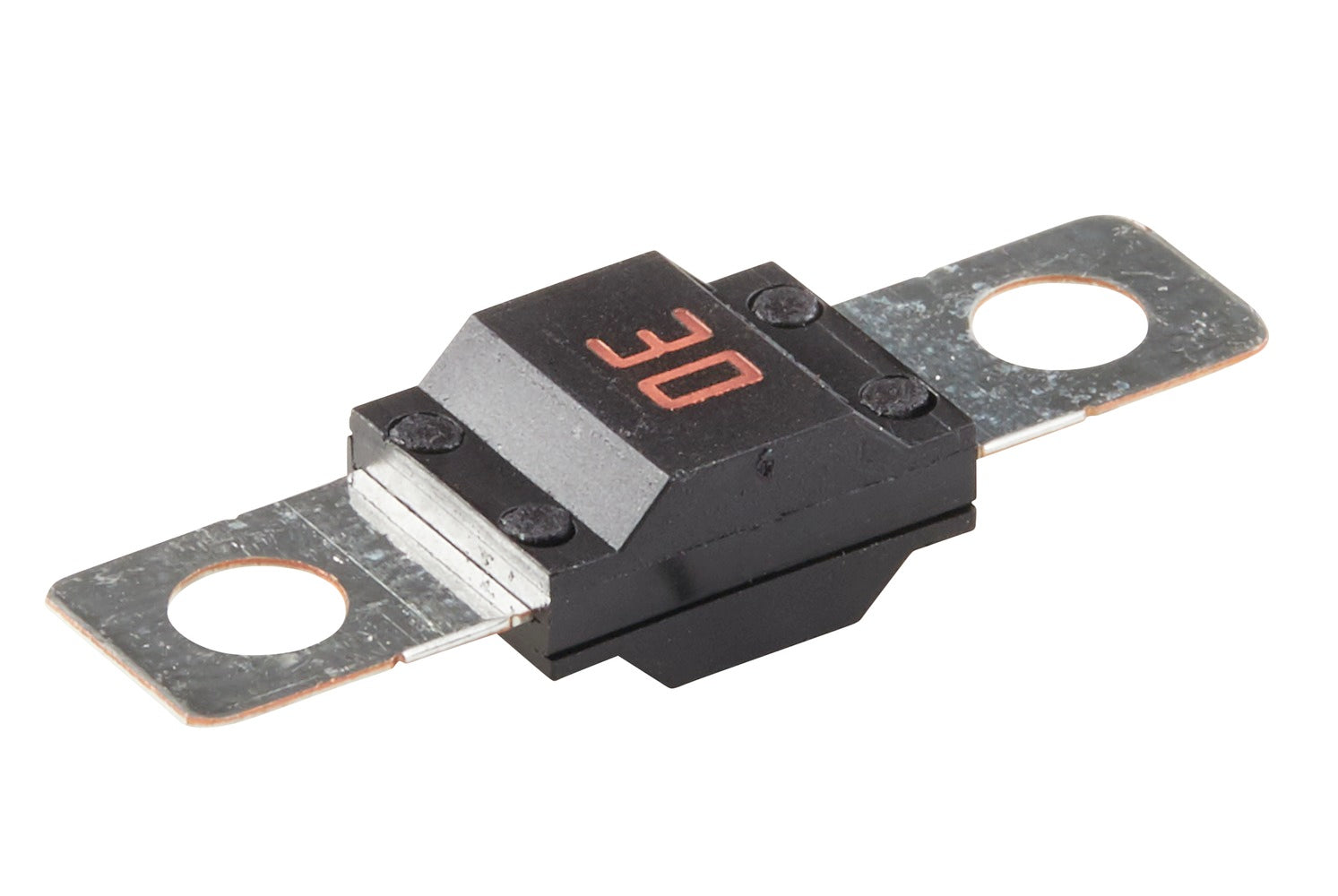

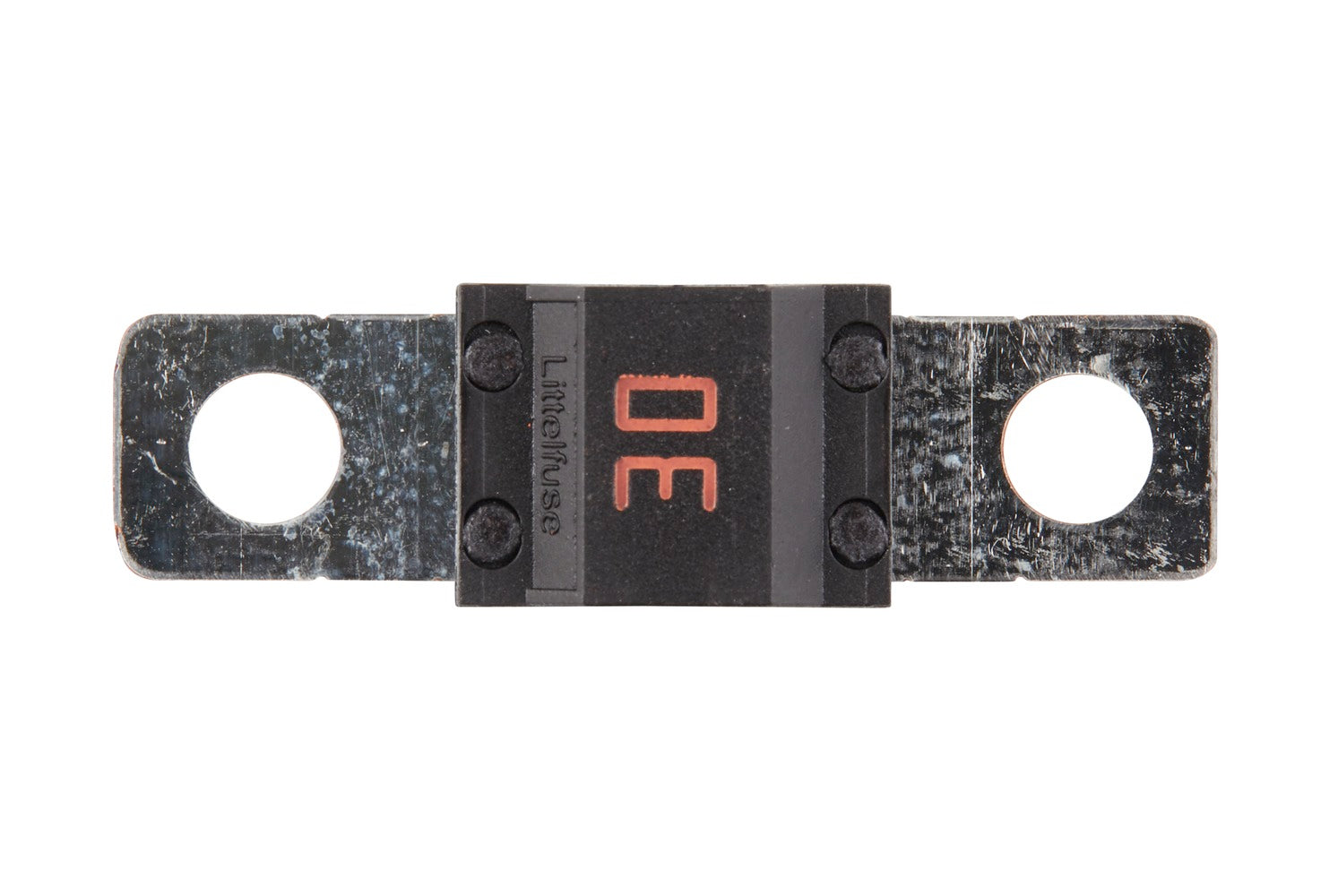

HELLA Fuse - Bolt Type Fuse - 30A - Orange 8JS742901-061

Fuse - Bolt Type Fuse - 30A - Orange

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 41mm - Height: 8mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: Bolt Type Fuse
Rated Current: 30 A
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 41 mm
Depth: 12 mm
Height: 8 mm
Bolt Distance: 30 mm
Bore Ø: 5.5 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: Orange
Packaging: Blister
Assembly by qualified personnel required!

OE references: AMMANN 4-5358170099; FREIGHTLINER 7-251-004-030; FREIGHTLINER 812613; GOLDHOFER 601060; INTERNATIONAL HARV. 601060; KÄSSBOHRER 7-251-004-030; LIEBHERR 9 000 024 78; REFORM 999242411; SCANIA 20223760; TEREX 5050650482; VDL 41146334; VOLVO 192427; YANMAR 5050650482
