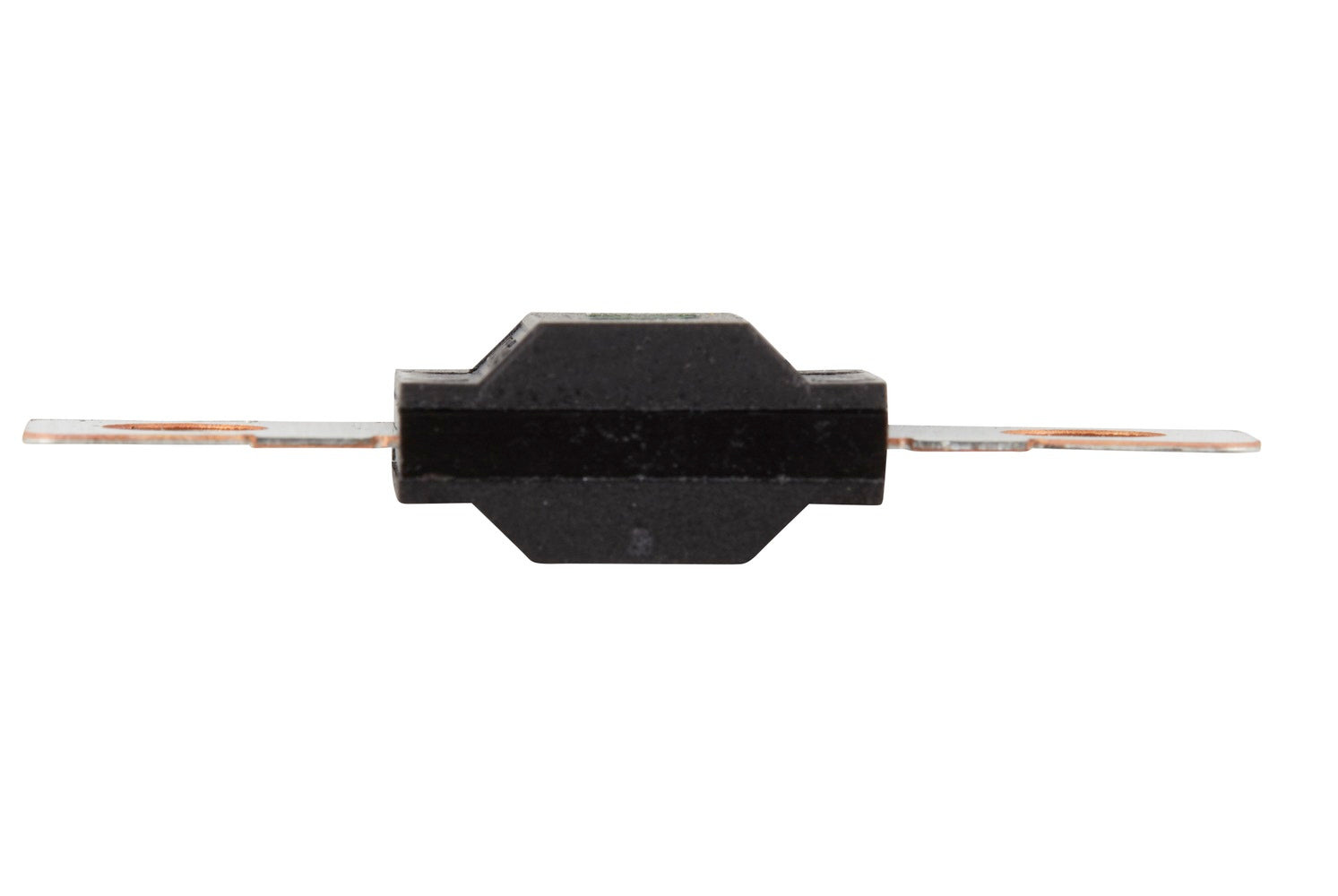

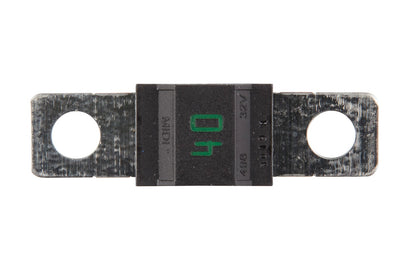

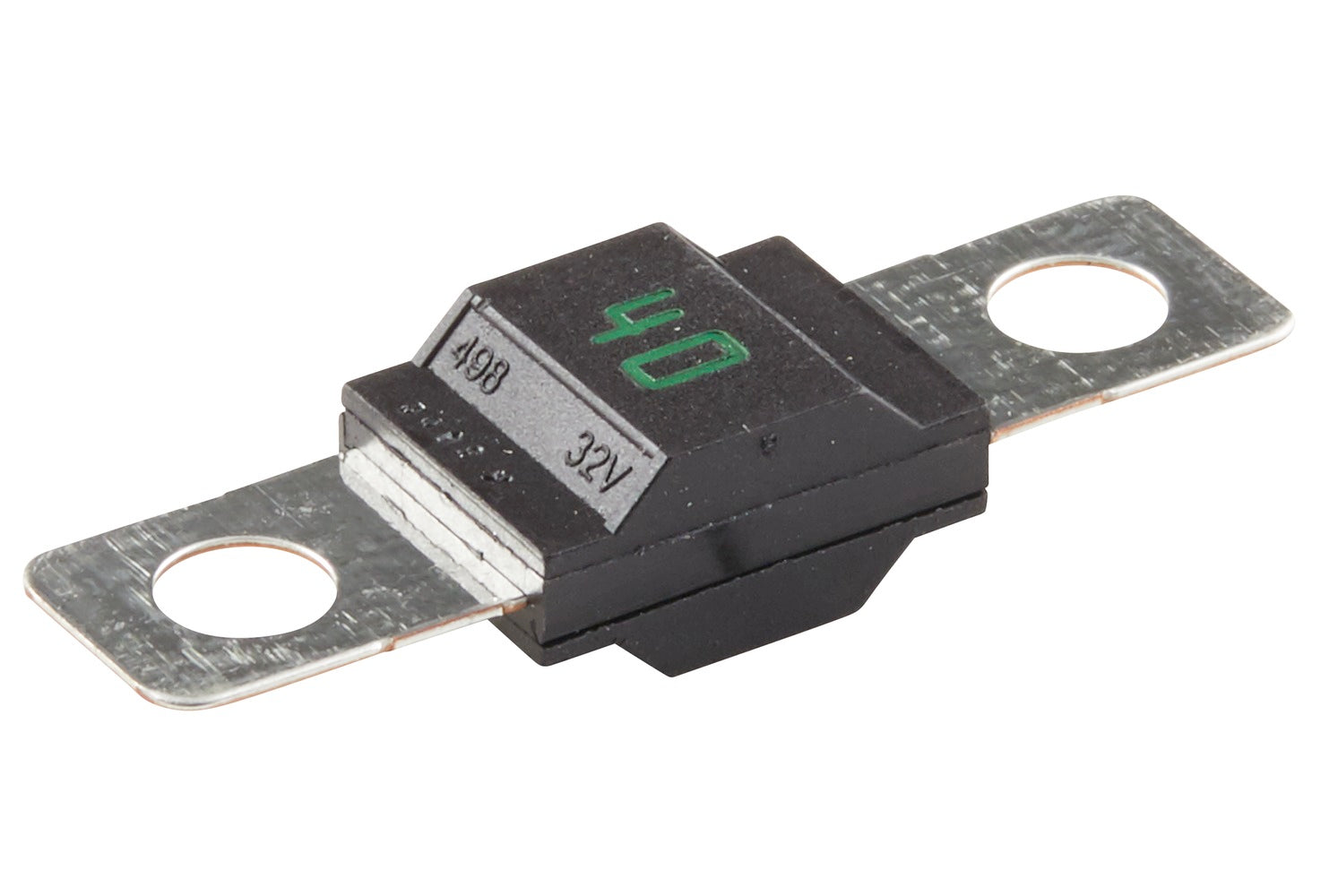

HELLA Fuse - Bolt Type Fuse - 40A - green 8JS742901-001

Fuse - Bolt Type Fuse - 40A - green

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 41mm - Height: 8mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: Bolt Type Fuse
Rated Current: 40 A
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 41 mm
Depth: 12 mm
Height: 8 mm
Bolt Distance: 30 mm
Bore Ø: 5.5 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: green
Packaging: Blister
Assembly by qualified personnel required!

OE references: CASE IH 84320118; CASE IH 843201180; GOLDHOFER 002989600; GOLDHOFER 601059; GOLDHOFER DOF601059; INTERNATIONAL HARV. 002989600; INTERNATIONAL HARV. 601059; INTERNATIONAL HARV. DOF601059; JOHN DEERE 200833830; KRONE 200833830; SCANIA 20223761; TEREX 5050650480; VOLVO 192428
