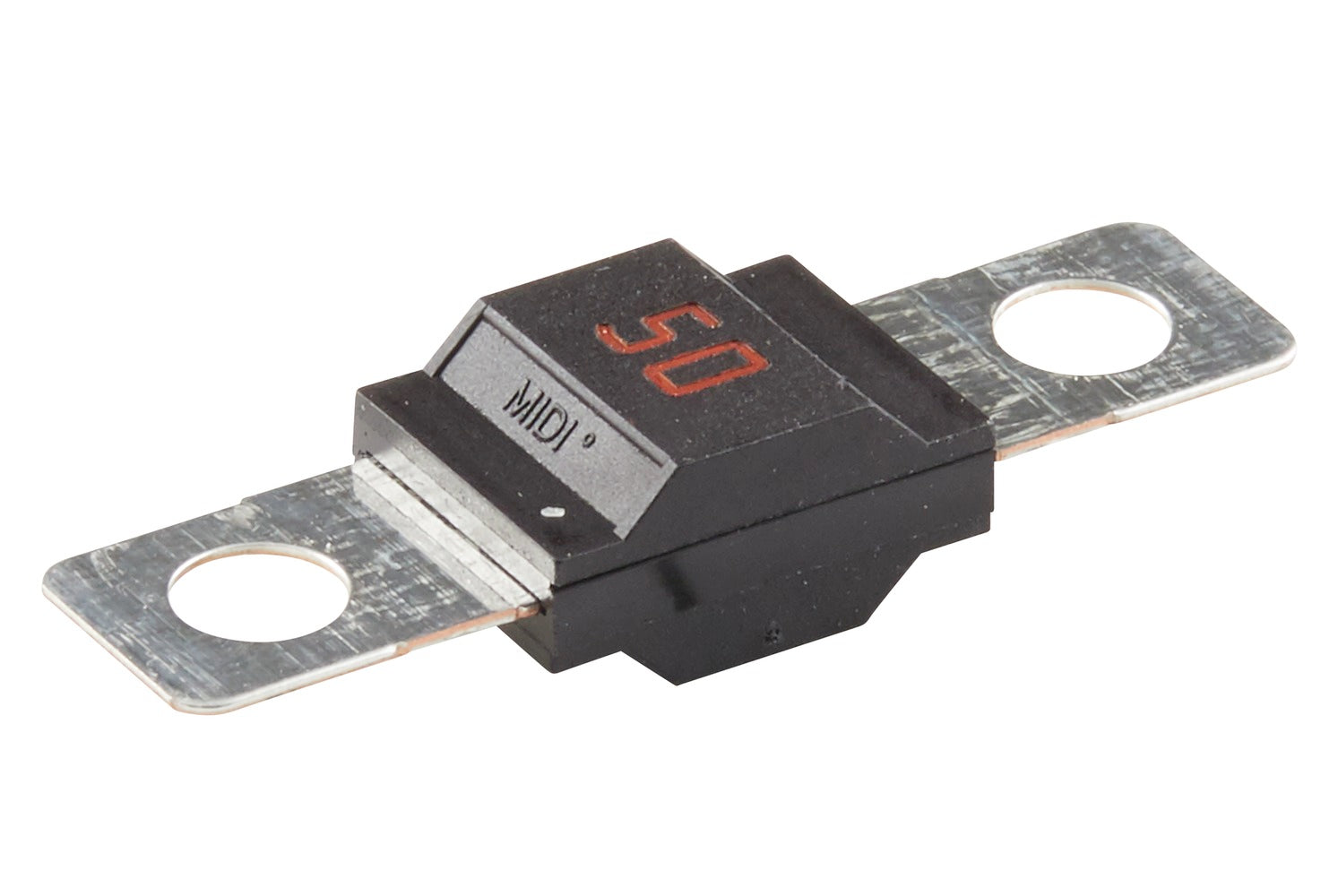

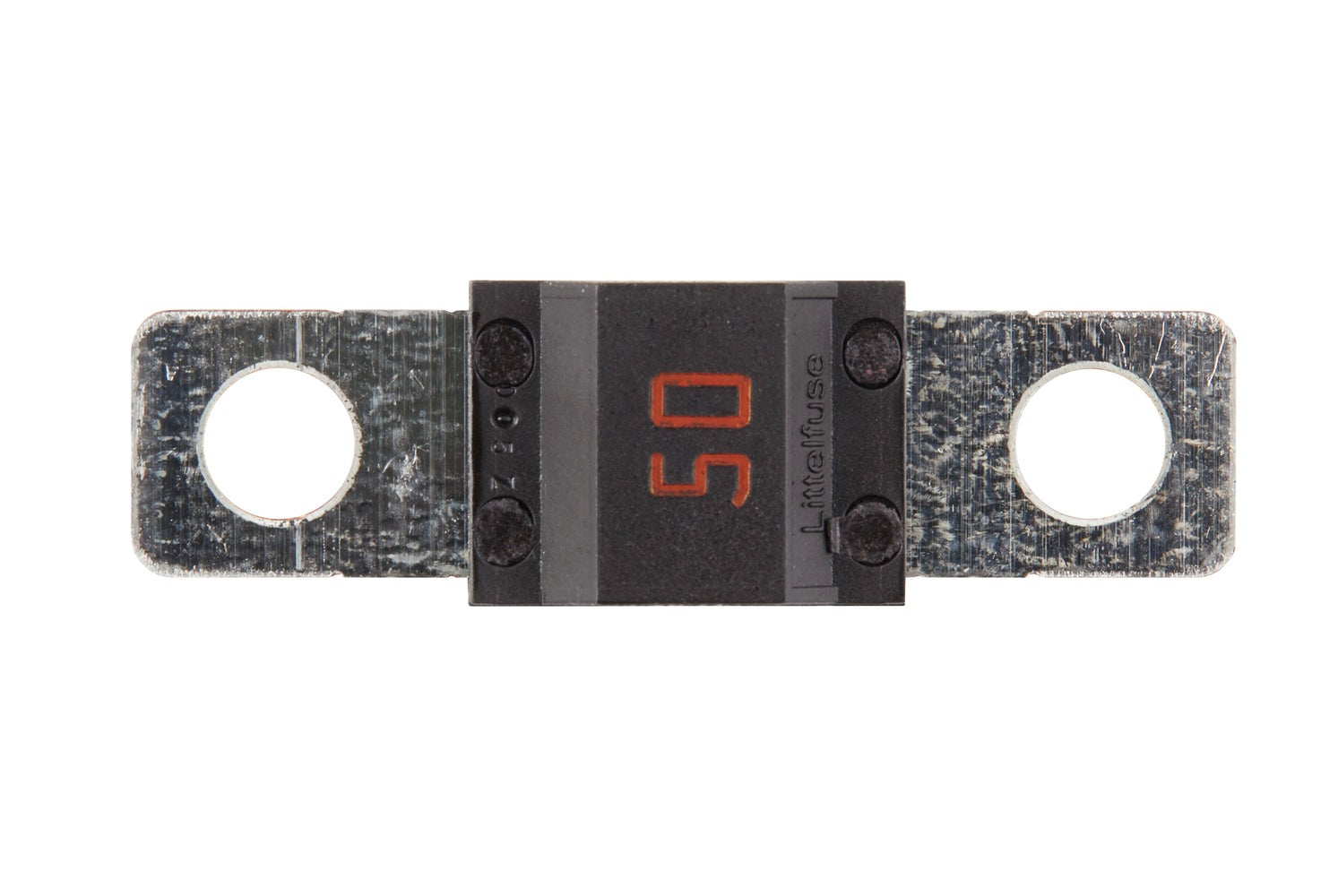

HELLA Fuse - Bolt Type Fuse - 50A - red 8JS742901-011

Fuse - Bolt Type Fuse - 50A - red

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 41mm - Height: 8mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: Bolt Type Fuse
Rated Current: 50 A
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 41 mm
Depth: 12 mm
Height: 8 mm
Bolt Distance: 30 mm
Bore Ø: 5.5 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: red
Packaging: Blister
Assembly by qualified personnel required!

OE references: AMMANN 4-5358170100; GOLDHOFER 002989602; INTERNATIONAL HARV. 002989602; JOHN DEERE 200892690; KRONE 200892690; SANY 60066243; SCANIA 20223762; TEREX 5050650452; VOLVO 192429
