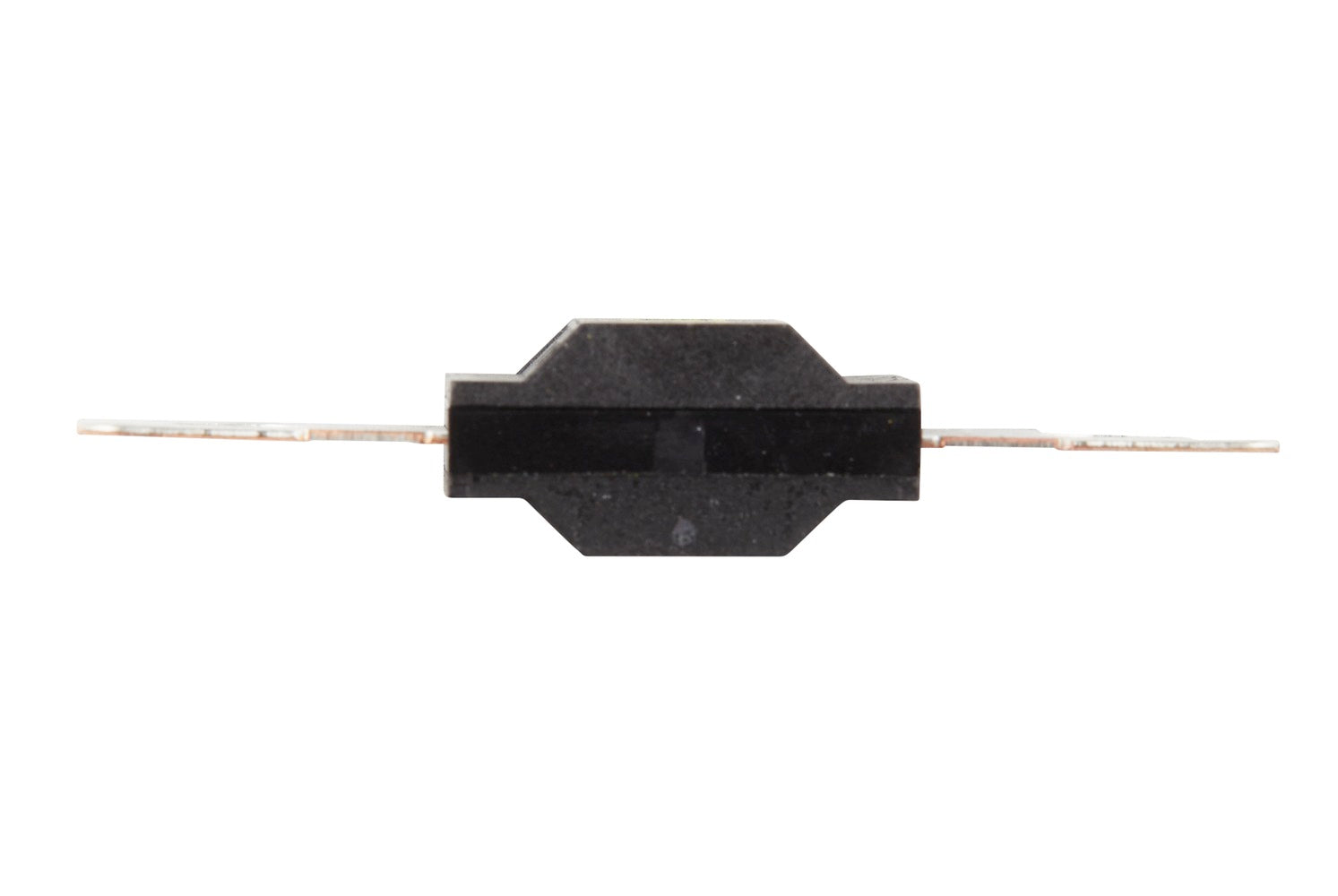

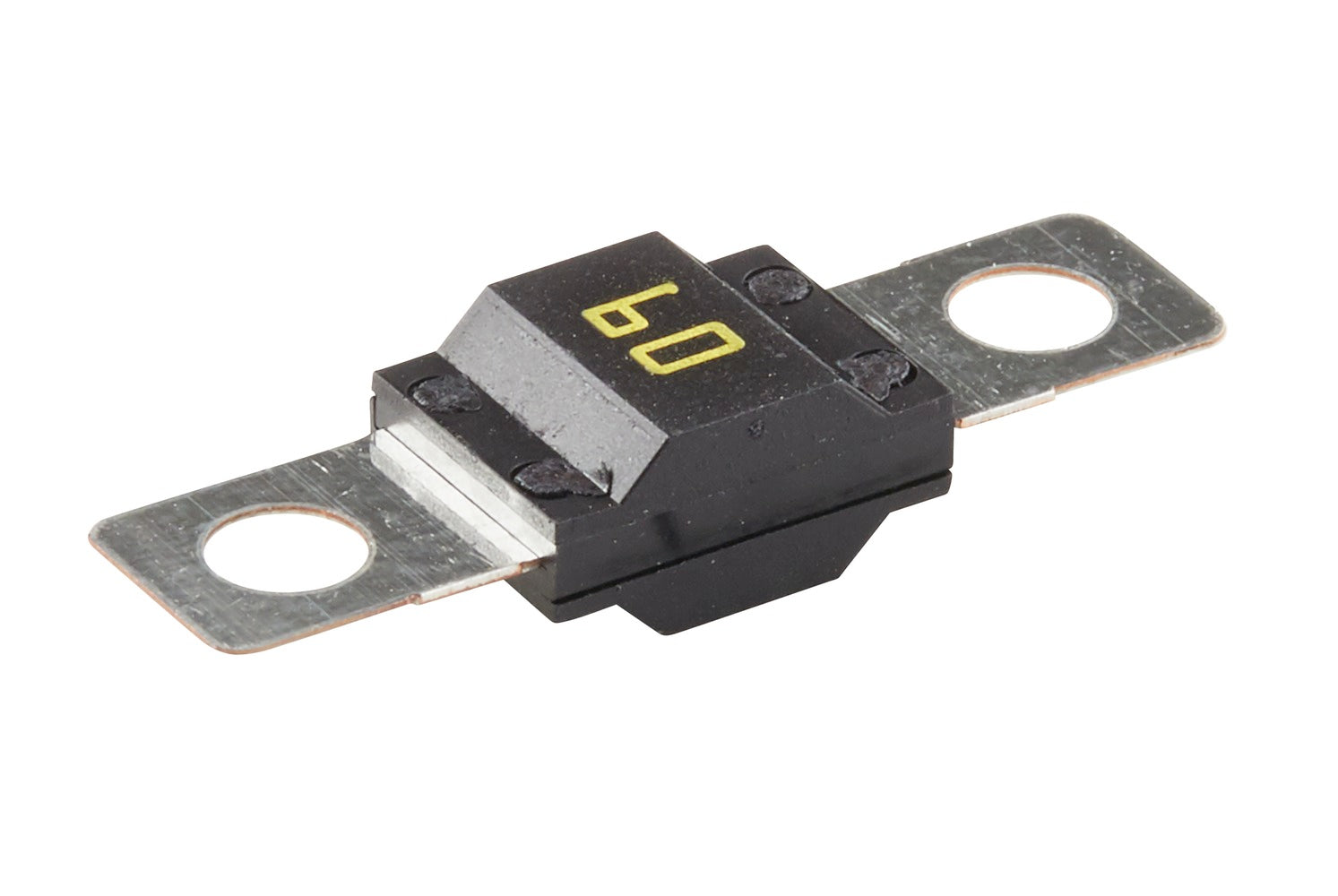

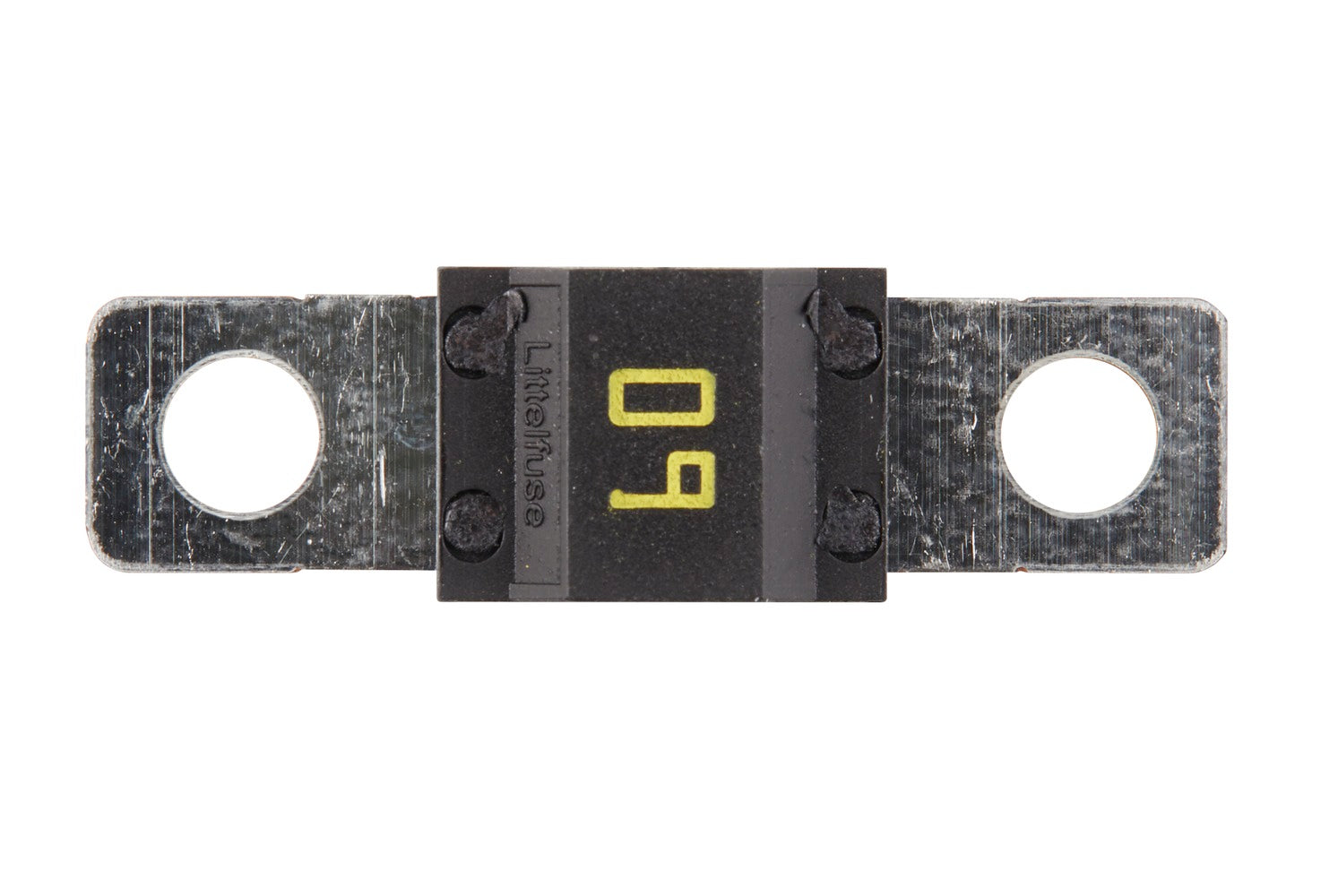

HELLA Fuse - Bolt Type Fuse - 60A - yellow (amber) 8JS742901-021

Fuse - Bolt Type Fuse - 60A - yellow (amber)

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 41mm - Height: 8mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: Bolt Type Fuse
Rated Current: 60 A
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 41 mm
Depth: 12 mm
Height: 8 mm
Bolt Distance: 30 mm
Bore Ø: 5.5 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: yellow (amber)
Packaging: Blister
Assembly by qualified personnel required!

OE references: AMMANN 1222475; JOHN DEERE 0803390; SCANIA 20223763; TEREX 5050650487; VOLVO 192430; WEIRO 31468
