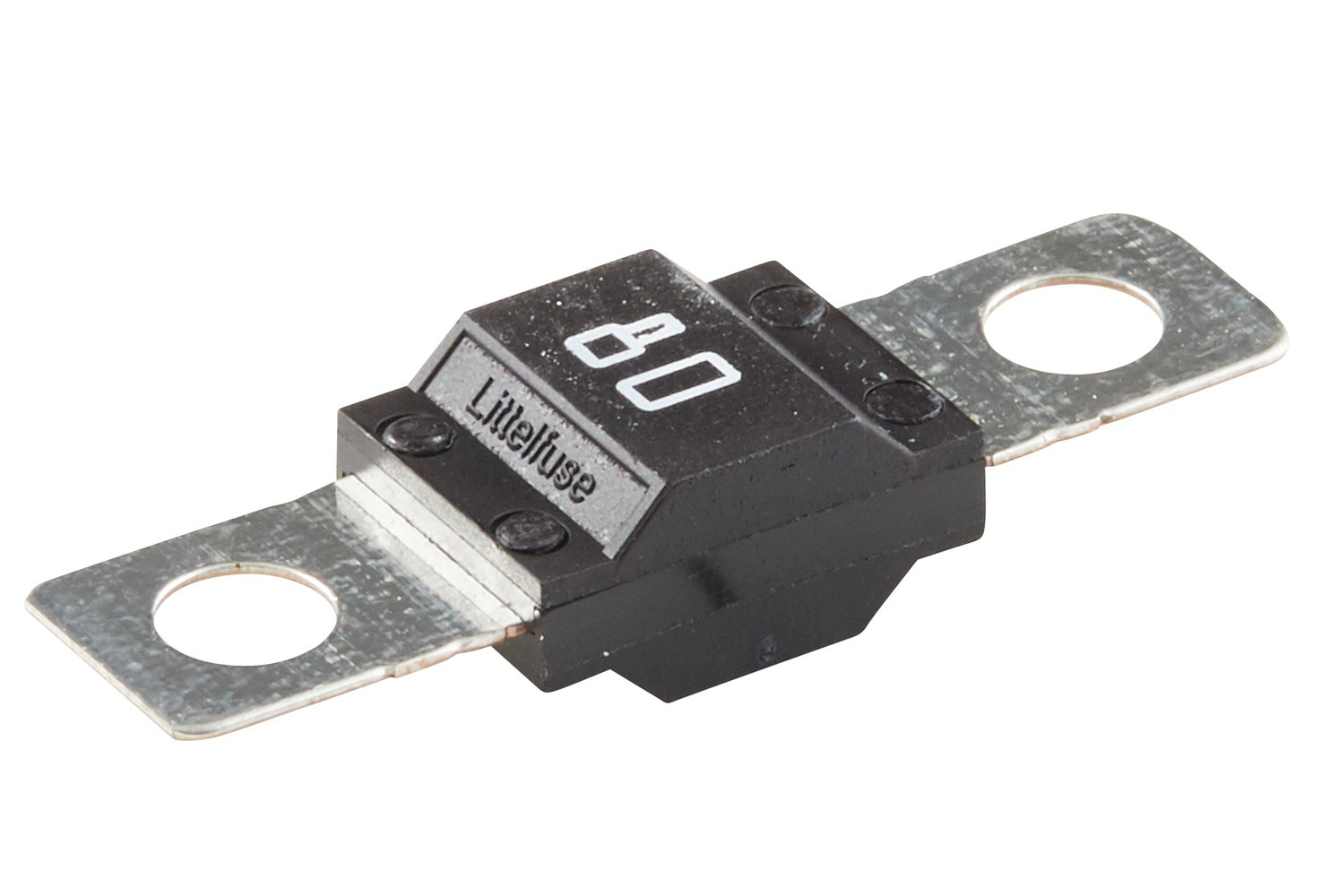

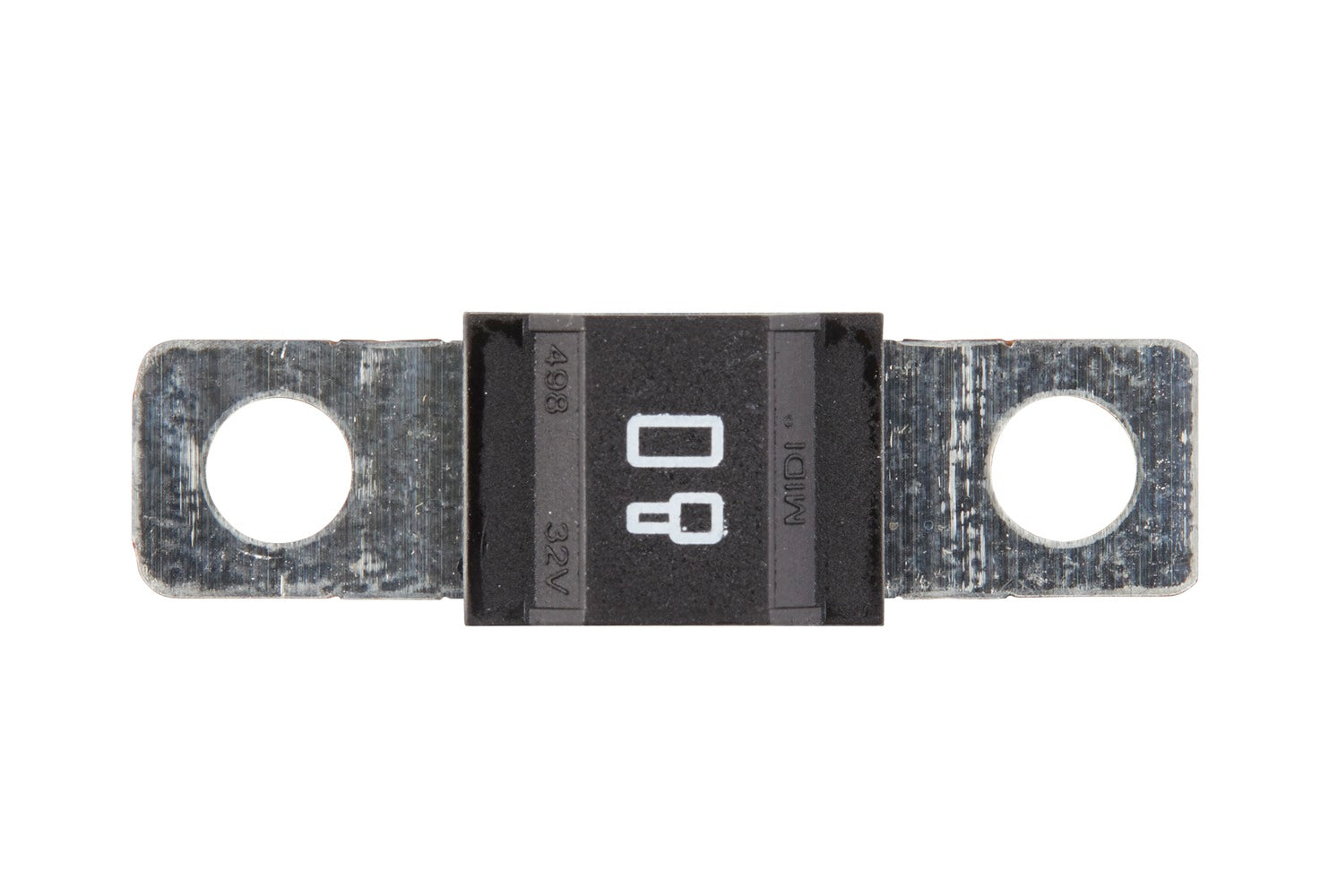

HELLA Fuse - Bolt Type Fuse - 80A - white 8JS742901-041

Fuse - Bolt Type Fuse - 80A - white

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 41mm - Height: 8mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: Bolt Type Fuse
Rated Current: 80 A
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 41 mm
Depth: 12 mm
Height: 8 mm
Bolt Distance: 30 mm
Bore Ø: 5.5 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: white
Packaging: Blister
Assembly by qualified personnel required!

OE references: AMAZONE NM057; AMMANN 4-5358170110; CARNEHL 42433; CASE IH 84078783; GOLDHOFER 002989603; INTERNATIONAL HARV. 002989603; KUBOTA 3J03180640; KUBOTA 3J03180641; SANY 60066244; SCANIA 20223765; SPERRY NEW HOLLAND 84078783; TEREX 5050650489; VOLVO 192432
