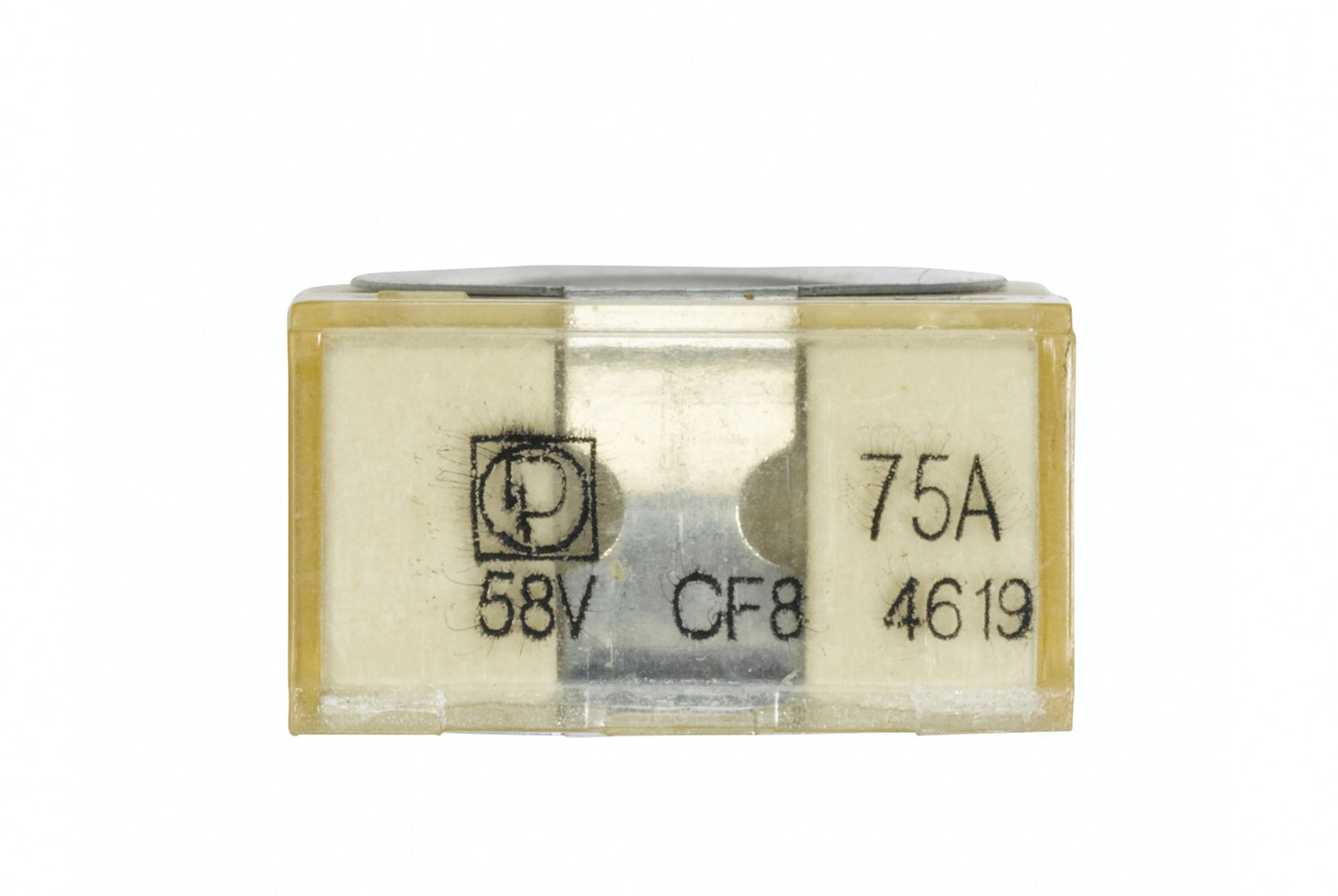

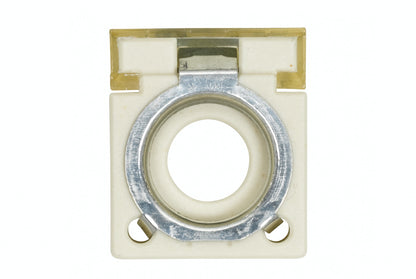

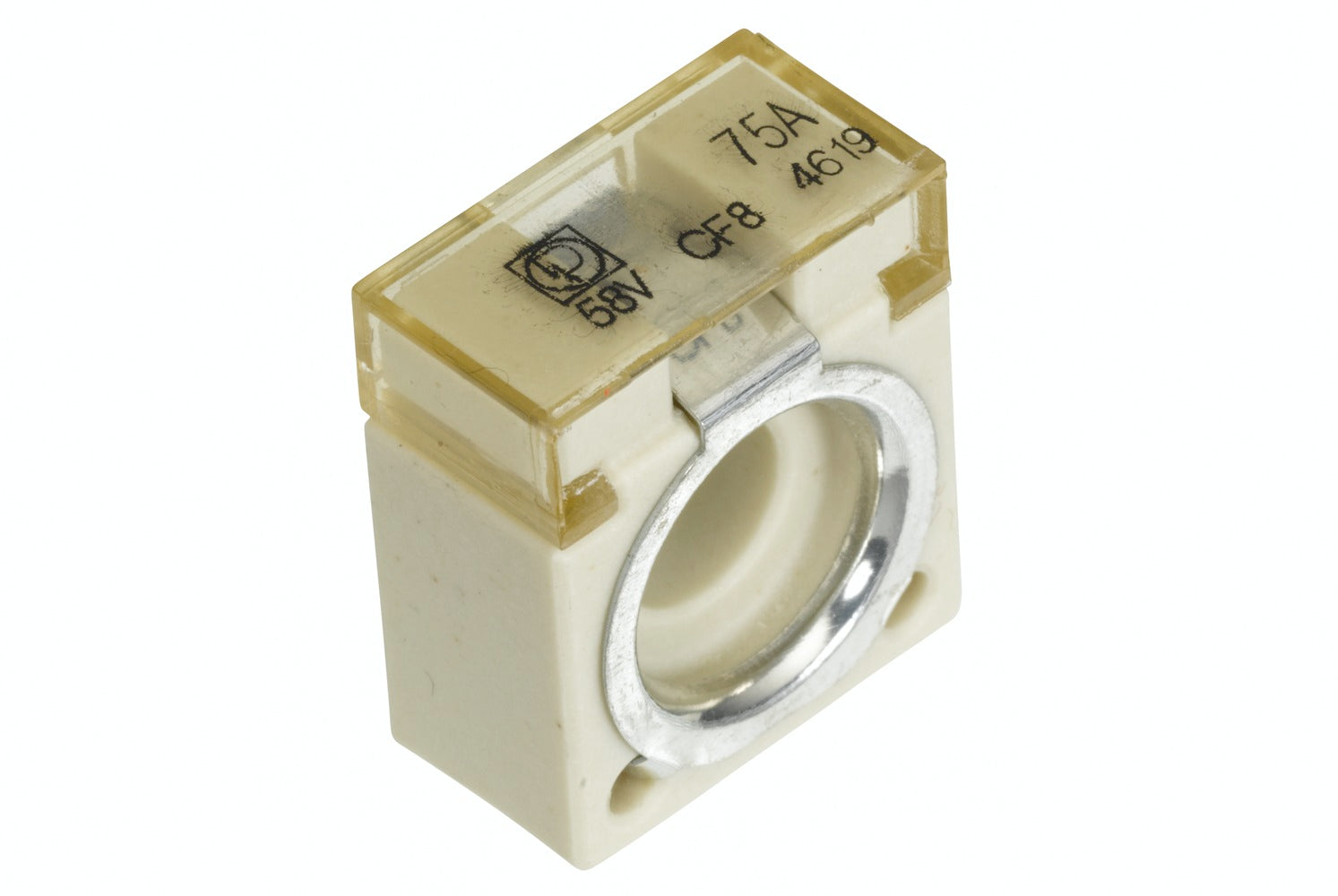

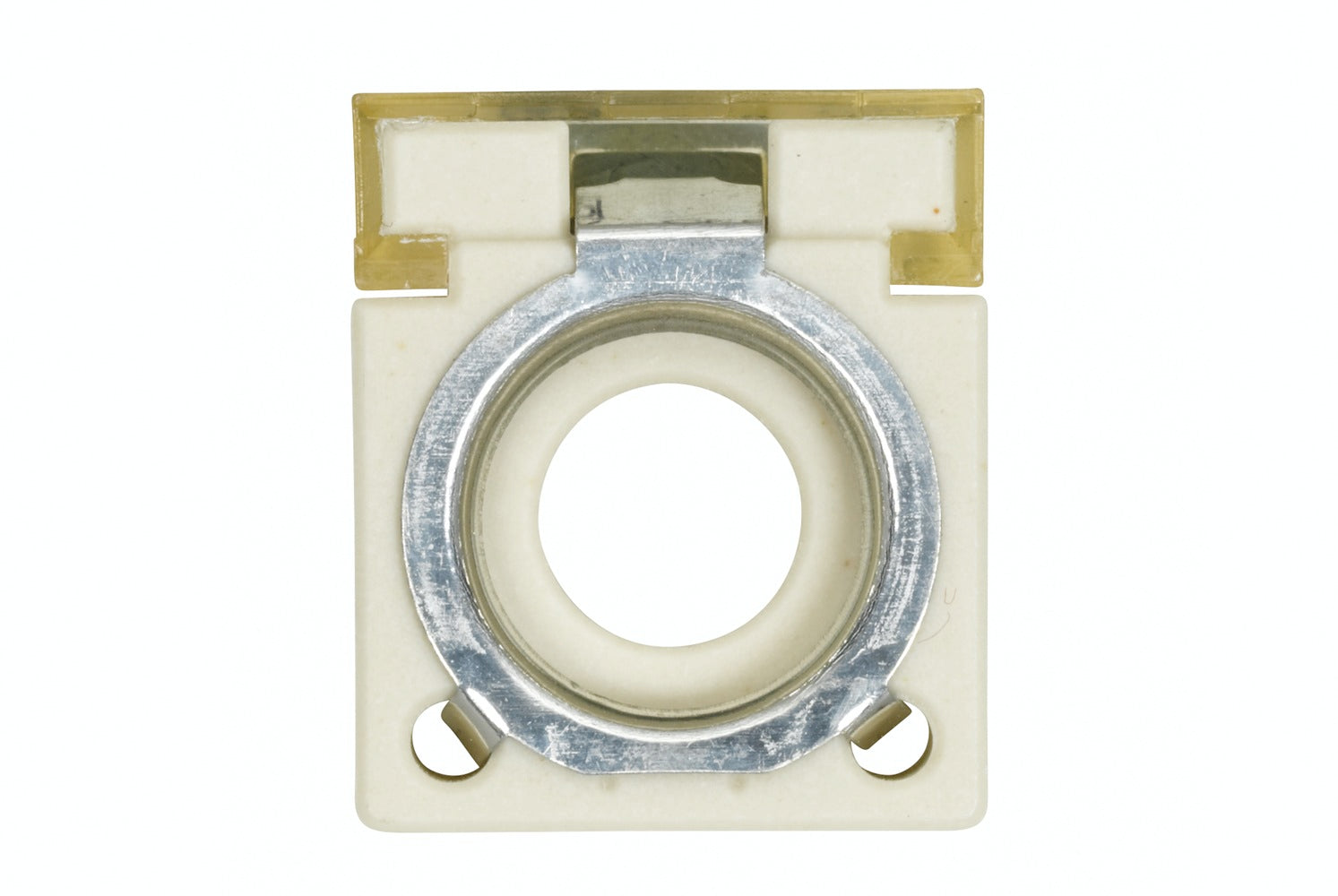

HELLA Fuse - CF8 fuse - 75A - beige 8JS747876-011

Fuse - CF8 fuse - 75A - beige

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 20mm - Height: 11.5mm
• DIN/ISO: 8820-6; 72581-5

Item Attributes:
Fuse Type: CF8 fuse
Rated Current: 75 A
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 20 mm
Depth: 23.5 mm
Height: 11.5 mm
Bore Ø: 8.2 mm
DIN/ISO: 8820-6; 72581-5
Contact surface: Aluminium zinc coated
Colour: beige
Housing material: Ceramic
Assembly by qualified personnel required!

OE references: SCANIA 20223027
