Description

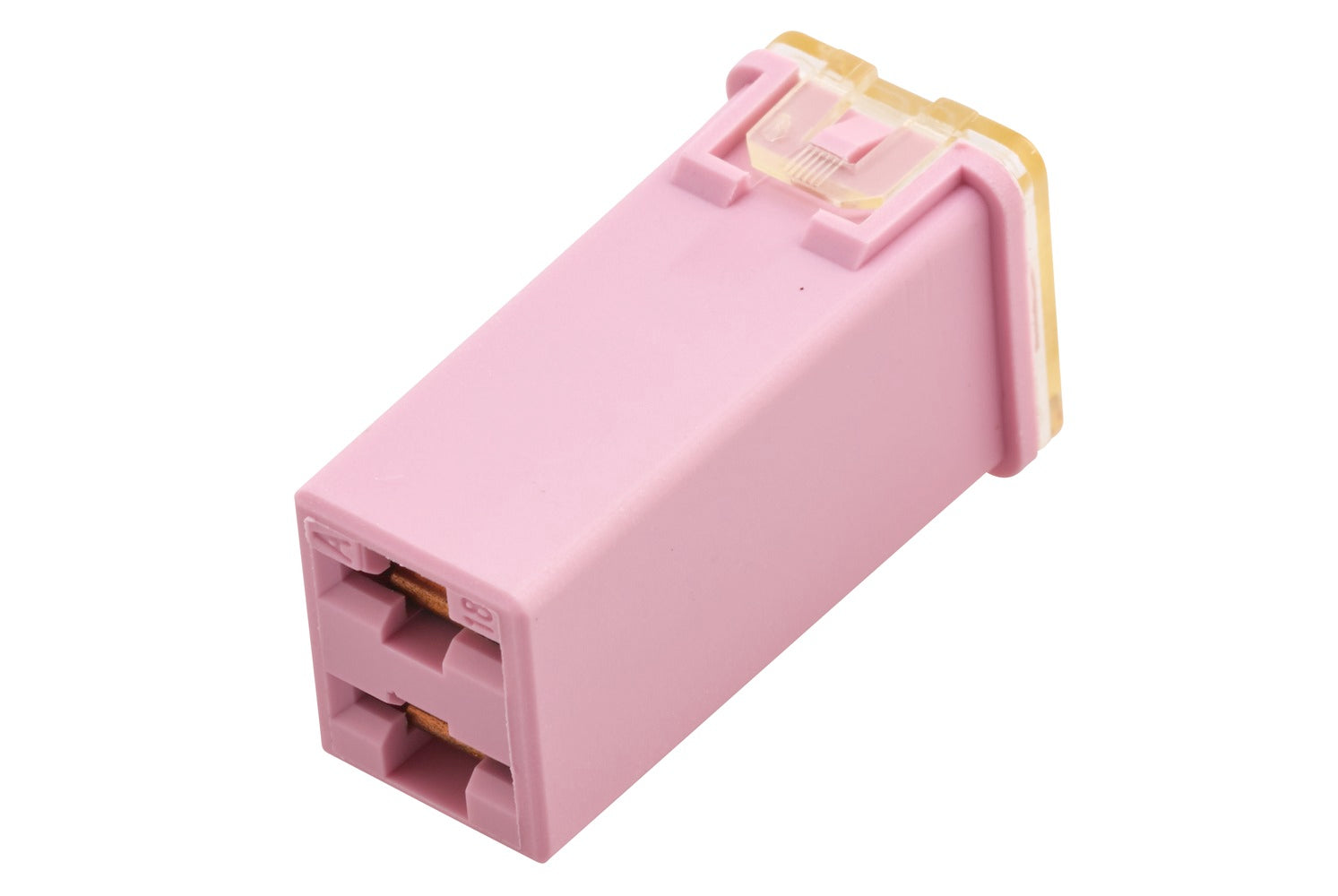

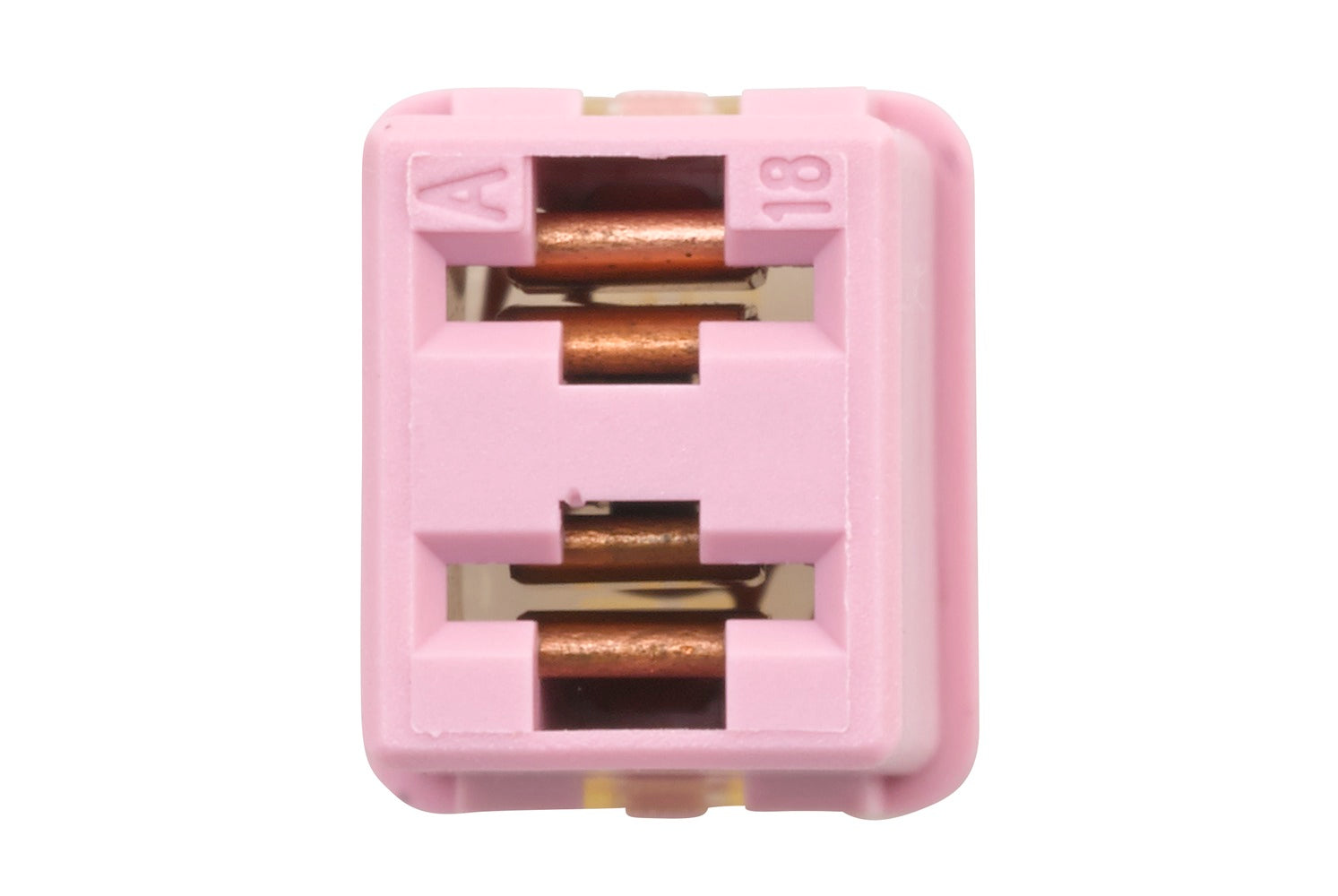

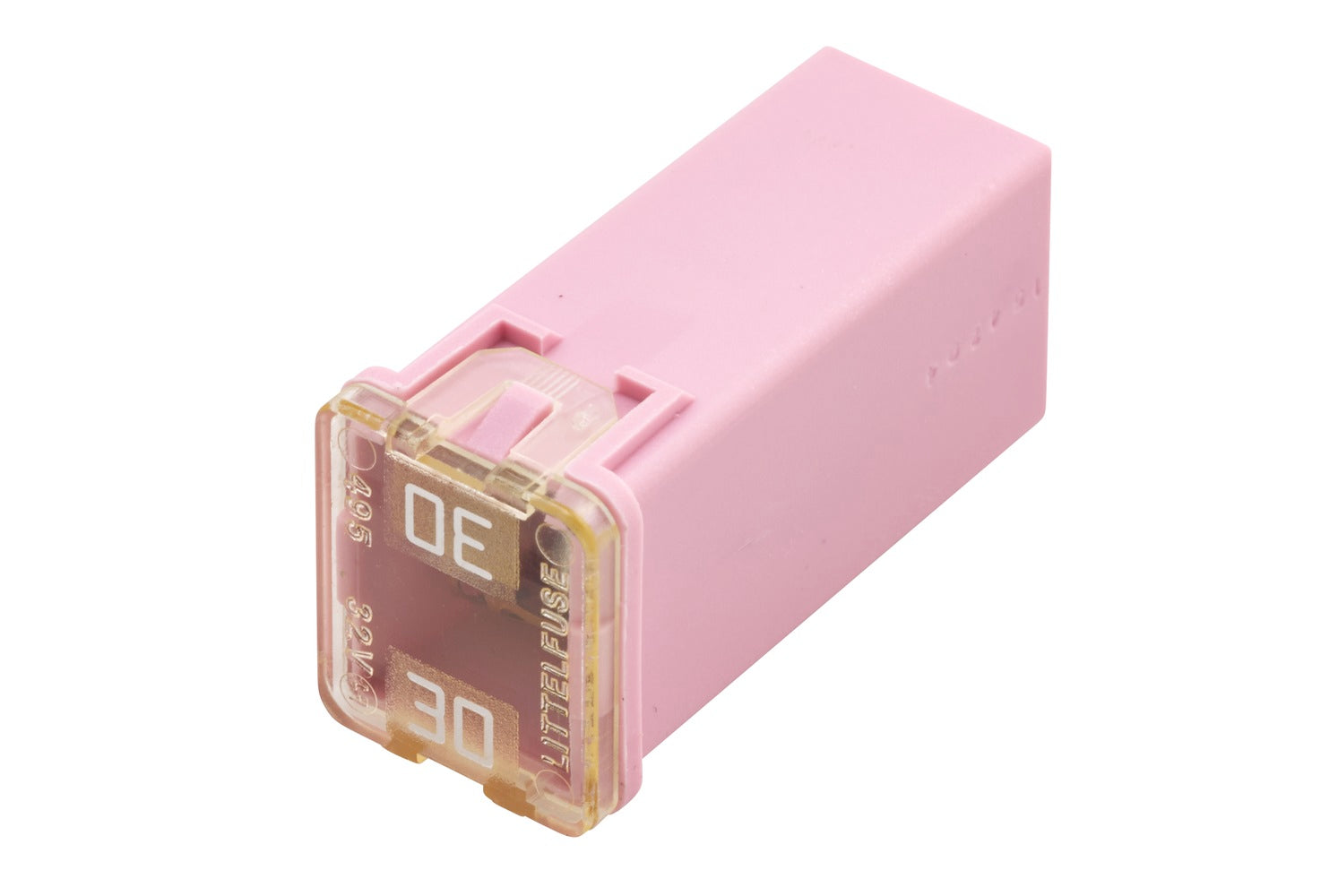

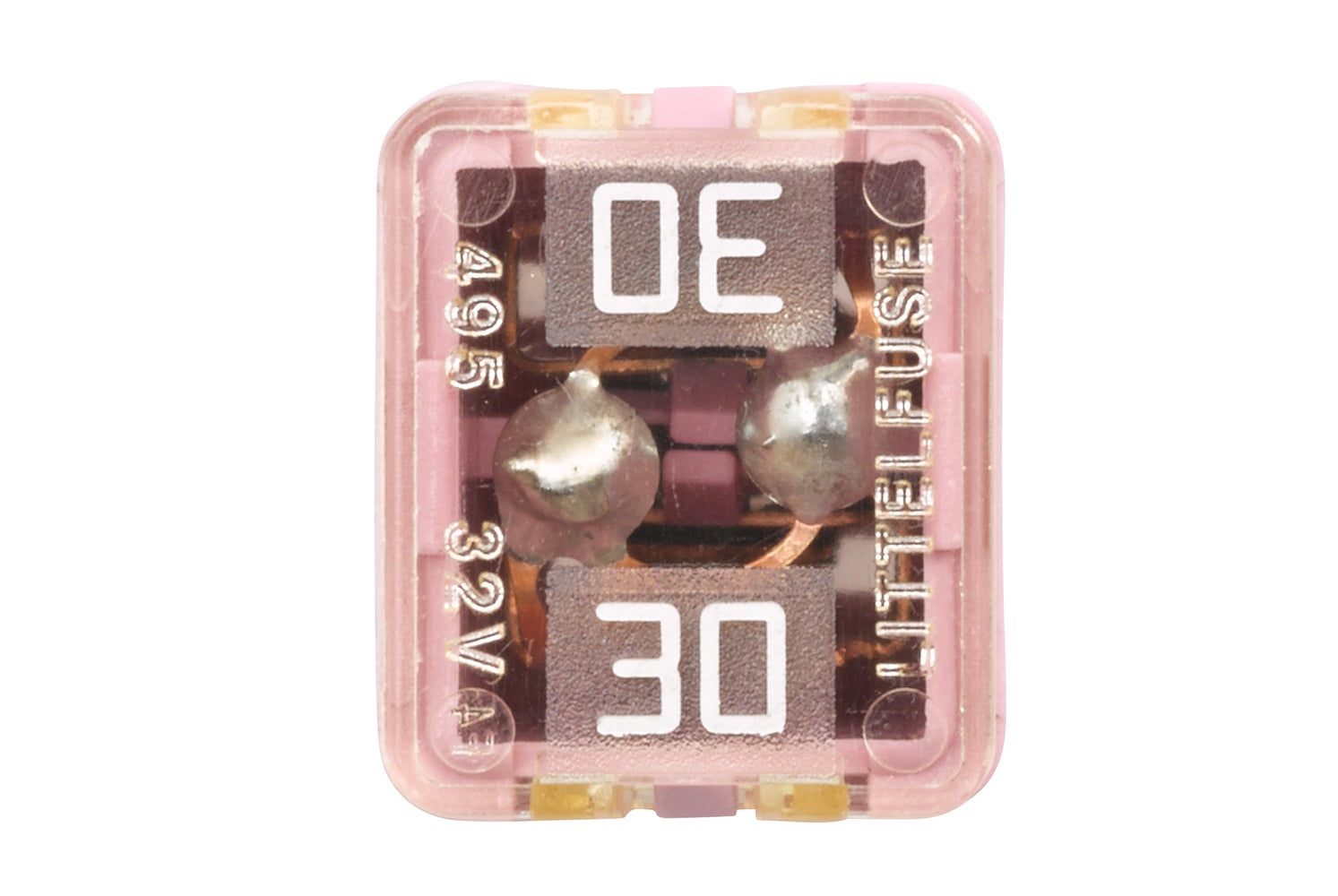

Fuse - for JCASE fuse - 30A - Voltage to: 32V - light pink
PAL fuses (up to max. 120 A) have a similar range of applications as the MAXI flat fuse, but unlike the latter they are mainly installed in Japanese vehicles. These fuse types are also available in different sizes and designs. For example, JCASE or even the particularly space-saving low-profile JCASE fuses are used in newer vehicles.
- Compact design
- Easy, reliable handling due to colour coding and easy-to-read labelling
- Complete range for all vehicle generations
- Alternative to MAXI flat fuses
- Width: 14.1mm - Height: 27mm
- DIN/ISO: 8820-4
Item Attributes:
Fuse Type: for JCASE fuse
Rated Current: 30 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 14.1 mm
Depth: 12 mm
Height: 27 mm
DIN/ISO: 8820-4
fulfils SAE standard: 2741
Colour: light pink
Packaging: Blister
Assembly by qualified personnel required!
