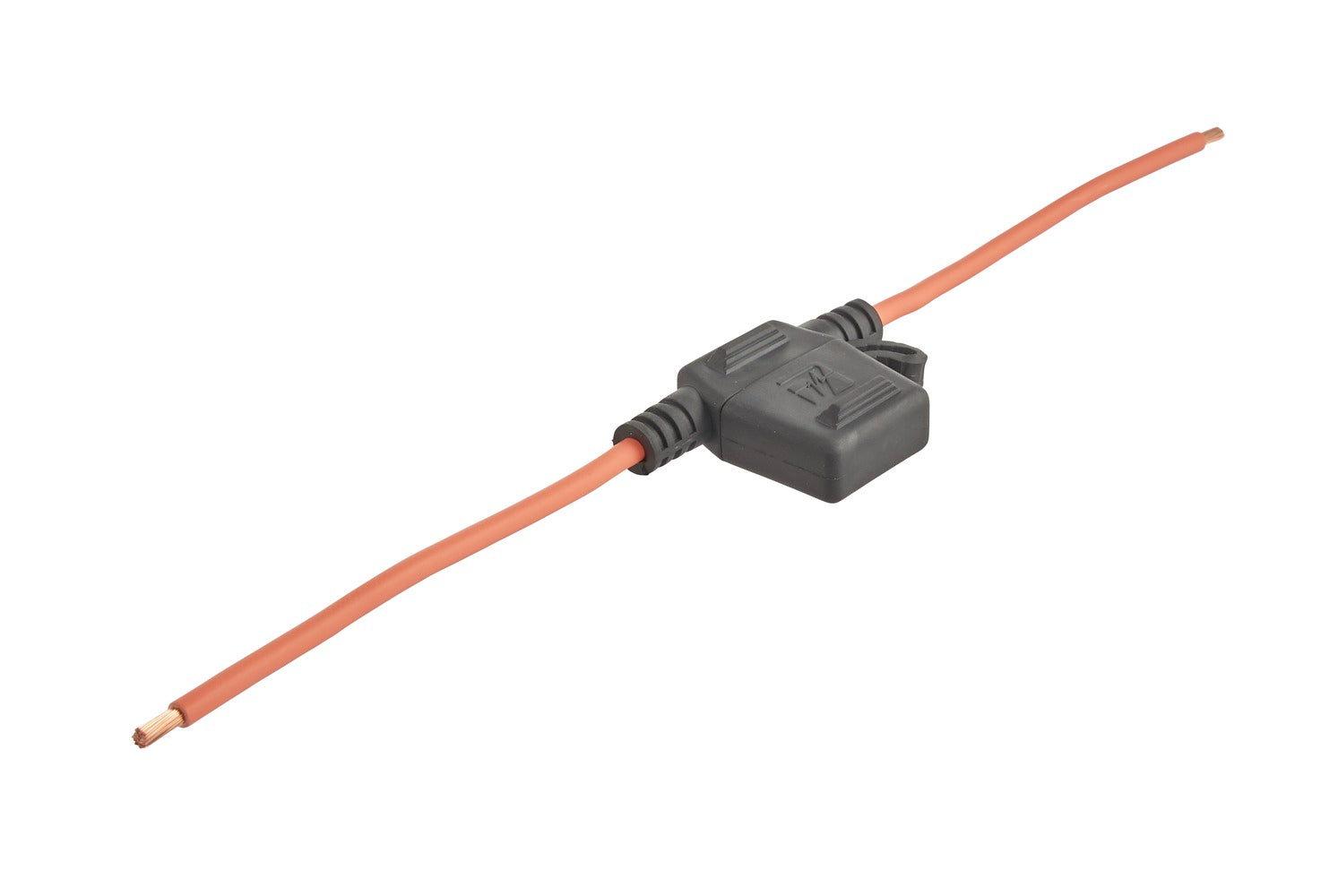

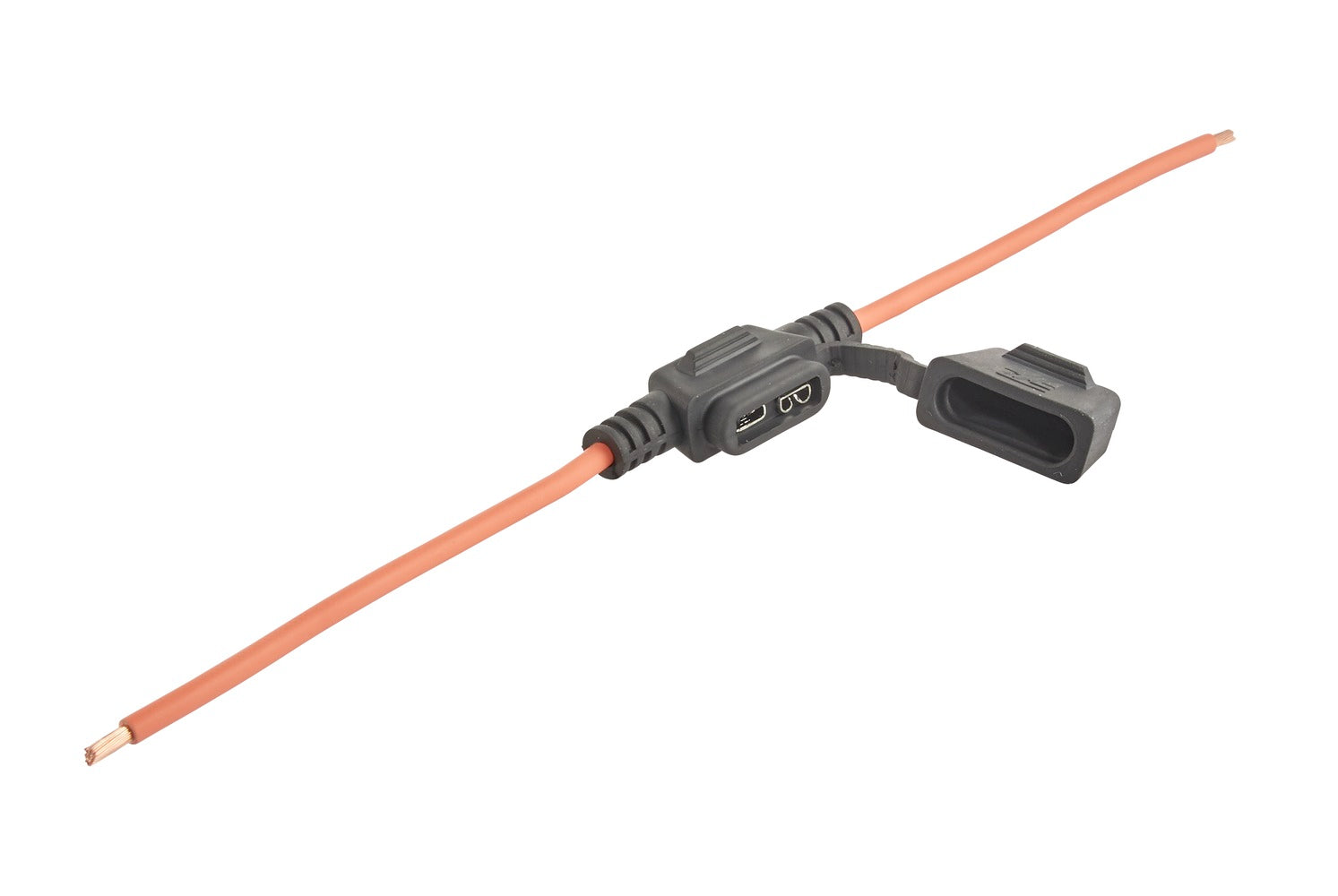

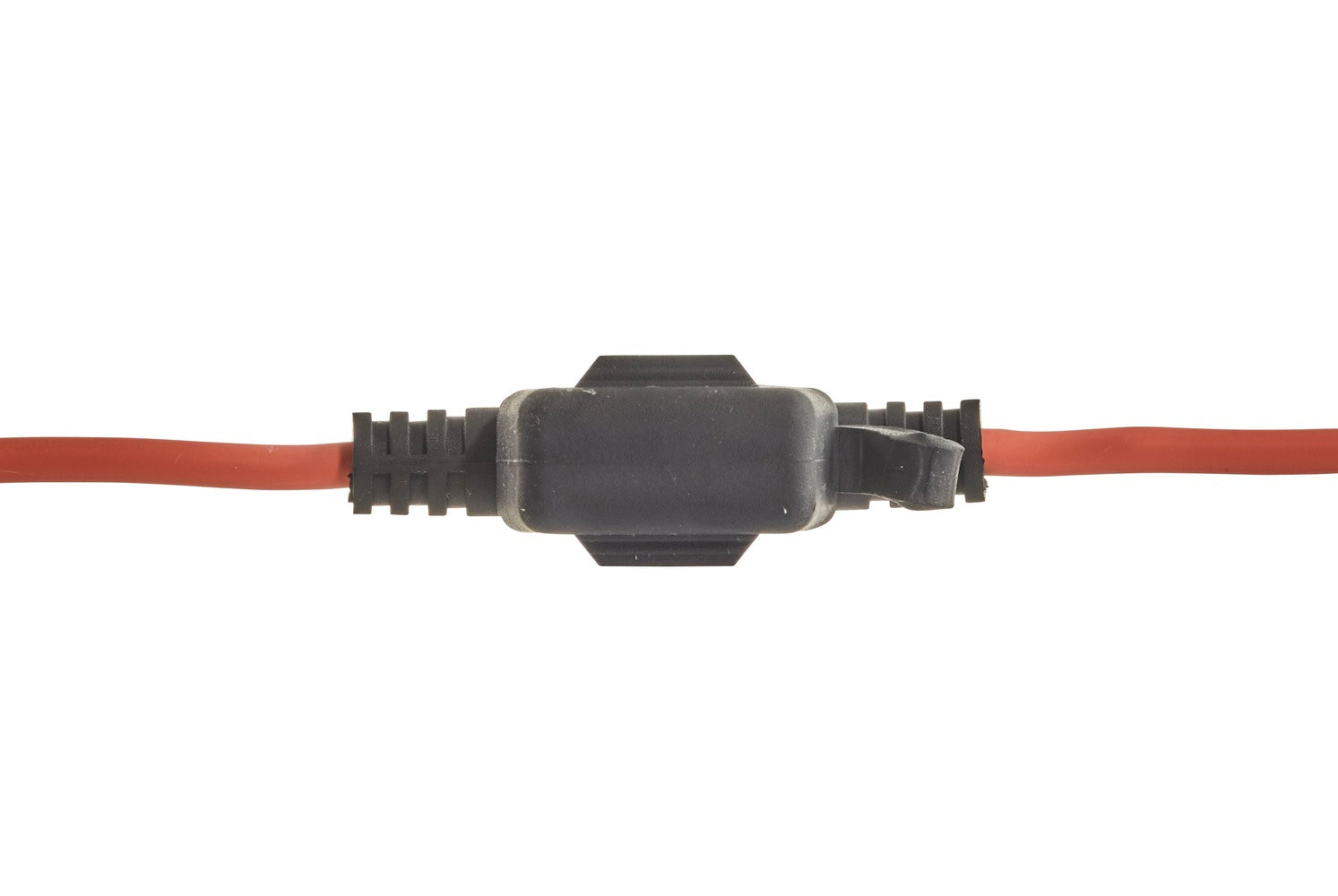

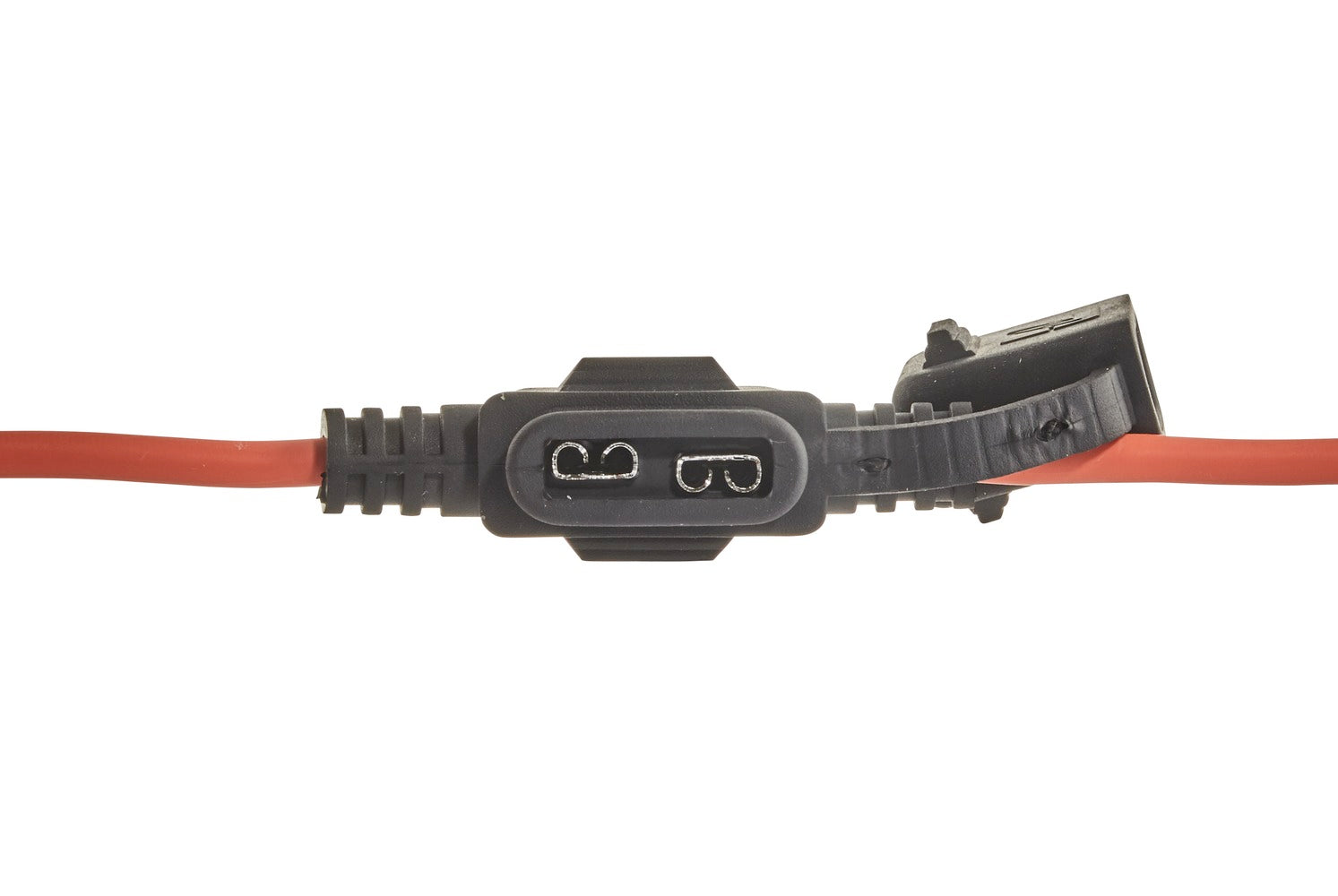

HELLA Fuse Holder - ATO fuse - Quantity: 1 8JD743557-031

Fuse Holder - ATO fuse - Voltage to: 32V - with splash-water protection - Quantity: 1

Whenever the upgrade or conversion of an electrical system requires additional protection against overload (e.g. when integrating an additional consumer), the fuse holder acts as a connection between the line and the fuse link. The product variety is at least as broad as your possible applications. Depending on requirements, variants can be used for a wide range of fuse types - with integrated cable, cover cap or even rubberised full sealing for maximum protection against moisture.

• Wide range of products for numerous applications
• Pragmatic safeguarding solutions for smaller upgrades and conversions
• Easy handling
• Splash-proof variants available
• Original equipment quality
• Current strength to: 30A

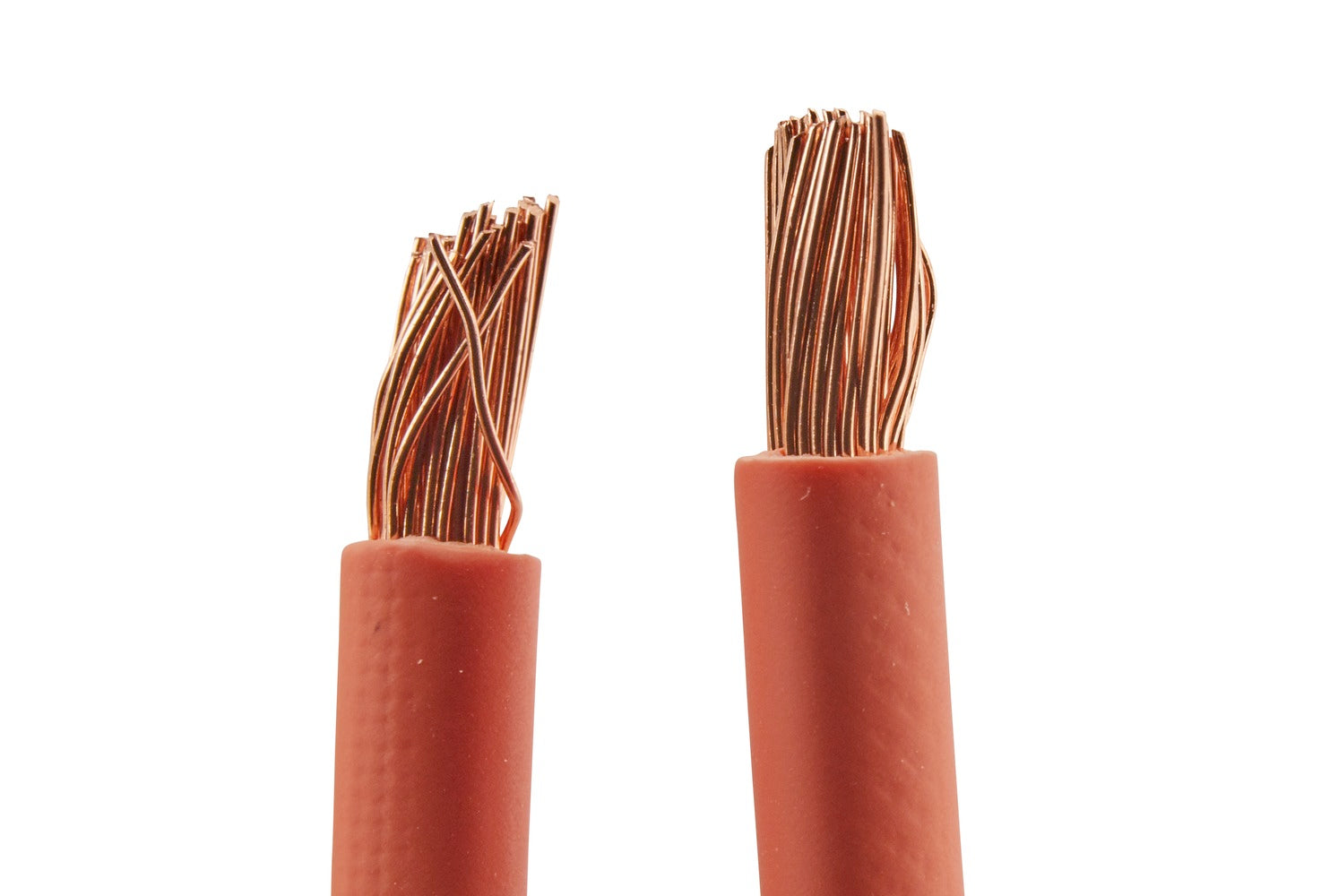

• Cross Section [mm²]: 3.3mm²

Item Attributes:
Cross Section [mm²]: 3.3 mm²
Current Strength to: 30 A
Fuse Type: ATO fuse
Housing Colour: black
Housing material: Thermoplast
Length: 227 mm
Material: Copper
Packaging: Blister
Prot.type (IP Code): IP67
Quantity: 1
Supplementary Article/Supplementary Info 2: with splash-water protection
Voltage to: 32 V
Assembly by qualified personnel required!

OE references: AEBI 1025694-7; CATERPILLAR 153970; JOHN DEERE SIHA 630; SCANIA SP1030417; SCHWARZMÜLLER 80795; VOLVO 191680
