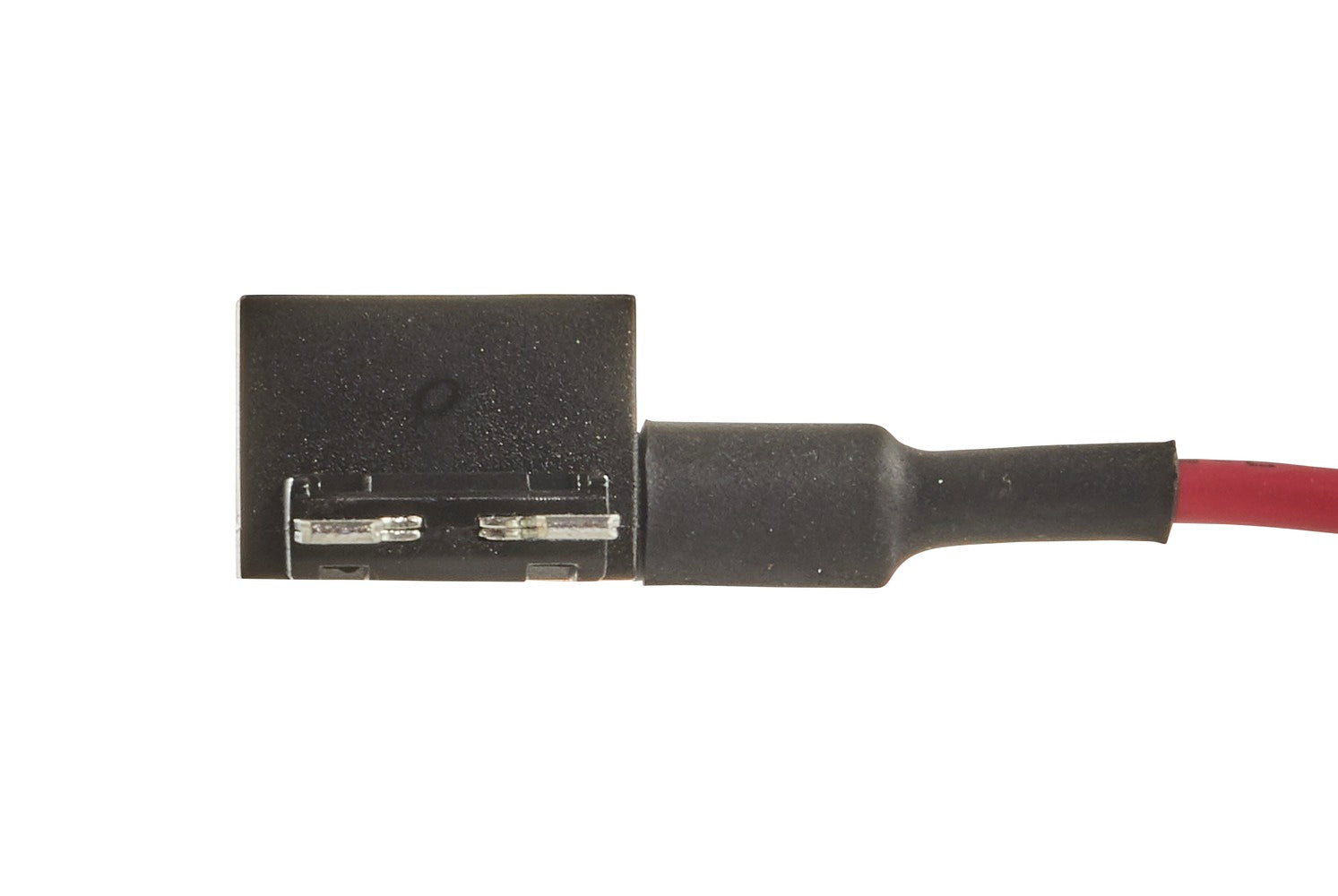

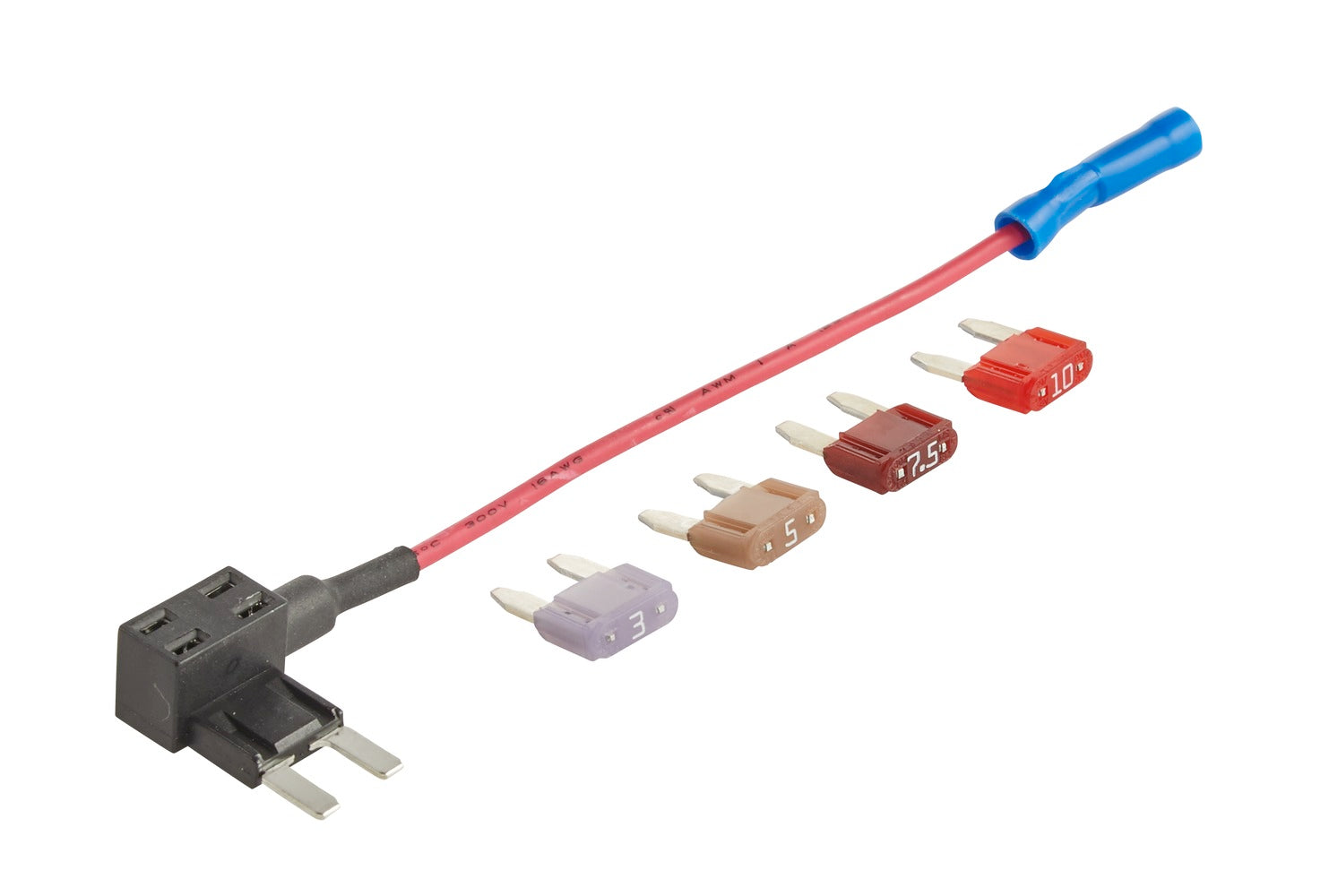

HELLA Fuse Holder - for mini-blade plug-in fuse - red - Quantity: 1 8JD743557-801

Fuse Holder - for mini-blade plug-in fuse - Voltage to: 32V - red - Quantity: 1

Whenever the upgrade or conversion of an electrical system requires additional protection against overload (e.g. when integrating an additional consumer), the fuse holder acts as a connection between the line and the fuse link. The product variety is at least as broad as your possible applications. Depending on requirements, variants can be used for a wide range of fuse types - with integrated cable, cover cap or even rubberised full sealing for maximum protection against moisture.

• Wide range of products for numerous applications
• Pragmatic safeguarding solutions for smaller upgrades and conversions
• Easy handling
• Splash-proof variants available
• Original equipment quality
• Current Strength from: 7.5A - Current Strength to: 10A
• Cross Section [mm²]: 1.3mm²

Item Attributes:
Colour: red
Cross Section [mm²]: 1.3 mm²
Current Strength from: 7.5 A
Current Strength to: 10 A
Fuse Type: for mini-blade plug-in fuse
Housing Colour: black
Housing material: Plastic
Length: 130 mm
Material: Copper
Packaging: Blister
Quantity: 1
Temperature range to: +125 °C
Voltage to: 32 V
Assembly by qualified personnel required!

OE references: AEBI 1158769-6
