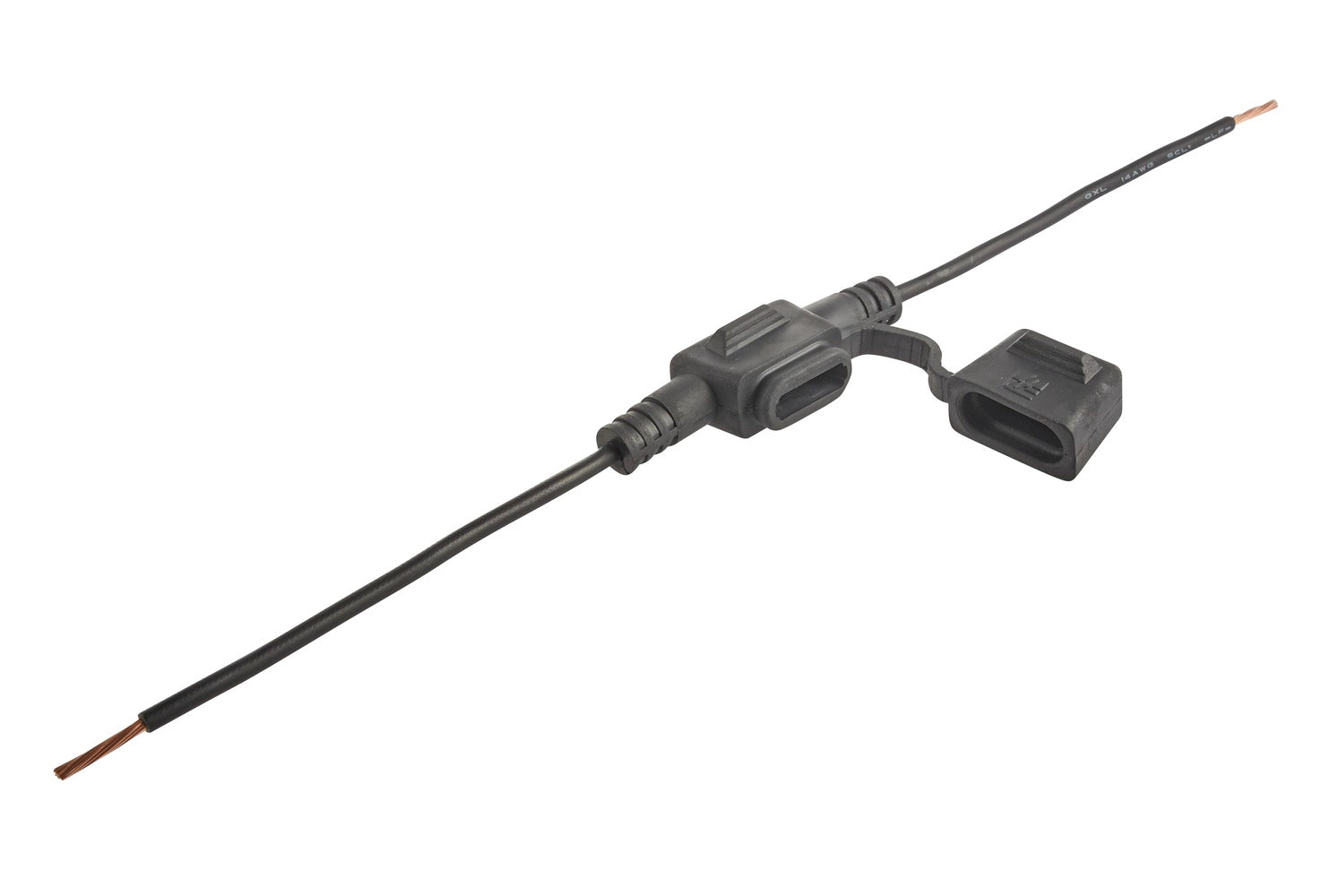

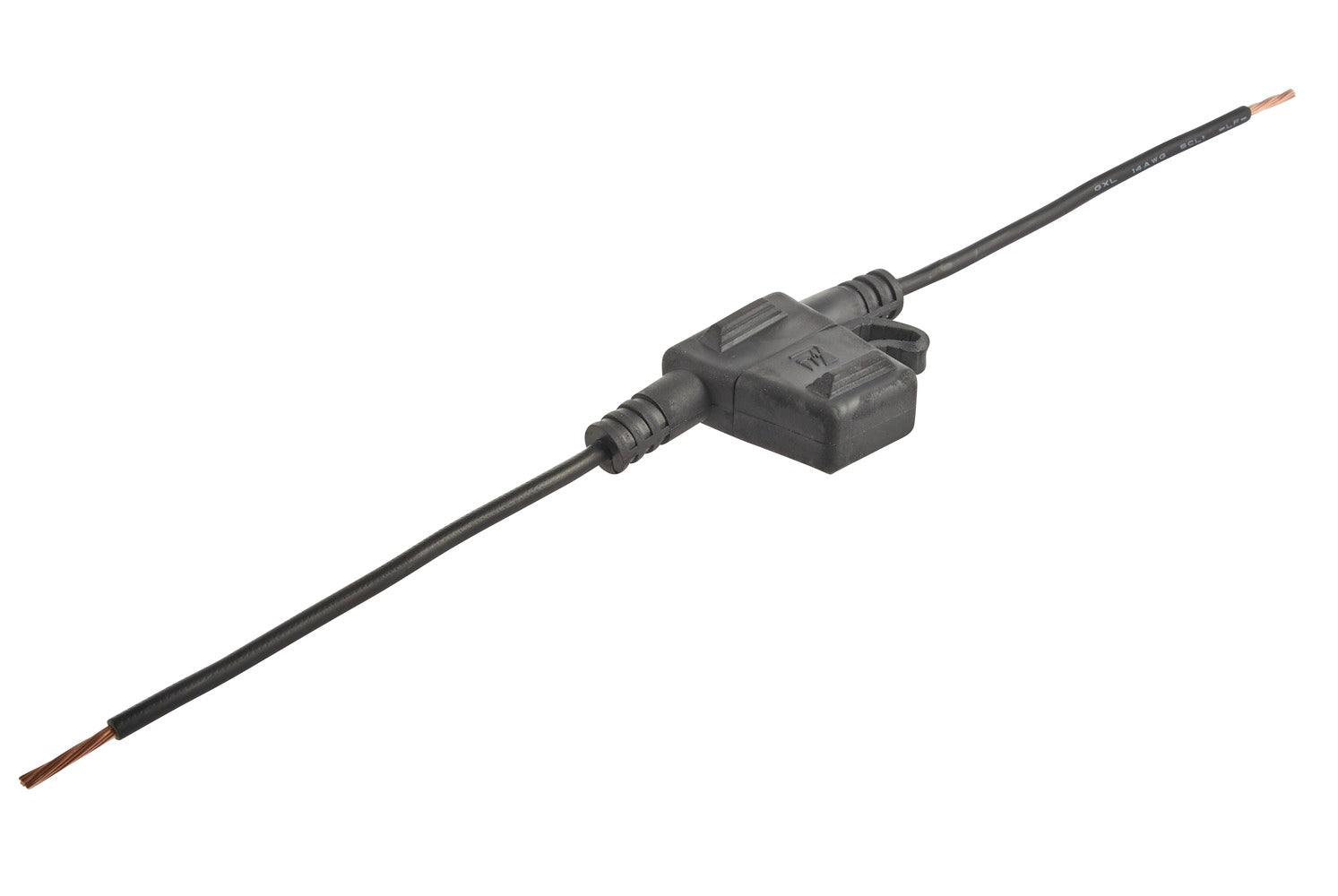

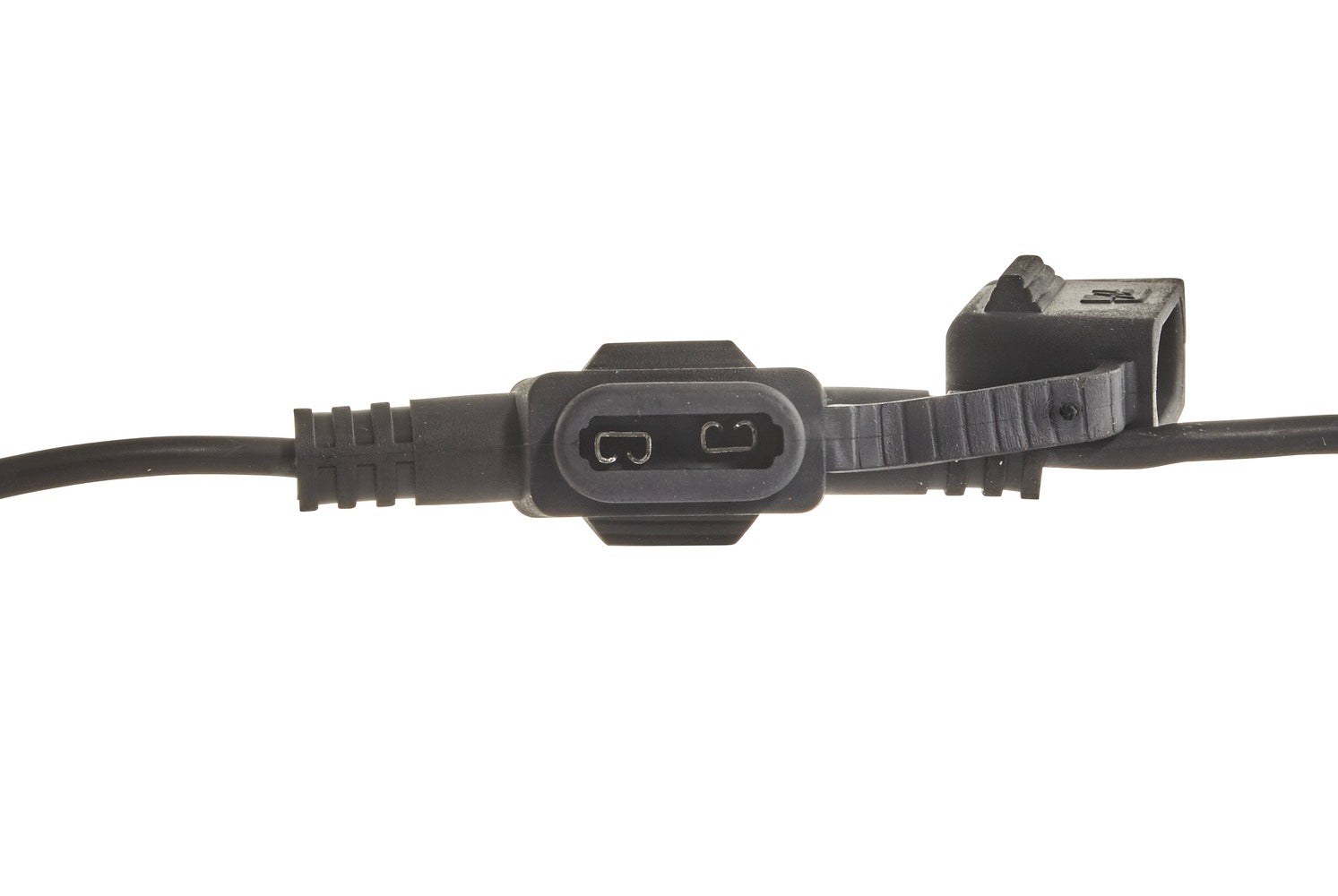

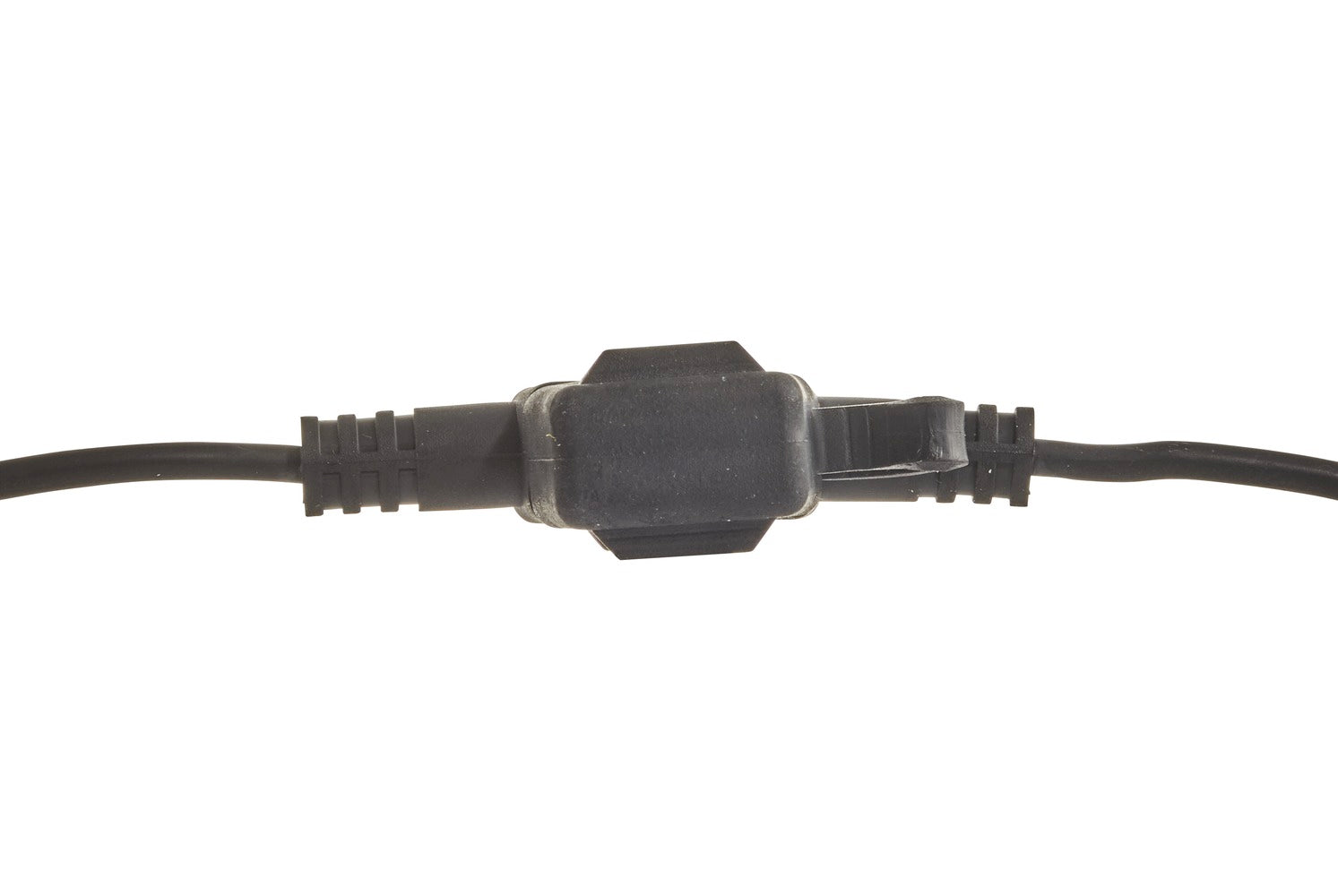

HELLA Fuse Holder - Mini-Flat Fuse - red - Quantity: 1 8JD743557-001

Fuse Holder - Mini-Flat Fuse - Voltage to: 32V - red - with splash-water protection - Quantity: 1

Whenever the upgrade or conversion of an electrical system requires additional protection against overload (e.g. when integrating an additional consumer), the fuse holder acts as a connection between the line and the fuse link. The product variety is at least as broad as your possible applications. Depending on requirements, variants can be used for a wide range of fuse types - with integrated cable, cover cap or even rubberised full sealing for maximum protection against moisture.

• Wide range of products for numerous applications
• Pragmatic safeguarding solutions for smaller upgrades and conversions
• Easy handling
• Splash-proof variants available
• Original equipment quality
• Current Strength to: 20A
• Cross Section [mm²]: 2.1mm²

Item Attributes:
Colour: red
Cross Section [mm²]: 2.1 mm²
Current Strength to: 20 A
Fuse Type: Mini-Flat Fuse
Housing Colour: black
Housing material: Thermoplast
Length: 244 mm

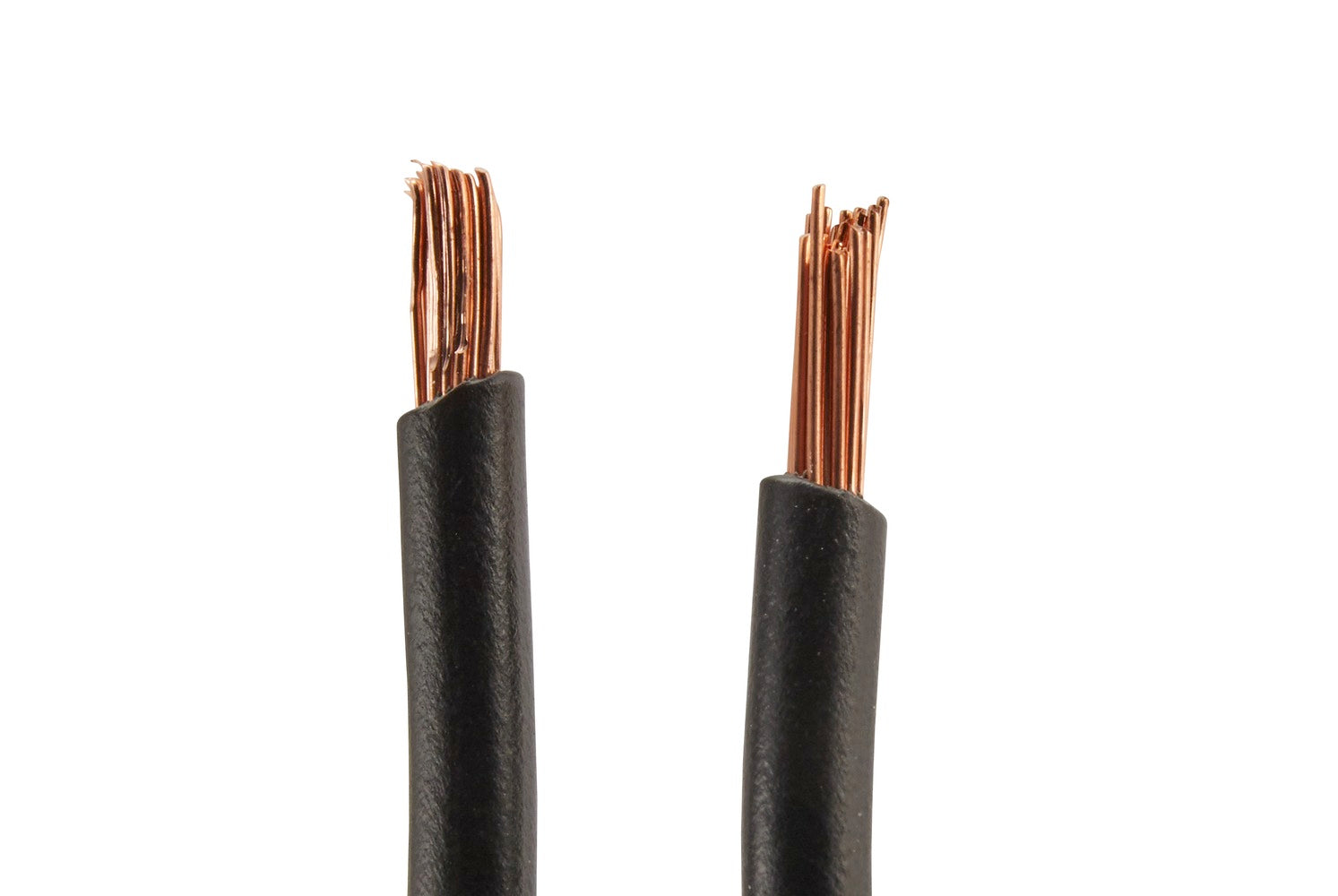

Material: Copper
Packaging: Blister
Prot.type (IP Code): IP67
Quantity: 1
Supplementary Article/Supplementary Info 2: with splash-water protection
Temperature range to: +125 °C
Voltage to: 32 V
Assembly by qualified personnel required!

OE references: MANITOU 294697; MANITOU 749728; NOOTEBOOM 3323144
