HELLA Fuse Kit - ATO - 2/5/7.5/15/20/30A - Quantity: 30 8JS711683-861

Fuse Kit - ATO - 2/5/7.5/15/20/30A - Voltage to: 32V - Quantity: 30

Flat blade fuses are primarily used in automotive electrical fuse systems. A distinction is made between: 1. The widely used standard version ATO (up to max. 40 A), 2. the large-format MAXI flat fuse for the high-current range (up to max. 80 A), 3. the small-format MINI flat fuse for single consumer protection (up to max. 30 A), and 4. the even more space-saving low-profile MINI version (also up to 30 A). HELLA offers a complete range including special variants for electric vehicles and LED fuses for quick replacement even at night.

• Original equipment quality according to the requirements of ISO 8820-3
• Compact design
• Easy, reliable handling due to colour coding and easy-to-read labelling
• Wide range of blade fuses

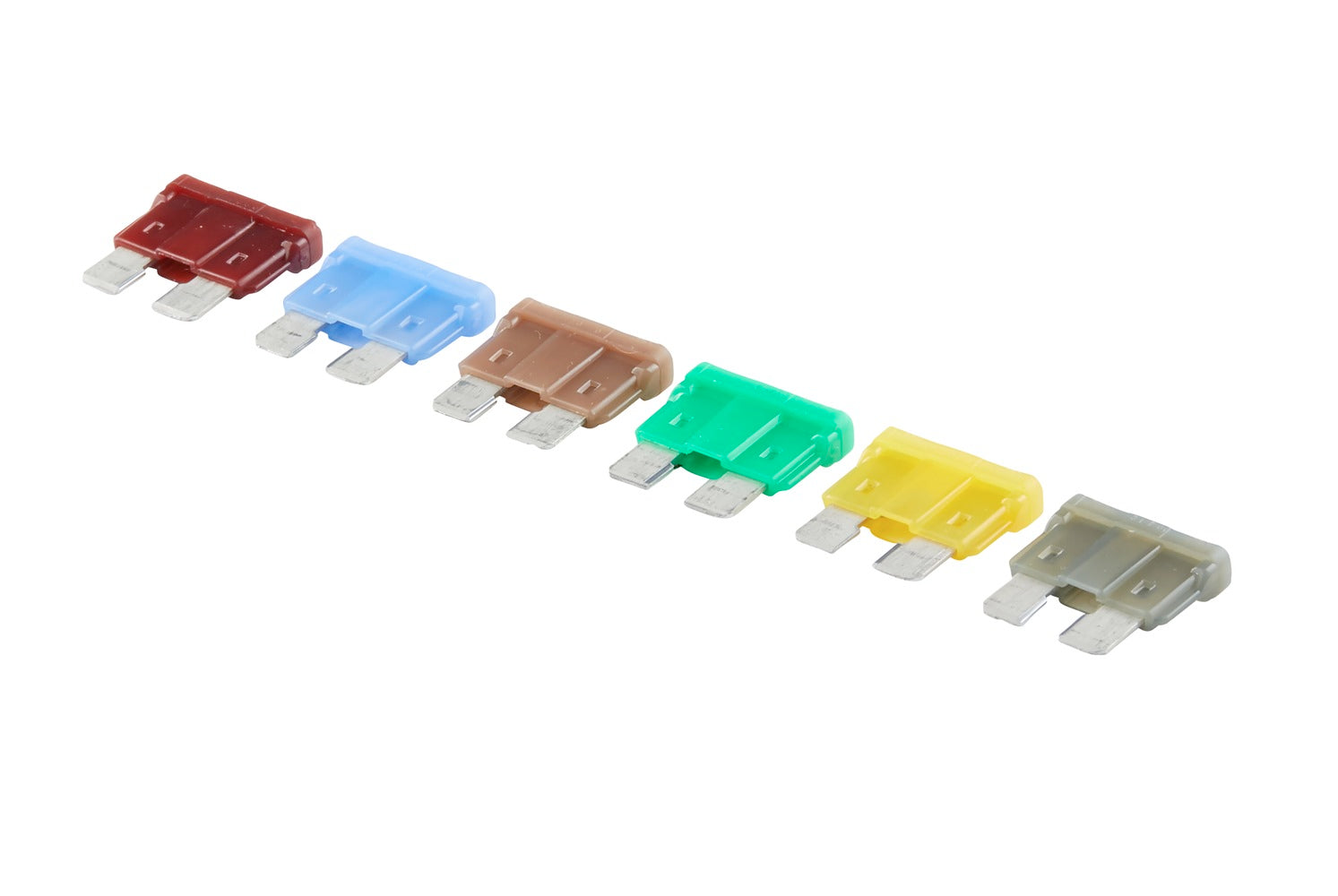

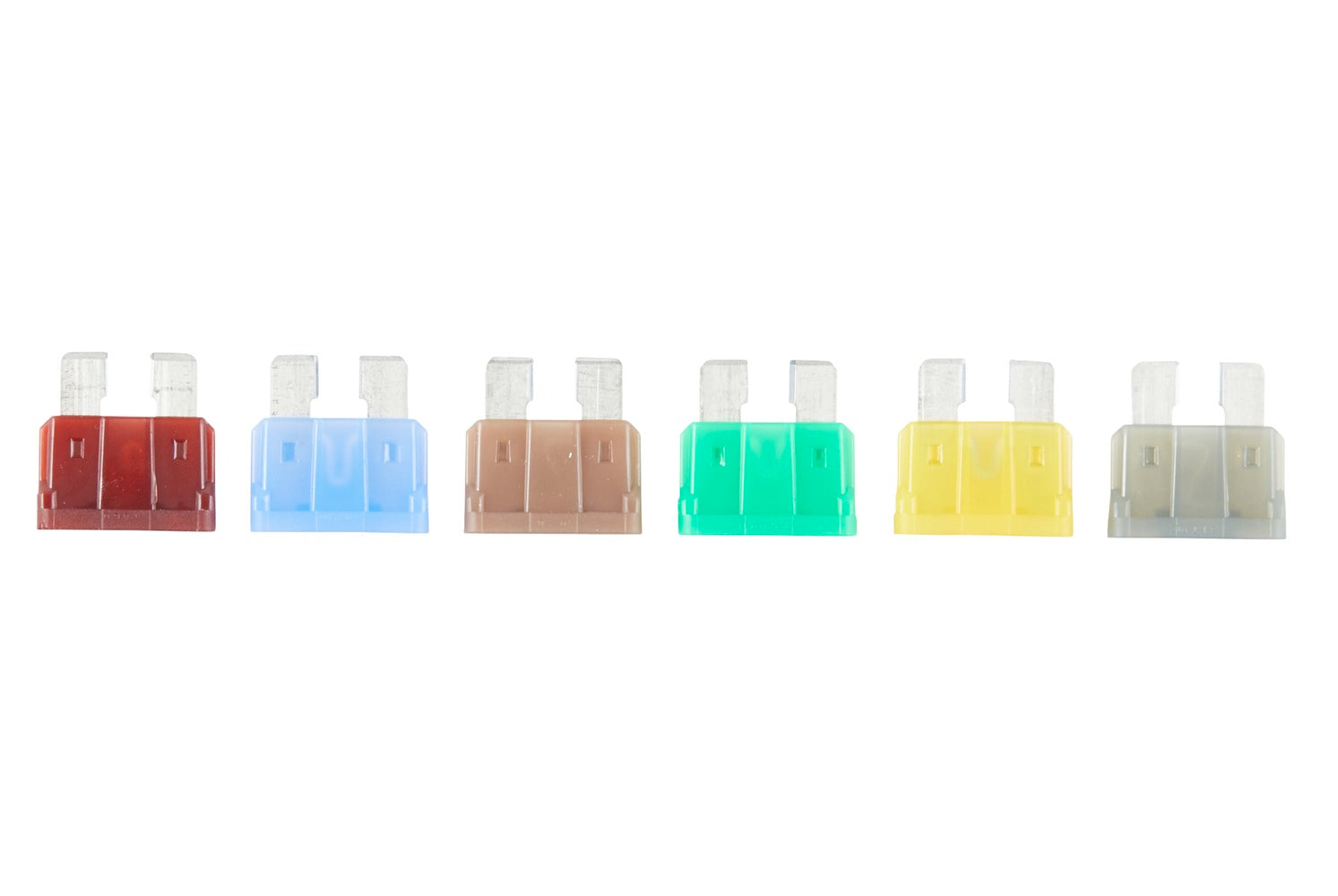

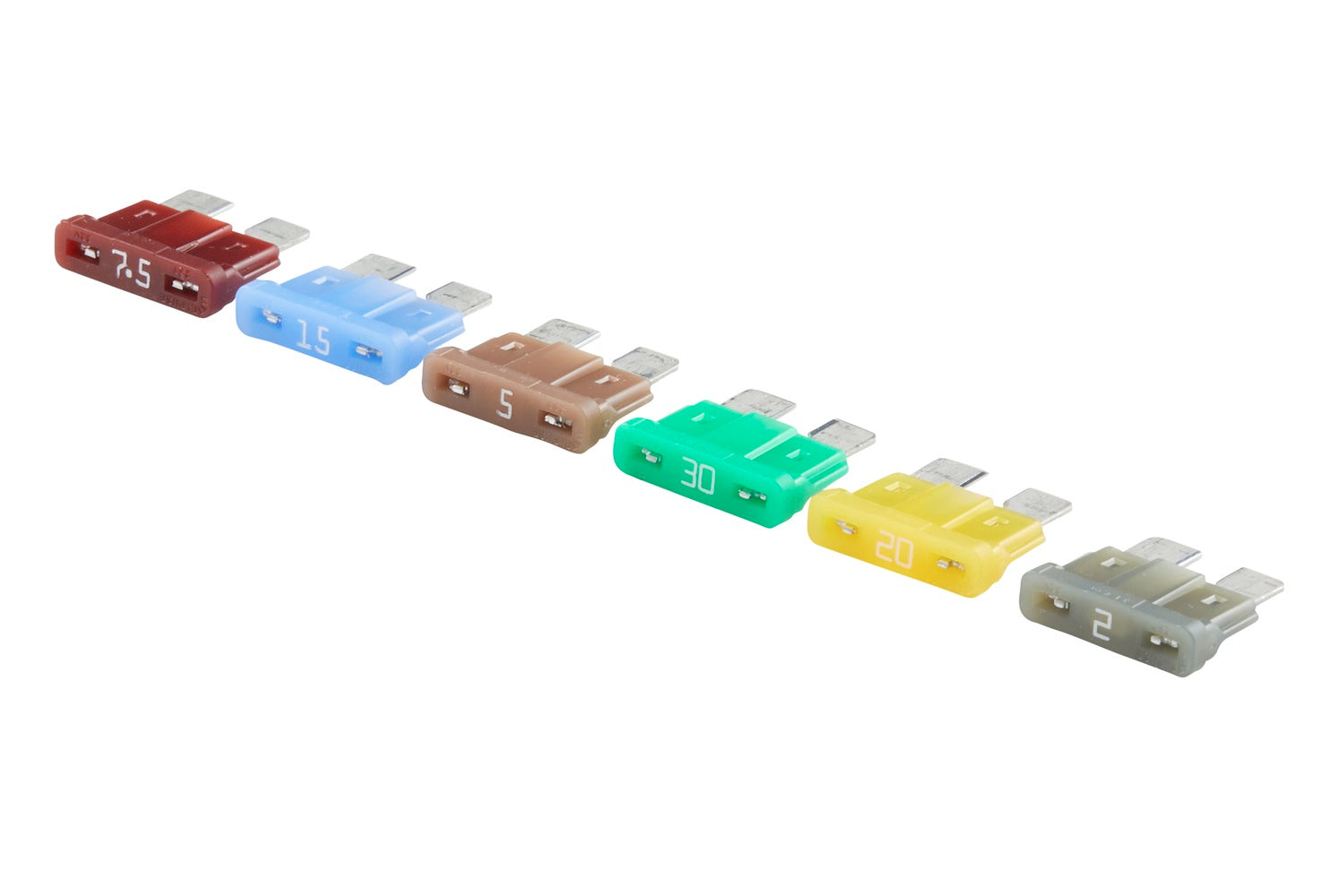

• Contents: 5 pieces each 2 A / 5 A / 7.5 A / 15 A, 20 A / 30 A

Item Attributes:
for manufacturer: ATO
Shape: Flat
Quantity: 30
Rated Current: 30 A / 20 A / 5 A / 15 A / 2 A / 7.5 A
Voltage to: 32 V
Assembly by qualified personnel required!

OE references: JOHN DEERE AZ 100 125
