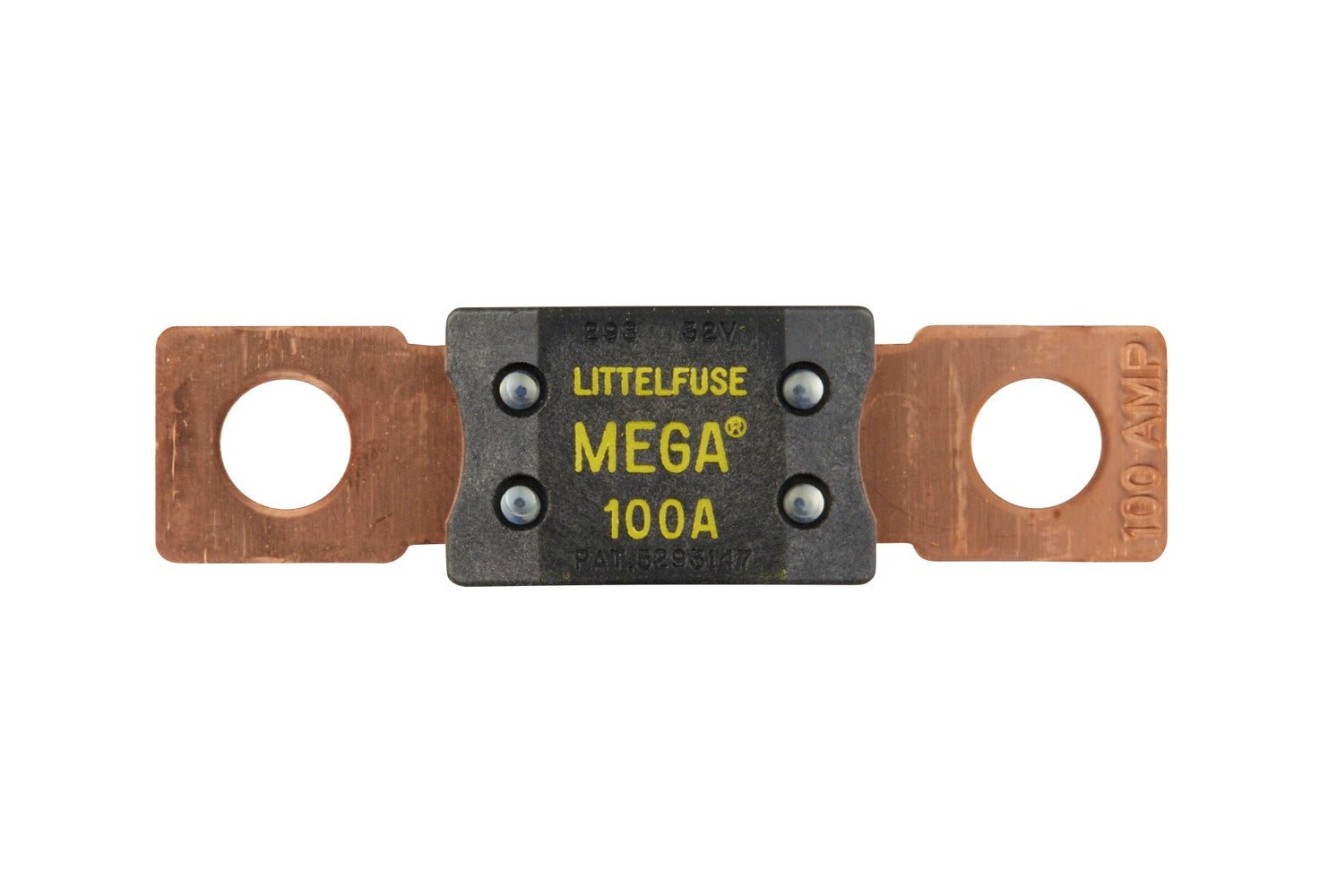

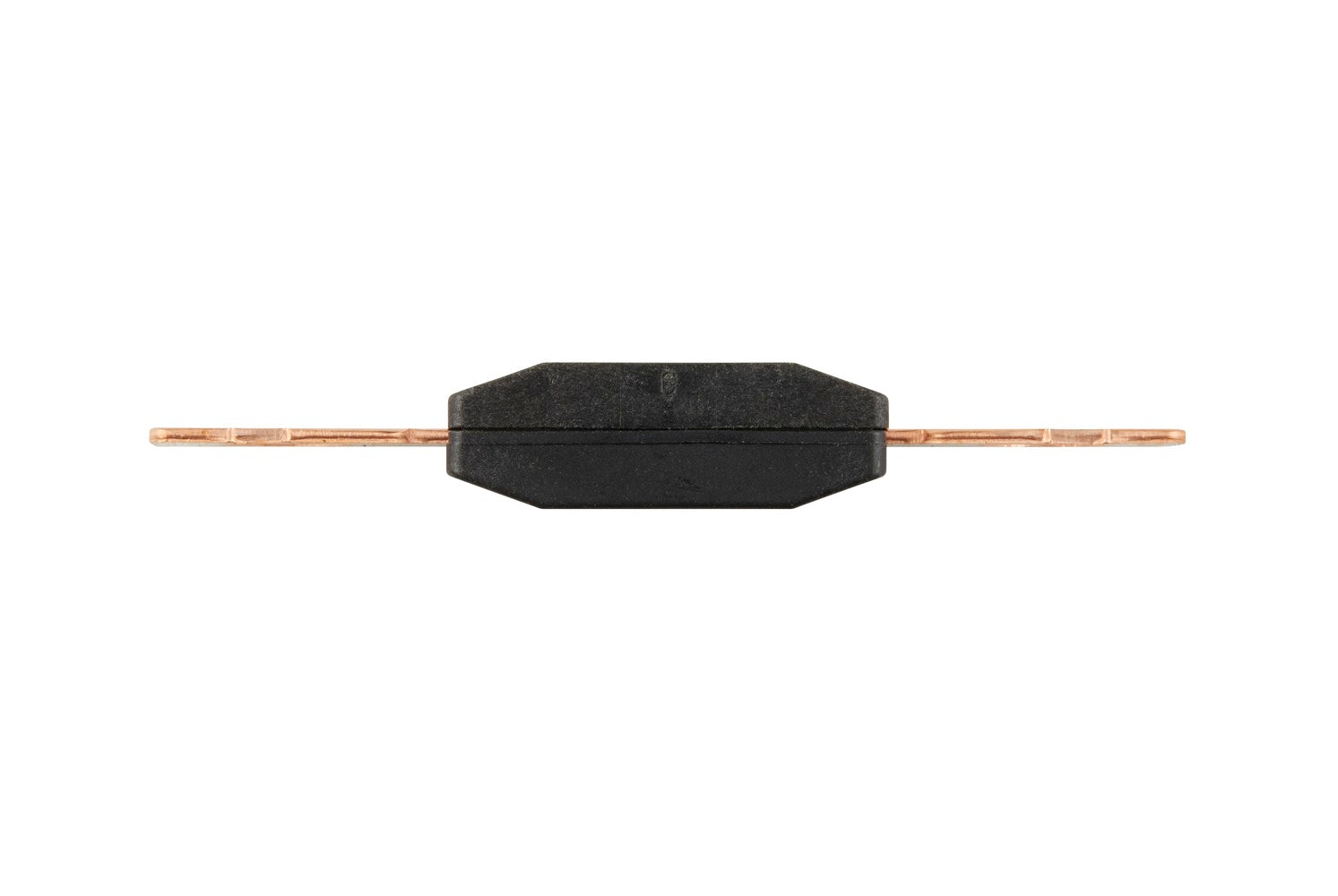

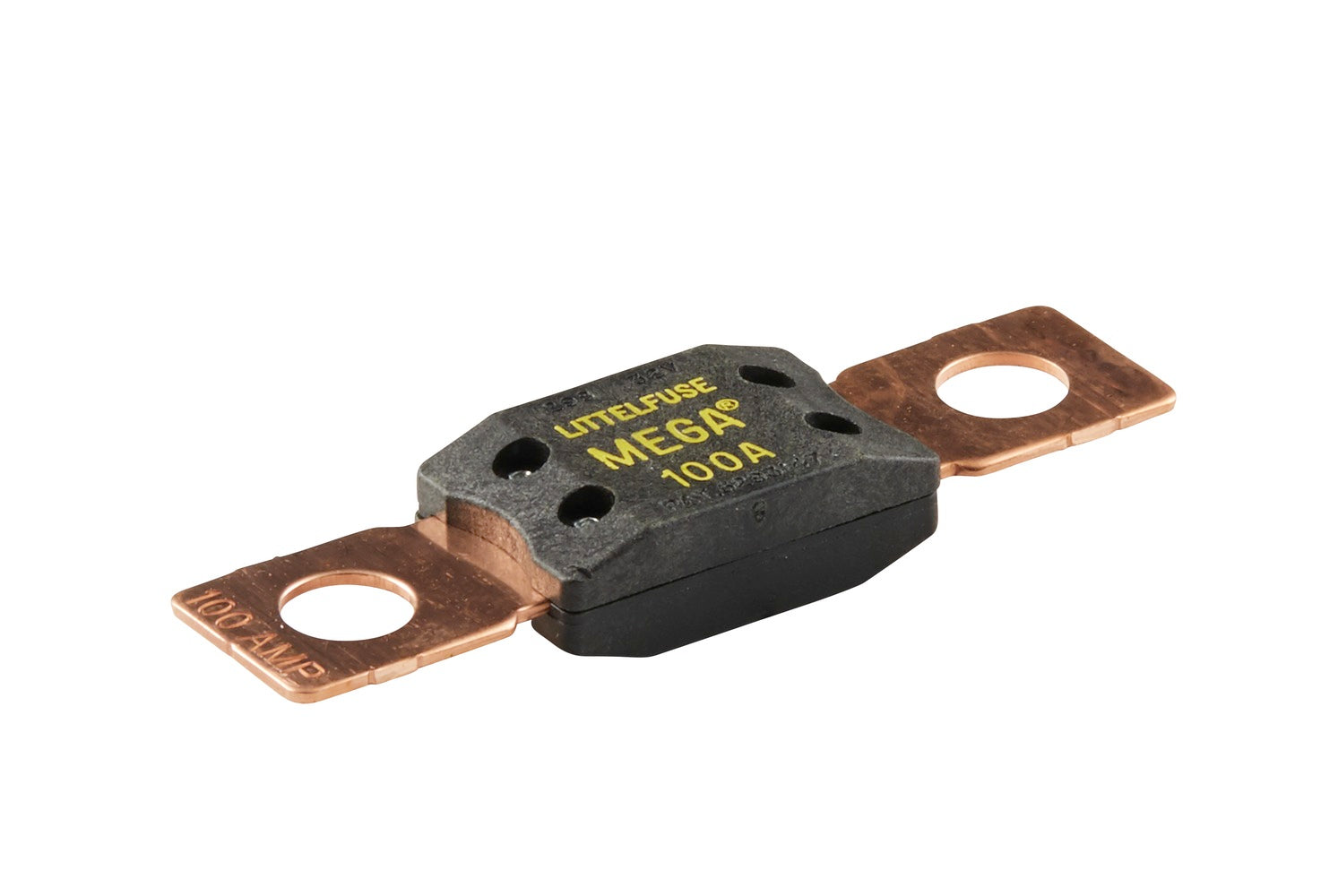

HELLA Fuse - MEGA - 100A - yellow (amber) 8JS742902-001

Fuse - MEGA - 100A - Voltage to: 32V - yellow (amber)

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 68.6mm - Height: 9.9mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: MEGA
Rated Current: 100 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 68.6 mm
Depth: 19 mm
Height: 9.9 mm
Bolt Distance: 50.8 mm
Bore Ø: 8.6 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: yellow (amber)
Packaging: Blister
Assembly by qualified personnel required!

OE references: KRONE 200833810; SANY B241300000061; SCANIA 20422338; TEREX 185350246823; TEREX 5350246823; VDL 20244209; WEIRO 24386
