Description

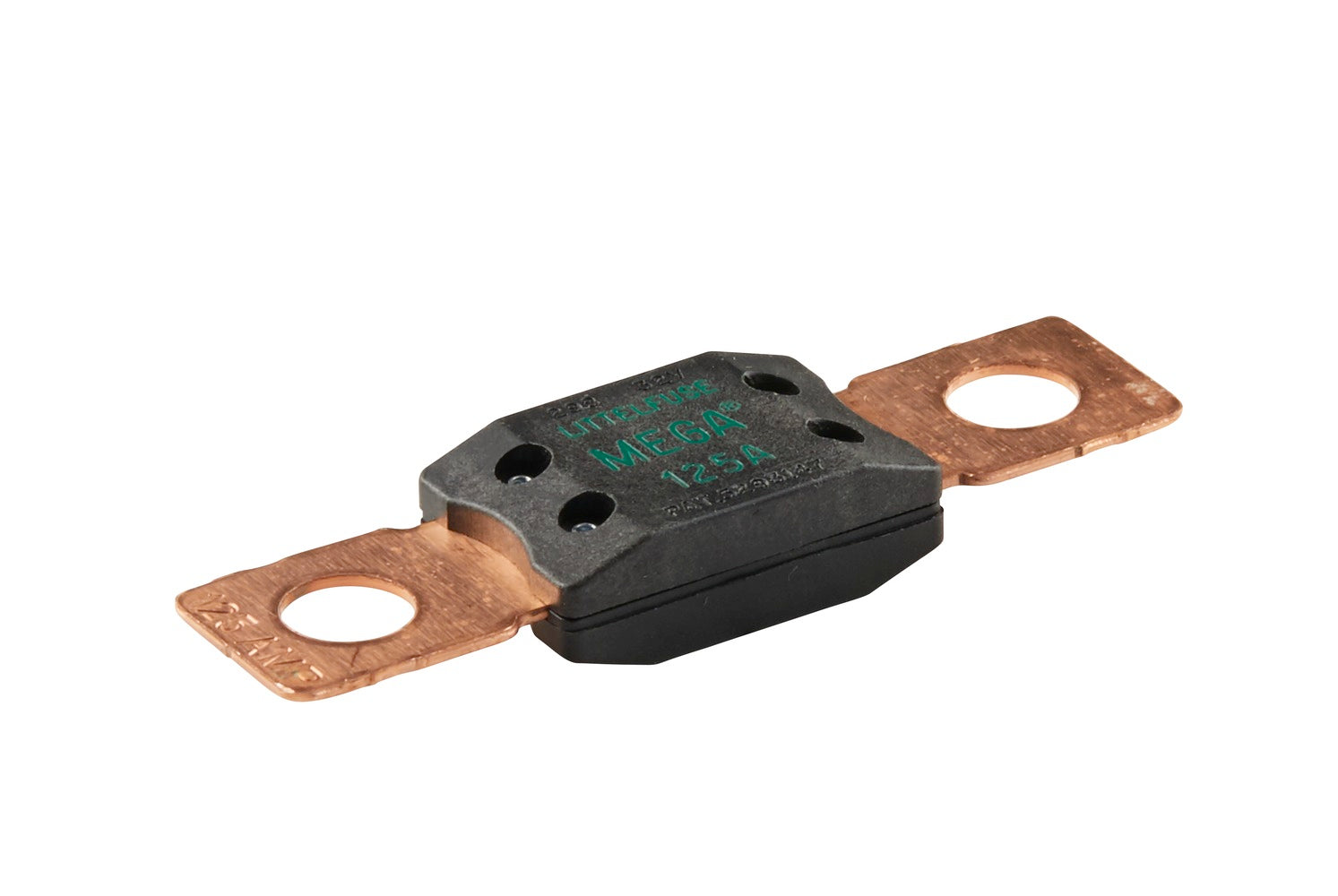

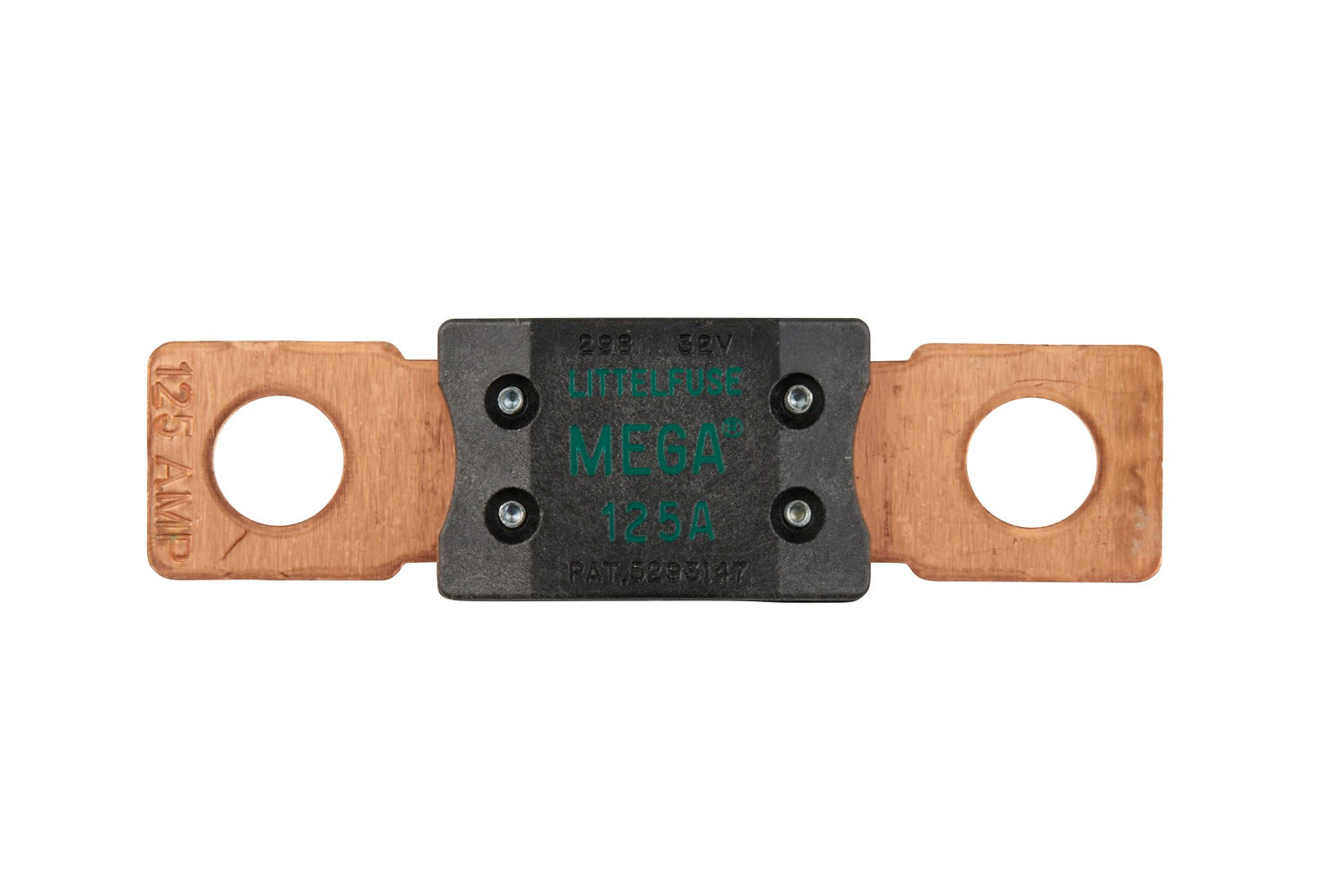

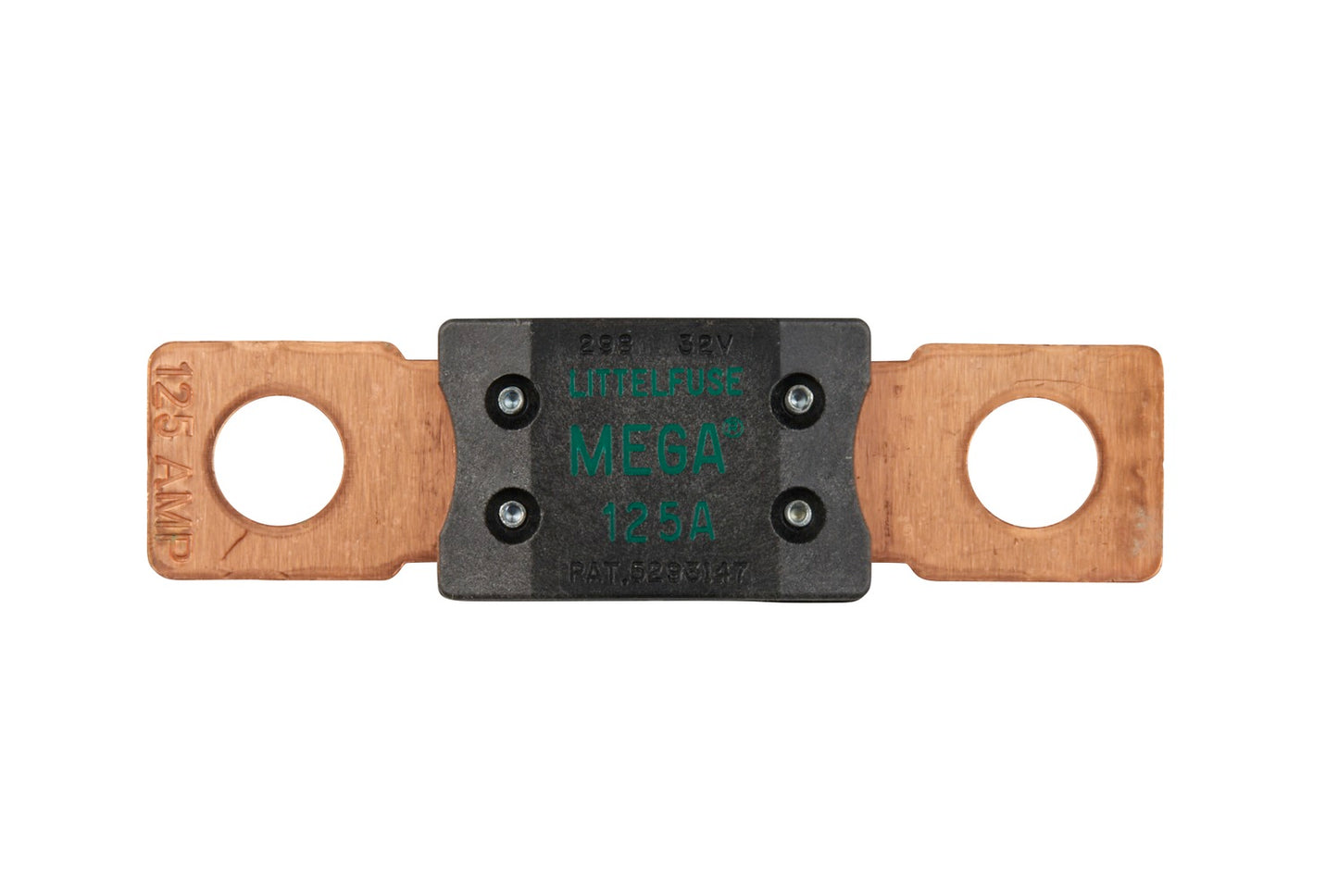

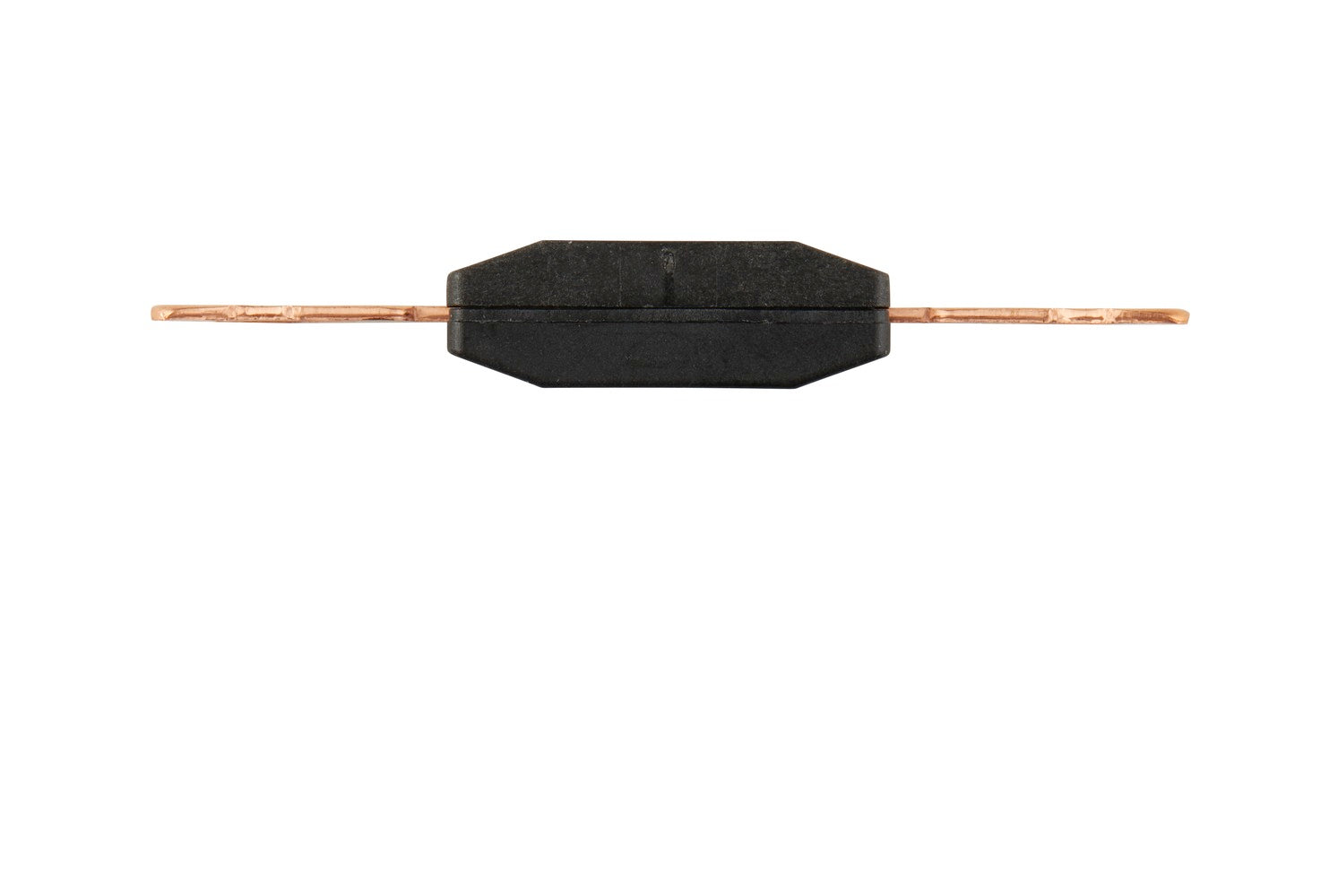

Fuse - MEGA - 125A - Voltage to: 32V - green
Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.
- Original equipment quality
- Different variants for a wide range of applications
- For protecting electrical systems against short circuits
- Width: 68.6mm - Height: 9.9mm
- DIN/ISO: 8820-5
Item Attributes:
Fuse Type: MEGA
Rated Current: 125 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 68.6 mm
Depth: 19 mm
Height: 9.9 mm
Bolt Distance: 50.8 mm
Bore Ø: 8.6 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: green
Packaging: Blister
Assembly by qualified personnel required!
OE references: AGCO V36087200; ATLAS COPCO 8302912; FAUN 5183139; FENDT V 360 872 00; JOHN DEERE 200833820; KRONE 200833820; TEREX 185350246824; TEREX 5350246824; TEREX 8302912; VOLVO 192050; YANMAR 5350246824
