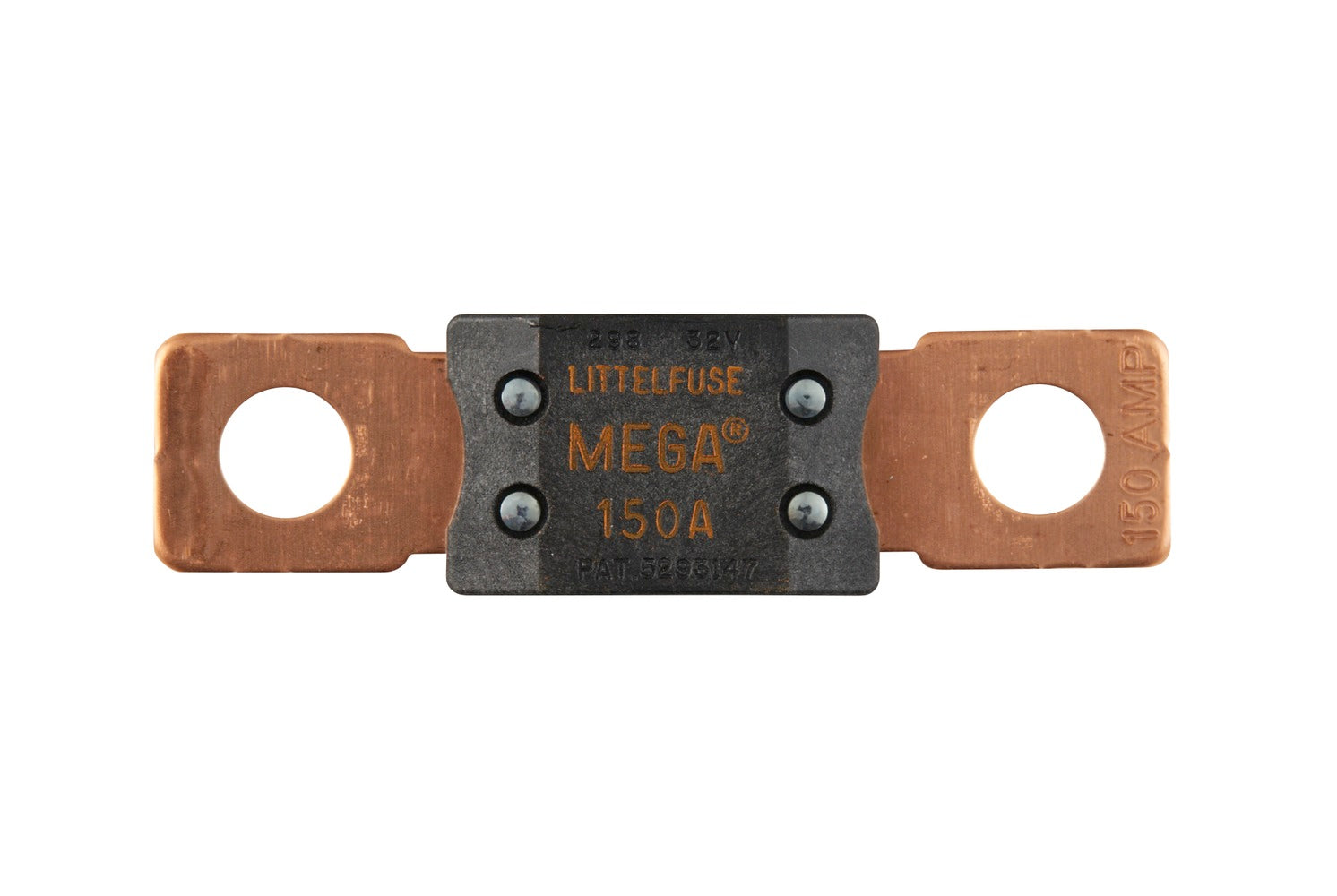

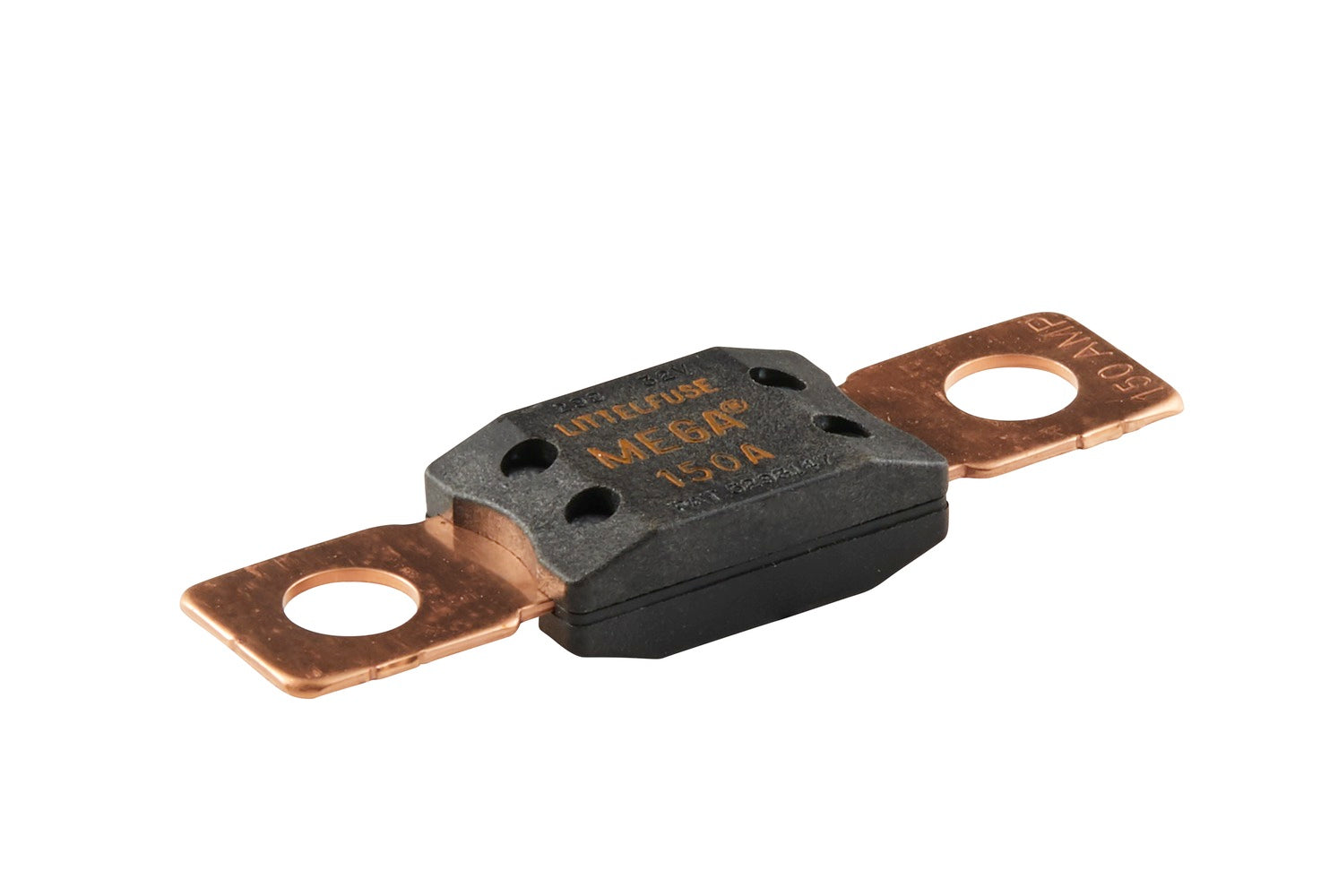

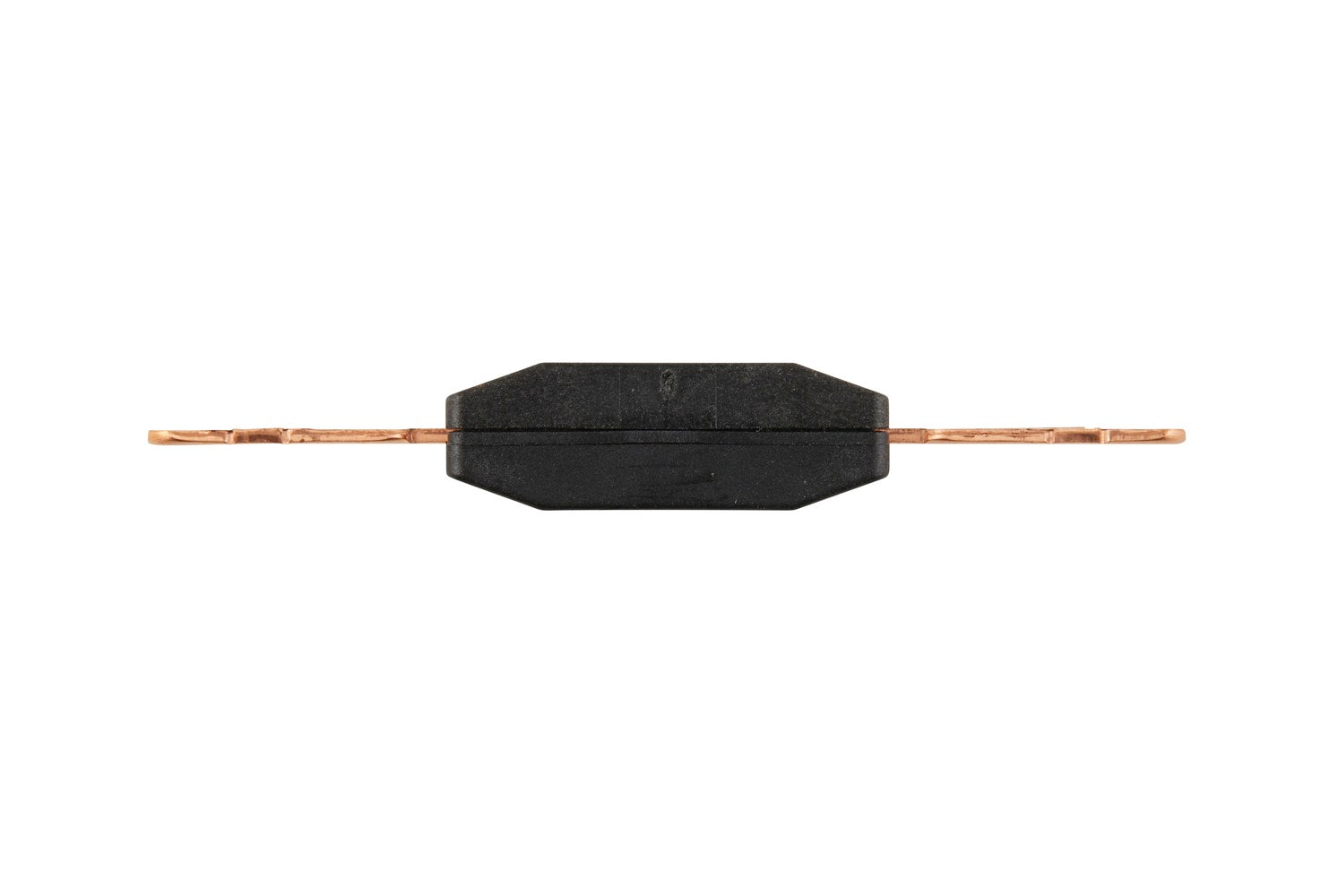

HELLA Fuse - MEGA - 150A - Orange 8JS742902-021

Fuse - MEGA - 150A - Voltage to: 32V - Orange

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 68.6mm - Height: 9.9mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: MEGA
Rated Current: 150 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 68.6 mm
Depth: 19 mm
Height: 9.9 mm
Bolt Distance: 50.8 mm
Bore Ø: 8.6 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: Orange
Packaging: Blister
Assembly by qualified personnel required!

OE references: JOHN DEERE 013.28.010; KUBOTA 3J02980030; KUBOTA 3J02980031; LIEBHERR 9 000 024 79; SCHMITZ CARGOBULL 1265965; TEREX 5050650477; VDL 20244211; VOLVO 192051; VOLVO 7801331900047; WEIRO 23203
