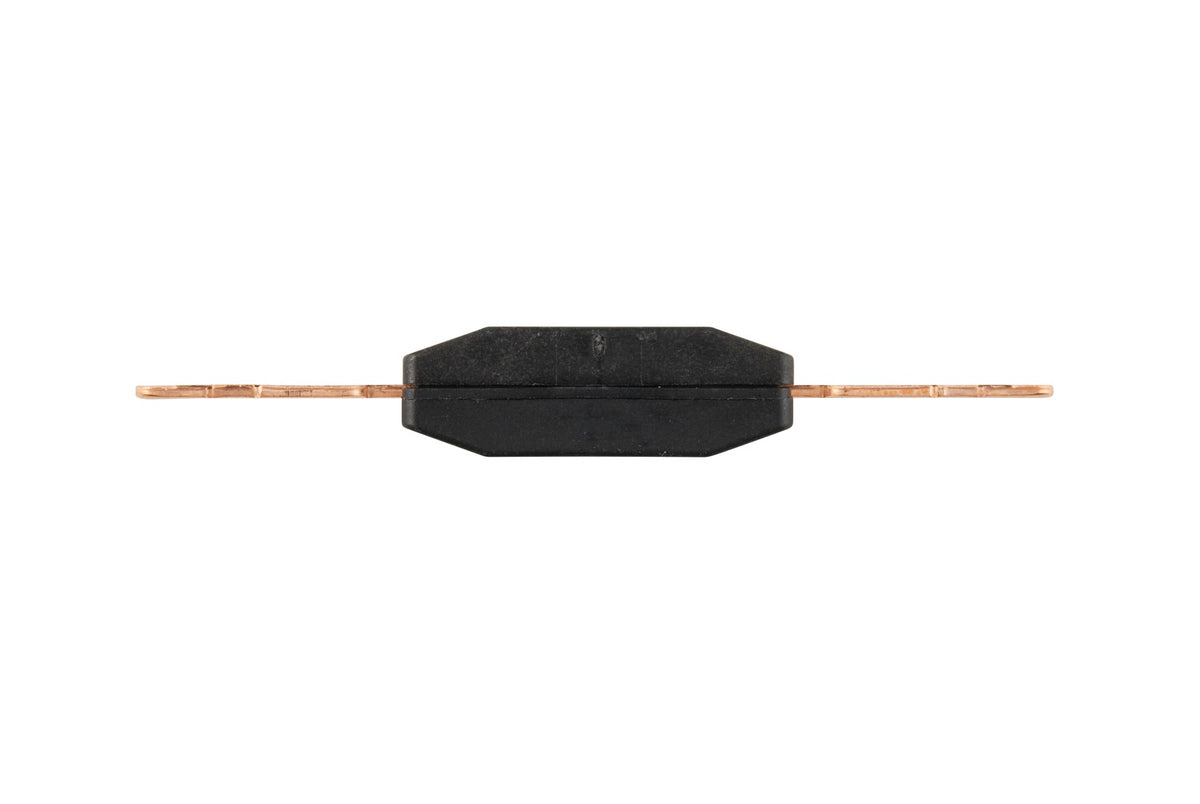

HELLA Fuse - MEGA - 200A - blue 8JS742902-041

Fuse - MEGA - 200A - Voltage to: 32V - blue

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 68.6mm - Height: 9.9mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: MEGA
Rated Current: 200 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 68.6 mm
Depth: 19 mm
Height: 9.9 mm
Bolt Distance: 50.8 mm
Bore Ø: 8.6 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: blue
Packaging: Blister
Assembly by qualified personnel required!

OE references: HOLMER 1025043916; TEREX 5350246847; VDL 20244217; WEIRO 23416; YANMAR 5350246847
