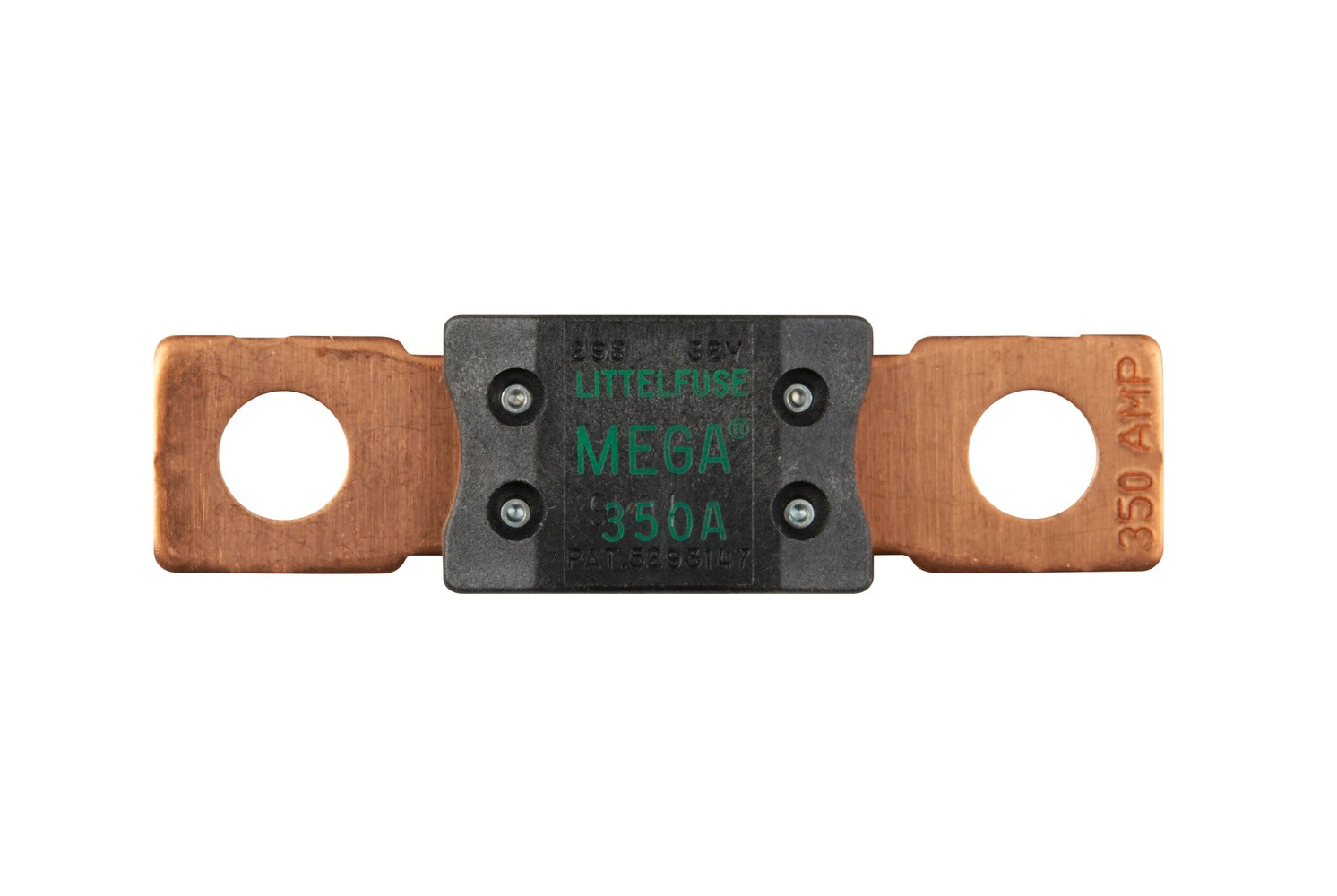

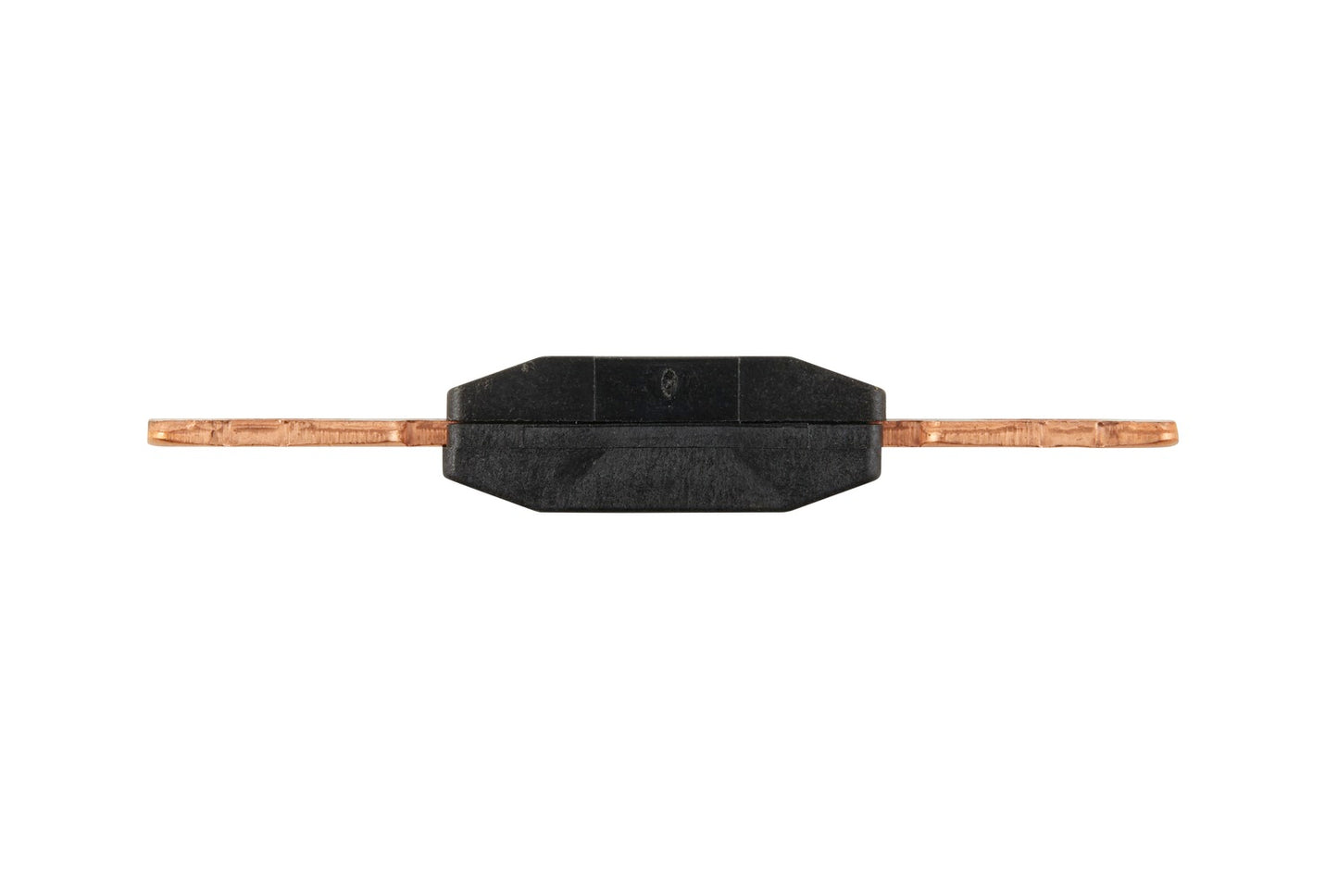

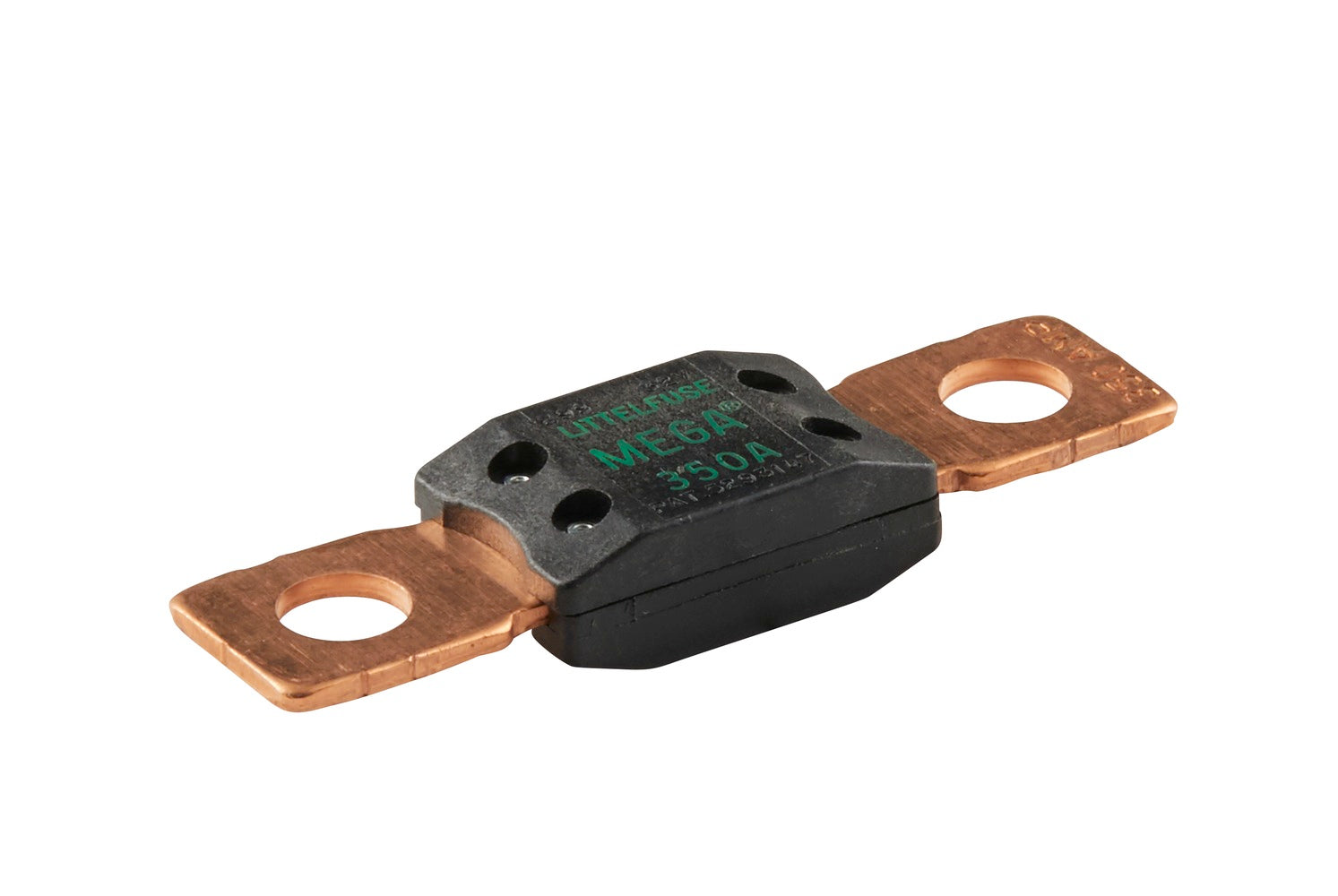

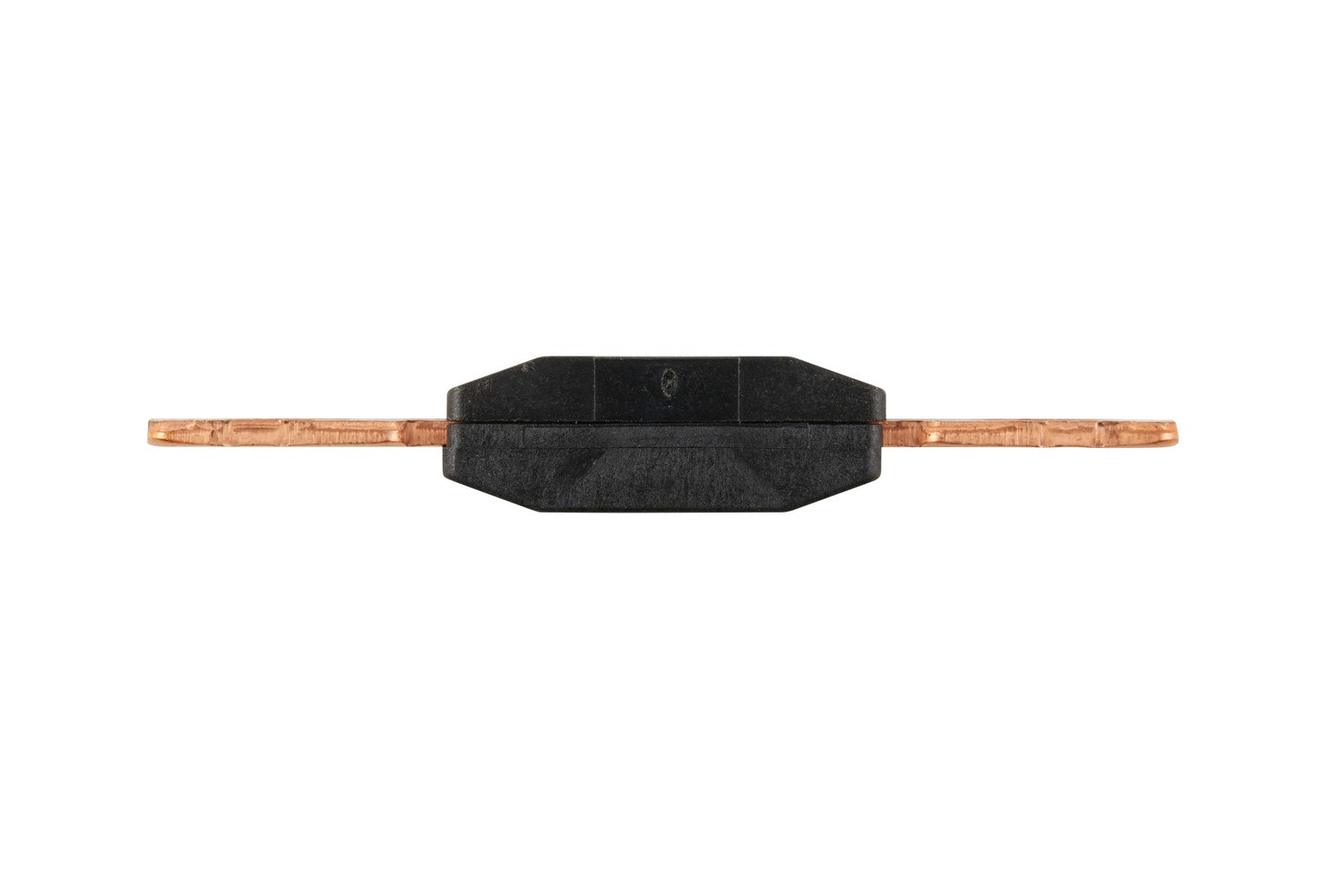

HELLA Fuse - MEGA - 350A - dark green 8JS742902-081

Fuse - MEGA - 350A - Voltage to: 32V - dark green

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Width: 68.6mm - Height: 10.7mm
• DIN/ISO: 8820-5

Item Attributes:
Fuse Type: MEGA
Rated Current: 350 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 68.6 mm
Depth: 19 mm
Height: 10.7 mm
Bolt Distance: 50.8 mm
Bore Ø: 8.6 mm
DIN/ISO: 8820-5
Contact surface: Copper coated
Colour: dark green
Packaging: Blister
Assembly by qualified personnel required!

OE references: HYMER 2319364; ROSENBAUER 971707
