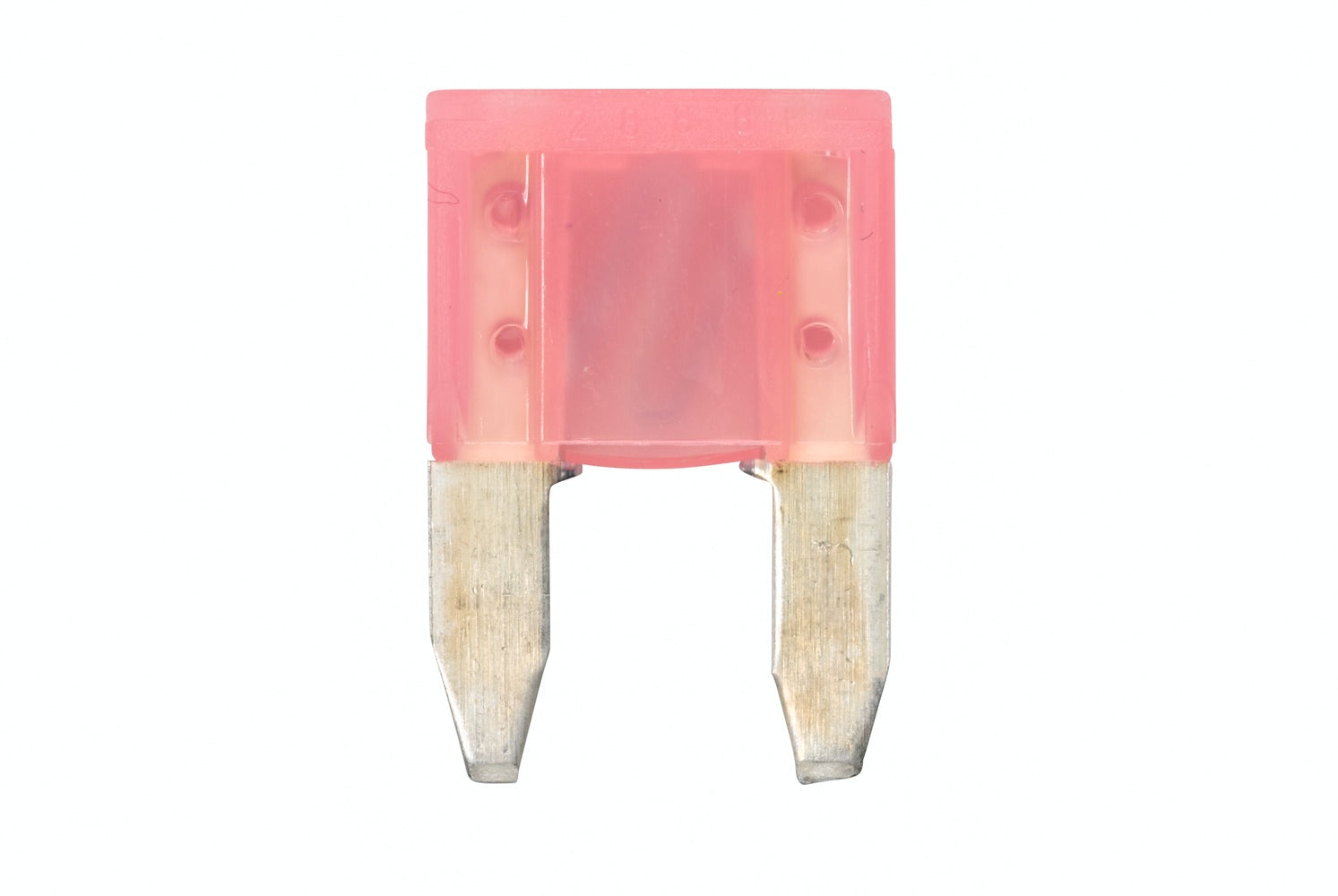

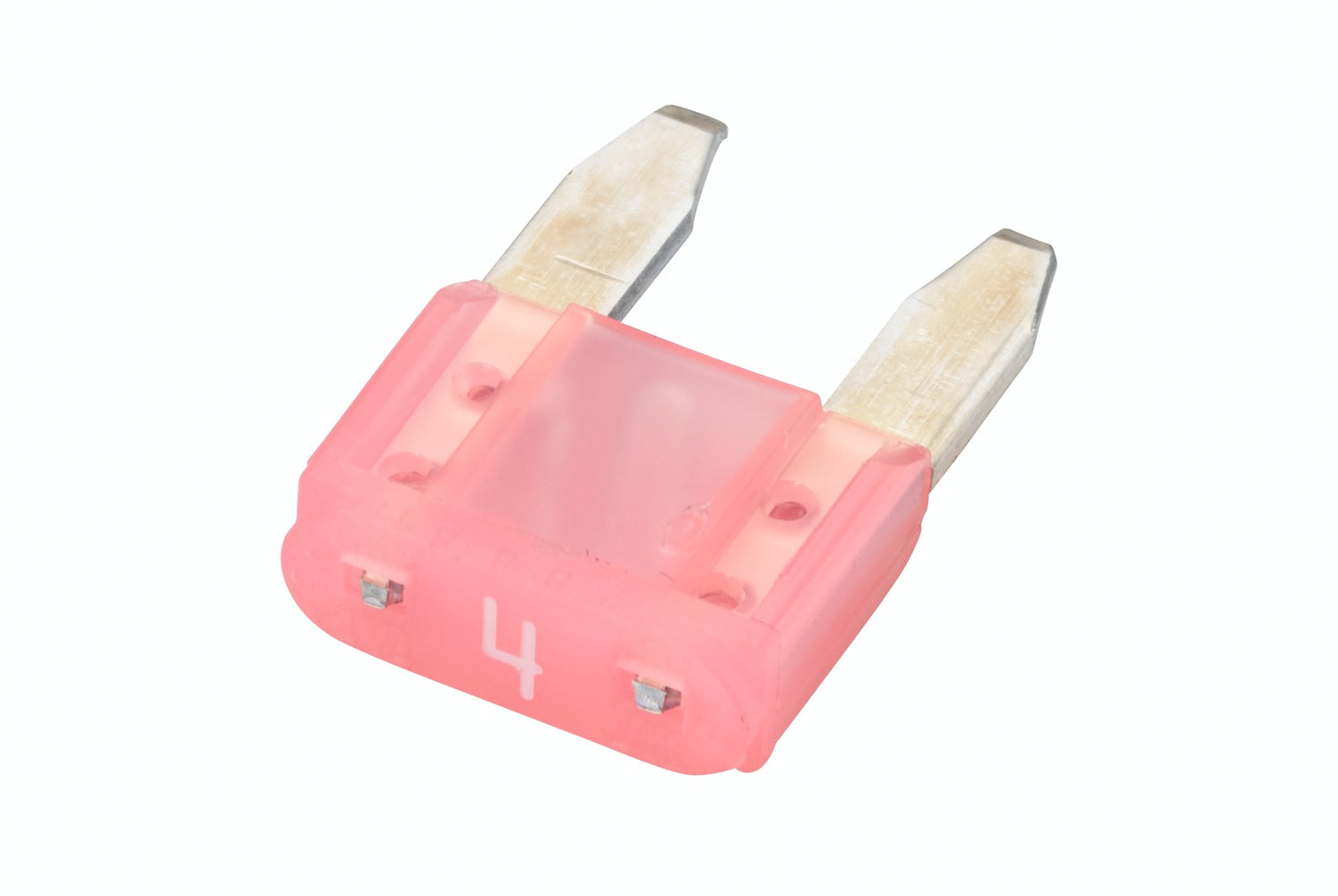

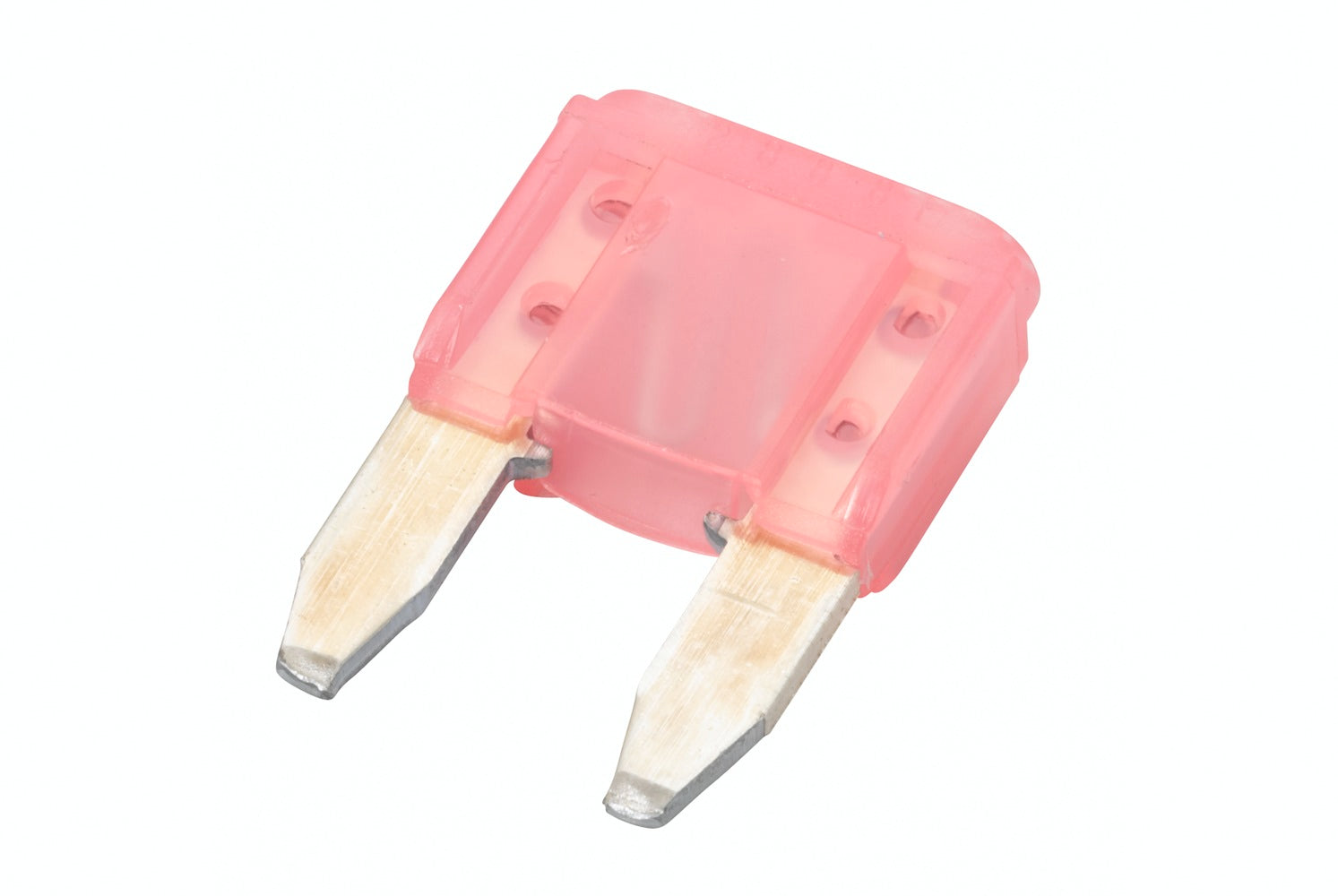

HELLA Fuse - Mini-Flat Fuse - 4A - light pink 8JS728596-801

Fuse - Mini-Flat Fuse - 4A - Voltage to: 32V - light pink

Flat blade fuses are primarily used in automotive electrical fuse systems. A distinction is made between: 1. The widely used standard version ATO (up to max. 40 A), 2. the large-format MAXI flat fuse for the high-current range (up to max. 80 A), 3. the small-format MINI flat fuse for single consumer protection (up to max. 30 A), and 4. the even more space-saving low-profile MINI version (also up to 30 A). HELLA offers a complete range including special variants for electric vehicles and LED fuses for quick replacement even at night.

• Original equipment quality according to the requirements of ISO 8820-3
• Compact design
• Easy, reliable handling due to colour coding and easy-to-read labelling
• Width: 10.9mm - Height: 16.3mm
• DIN/ISO: 8820-3

Item Attributes:
Fuse Type: Mini-Flat Fuse
Rated Current: 4 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 10.9 mm
Depth: 3.8 mm
Height: 16.3 mm
DIN/ISO: 8820-3
fulfils SAE standard: J2077
Contact surface: Tin-plated
Colour: light pink
Housing material: PA (polyamide)
Packaging: Blister
Assembly by qualified personnel required!

OE references: HYMER 1202662; HYMER 1202662-00; VDL 30060853
