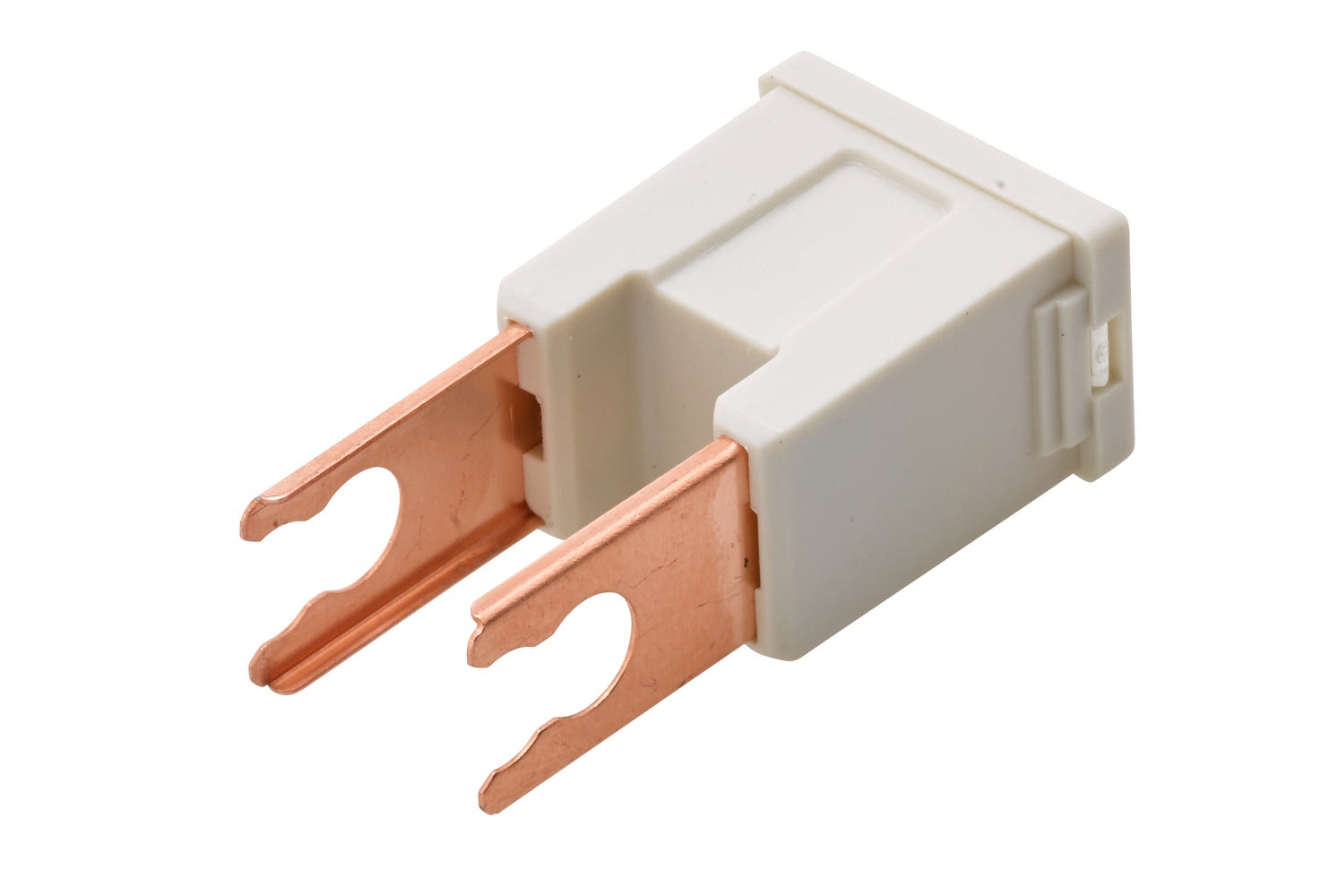

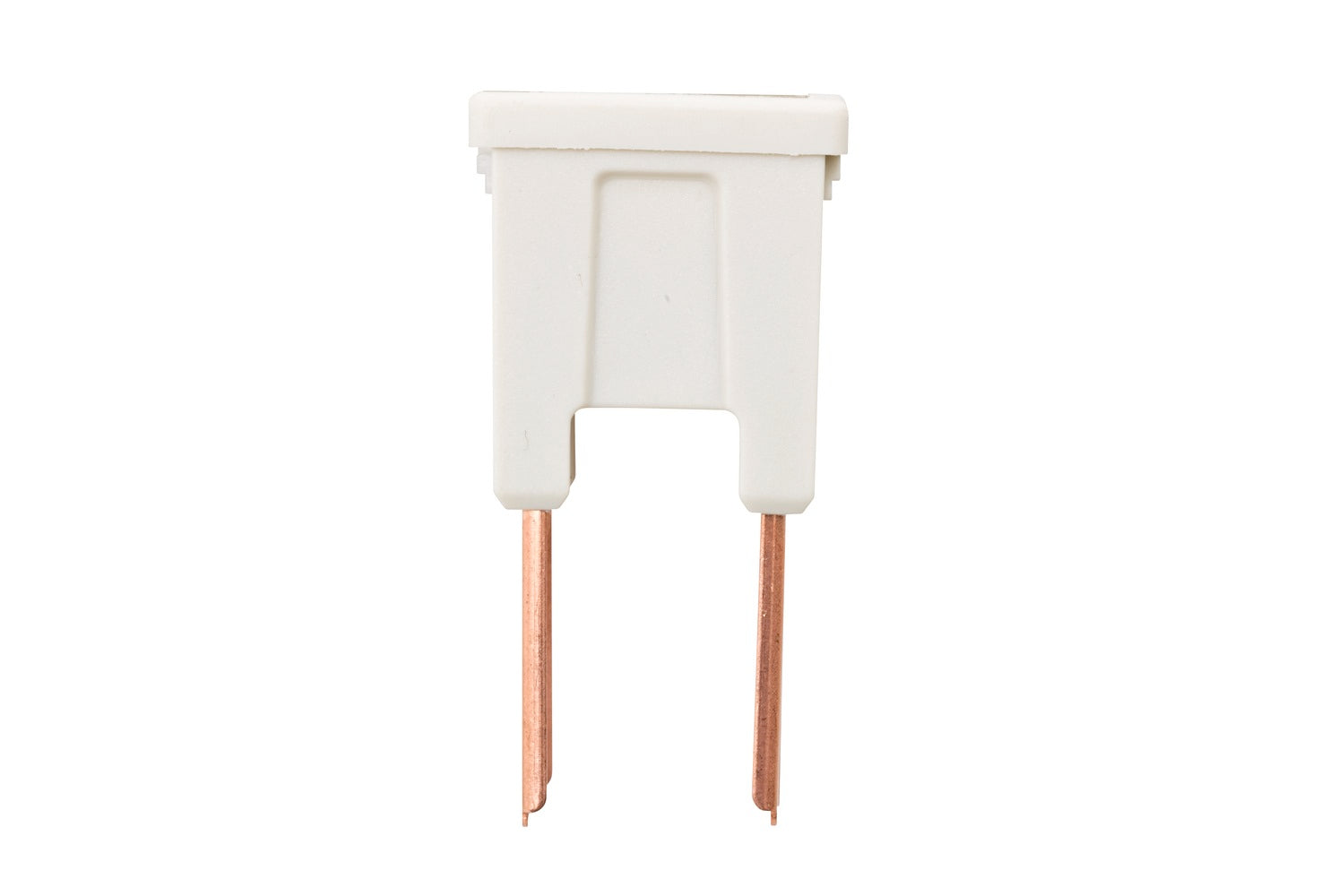

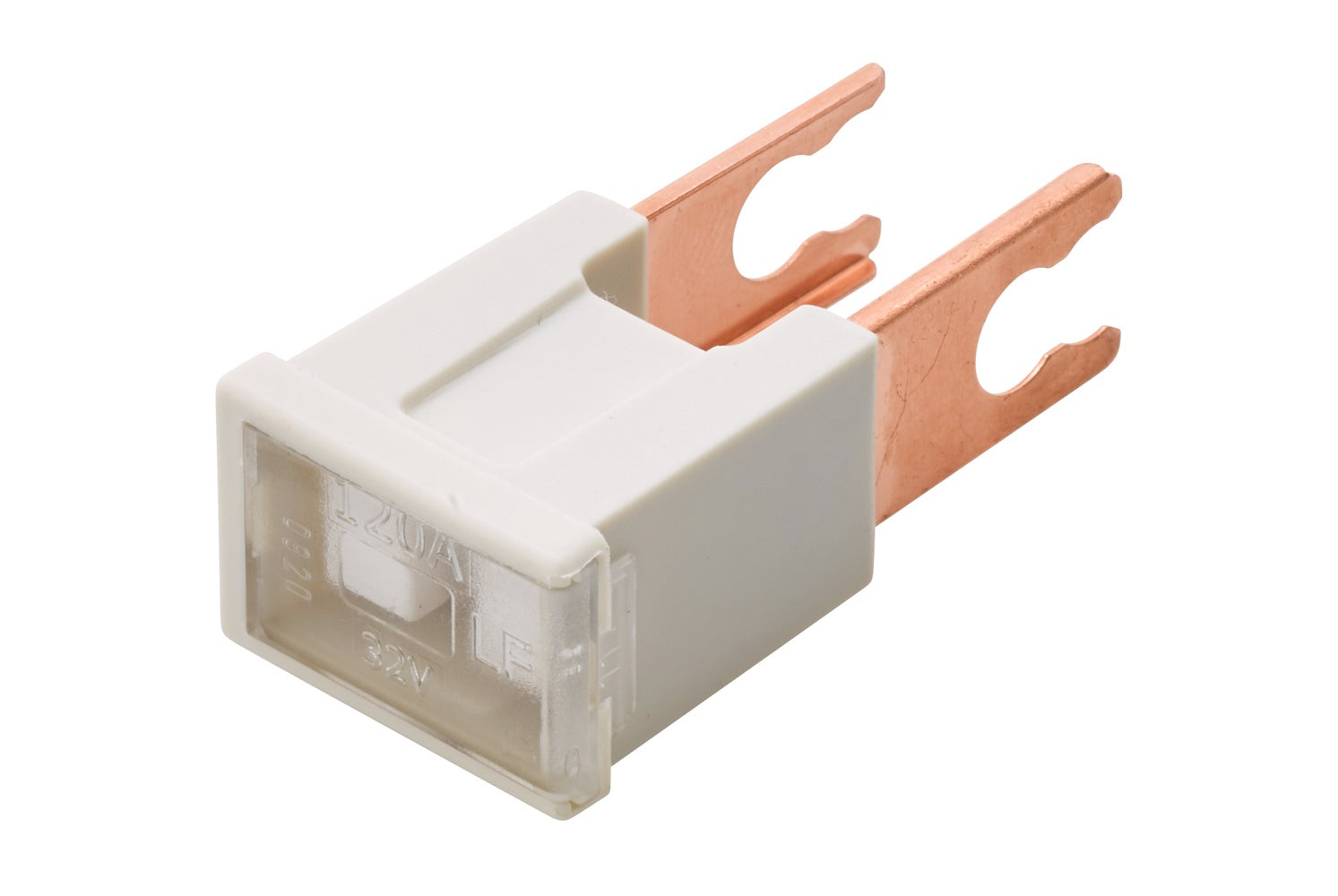

HELLA Fuse - PAL block fuse, Series2 - 120A - white 8JS740026-271

Fuse - PAL block fuse, Series2 - 120A - Voltage to: 32V - white

PAL fuses (up to max. 120 A) have a similar range of applications as the MAXI flat fuse, but unlike the latter they are mainly installed in Japanese vehicles. These fuse types are also available in different sizes and designs. For example, JCASE or even the particularly space-saving low-profile JCASE fuses are used in newer vehicles.

• Compact design
• Easy, reliable handling due to colour coding and easy-to-read labelling
• Complete range for all vehicle generations
• Alternative to MAXI flat fuses
• Width: 22.4mm - Height: 45.5mm
• DIN/ISO: JASO 0612

Item Attributes:
Fuse Type: PAL block fuse, Series2
Rated Current: 120 A
Voltage to: 32 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Width: 22.4 mm
Depth: 22.4 mm
Height: 45.5 mm
DIN/ISO: JASO 0612
Colour: white
Packaging: Blister
Assembly by qualified personnel required!
