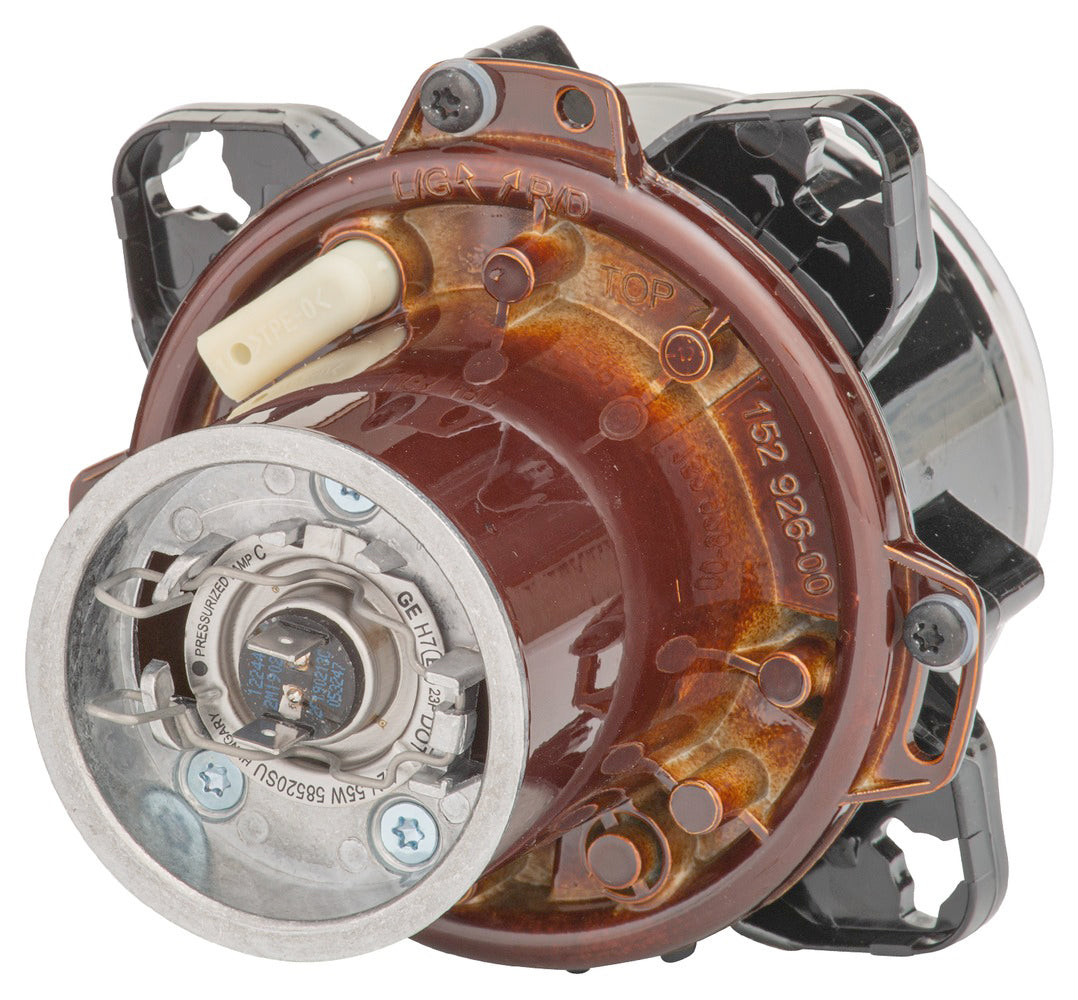

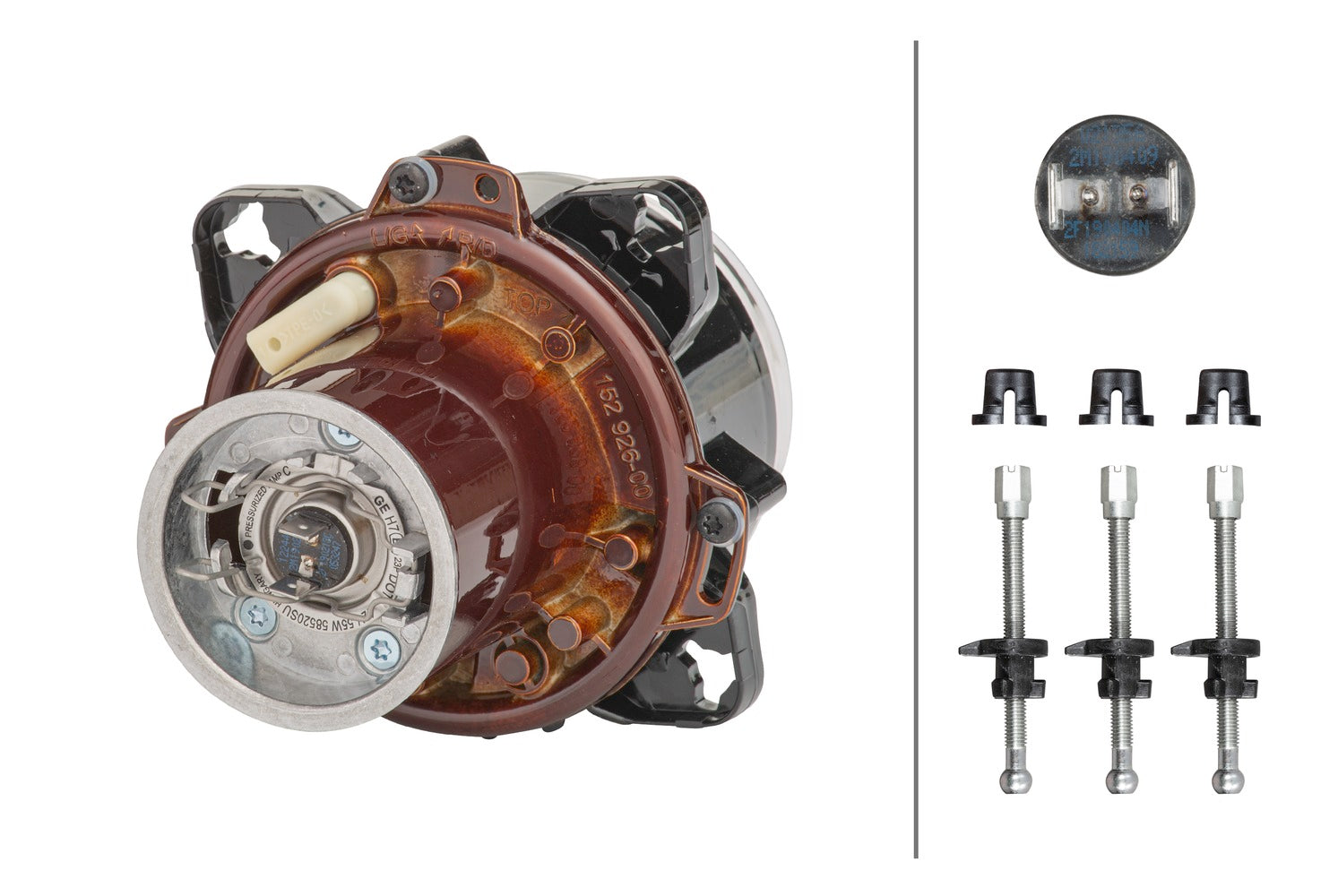

HELLA Halogen/Asymmetric/DE-Insert, headlight - 90mm Essential - 12V 1LL008193-117

Halogen/Asymmetric/DE-Insert, headlight - 90mm Essential - 12V - round - Reference number: 12.5 - Crystal clear - Plug: Blade Terminal - Front - Quantity: 36

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Ø: 90mm - Length: 140mm - Width: 113mm - Height: 118mm - Depth: 151mm - Lamp Type: H7 - with bulb - with fastening material
• Light functions: 1 - with low beam
• fulfils ECE standard: R8/R112 - for left-hand traffic
• Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: mounting / Fitting
Fastening Type: 3-point attachment
Light Design: Asymmetric / Halogen / DE
Lamp Type: H7
Voltage: 12 V
Fitting Position: Front
Height: 118 mm
Width: 113 mm
Length: 140 mm
Depth: 151 mm
Ø: 90 mm
Light Function: with low beam
Light functions: 1
fulfils ECE standard: R112 / R8
Plug: Blade Terminal
Reference number: 12.5
Left-hand/Right-hand Traffic: for left-hand traffic
Lens Colour: Crystal clear
Housing Colour: black
Illuminated Area: 90 mm
Shape: round
Diffusing Lens Material: Glass

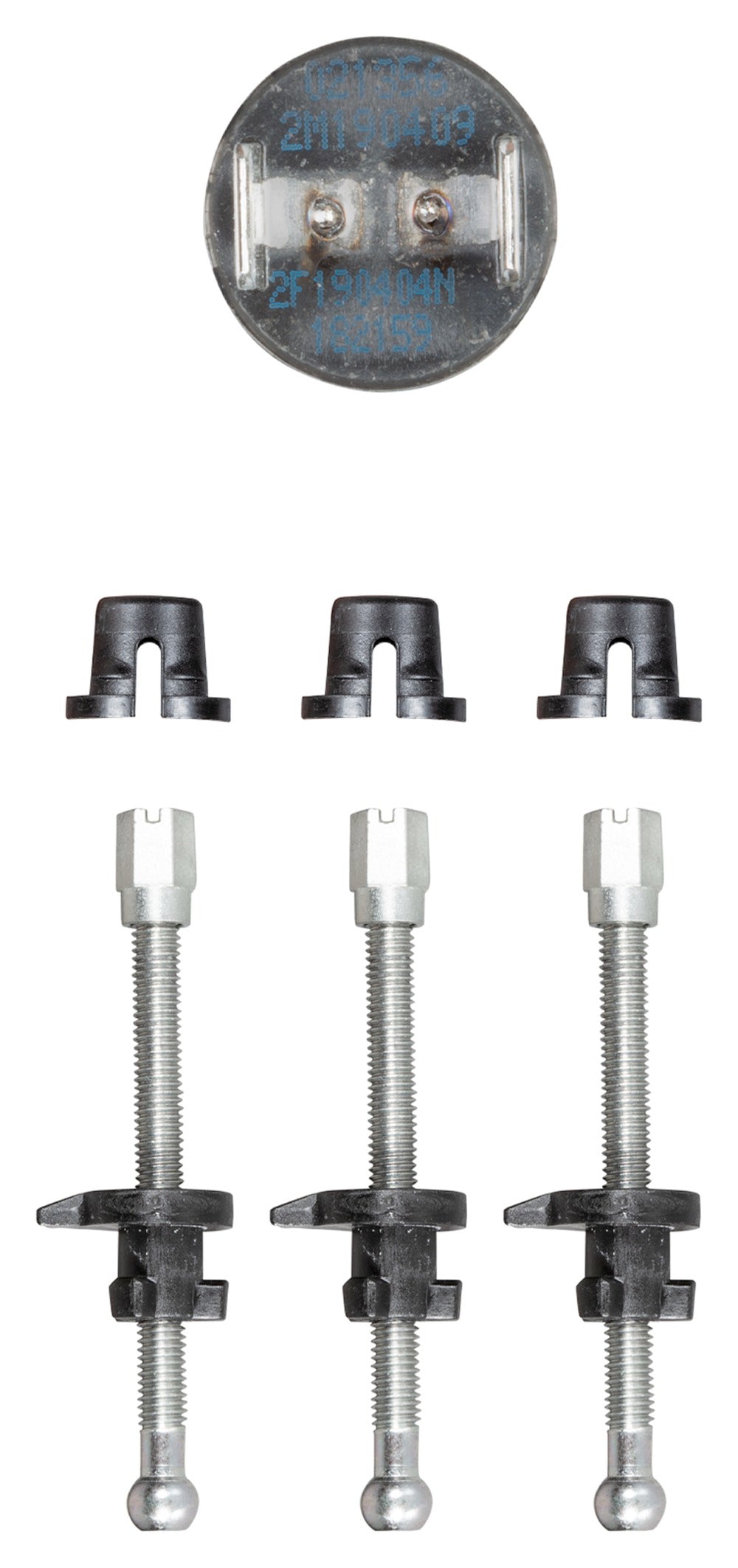

Supplementary Article/Supplementary Info 2: with fastening material
Supplementary Article/Supplementary Info: with bulb
Quantity: 36
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO 7105368M91; AGCO 72437699; AGCO ACW1979240; AGCO F931 901 020 010; AGCO G931 901 020 180; FENDT 4296404M2; FENDT 72437699; FENDT A CW1 979 240; FENDT F 931 901 020 010; FENDT G931901020180; HAKO 45614159000; HITACHI AA01BAW; IVECO 69502067; MASSEY FERGUSON 4 296 404 M2; MITSUBISHI SMME31640S9; WIESMANN 063-05-03-ET-009
