HELLA Halogen/DE-Headlight - 90mm Performance - 24V 1AL009998-041

Halogen/DE-Headlight - 90mm Performance - 24V - round - Reference number: 12.5 - ECE - Plug: AMP - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Excellent light output and extremely homogeneous illumination with little scattered light from a 70 mm optic-free lens
• Simple installation with pre-mounted adjusting screws
• Width: 182mm - Height: 108mm - Depth: 182mm - Lamp Type: H7 - with bulb - Electromagnetic Compatibility (EMC)
• Light functions: 2 - with high beam/with low beam
• Registration Type: ECE - for right-hand traffic

Item Attributes:
Mounting Type: Fitting
Lamp Type: H7
Light Design: Halogen / DE
Voltage: 24 V
Fitting Position: left / right
Width: 182 mm
Height: 108 mm
Depth: 182 mm
Light Function: with high beam / with low beam
Light functions: 2
Registration Type: ECE

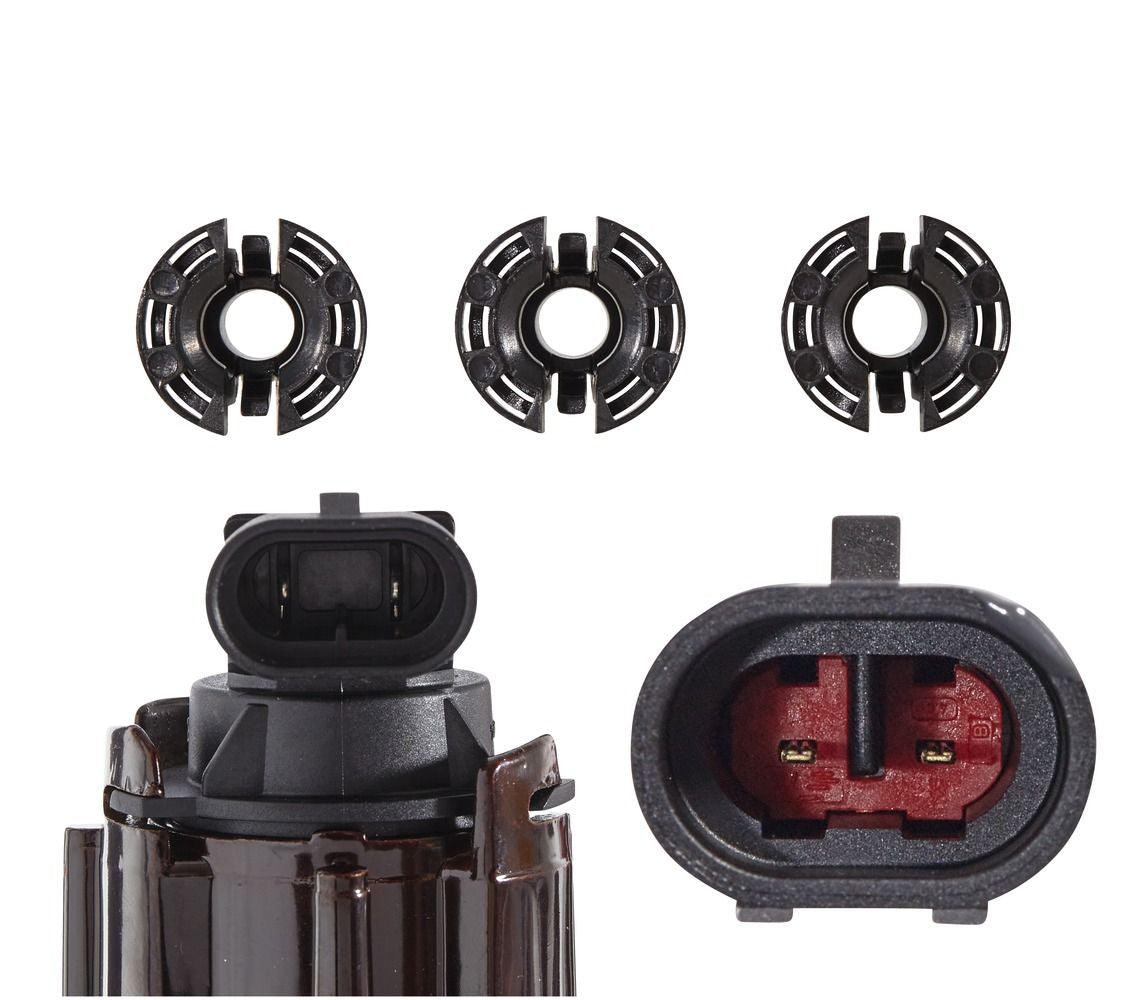

Plug: AMP
Reference number: 12.5
Left-hand/Right-hand Traffic: for right-hand traffic
Shape: round
Illuminated Area: 90 mm
Diffusing Lens Material: Glass
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Supplementary Article/Supplementary Info: with bulb
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: CATERPILLAR 424-4284; DOOSAN 301005-02705; FAUN 99707062147; HYUNDAI 528440; HYUNDAI 92101-8KEV0; IRIZAR 8088432; KAMAG 64233370; KÄSSBOHRER 7.512.312.000.0; KÖGEL 64233370; KOMATSU 20G0651530; KRONE 200824830; LIEBHERR 1 081 424 4; MERCEDES-BENZ 000 544 17 47; MERCEDES-BENZ A 000 544 17 47; OTOKAR 13H09-35536-AA; ROSENBAUER 548313; SCANIA 2076693; SOLARIS 168696; TATA 48.328.39.023; TATRA 443 400 475 000; VAN HOOL 11295238; VDL 11295238; VOLVO 17232824; YUTONG 4121-00138; ZIEGLER 10005131
