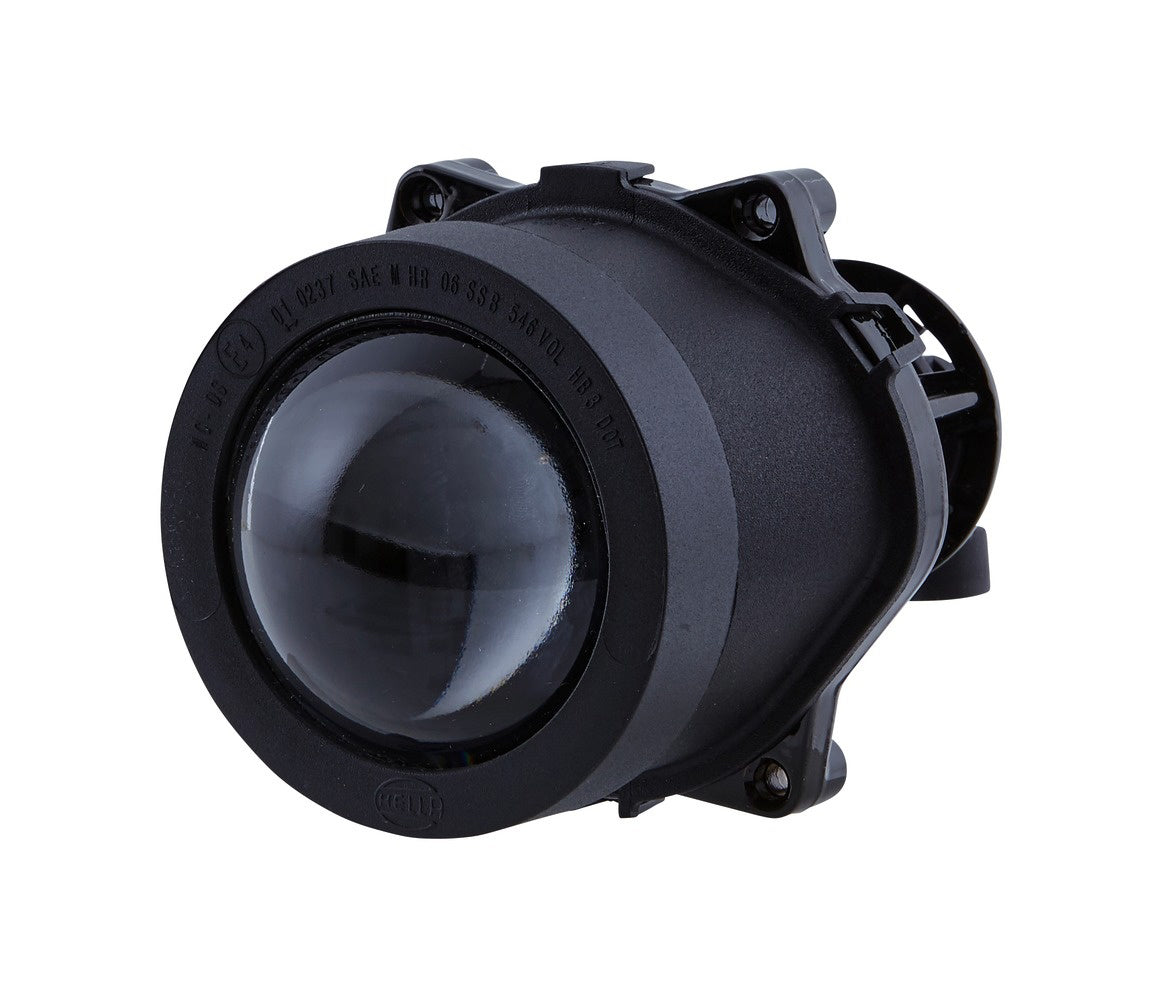

HELLA Halogen/DE-Headlight - Modul 60 - 12/24V 1BL998570-001

Halogen/DE-Headlight - Modul 60 - 12/24V - round - ECE/SAE - right/left

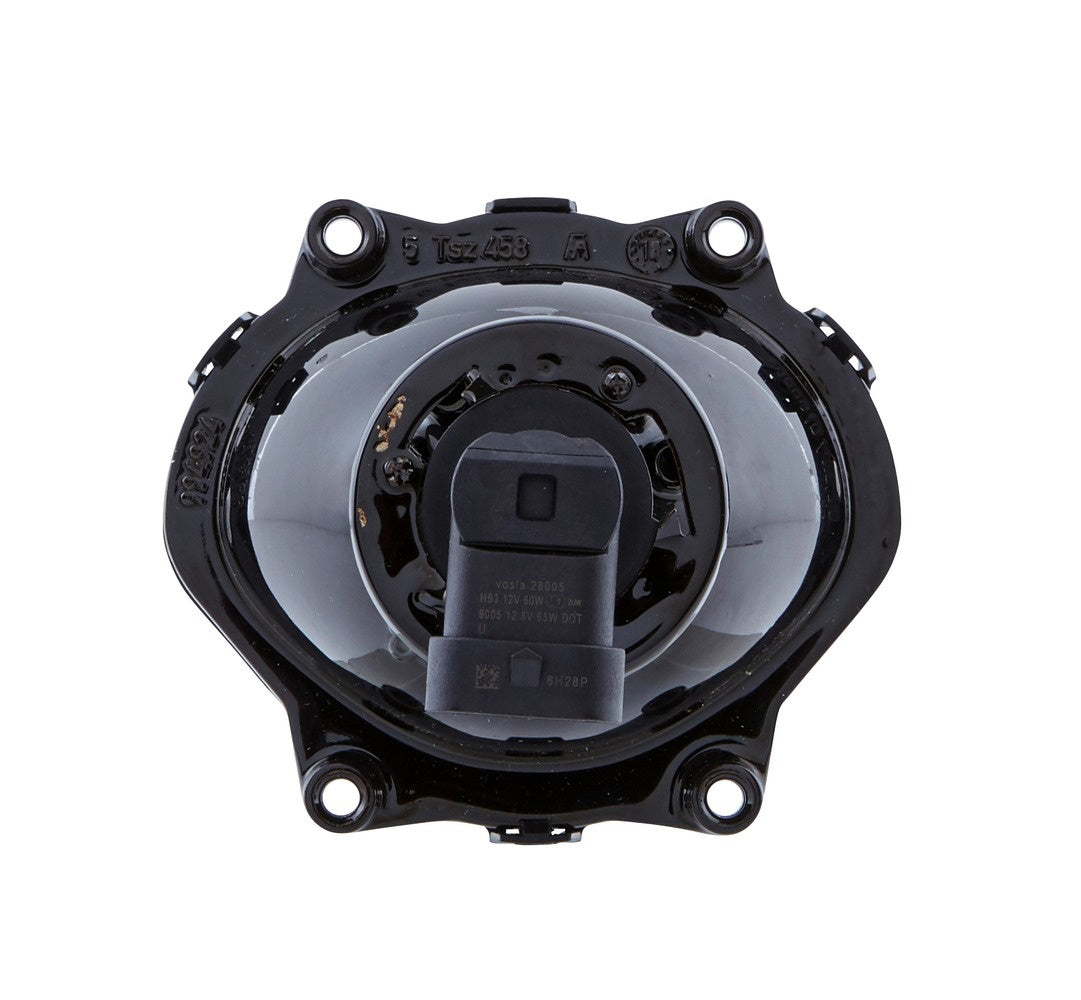

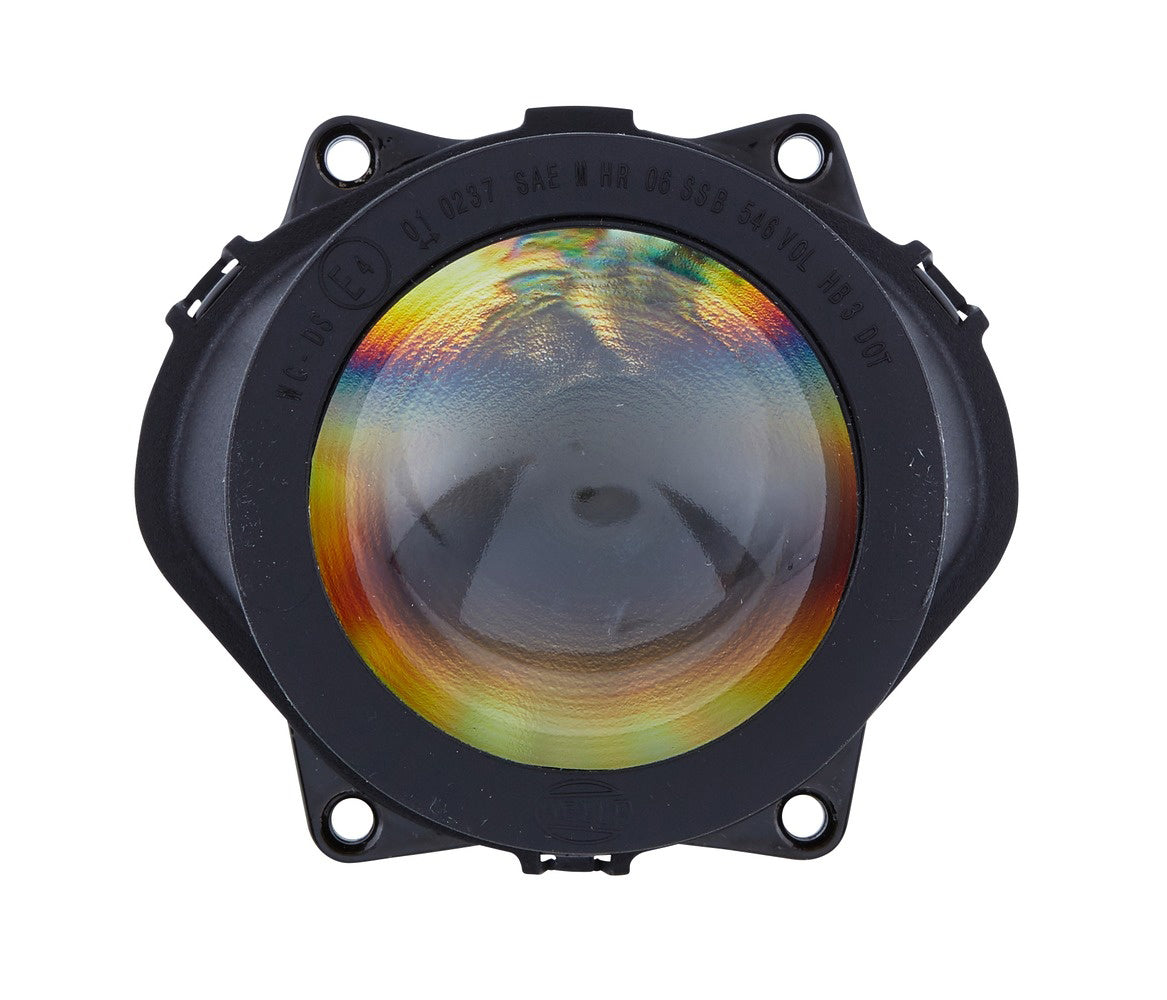

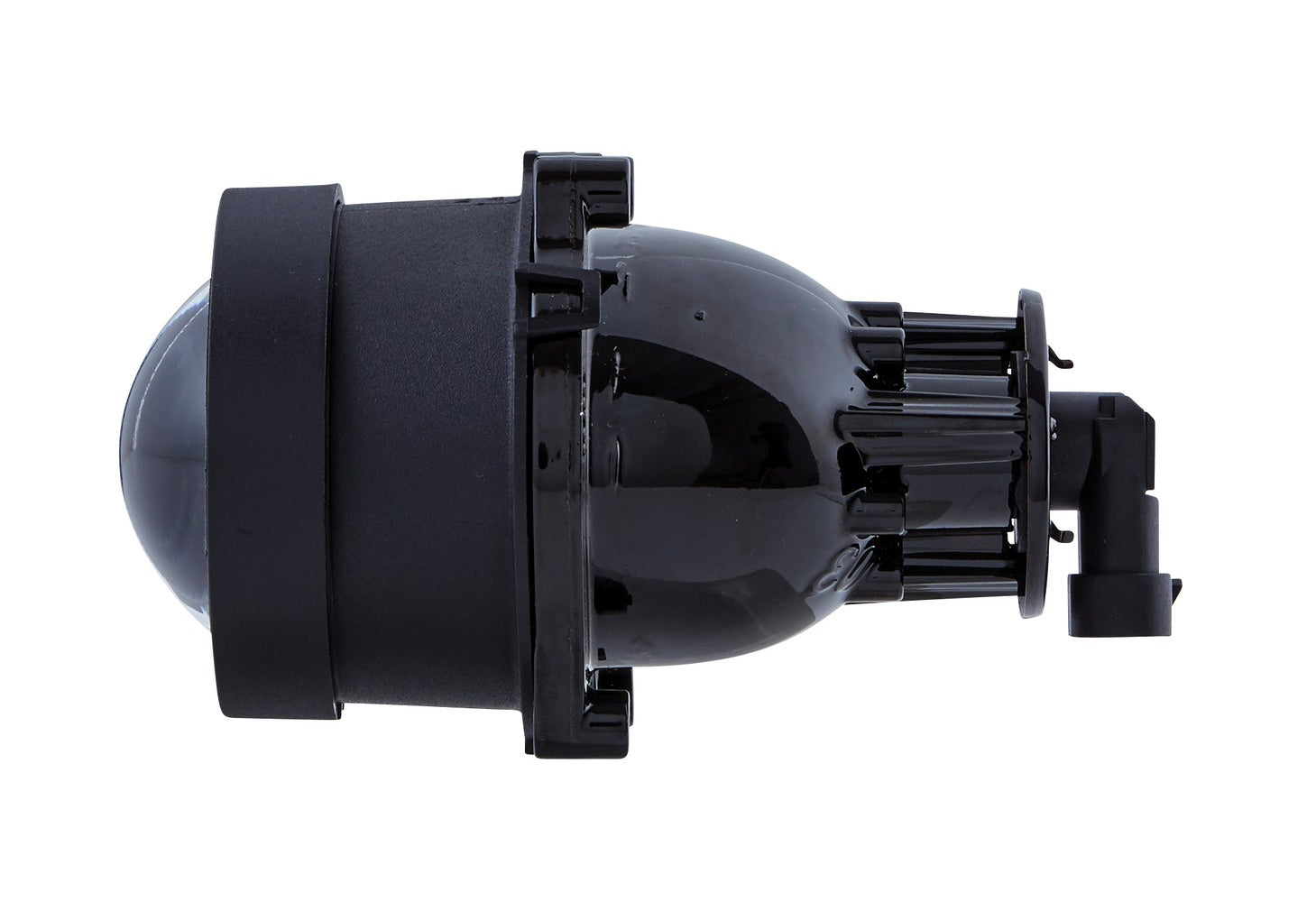

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

• Universally usable
• Compact design
• Outstanding lighting performance
• Width: 103mm - Height: 89mm - Depth: 157mm - Lamp Type: HB3 - with bulb - with bulbs
• Light functions: 1 - with low beam
• Registration Type: ECE/SAE - for right-hand traffic
• Housing Colour: Black

Item Attributes:
Mounting Type: Fitting
Lamp Type: HB3
Light Design: Halogen / DE
Voltage: 24 V / 12 V
Fitting Position: left / right
Width: 103 mm
Height: 89 mm
Depth: 157 mm
Light Function: with low beam
Light functions: 1
Registration Type: SAE / ECE
Left-hand/Right-hand Traffic: for right-hand traffic
Shape: round
Housing Colour: black
Illuminated Area: 60 mm
Supplementary Article/Supplementary Info 2: with bulbs
Supplementary Article/Supplementary Info: with bulb
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AEBI 1109507-6; AGROMEHANIKA 1057059; AHLMANN 23119205; BM TRACTORS 4.01.017; CLAAS 21521560; HAKO 9 050736 9; ISEKI 1785-650-200-0; KTM 76214002000; LINDNER 3010414
