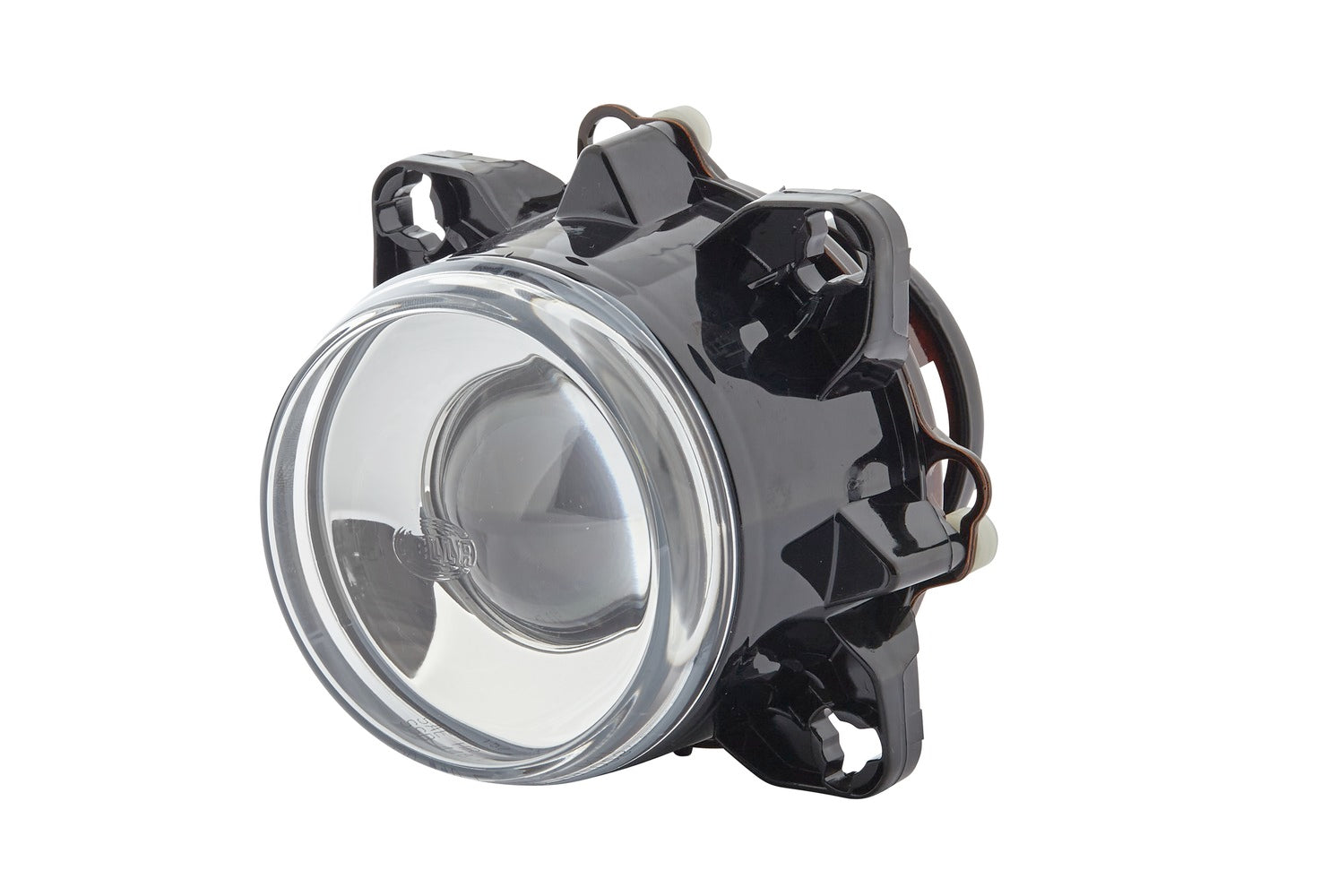

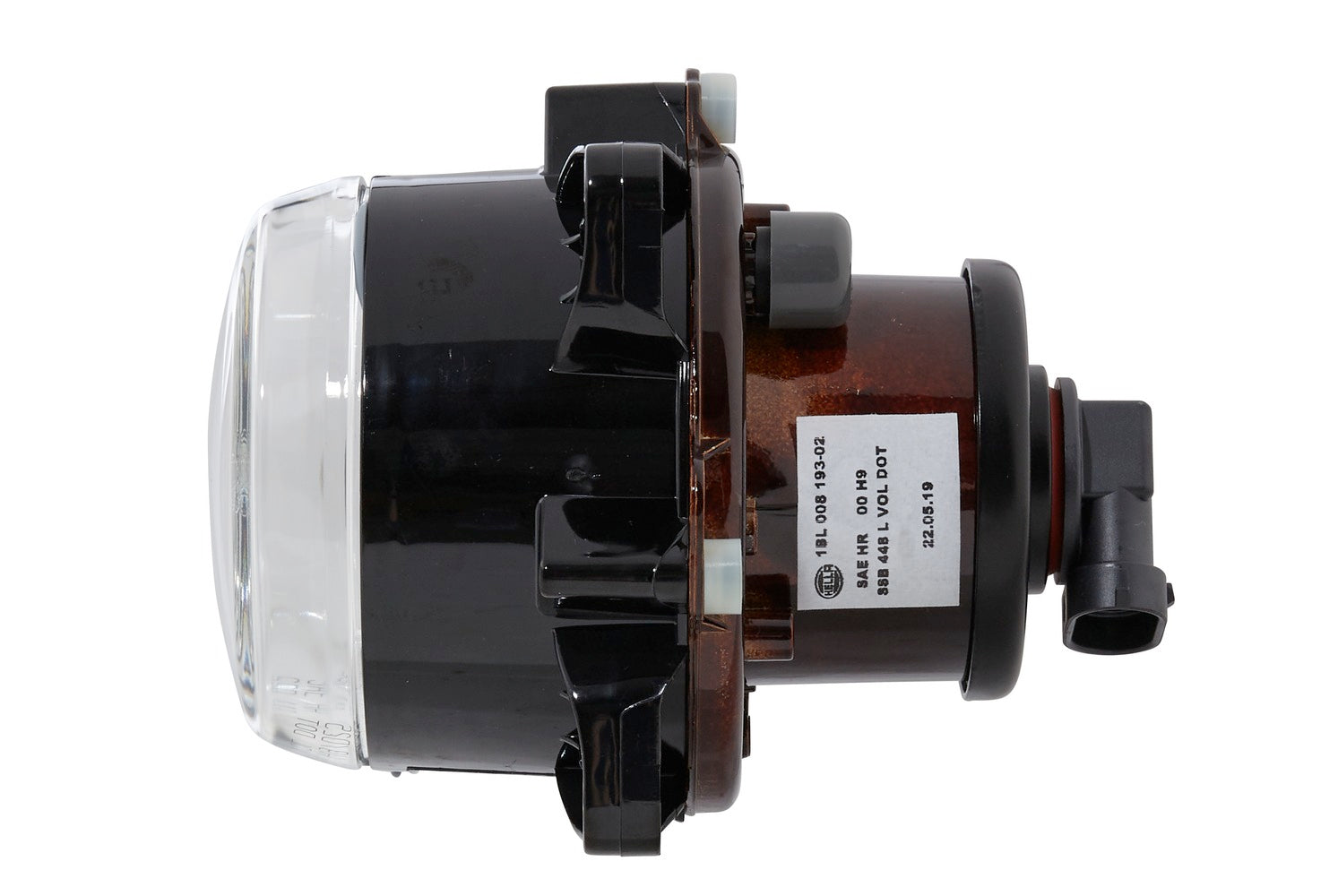

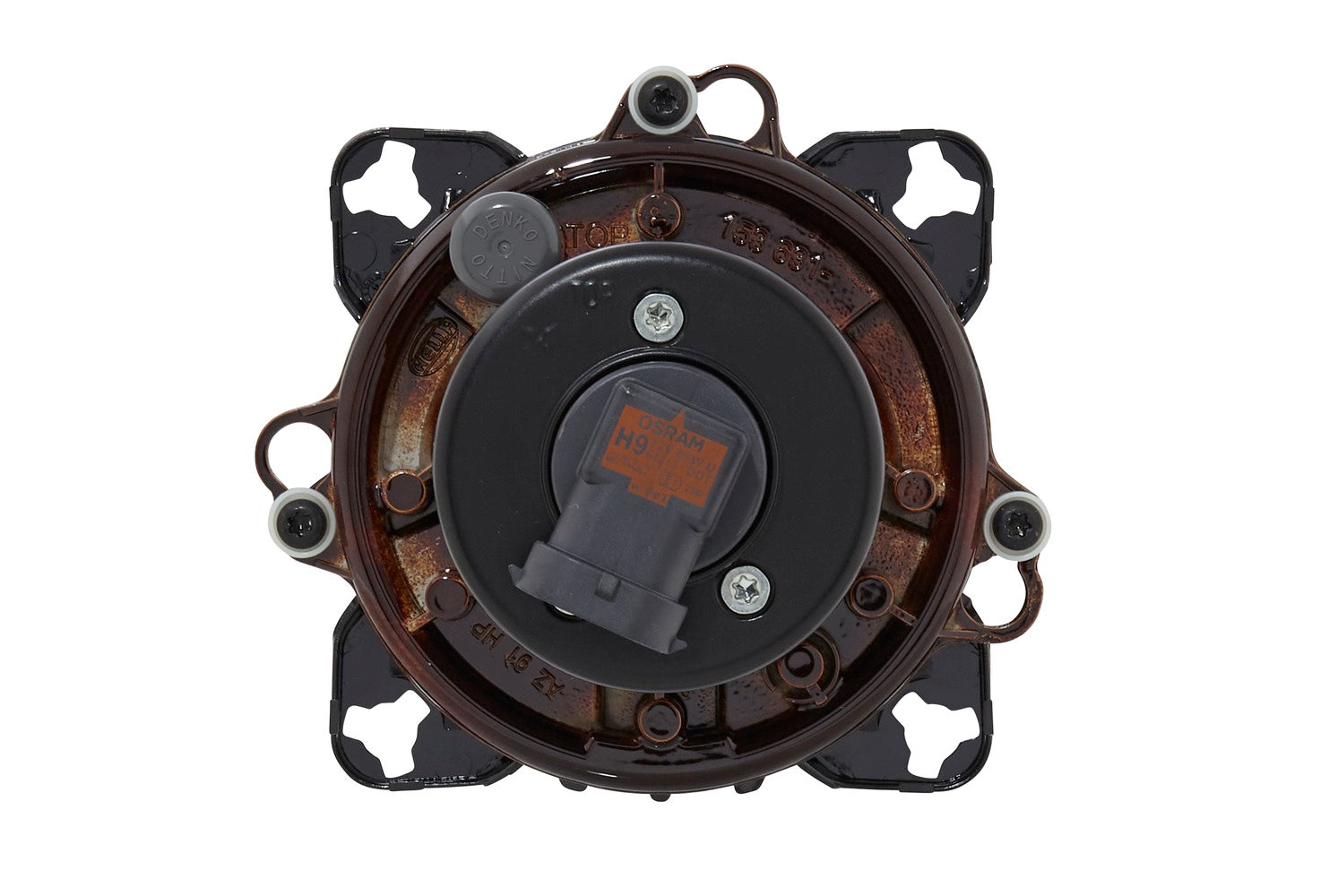

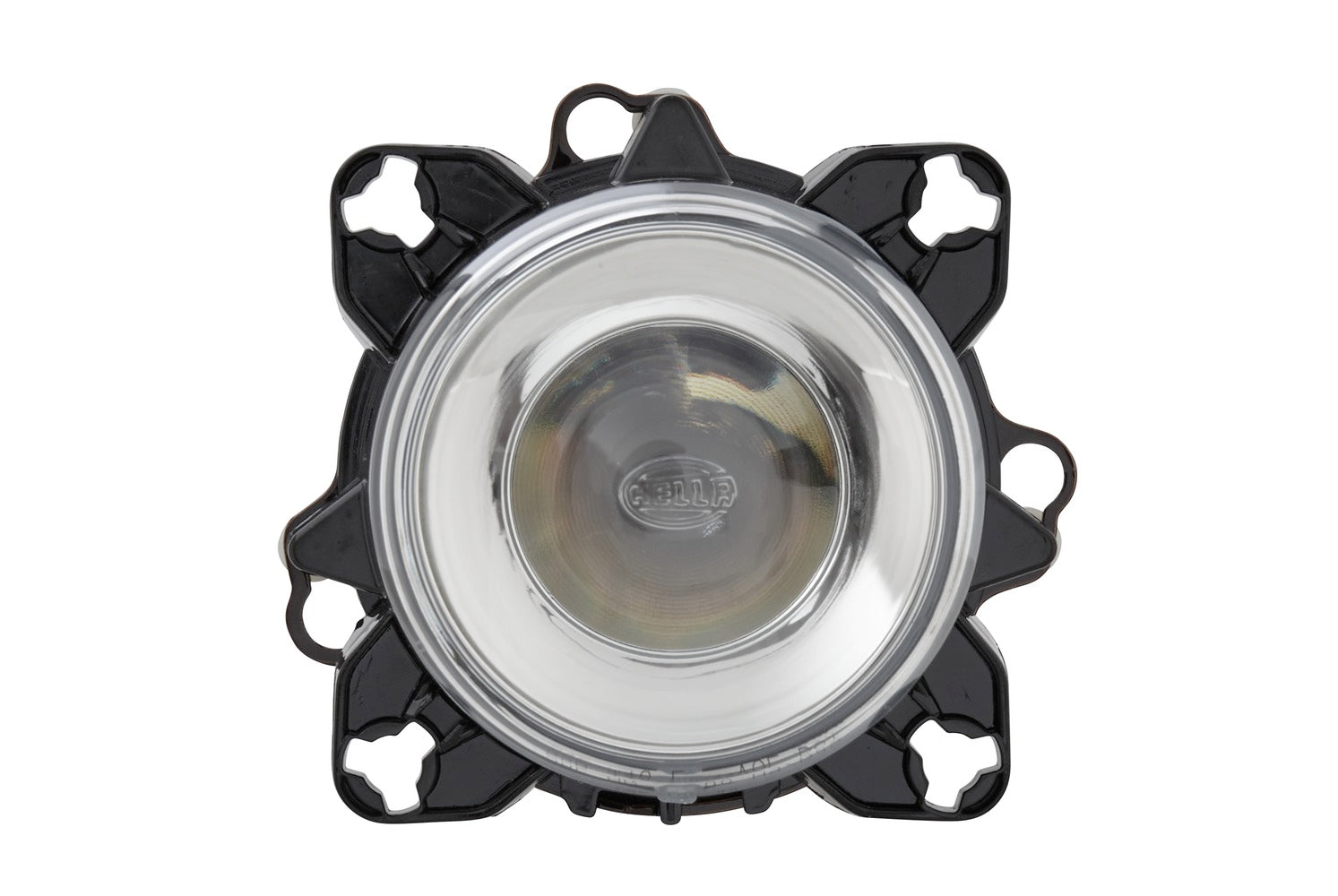

HELLA Halogen/DE-Insert, headlight - 90mm Essential - 12V 1BL008193-021

Halogen/DE-Insert, headlight - 90mm Essential - 12V - round - Reference number: 12.5 - SAE - Crystal clear - Plug: Blade Terminal - Front - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Ø: 90mm - Length: 140mm - Width: 103mm - Height: 119mm - Depth: 165mm - Lamp Type: H9 - with bulb - with fastening material
• Light functions: 1 - with low beam
• Registration Type: SAE - for right-hand traffic
• Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Light Design: DE / Halogen
Lamp Type: H9
Voltage: 12 V
Fitting Position: Front
Height: 119 mm
Width: 103 mm
Length: 140 mm
Depth: 165 mm
Ø: 90 mm
Light Function: with low beam
Light functions: 1
Registration Type: SAE
Plug: Blade Terminal
Reference number: 12.5
Left-hand/Right-hand Traffic: for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: black
Illuminated Area: 90 mm
Shape: round
Diffusing Lens Material: Glass

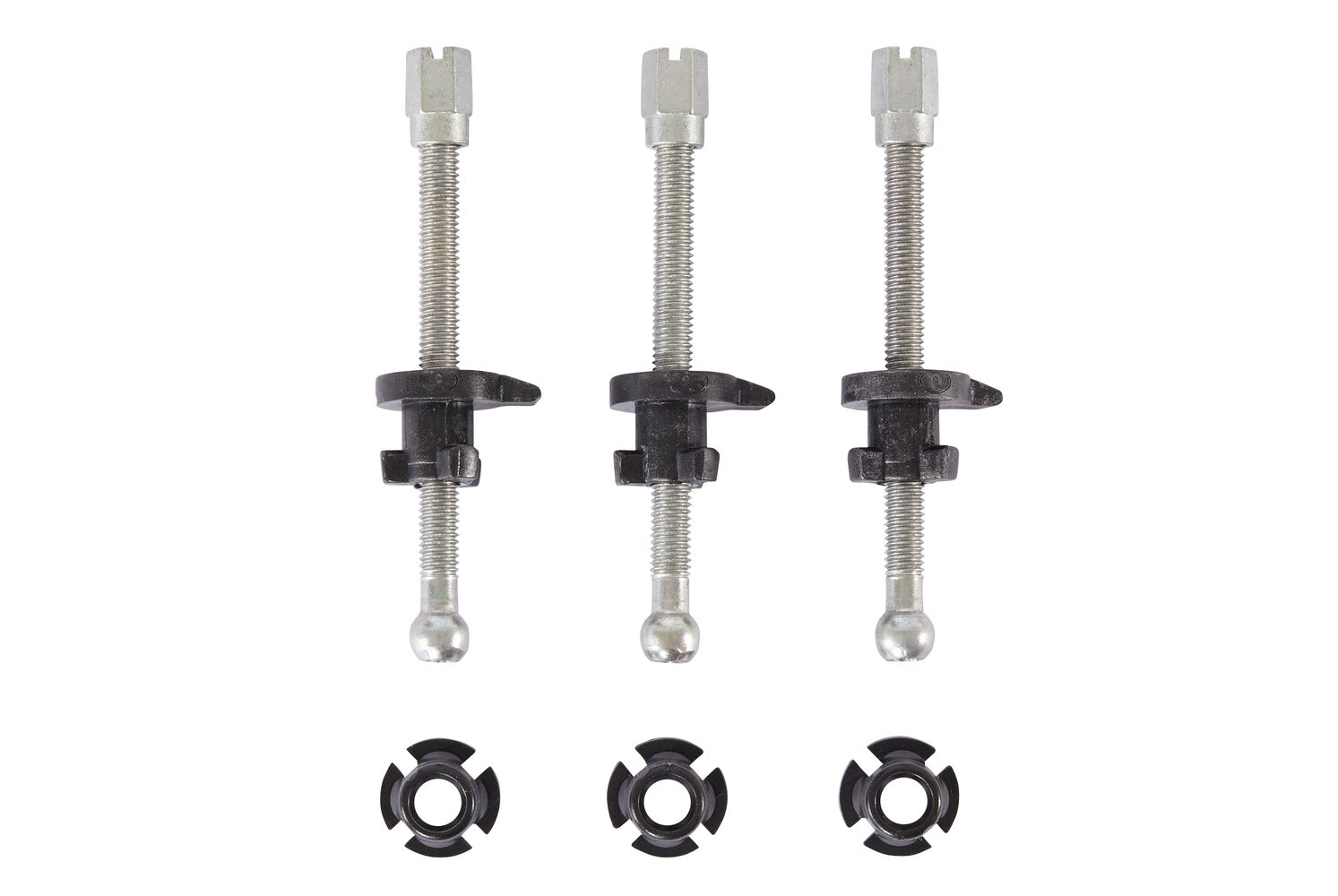

Supplementary Article/Supplementary Info 2: with fastening material
Supplementary Article/Supplementary Info: with bulb
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: FENDT A CW1 979 230; GILLIG 82-51916-001; HEULIEZ 0002942601; YUTONG 4101-00095
