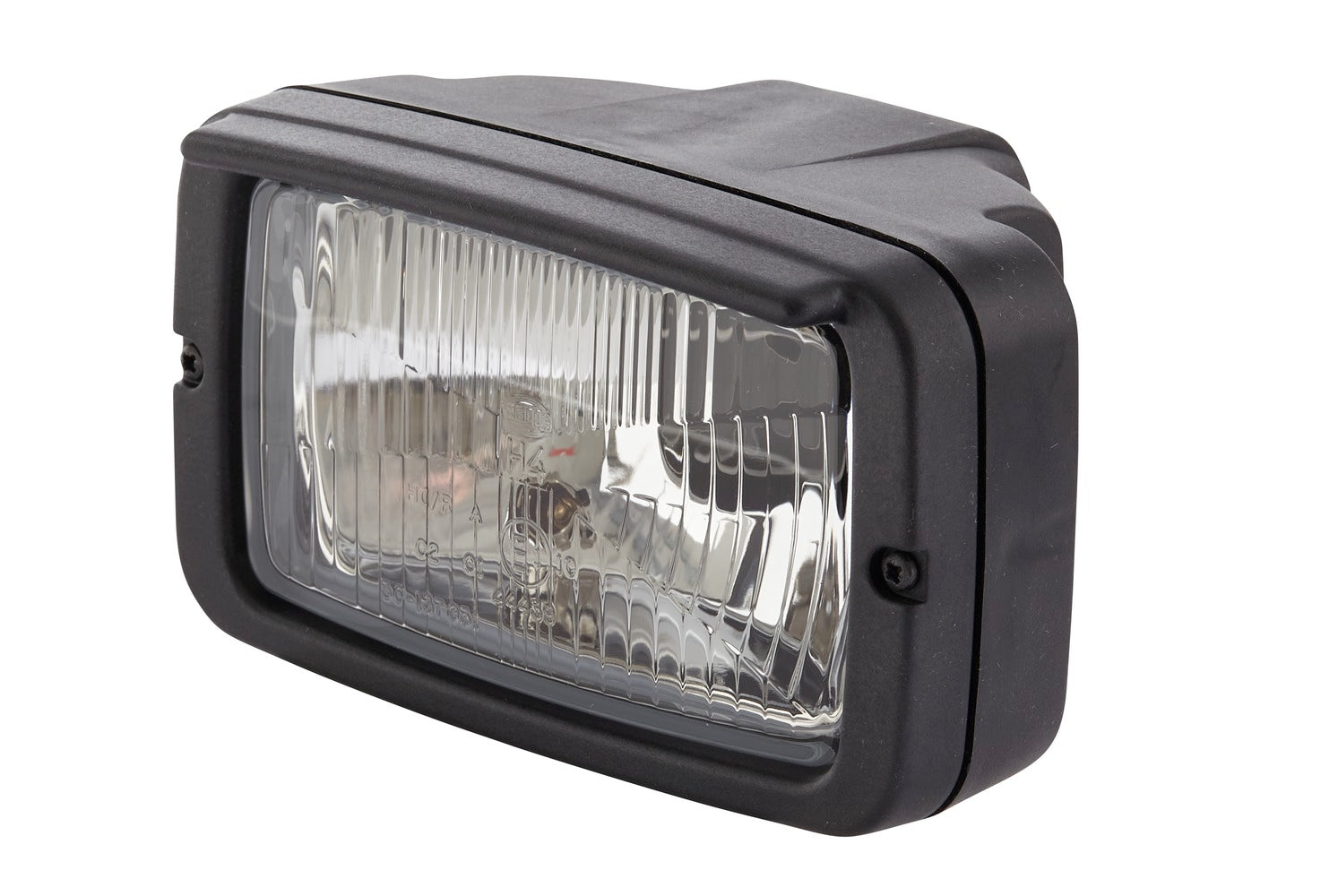

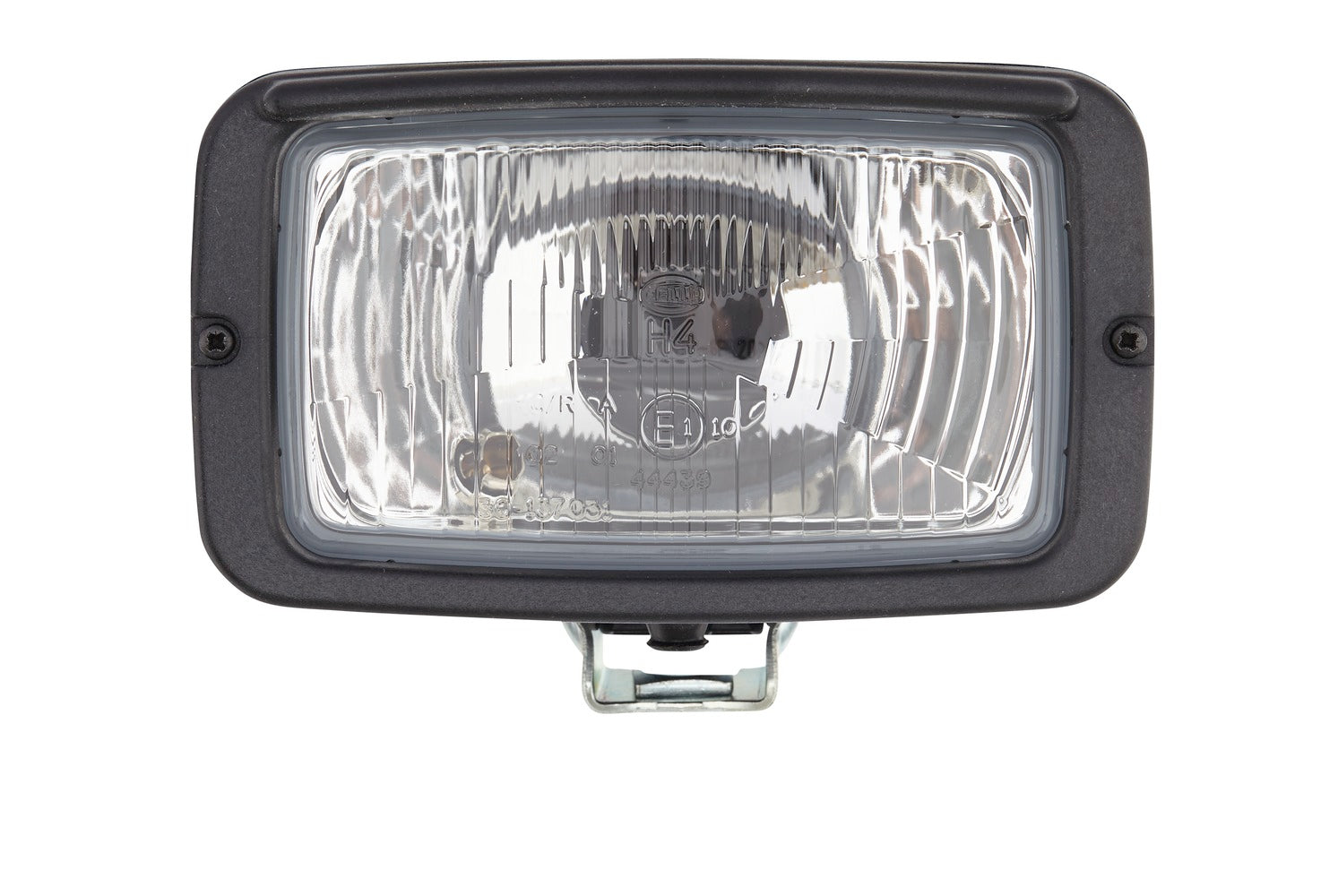

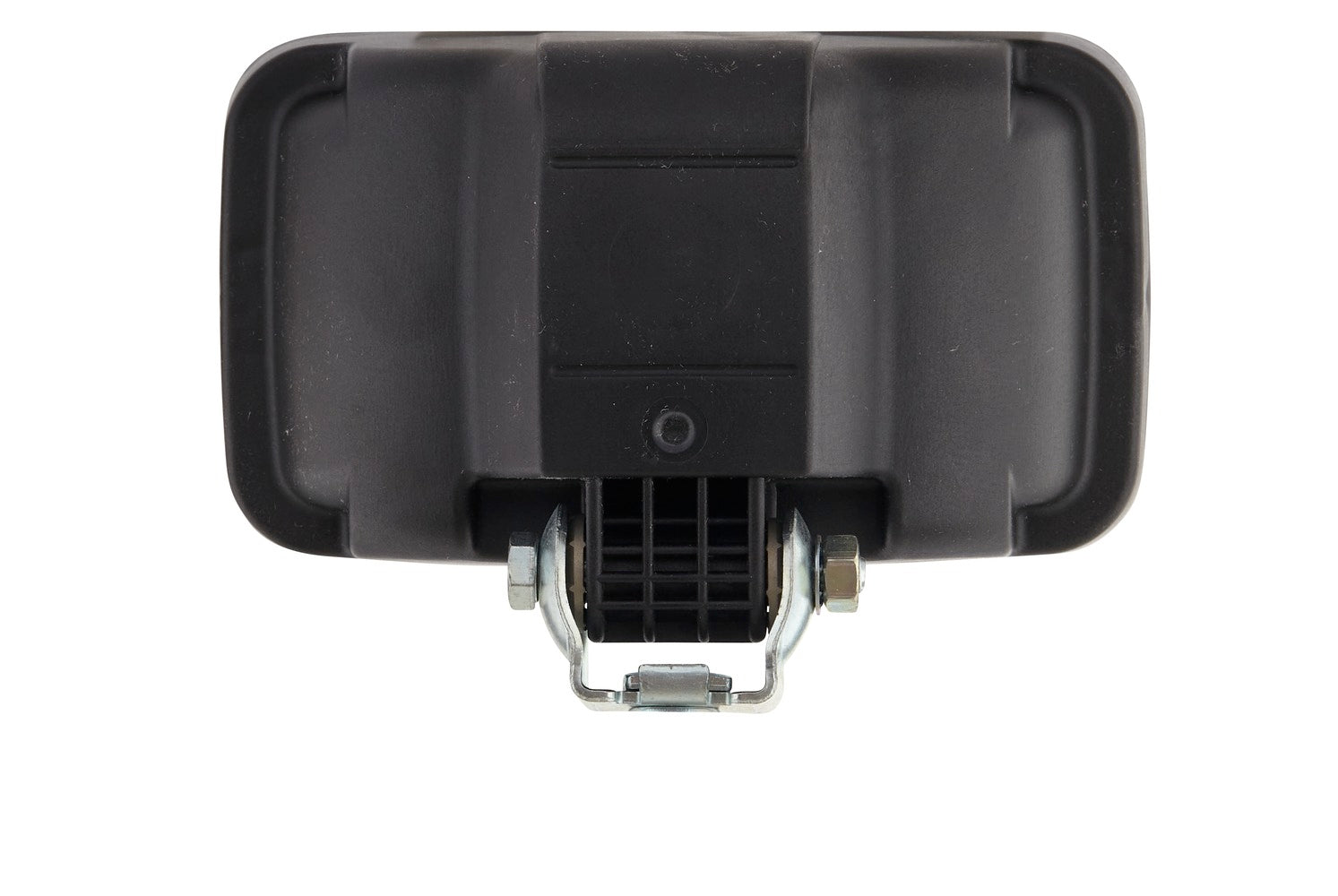

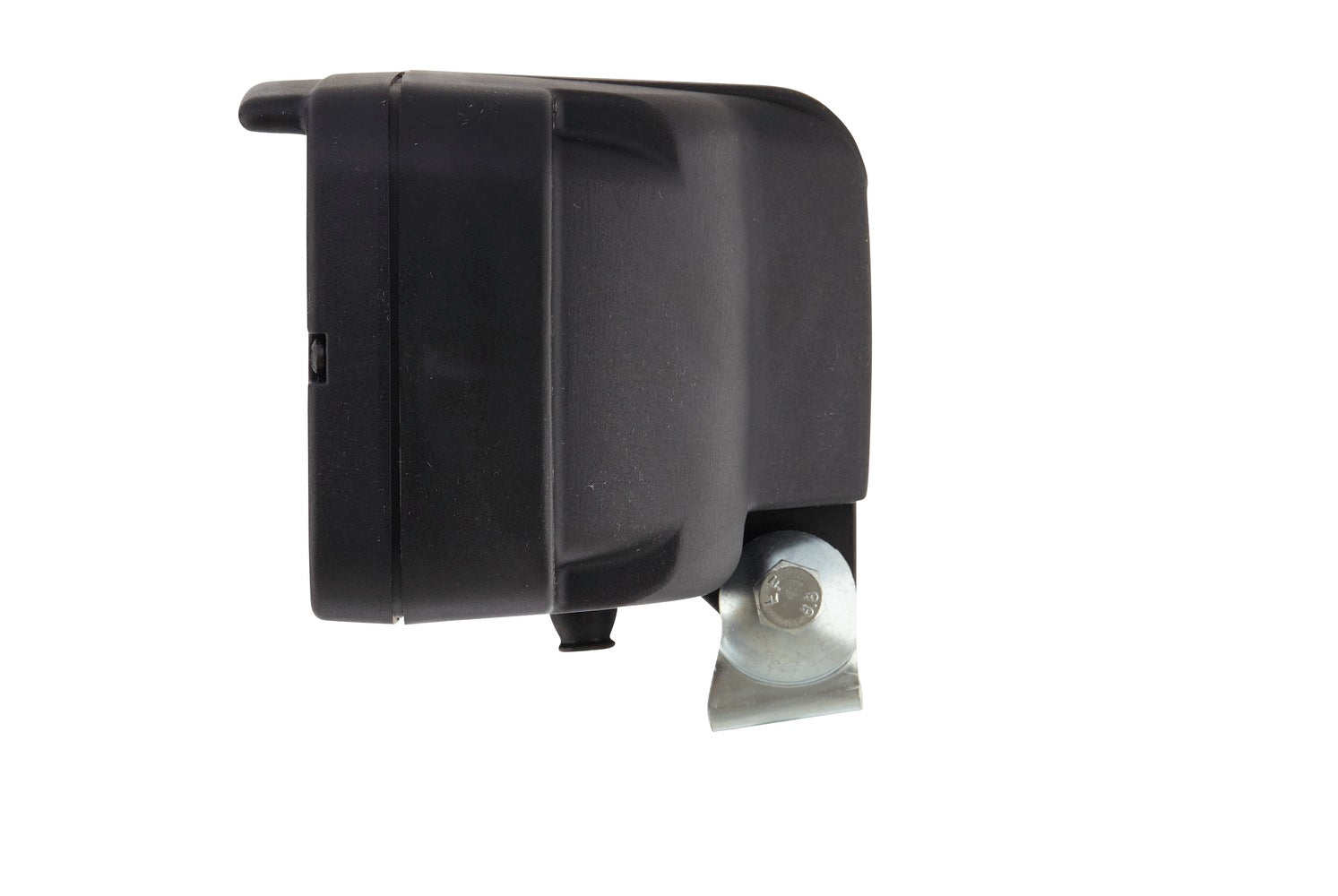

HELLA Halogen-Headlight 7145 - 12/24V 1AB007145-001

Halogen-Headlight 7145 - 12/24V - Reference number: 10 - ECE - Plug: Blade Terminal - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.

• Halogen main headlamp 7145 for surface-mounting (upright / pendant) - for right-hand traffic, with ECE approval
• The headlamp has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4/T4W, without bulbs
• Width: 180mm - Height: 106mm - Depth: 120mm - Overall Height: 126mm - Lamp Type: H4/T4W - without bulbs
• Light functions: 3 - with low beam/with high beam/with position light
• Registration Type: ECE - for right-hand traffic
• Housing Colour: Black - Diffusing Lens Material: Glass

Item Attributes:
Mounting Type: mounting

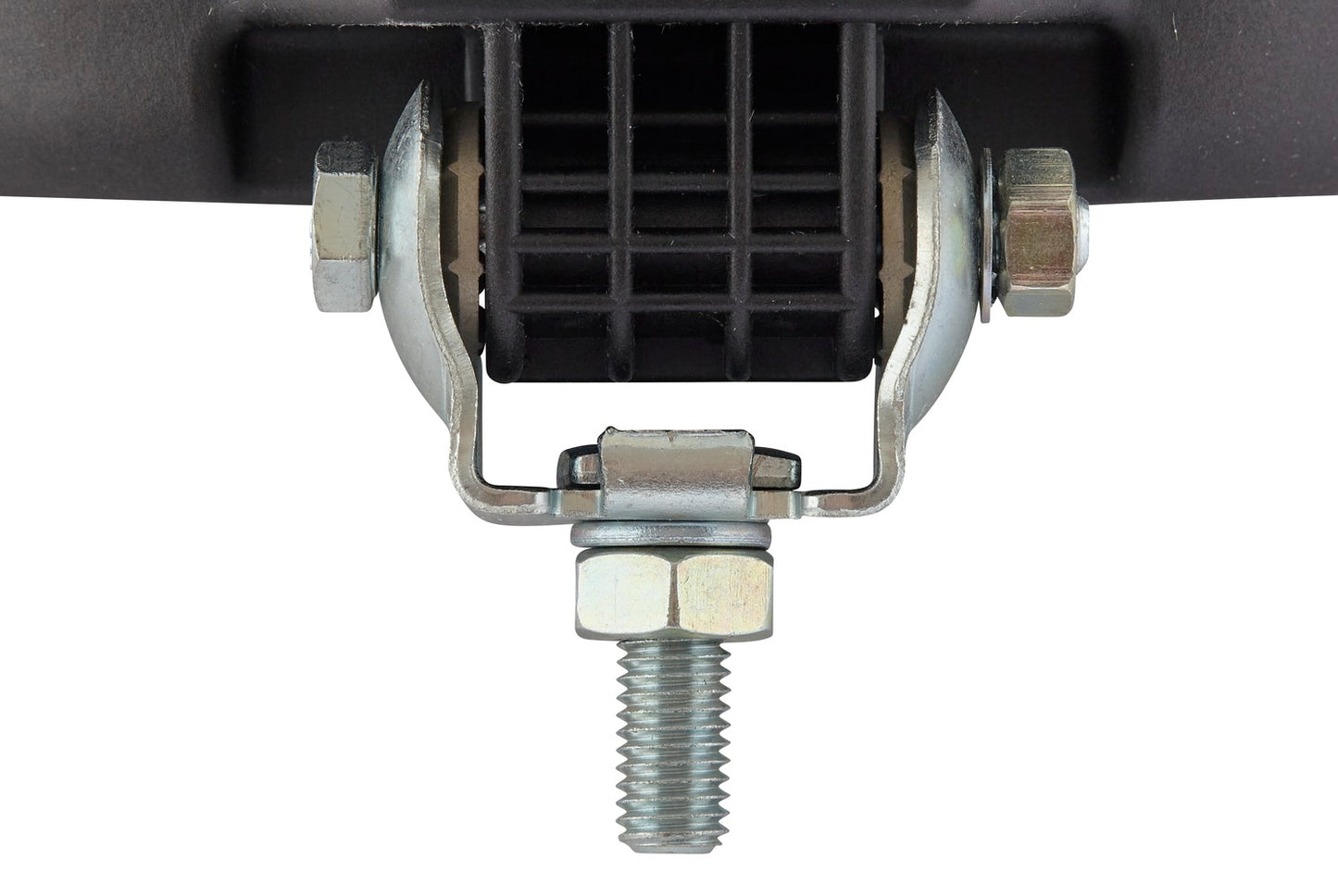

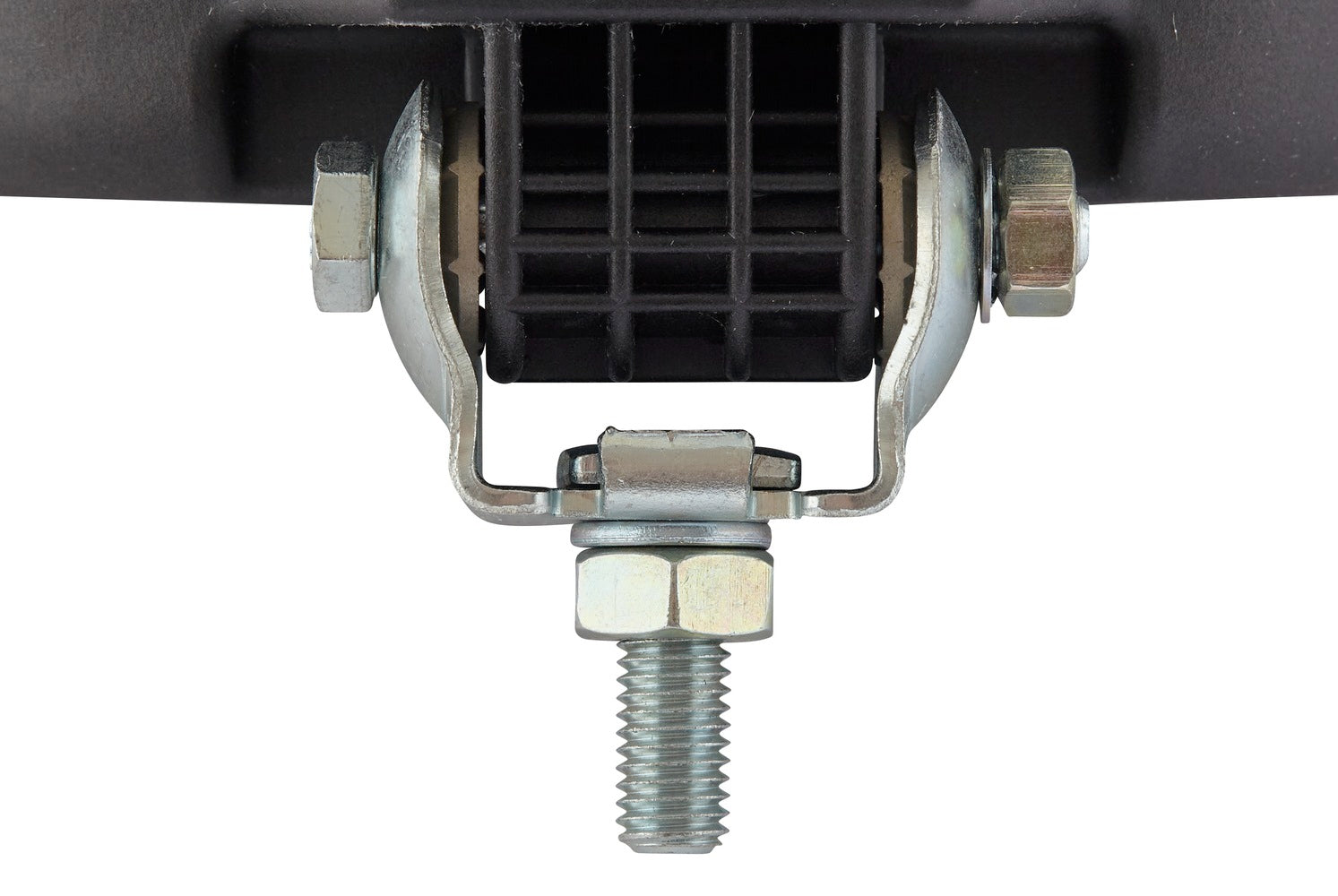

Fastening Type: Vertical / Suspended
Fitting Position: left / right
Lamp Type: T4W / H4
Light Function: with low beam / with high beam / with position light
Light Design: Halogen
Voltage: 12 V / 24 V
Width: 180 mm
Height: 106 mm
Overall Height: 126 mm
Depth: 120 mm
Diffusing Lens Material: Glass
Plug: Blade Terminal
Housing Colour: black
Illuminated Area: 148 x 84 mm
Light functions: 3
SVHC: 7439-92-1; Lead
Reference number: 10
Registration Type: ECE
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info 2: without bulbs
Assembly by qualified personnel required!

OE references: AEBI 0233283-1; AEBI 300.6108; AHLMANN 4107058A; BM TRACTORS 4.01.008; CASE IH 0 707657 1; DAF 9510384; DEUTZ-FAHR 160 29758; HAKO 03004150000; HYSTER S00966051031; JOHN DEERE AZ 50 258; JUNGHEINRICH 14735700; KÄSSBOHRER 7.512.044.000.0; KOMATSU 41L0 6H3 020; KOMATSU 41L06H3020; KRONE 0924746/0; LIEBHERR 6 004 186; MACK 4381 95138; MANITOU 197956; MANITOU N197956; MANITOU N204640401001; MASSEY FERGUSON 151681; MASSEY FERGUSON 35509; PAUS 533399; SAME 16029758; TERBERG-BENSCHOP 2-EL0019-0800; VALMET 34203700; VÖGELE 3515155149
