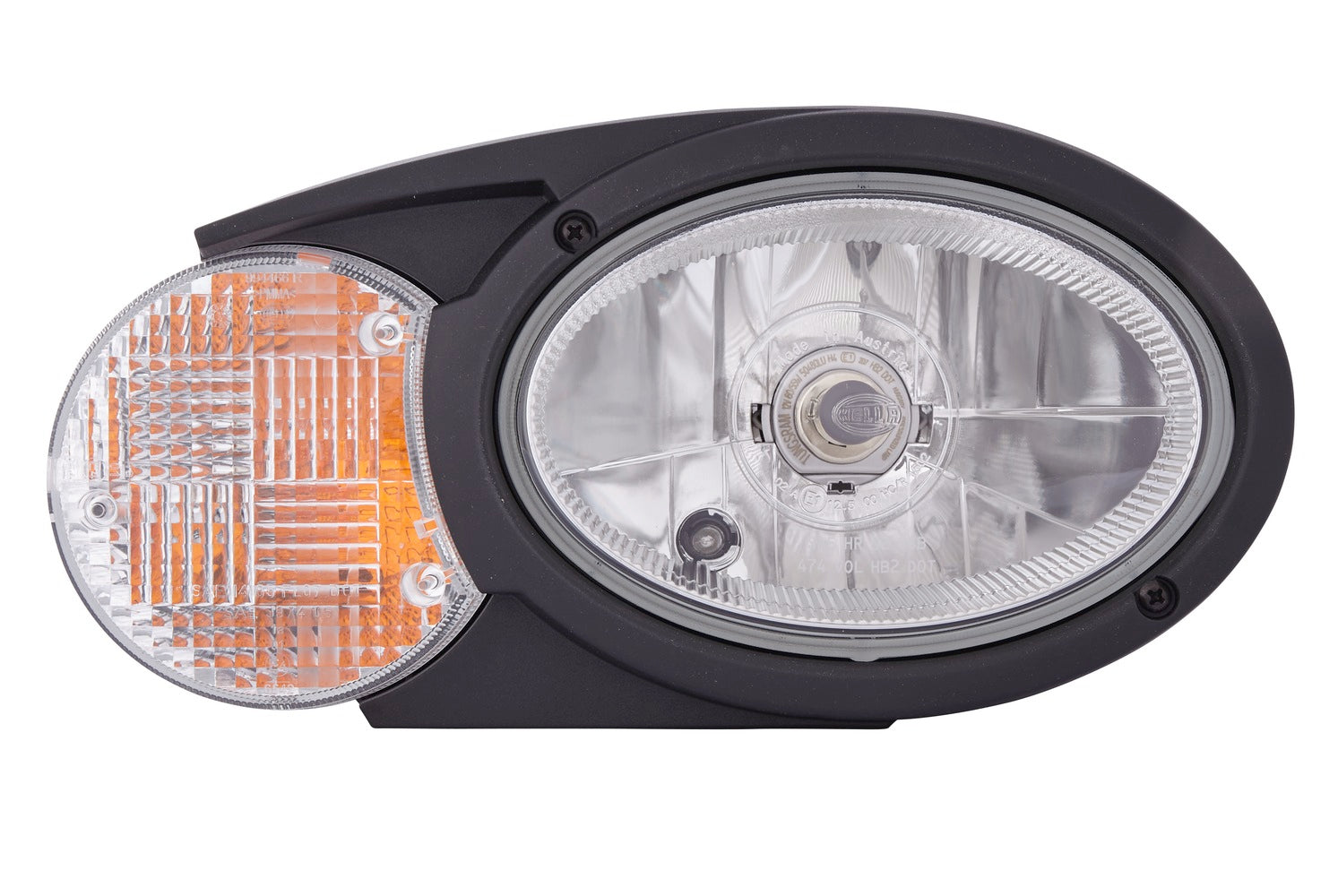

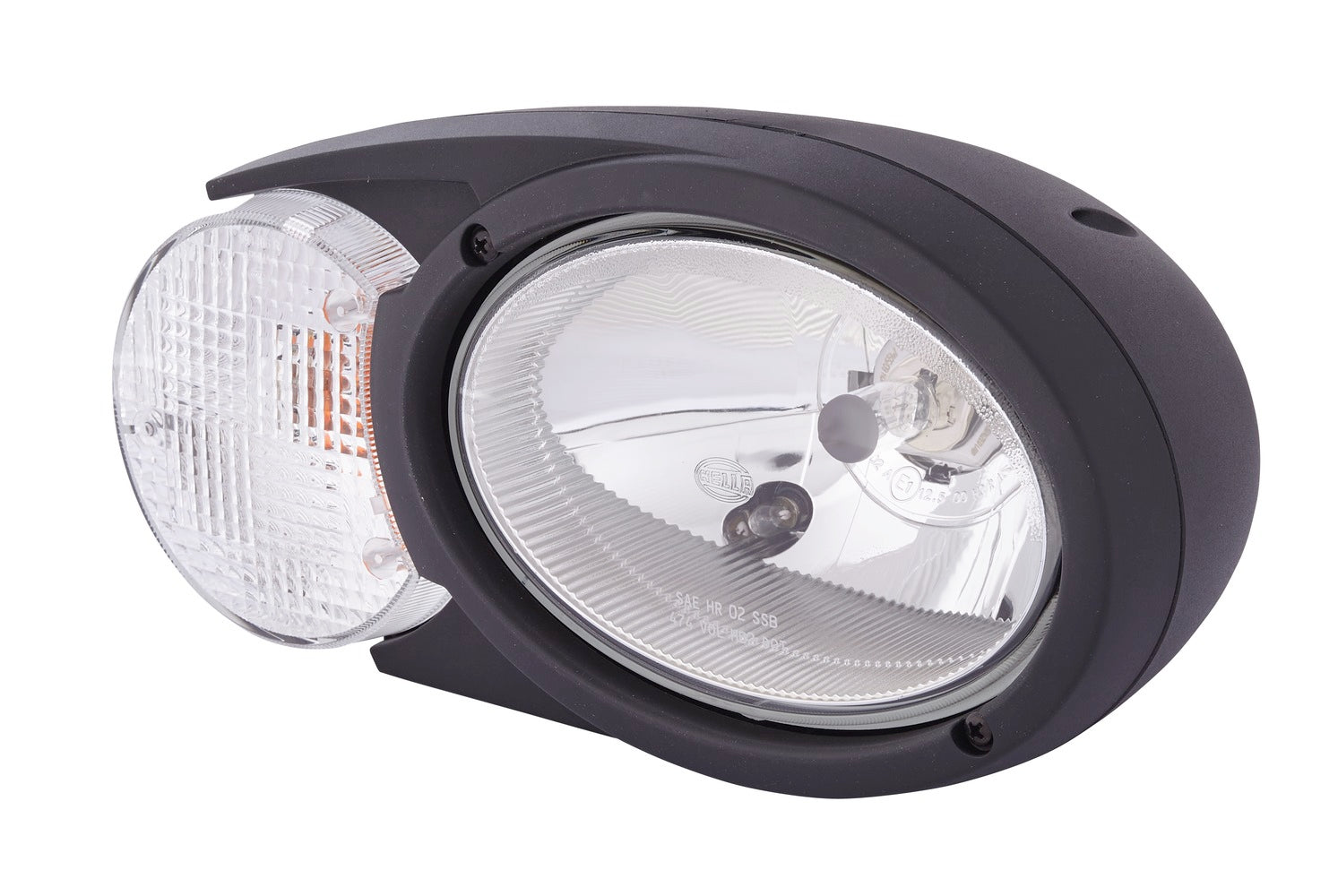

HELLA Halogen-Headlight - Combi 120 - 12/24V 1EB996167-041

Halogen-Headlight - Combi 120 - 12/24V - Reference number: 12.5 - ECE - Clear diffusing lens - transparent - Plug: DEUTSCH plug - 6-pin connector - right

Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlamps - neither on the road nor on the field. They are, so to speak, a vehicle's eyes and therefore an essential safety feature when driving and working at night.

• Main headlamp for surface-mounting

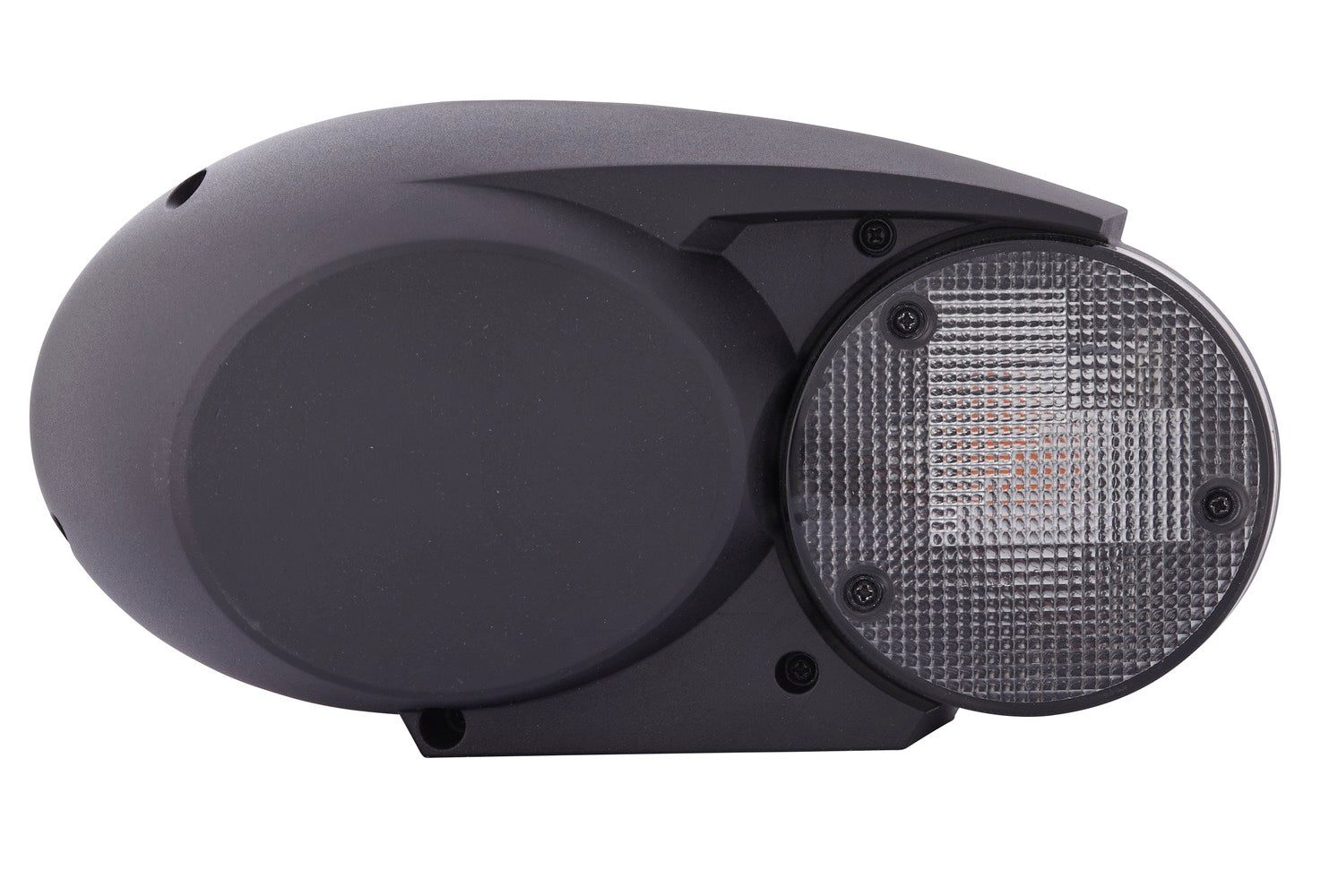

• Position light and indicator light with crystal clear lens to the front and grey lens to the rear
• Width: 305mm - Height: 150mm - Lamp Type: H4/P21W/T4W/PY21W - with bulbs
• Light functions: 4 - with low beam/with indicator/with high beam/with position light
• Registration Type: ECE - for right-hand traffic
• Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: transparent
• Mounting Type: Fitting/mounting

Item Attributes:
Mounting Type: Fitting / mounting
Fitting Position: right
Lamp Type: T4W / PY21W / H4 / P21W
Light Function: with position light / with high beam / with indicator / with low beam
Light Design: Halogen
Voltage: 24 V / 12 V
Width: 305 mm
Height: 150 mm
Diffusing Lens Material: Glass

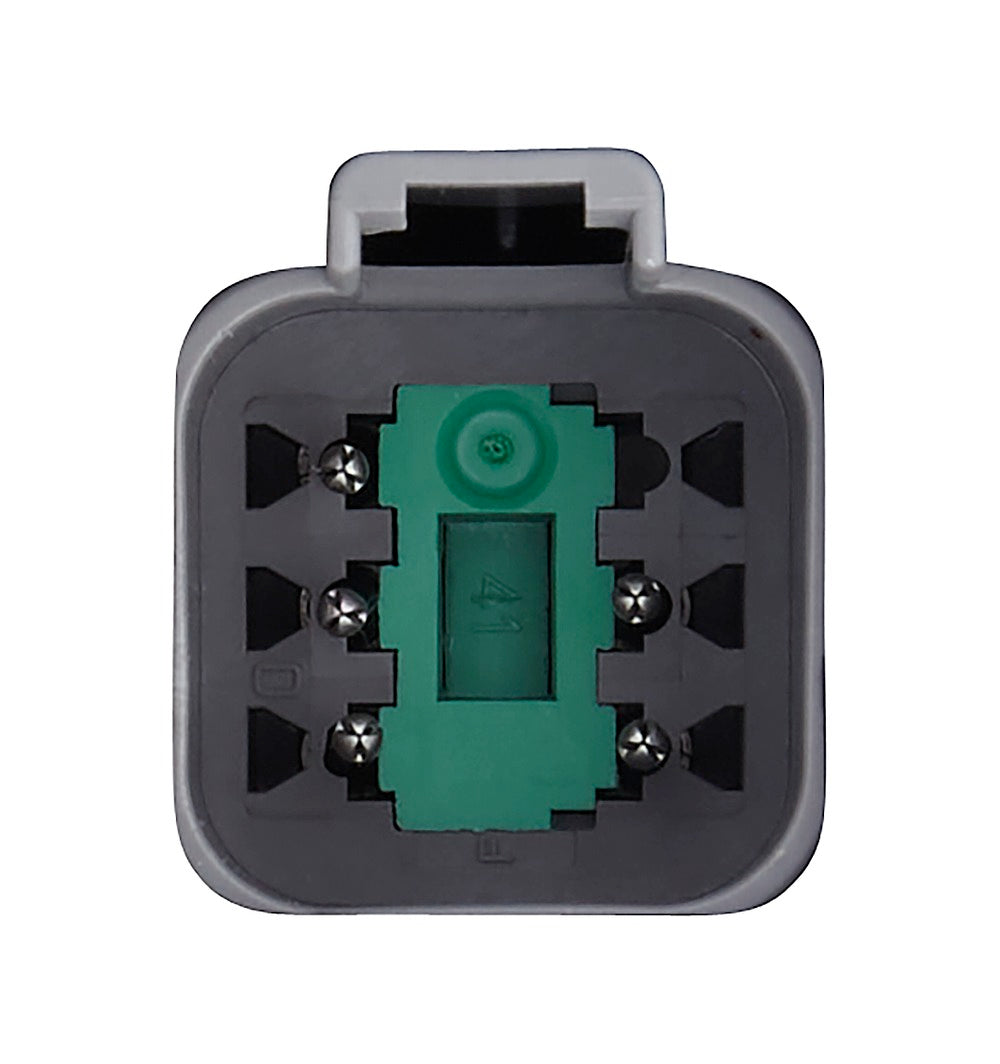

Plug: DEUTSCH plug
Number of pins: 6 -pin connector
Housing Colour: black
Diffusing Lens Type: Clear diffusing lens
Lens Colour: transparent
Illuminated Area: 161 x 100 mm
Light functions: 4
Reference number: 12.5
Registration Type: ECE
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!

OE references: AEBI 1049327-2; AGCO 524411D1; AGCO G930 900 020 070; AGRIFAC 7788652; BOMAG 057 512 27; FENDT G930.900.020.070
