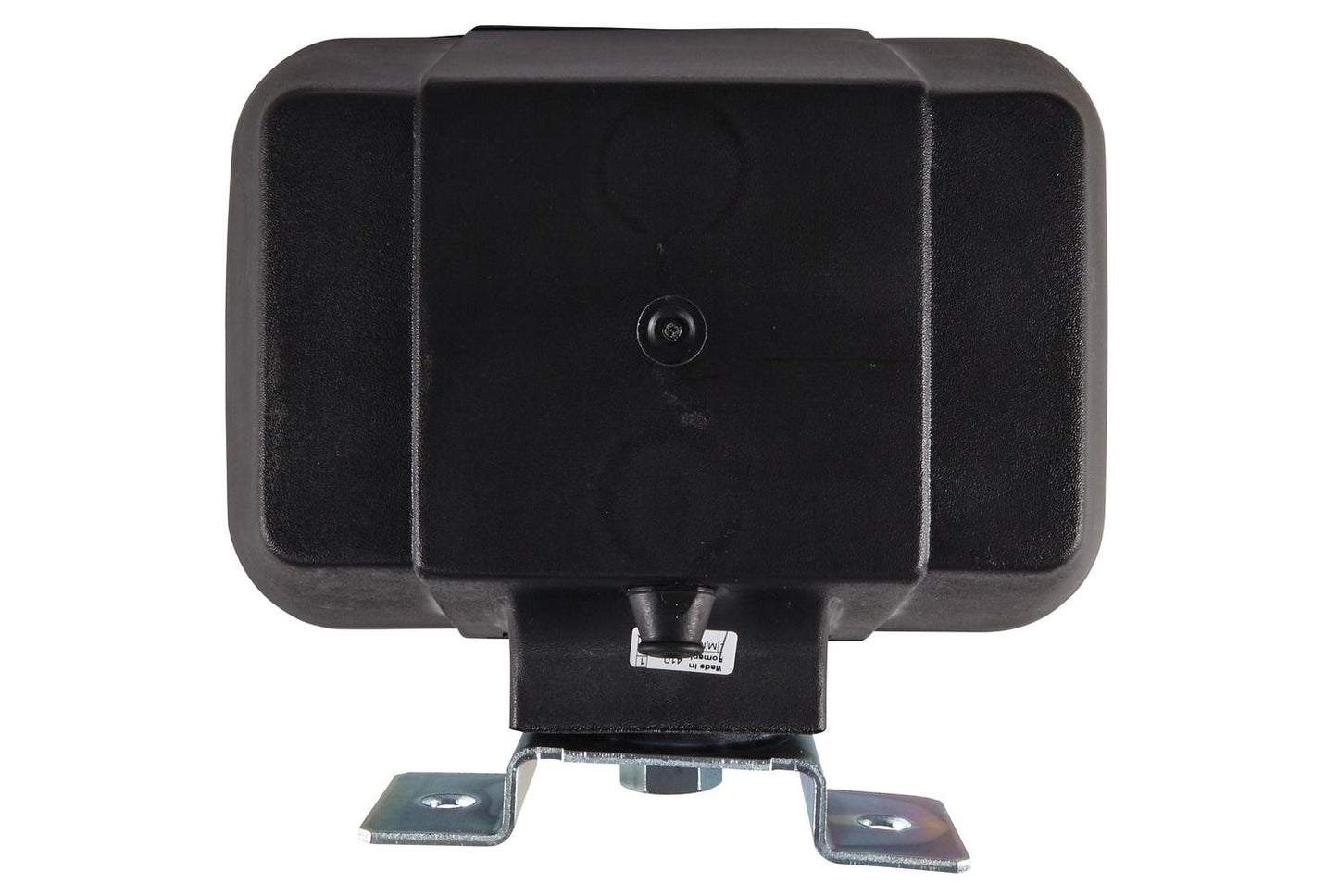

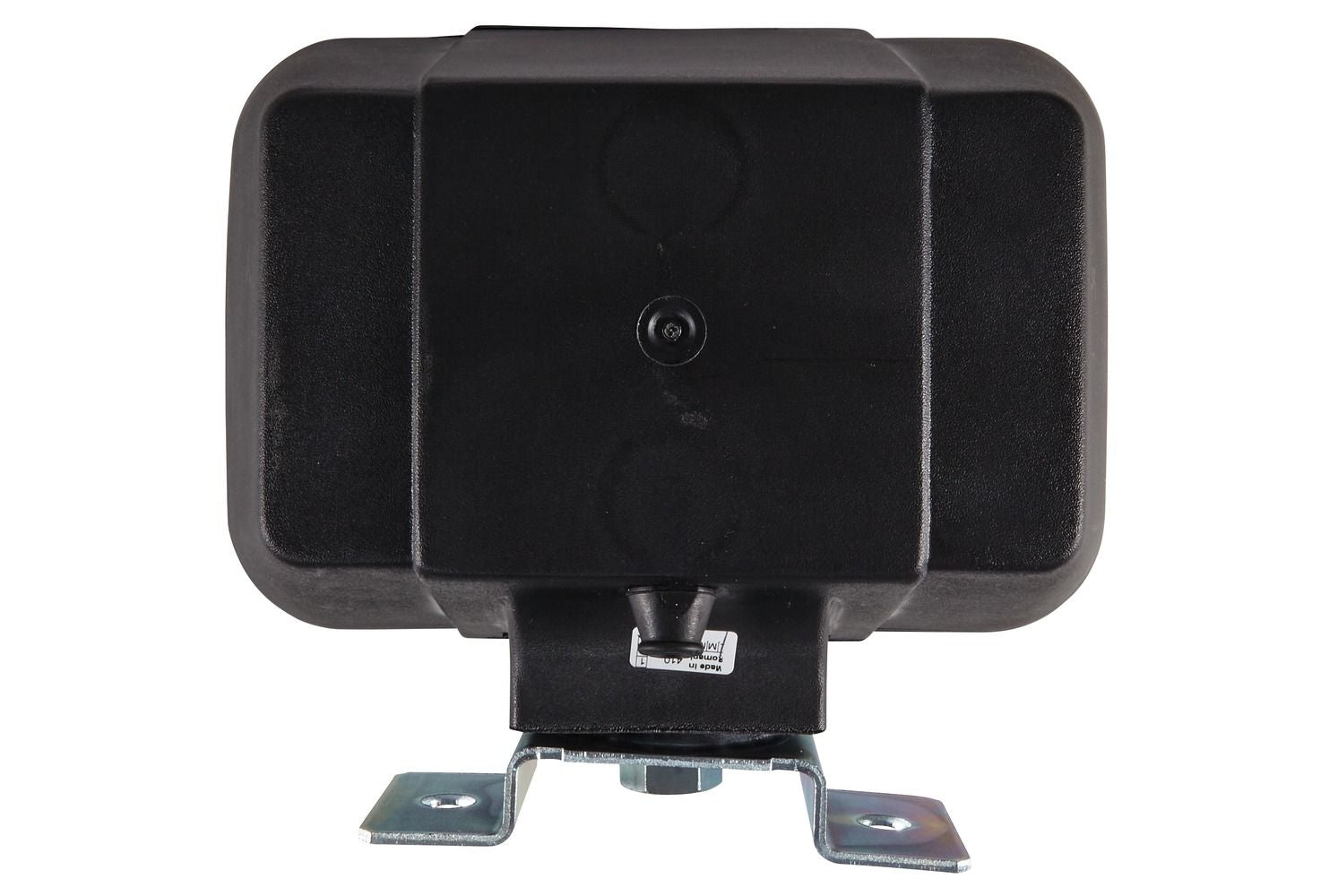

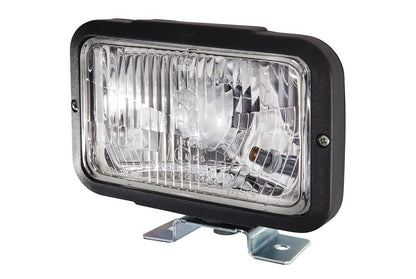

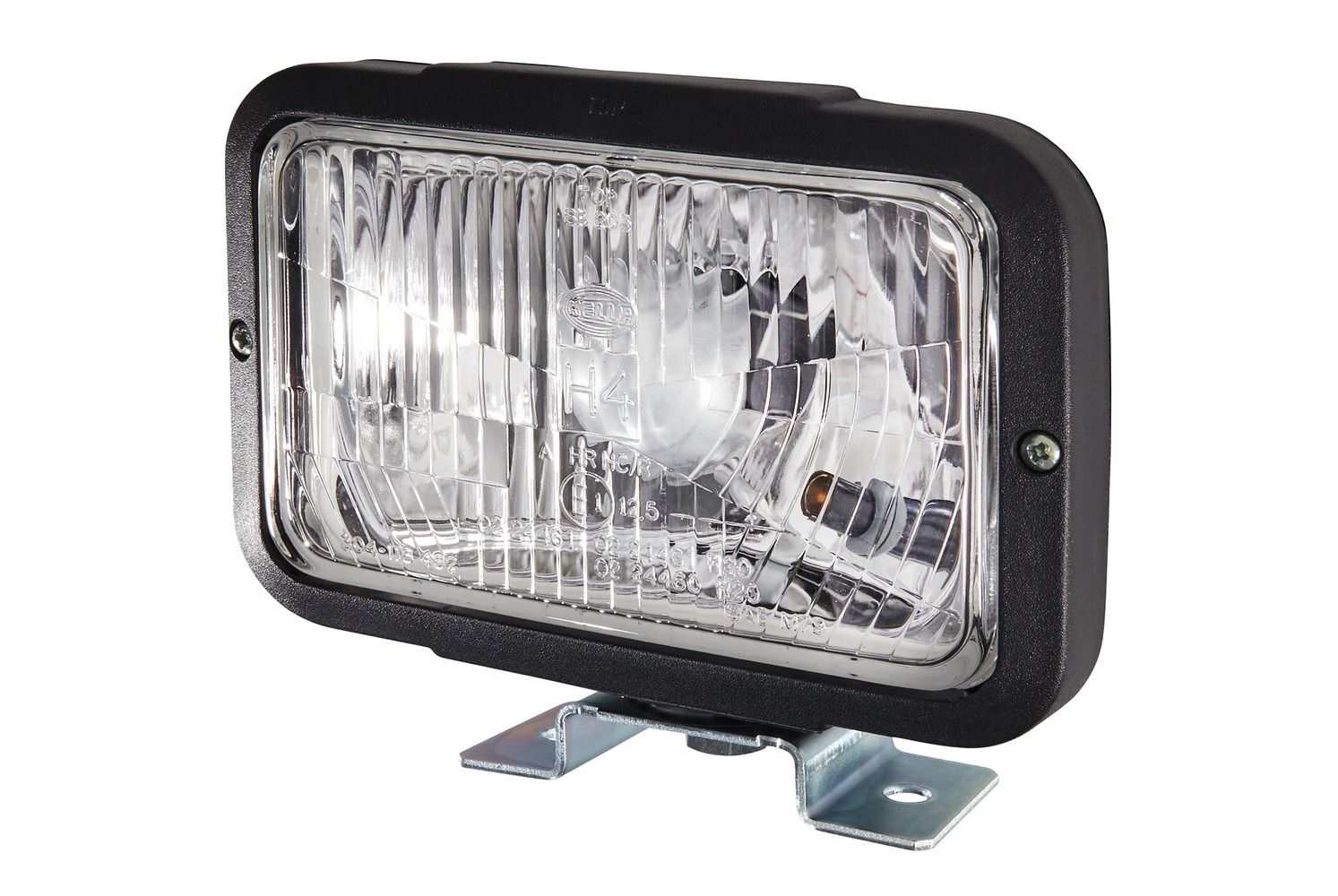

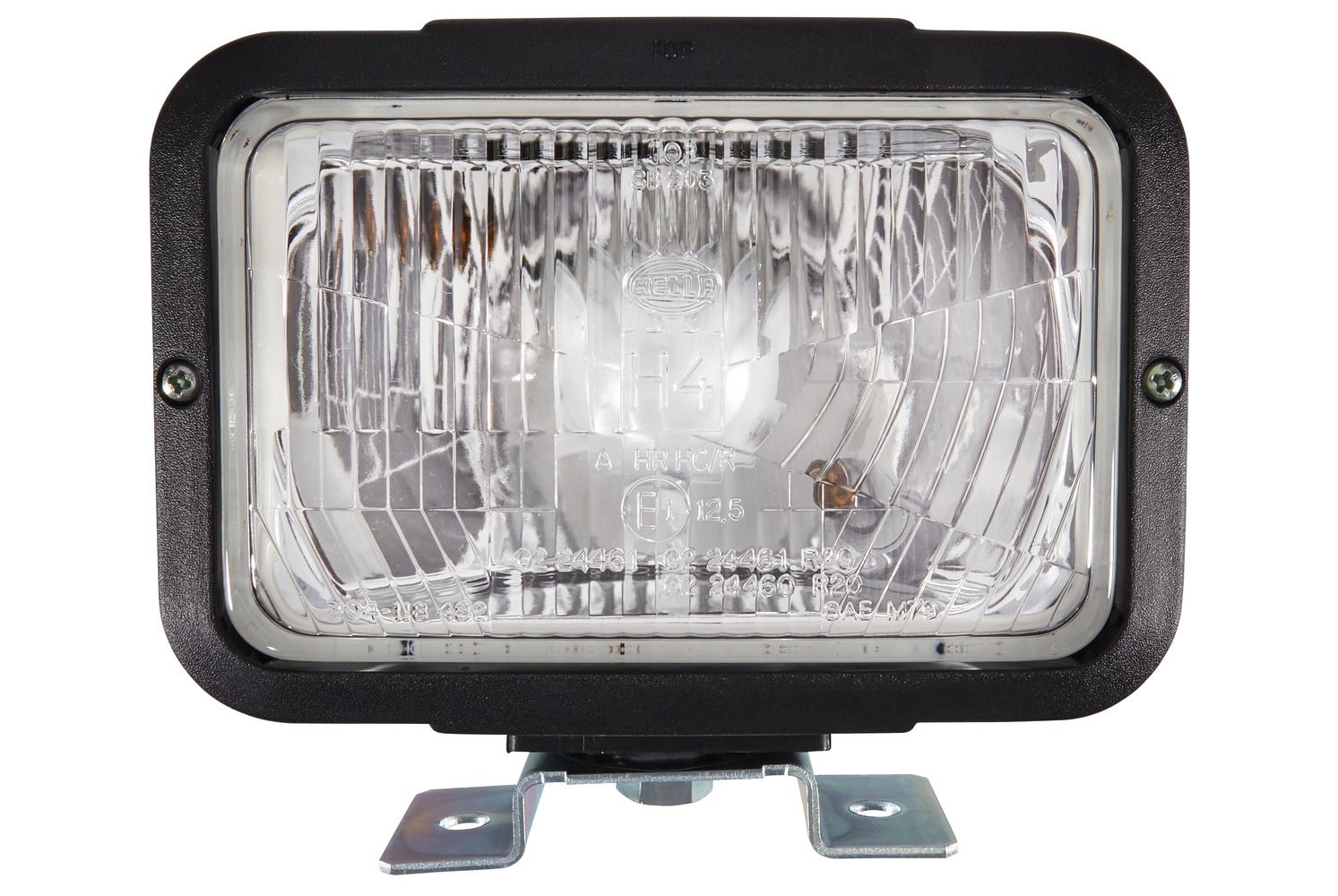

HELLA Halogen-Headlight - left/right 1AB004231-001

Halogen-Headlight - ECE - for right-hand traffic - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.

• Light Design: Halogen - Lamp Type: H4/T4W
• Light functions: 3 - with high beam/with position light/with low beam
• for right-hand traffic - Registration Type: ECE - Country Specific Design: Europe
• with holder - without bulbs

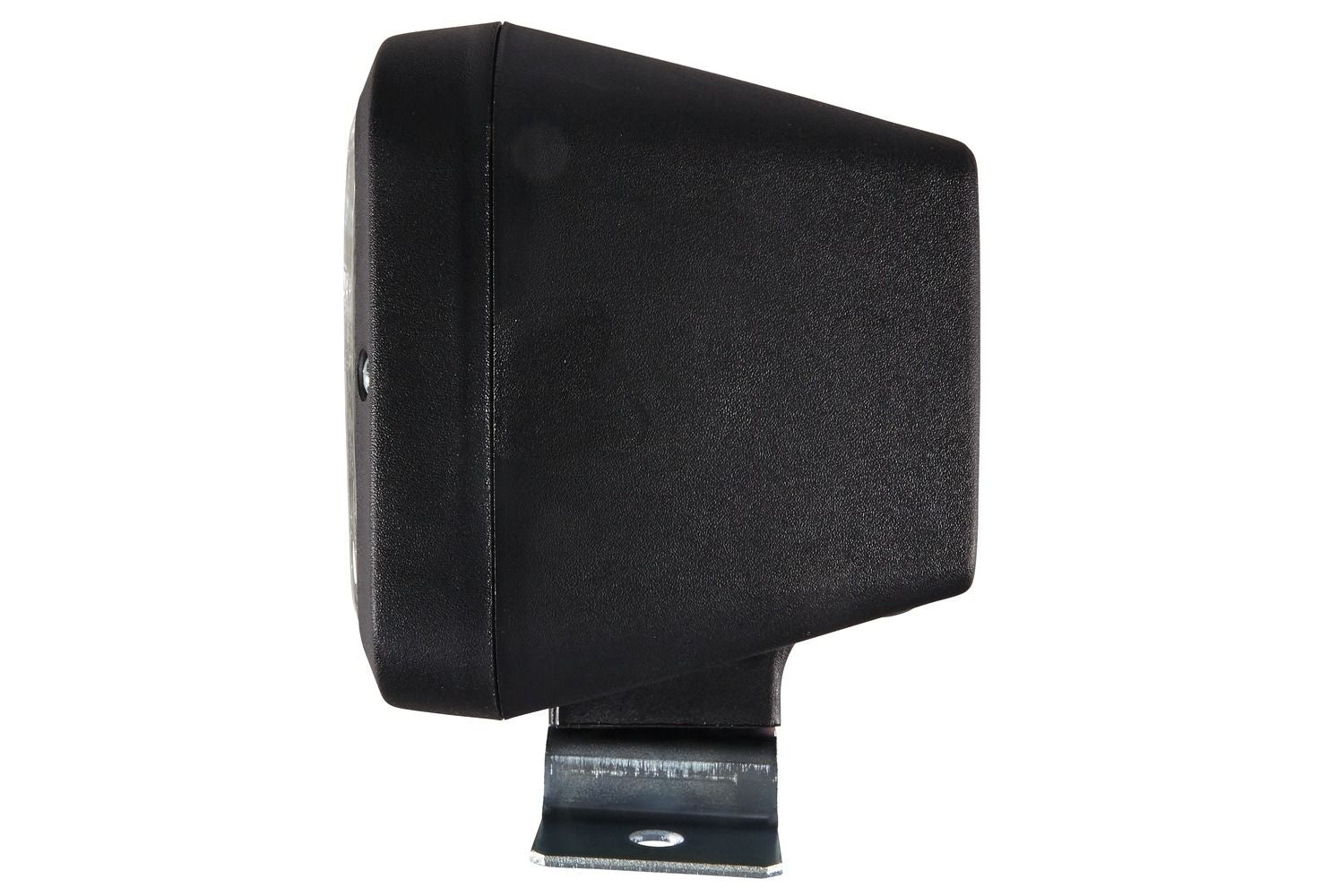

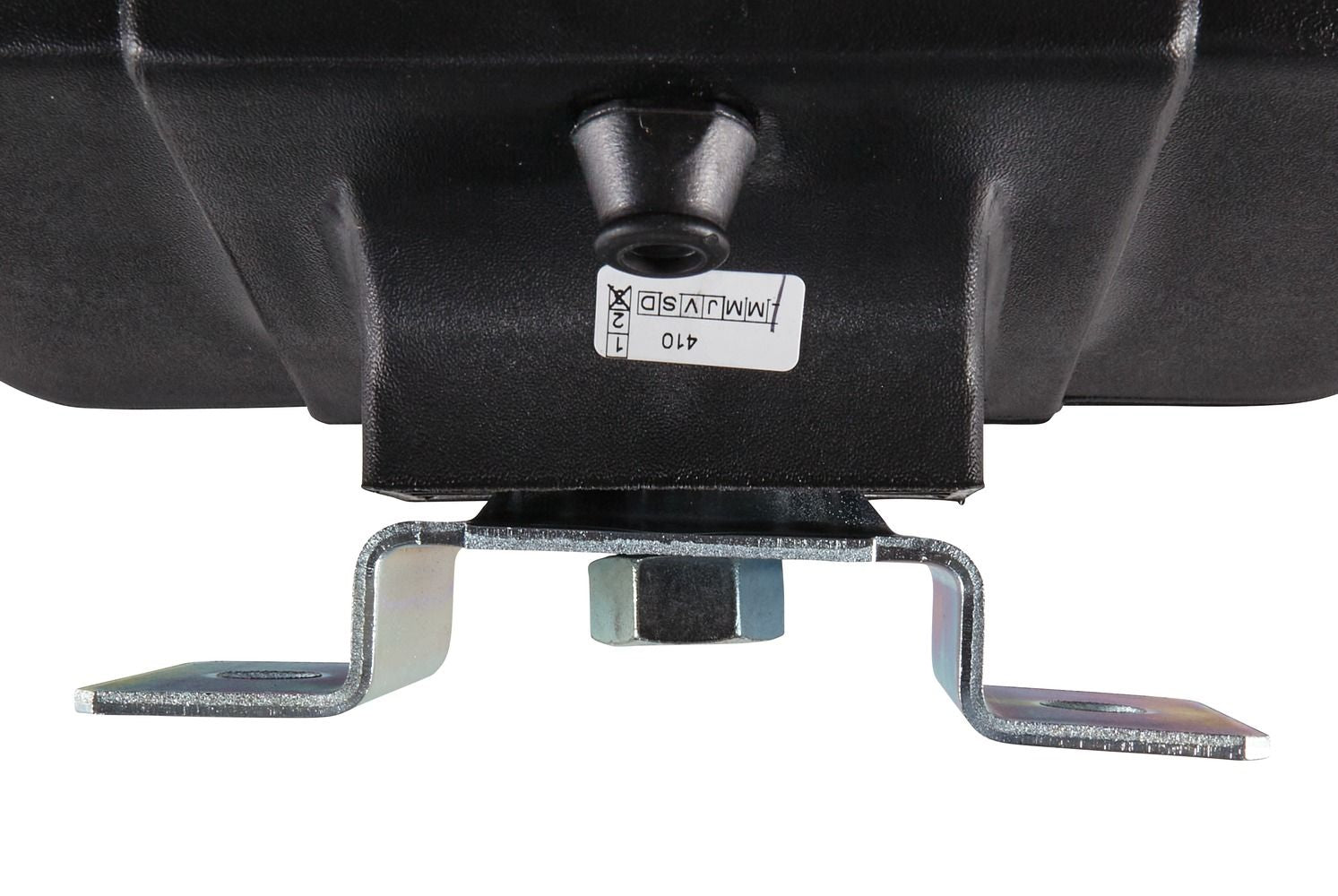

• Halogen main headlamp for surface mounting (with bracket, mounting bracket for mounting on straight or slightly curved body surfaces) - for right-hand traffic, with ECE approval
• The headlamp has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4/T4W, without bulbs

Item Attributes:
Fitting Position: right / left
Check OE number
Left-hand/Right-hand Traffic: for right-hand traffic
Lamp Type: H4 / T4W
Voltage: 24 V / 12 V
Depth: 122 mm
Reference number: 12.5
Prot.type (IP Code): IP5K4K
Illuminated Area: 164 x 103 mm
Registration Type: ECE
Ø: 103 mm / 136 mm
Material: Plastic
Width: 194 mm
Height: 168 mm
Light Design: Halogen
Light Function: with high beam / with position light / with low beam
Mounting Type: mounting
Supplementary Article/Supplementary Info: with holder
Supplementary Article/Supplementary Info 2: without bulbs
Light functions: 3
SVHC: 7439-92-1; Lead / 1333-82-0; Chromium trioxide
Housing Colour: black
Country Specific Design: Europe
Assembly by qualified personnel required!

OE references: AEBI 233278-1; AGRIFAC 7742450; AHLMANN 0029739/0029732; AHLMANN 4191441A; CASE IH 0 112255 4; CASE IH 2981212; CASE IH 4620943; HOLDER 025813; HOLMER 1019008956; JOHN DEERE AZ 55 463; KAMAG 313686; KAMAG 80313686; KÖGEL 313686; KÖGEL 80313686; KOMATSU 4241 028 M91; KOMATSU 4241028M; LIEBHERR 6 905 463; LIEBHERR 607148214; MAFI 000,580,0534; MANITOU 4191441A; MASSEY FERGUSON 31138; O&K 2981212; O&K 4620943; REFORM 900530130; TEREX 5350659170; VOLVO 202201340; VOLVO 2022-01340; VOLVO 4374363; VOLVO ZM4374363; YANMAR 5350659170
