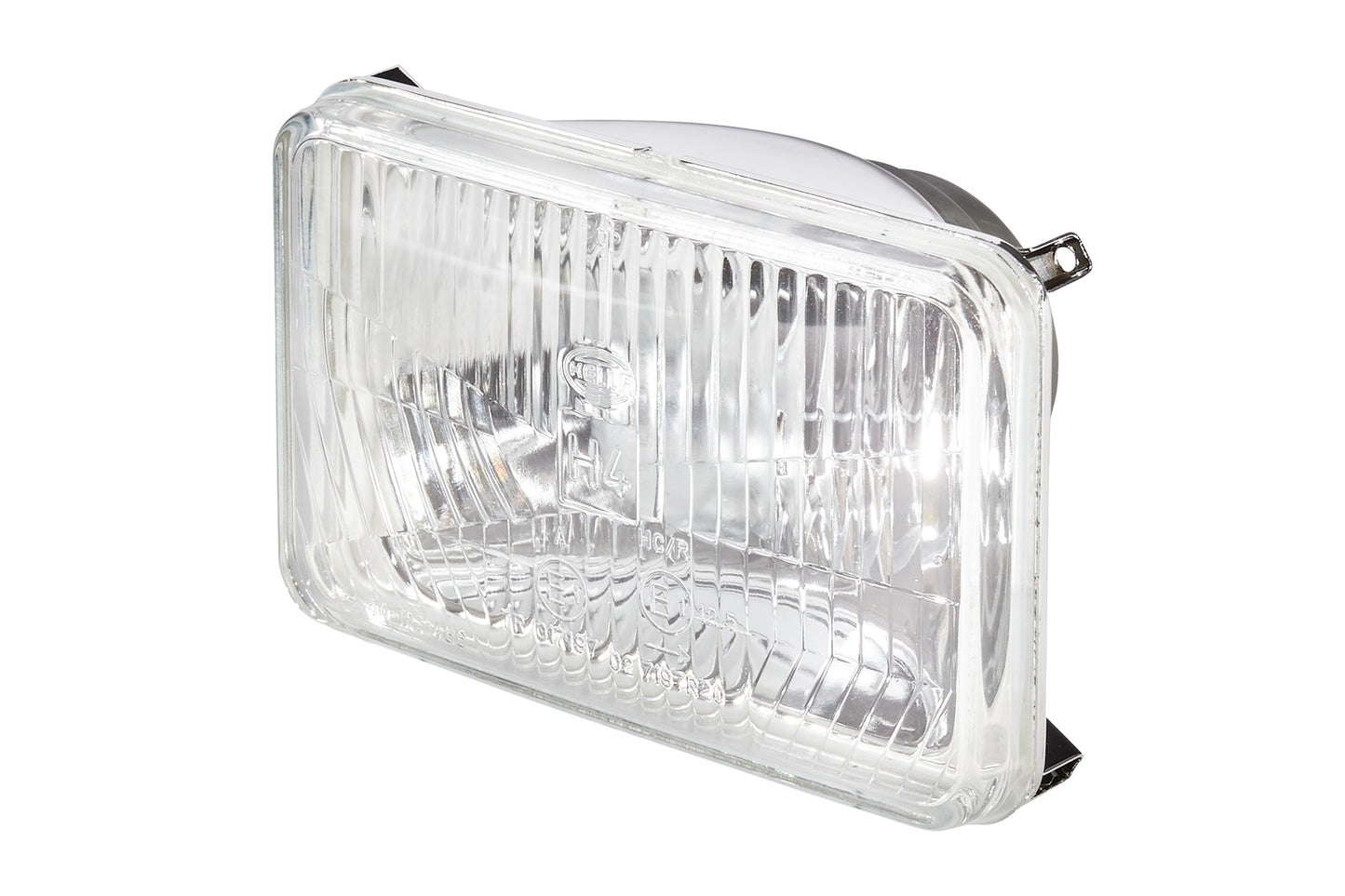

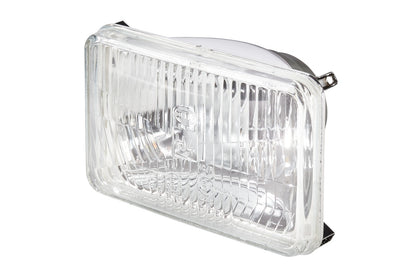

HELLA Halogen-Insert, headlight - 12/24V 1LB003177-301

Halogen-Insert, headlight - 12/24V - rectangular - Reference number: 12.5 - Crystal clear - Plug: Blade Terminal - Front - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• H4 headlight insert, main headlight for surface-mounting / installation
• The headlamp insert has 2 light functions: Low beam / High beam
• Lamp type: H4, without bulbs
• Ø: 150mm - Length: 167mm - Width: 167mm - Height: 100mm - Depth: 109mm - Lamp Type: H4 - without bulb - without bulbs
• Light functions: 2 - with high beam/with low beam
• fulfils ECE standard: R20/R7 - for right-hand traffic/for left-hand traffic
• Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Fitting / mounting
Fastening Type: Clamp Mounting
Light Design: Halogen
Lamp Type: H4
Voltage: 24 V / 12 V
Fitting Position: Front
Height: 100 mm
Width: 167 mm
Length: 167 mm
Depth: 109 mm
Ø: 150 mm
Light Function: with low beam / with high beam
Light functions: 2
fulfils ECE standard: R7 / R20
Plug: Blade Terminal
Reference number: 12.5
Left-hand/Right-hand Traffic: for right-hand traffic / for left-hand traffic
Lens Colour: Crystal clear
Housing Colour: chrome/black
Illuminated Area: 164 x 103 mm
Shape: rectangular
Diffusing Lens Material: Glass
Supplementary Article/Supplementary Info 2: without bulbs
Supplementary Article/Supplementary Info: without bulb
Quantity: 1
Assembly by qualified personnel required!

OE references: TEREX 1042 - PP1602136; TEREX PP1602136
