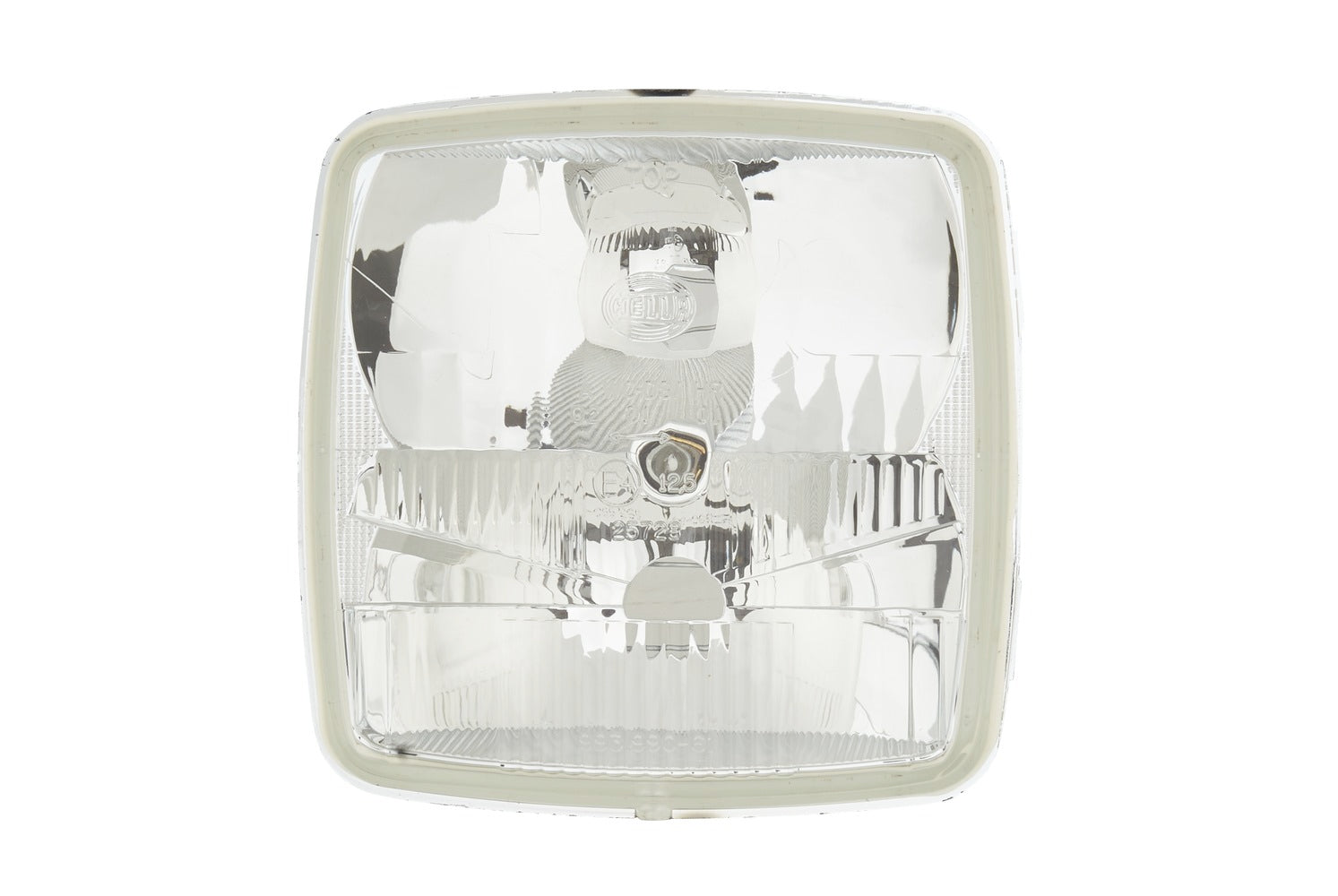

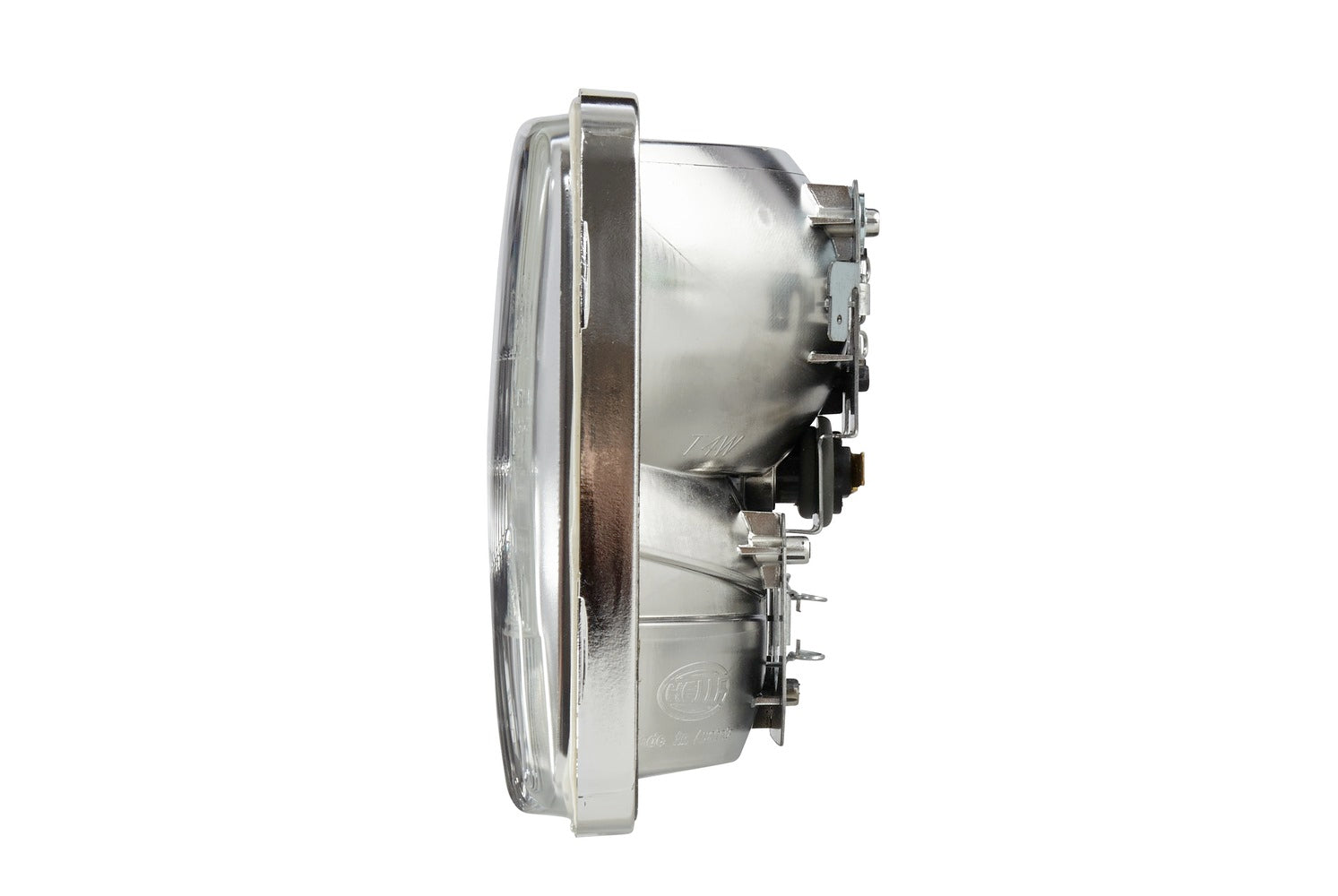

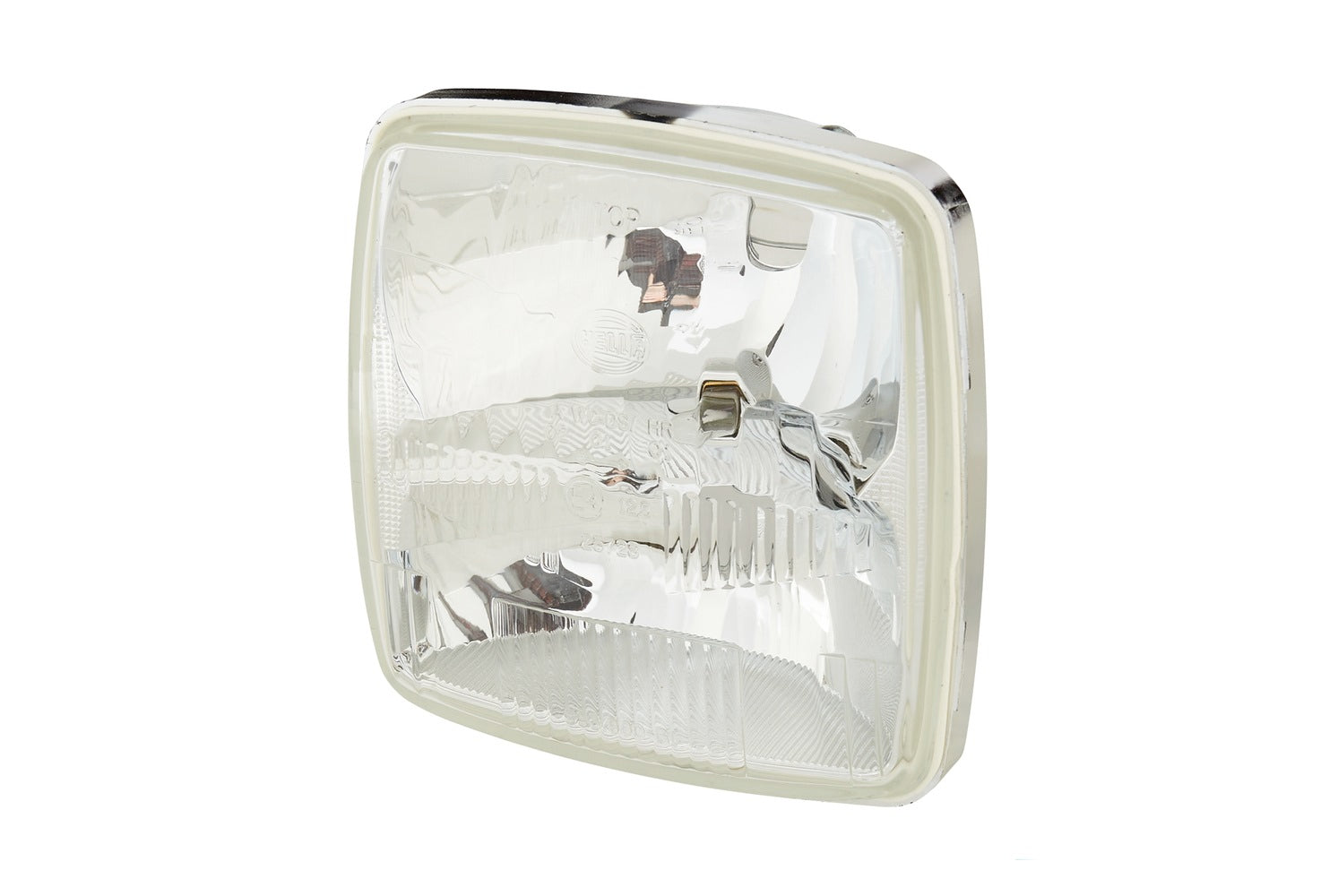

HELLA Halogen-Insert, headlight - 12/24V 1SA990185-101

Halogen-Insert, headlight - 12/24V - rectangular - Reference number: 12.5 - Crystal clear - Plug: Blade Terminal - right/left - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

• Halogen headlamp insert, main headlamp (left / right) - for left-hand traffic / right-hand traffic, with ECE approval
• The headlamp insert has 3 light functions: Low beam / High beam / Position light
• Lamp type: H7/H3/T4W, without bulbs
• Ø: 140mm - Length: 140mm - Width: 140mm - Height: 140mm - Depth: 73mm - Lamp Type: H7/H3/T4W - without bulb - without bulbs
• Light functions: 3 - with low beam/with position light/with high beam
• fulfils ECE standard: R113/R112/R7 - for right-hand traffic/for left-hand traffic
• Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: Clamp Mounting
Light Design: Halogen
Lamp Type: T4W / H7/H3
Voltage: 24 V / 12 V
Fitting Position: right / left
Height: 140 mm
Width: 140 mm
Length: 140 mm
Depth: 73 mm
Ø: 140 mm
Light Function: with low beam / with position light / with high beam
Light functions: 3
fulfils ECE standard: R112 / R113 / R7
Plug: Blade Terminal
Reference number: 12.5
Left-hand/Right-hand Traffic: for right-hand traffic / for left-hand traffic
Lens Colour: Crystal clear
Housing Colour: black
Illuminated Area: 120 x 120 mm
Shape: rectangular
Diffusing Lens Material: Glass
Supplementary Article/Supplementary Info 2: without bulbs
Supplementary Article/Supplementary Info: without bulb
Quantity: 1
Assembly by qualified personnel required!

OE references: MANITOU 961670
