HELLA Halogen-Insert, headlight - 24/12V 1AE003427-151

Halogen-Insert, headlight - 24/12V - rectangular - Reference number: 17.5 - SAE - Crystal clear - Plug: Blade Terminal - left - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.

• Headlamp insert for halogen main headlamp for installation (left) - for right-hand traffic, with ECE approval
• The headlamp insert has 3 light functions: Low beam / High beam / Position light
• Lamp type: H4/T4W, with cap, support frame and adjustment elements, without bulbs
• Ø: 178mm - Length: 131mm - Width: 190mm - Height: 142mm - Depth: 140mm - Lamp Type: H4/T4W - with adjuster - without bulbs/with holding frame
• Light functions: 3 - with low beam/with position light/with high beam
• Registration Type: SAE - fulfils ECE standard: R20/R7 - for right-hand traffic
• Housing Colour: Grey - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Light Design: Halogen
Lamp Type: H4 / T4W
Voltage: 24 V / 12 V
Fitting Position: left
Height: 142 mm
Width: 190 mm
Length: 131 mm
Depth: 140 mm
Ø: 178 mm
Light Function: with high beam / with position light / with low beam
Light functions: 3
fulfils ECE standard: R20 / R7
Registration Type: SAE

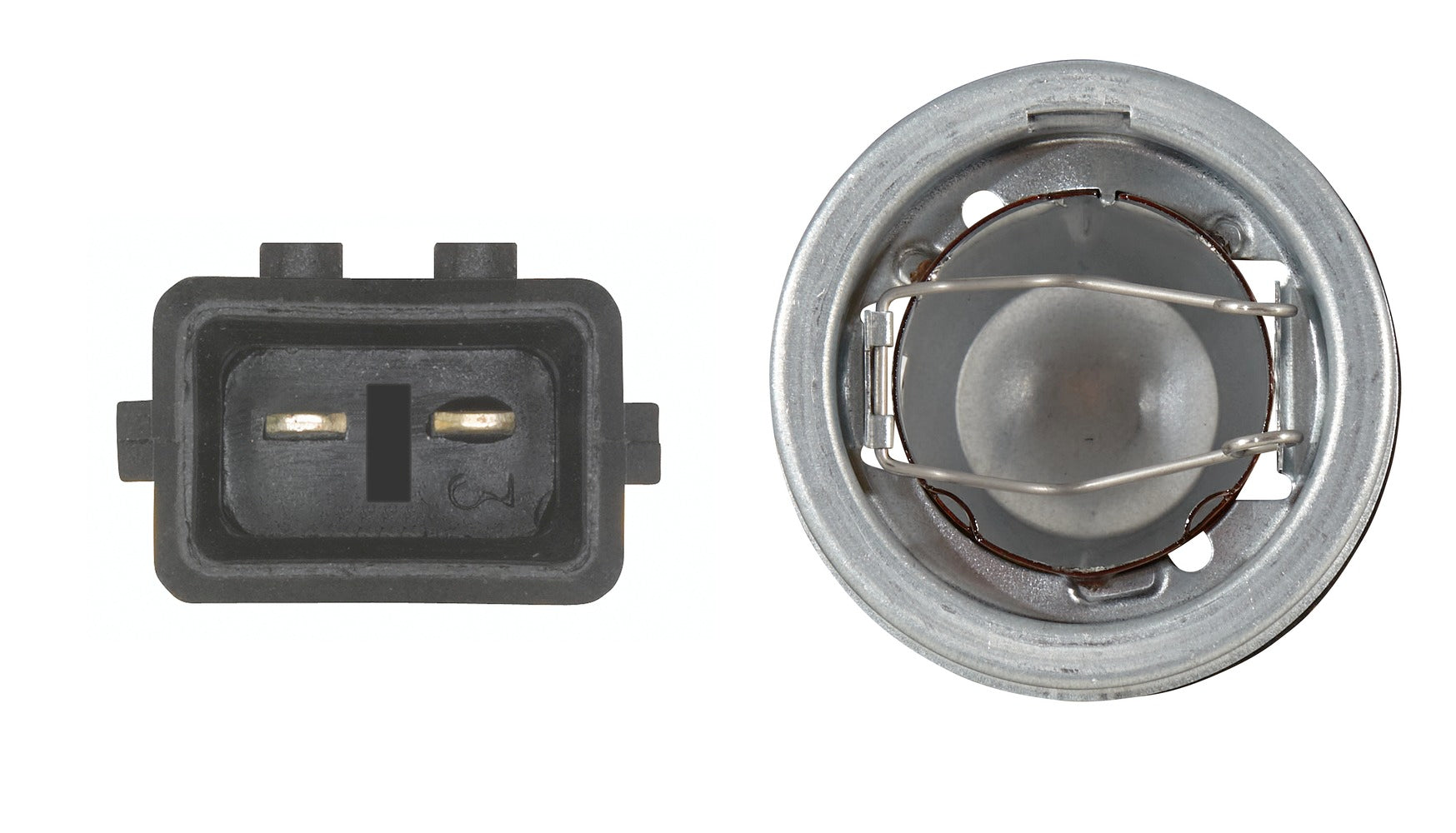

Plug: Blade Terminal
Reference number: 17.5
Left-hand/Right-hand Traffic: for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: grey
Illuminated Area: 190 x 132 mm
Shape: rectangular
Diffusing Lens Material: Glass
Supplementary Article/Supplementary Info 2: with holding frame / without bulbs
Supplementary Article/Supplementary Info: with adjuster
Quantity: 1
Assembly by qualified personnel required!

OE references: HAKO A0015444001; IKARUS 70004-03185; IVECO 2120 702062; JCB 700/24100; REFORM 215442909; VAN HOOL 10562194; VDL 10562194; VDL 30003192; VDL 40100120; VDL 780065100; VOLVO 1 400 160 0; VOLVO 14001500; VOLVO 20548030
