Description

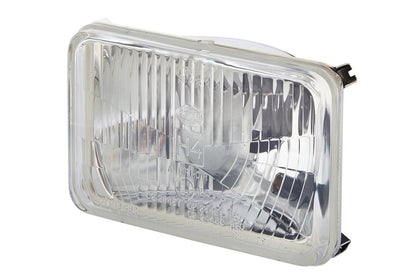

Halogen-Insert, headlight - 24V - rectangular - Reference number: 12.5 - SAE - Crystal clear - Plug: Blade Terminal - left/right - Quantity: 1
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.
- Halogen headlamp insert for installation - for right-hand traffic, with ECE / SAE J 571 approval
- The headlamp insert has 3 light functions: Low beam / High beam / Position light
- Lamp type: H4/T4W, without bulbs
- Width: 167mm - Height: 107mm - Depth: 109mm - Lamp Type: H4/T4W - without bulb - without bulbs
- Light functions: 3 - with low beam/with position light/with high beam
- Registration Type: SAE - fulfils ECE standard: R20/R7 - fulfils SAE standard: J571 - for right-hand traffic
- Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear
Item Attributes:
Mounting Type: Fitting
Fastening Type: Clamp Mounting
Light Design: Halogen
Lamp Type: T4W / H4
Voltage: 24 V
Fitting Position: right / left
Height: 107 mm
Width: 167 mm
Depth: 109 mm
Light Function: with position light / with low beam / with high beam
Light functions: 3
fulfils SAE standard: J571
Registration Type: SAE
fulfils ECE standard: R20 / R7

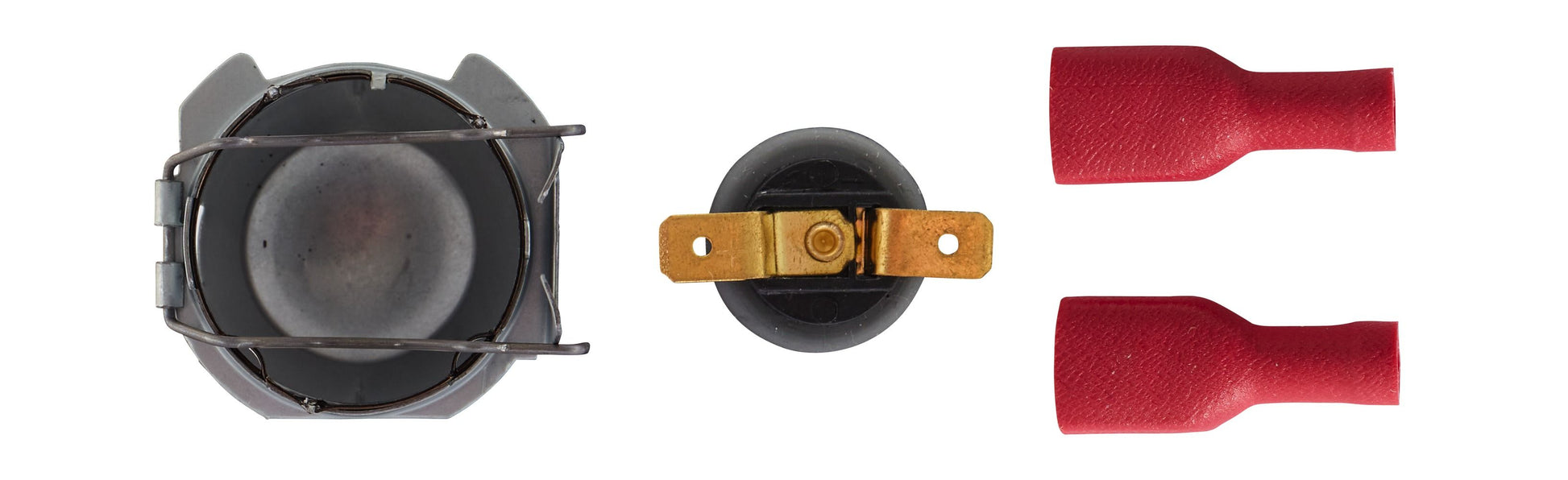

Plug: Blade Terminal
Reference number: 12.5
Left-hand/Right-hand Traffic: for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: chrome/black
Illuminated Area: 164 x 103 mm
Shape: rectangular
Diffusing Lens Material: Glass
Supplementary Article/Supplementary Info 2: without bulbs
Supplementary Article/Supplementary Info: without bulb
Quantity: 1
Assembly by qualified personnel required!
OE references: DOOSAN 534-00078; SANY B241100000039
