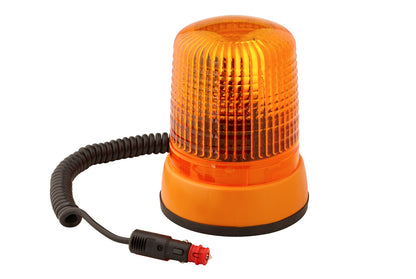

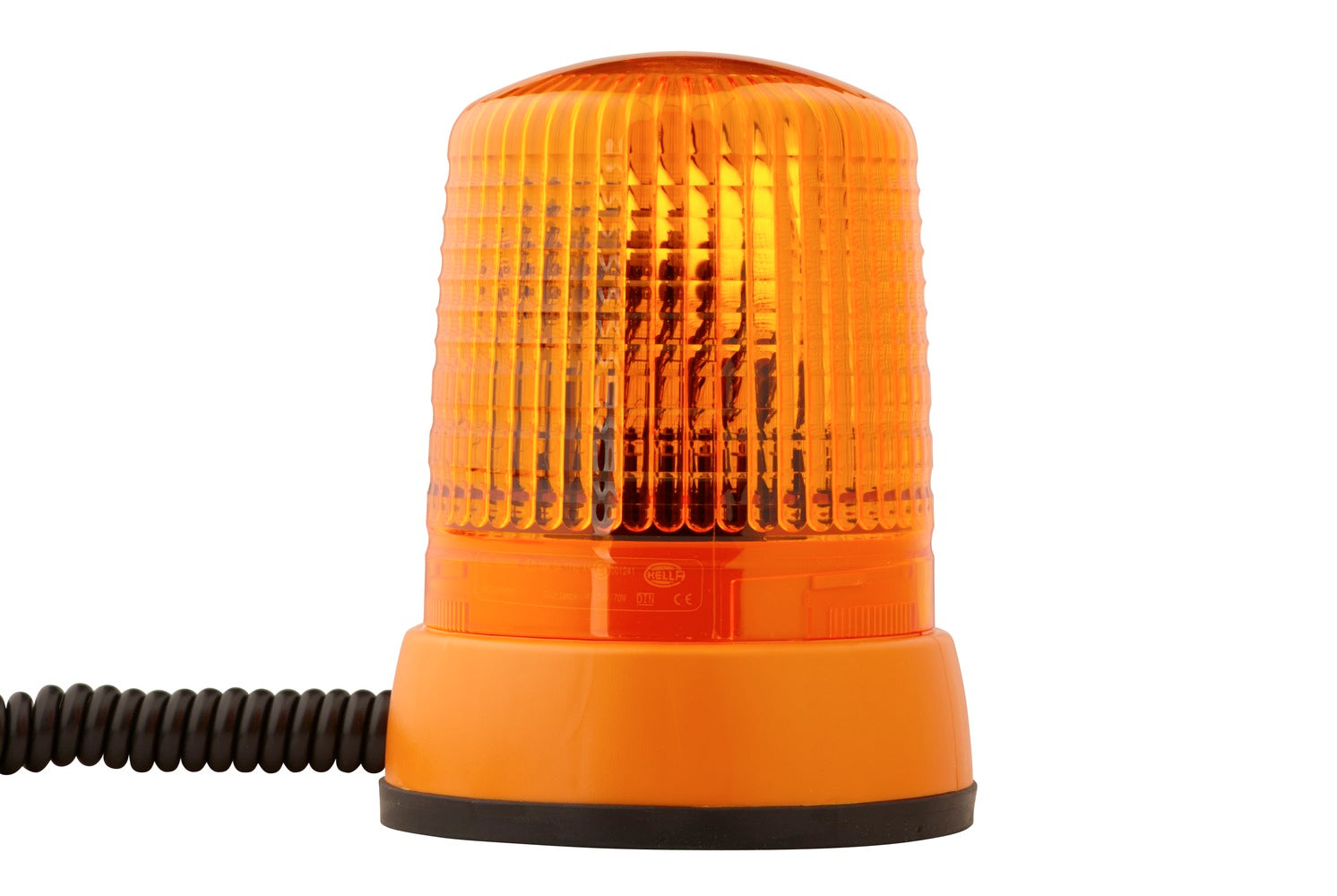

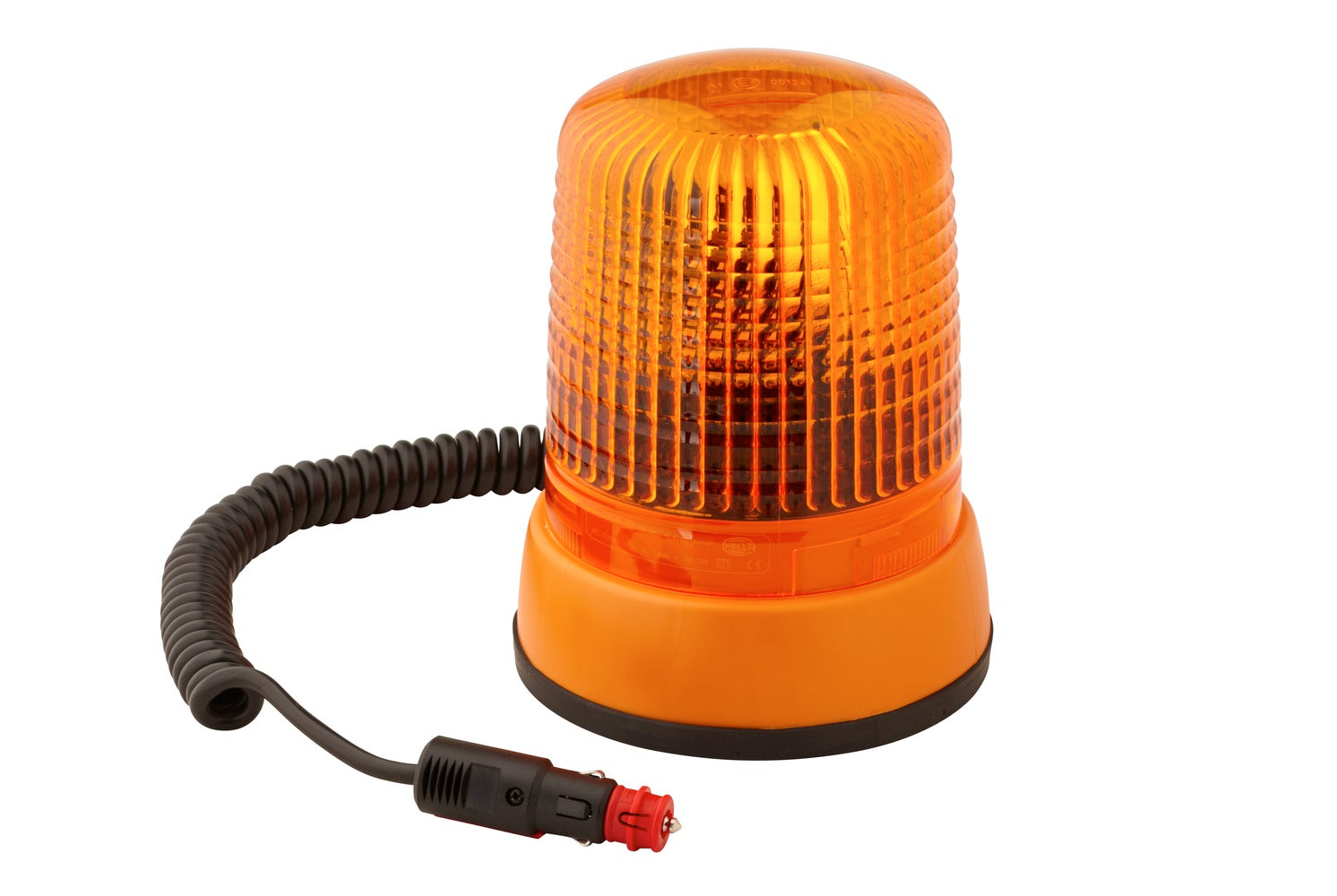

HELLA Halogen-Rotating Beacon - KL 7000 - 24V - yellow (amber) 2RL008062-111

Halogen-Rotating Beacon - KL 7000 - 24V - yellow (amber) - Magnet Mount - Cable: 600mm - Plug: DIN ISO 4165 - Quantity: 1

The KL 7000 Halogen is a robust warning lamp with rotating light function. Thanks to its tested ECE R10 conformity and compliance with CISPR 25 Class 3, it is suitable for applications with high electromagnetic requirements. It also fulfils the requirements of ECE R65 for warning flash functions in traffic on public roads. It offers variants to cover different voltages: 12 V, 24 V and 230 V. Depending on the application required, different types of mounting are available – from fixed mounting through pipe sockets right up to magnetic solutions for temporary use. The amber polycarbonate light dome provides reliable protection from the weather. With protection class IP5K4K and IPX9K, the lamp is protected against dust and water even under high-pressure conditions. The temperature range of -20 °C to +60 °C enables use in various climate zones. A service life suitable for continuous operation is possible thanks to the robust design and the halogen technology. The KL 7000 Halogen can also be used at speeds of up to 120m/h.

• Beacon KL 7000 Halogen, amber with ECE R10 approval and CISPR 25 Class 3

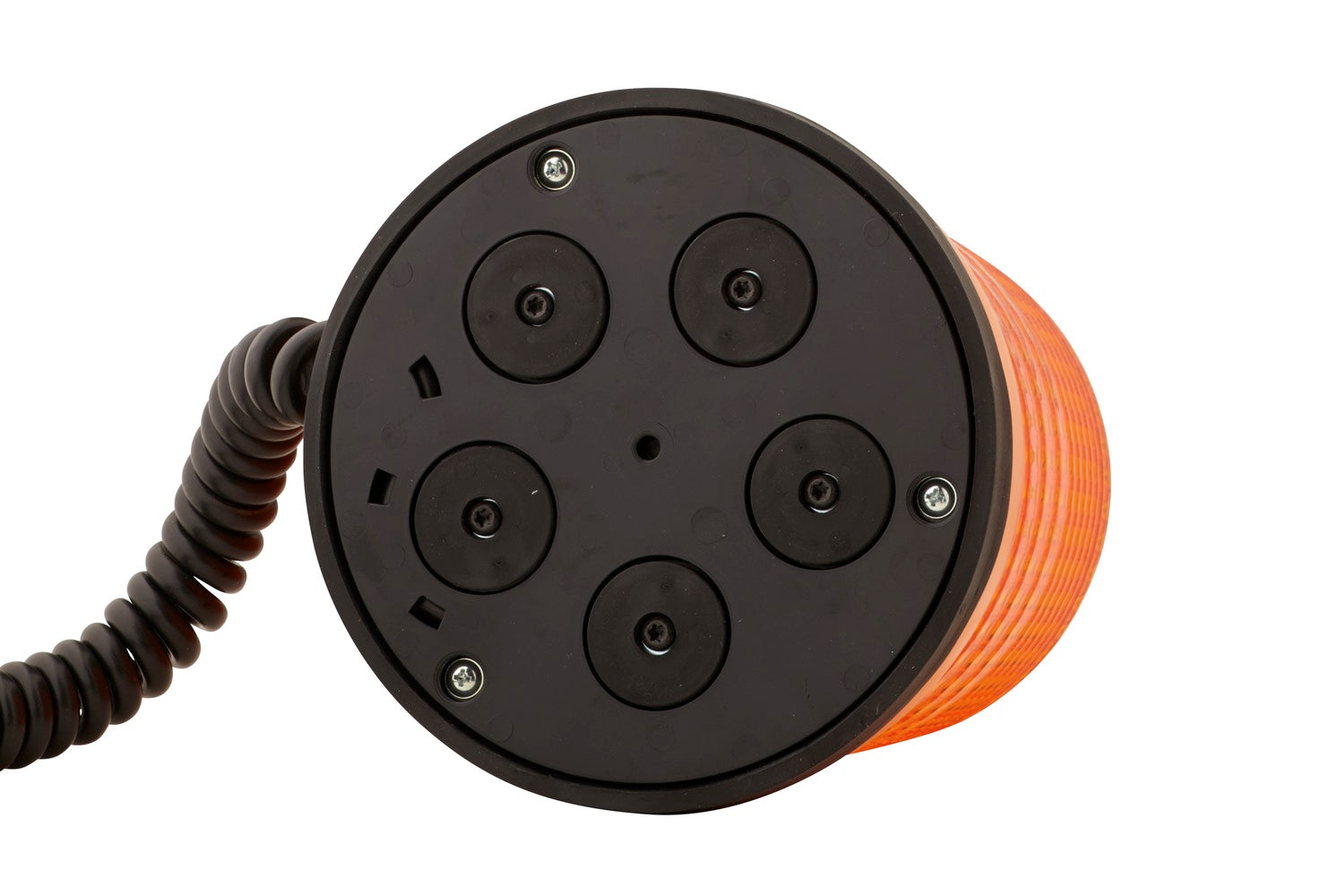

• Magnet mounting for temporary use, 24 V
• With H1 halogen lamp, rotating light function
• Fulfils warning flash function in accordance with ECE R65
• The beacon has a low power consumption and, thanks to the rotating light function, is highly effective
• Lamp Type: H1 - Power consumption: 70W
• With rotating warning signal - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: Magnet Mount
Light Design: Halogen
Voltage: 24 V
Height: 203 mm
Outer Diameter 1: 157 mm
Light Function: With rotating warning signal
Light colour: yellow (amber)
Supplementary Article/Supplementary Info: with bulb
Lamp Type: H1

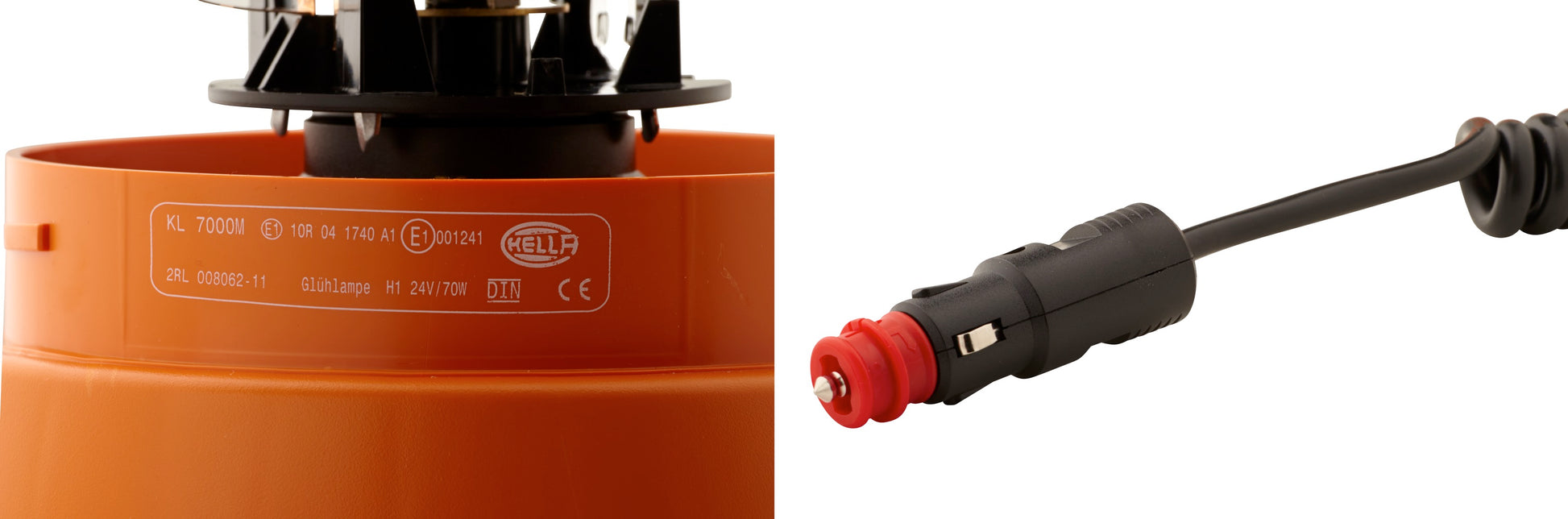

Plug: DIN ISO 4165
Prot.type (IP Code): IPX9K / IP5K4K
fulfils ECE standard: R10 / R65
Lens Colour: yellow (amber)
Housing Colour: yellow
Rotating beacon RPM: 192 1/min
Power consumption: 70 W
Housing material: Plastic
Temperature range from: -40 °C
Temperature range to: +60 °C
Permissible Max. Speed: 200 km/h
Cable: 600 mm
Diffusing Lens Material: PMMA (Polymethylmethacrylate)
Weight: 1055 g
Quantity: 1
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: DAF 906547; DOLL 7096210; HYDREMA 7400181; HYUNDAI 21LM-01400; HYUNDAI (CNJ) 21LM-01400; KOMATSU 4189 57H 110; KOMATSU 418957H110; KRONE 515022135; MAN ZF252077002; ROSENBAUER 071000; SCANIA 1906698; STEYR 5.323.84.175.29.0; VAN HOOL 11379343; VDL 11379343
