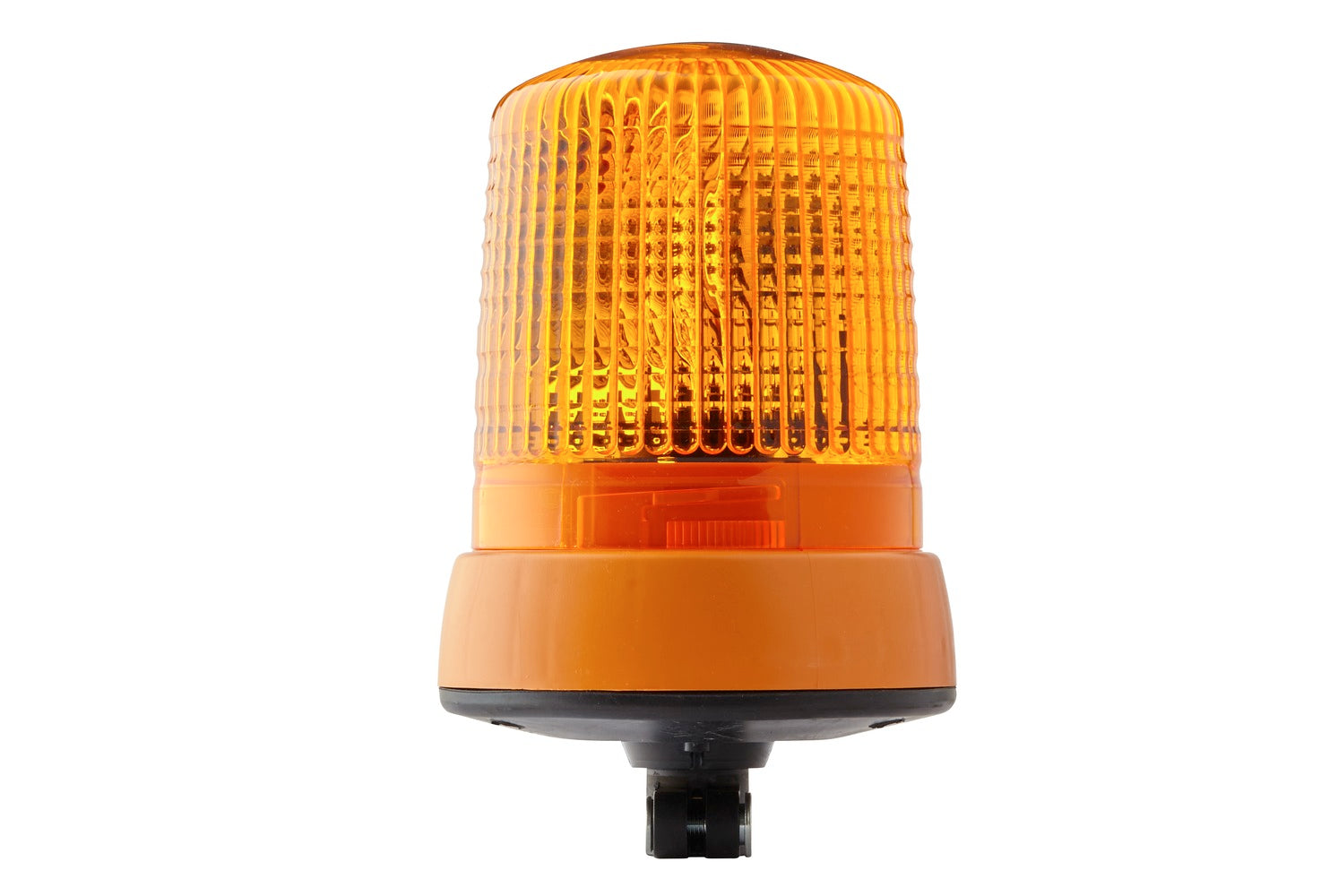

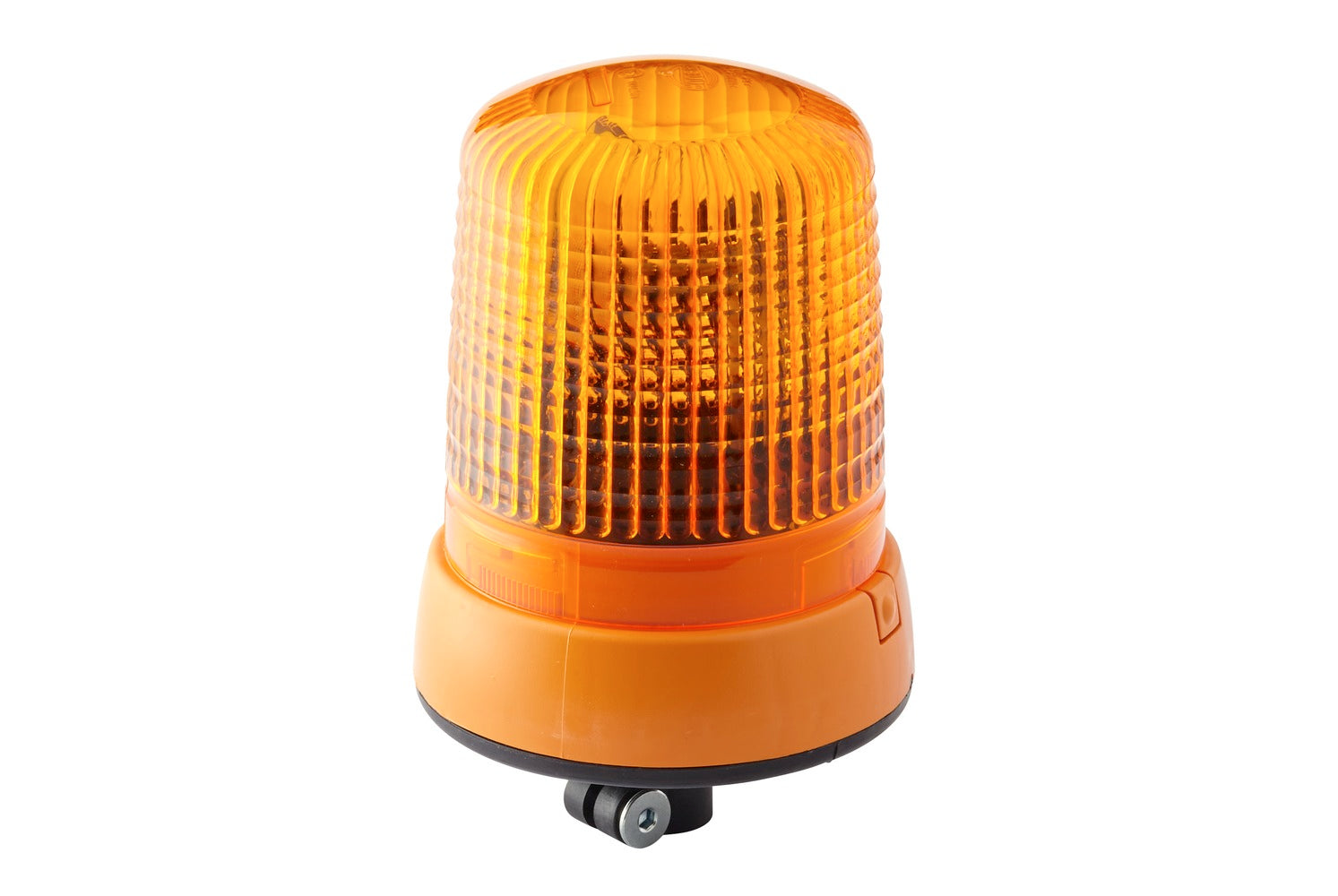

HELLA Halogen-Rotating Beacon - KL 7000 - 24V - yellow (amber) 2RL008063-111

Halogen-Rotating Beacon - KL 7000 - 24V - yellow (amber) - Pipe-neck - Quantity: 1

The KL 7000 Halogen is a robust warning lamp with rotating light function. Thanks to its tested ECE R10 conformity and compliance with CISPR 25 Class 3, it is suitable for applications with high electromagnetic requirements. It also fulfils the requirements of ECE R65 for warning flash functions in traffic on public roads. It offers variants to cover different voltages: 12 V, 24 V and 230 V. Depending on the application required, different types of mounting are available – from fixed mounting through pipe sockets right up to magnetic solutions for temporary use. The amber polycarbonate light dome provides reliable protection from the weather. With protection class IP5K4K and IPX9K, the lamp is protected against dust and water even under high-pressure conditions. The temperature range of -20 °C to +60 °C enables use in various climate zones. A service life suitable for continuous operation is possible thanks to the robust design and the halogen technology. The KL 7000 Halogen can also be used at speeds of up to 120m/h.

• Beacon KL 7000 Halogen, amber with ECE R10 approval and CISPR 25 Class 3
• Flexible pipe socket mounting for variable use, 24 V
• With H1 halogen lamp, rotating light function
• Fulfils warning flash function in accordance with ECE R65
• Protection class IP5K4K / IPX9K for stringent environmental requirements
• Lamp Type: H1 - Power consumption: 70W
• With rotating warning signal - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: Pipe-neck
Light Design: Halogen
Voltage: 24 V
Height: 240 mm
Outer Diameter 1: 155 mm
Light Function: With rotating warning signal
Light colour: yellow (amber)
Supplementary Article/Supplementary Info: with bulb
Lamp Type: H1
Prot.type (IP Code): IPX9K / IP5K4K
fulfils ECE standard: R65 / R10
Lens Colour: yellow (amber)
Housing Colour: yellow
Rotating beacon RPM: 192 1/min
Power consumption: 70 W
Housing material: Plastic
Temperature range from: -40 °C
Temperature range to: +60 °C
Diffusing Lens Material: PMMA (Polymethylmethacrylate)
Weight: 985 g
Quantity: 1
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: AEBI 1044762-5; AEBI 18-3450613; DAF 906549; HYUNDAI 21Q4-20700; HYUNDAI (CNJ) 21Q4-20700; IVECO 41200762; LIEBHERR 1 011 284 1; MAFI 000 580 0697; SCANIA 1934215
