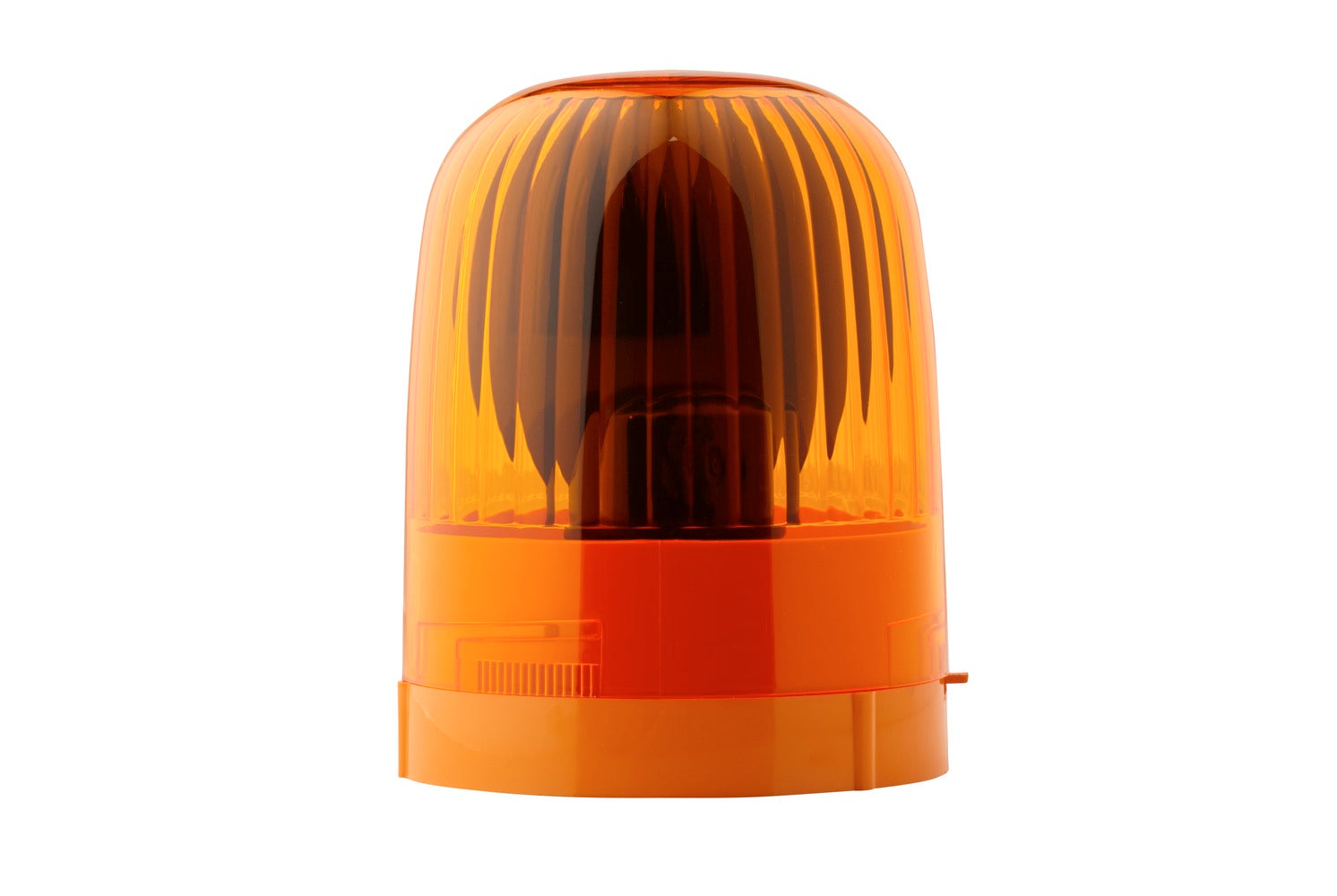

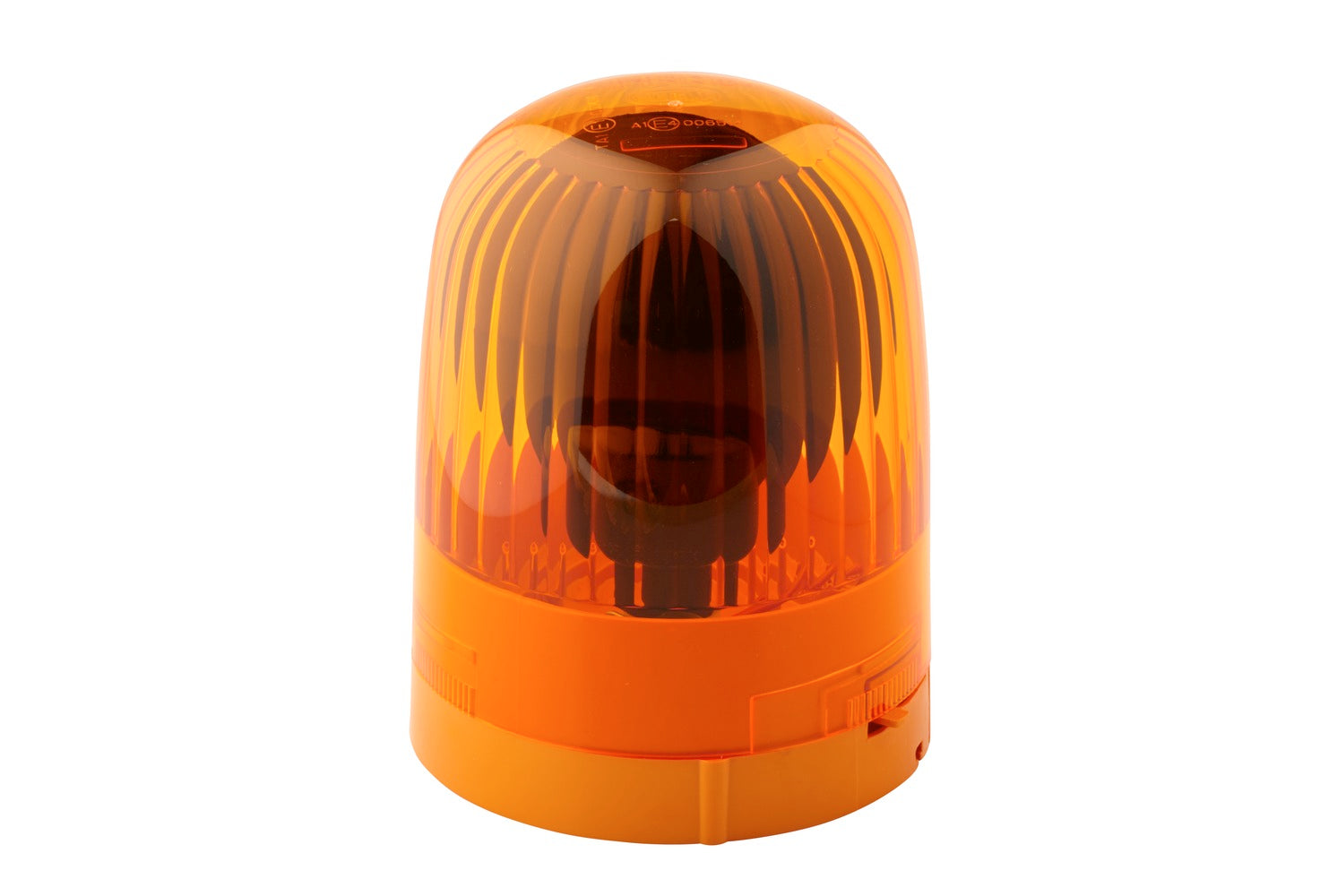

HELLA Halogen-Rotating Beacon - KL Junior - 24V - yellow (amber) 2RL007550-011

Halogen-Rotating Beacon - KL Junior - 24V - yellow (amber) - mounting/Bolted - Plug: Blade Terminal - Quantity: 1

Robust, easy-to-clean light bonnets with easily accessible locking latch. Worm drive of the reflector around a stationary H1 - bulb. Variants for multivoltage operation available. Flexible version: Elastic, shock-absorbing base cushions even strong impacts and minimises the risk of damage, the luminaire is always returned to the optimum position (maximum inclination: 90°). At the same time, the flexible housing base serves as a vibration damper.

• Halogen rotating beacon
• Belt drive for constant rotational frequency and optimum running smoothness
• Robust, easy-to-clean light bonnet with handy pressure point locking system
• Lamp Type: H1 - Power consumption: 70W
• With rotating warning signal - Lens Colour: yellow (amber)
• fulfils ECE standard: R65/R10 - Prot.type (IP Code): IPX9K/IP5K4K
• Housing material: Plastic - Housing Colour: Yellow - Diffusing Lens Material: PMMA (Polymethylmethacrylate)

Item Attributes:
Mounting Type: mounting / Bolted
Light Design: Halogen
Voltage: 24 V
Height: 173 mm
Outer Diameter 1: 137 mm
Light Function: With rotating warning signal
Supplementary Article/Supplementary Info: with bulb
Light colour: yellow (amber)
Lamp Type: H1
Plug: Blade Terminal
Prot.type (IP Code): IPX9K / IP5K4K
fulfils ECE standard: R10 / R65
fulfils test standard: RCM
Lens Colour: yellow (amber)
Housing Colour: yellow
Rotating beacon RPM: 150 1/min
Power consumption: 70 W
Housing material: Plastic
Temperature range from: -40 °C
Temperature range to: +60 °C
Diffusing Lens Material: PMMA (Polymethylmethacrylate)
Weight: 570 g
Quantity: 1
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: AEBI 18-3450534; AEBI 18-3540534; AEBI 20-3450524-P; BUCHER 617321; DAF 1336853; FAUN 5240-103; KÄSSBOHRER 7.521.427.000.0; LINDE 8106615; MAN ZF252070550; NOOTEBOOM 5019728; RENAULT TRUCKS AM39599001; SCANIA 1906692; STILL ES1013171
