Description

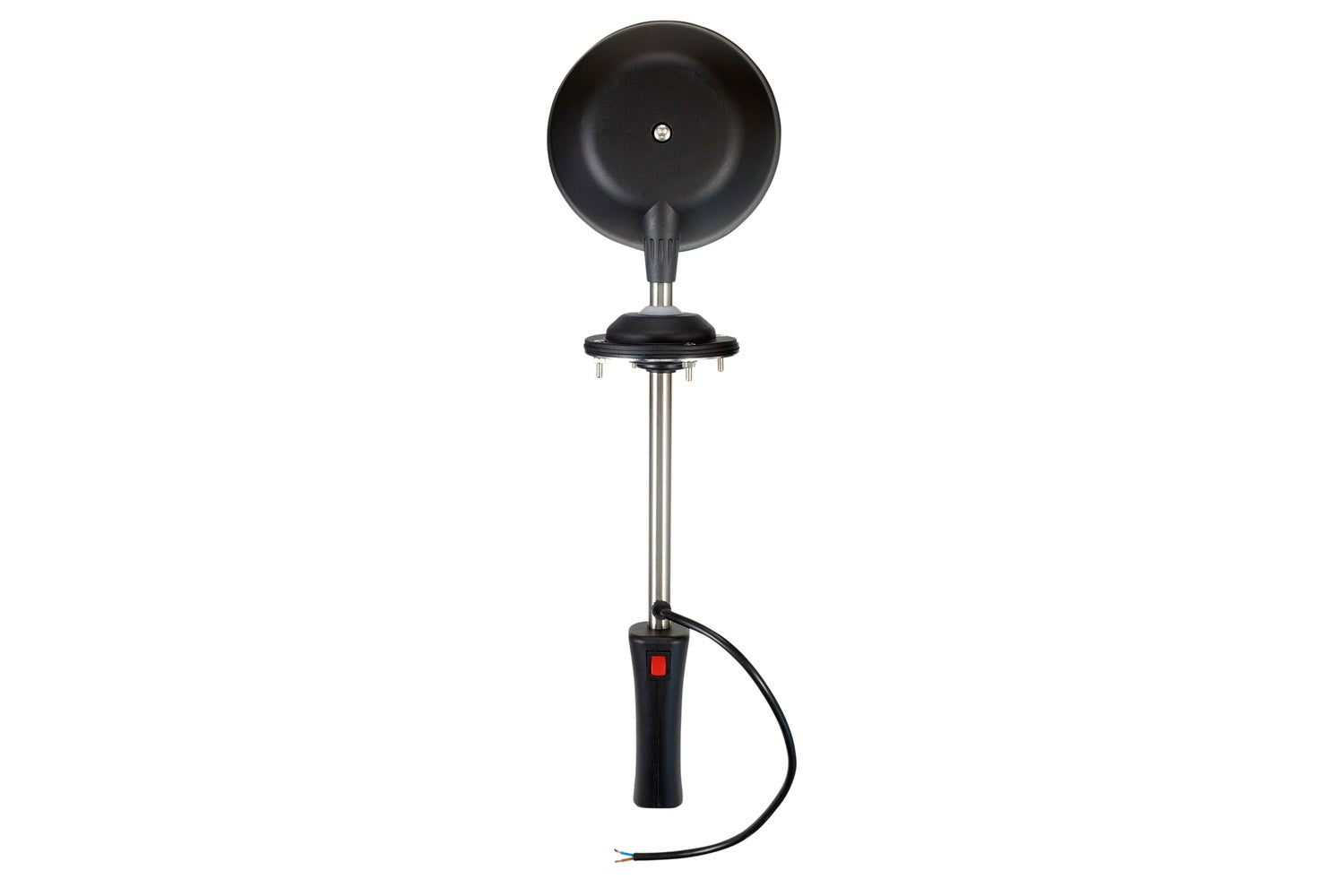

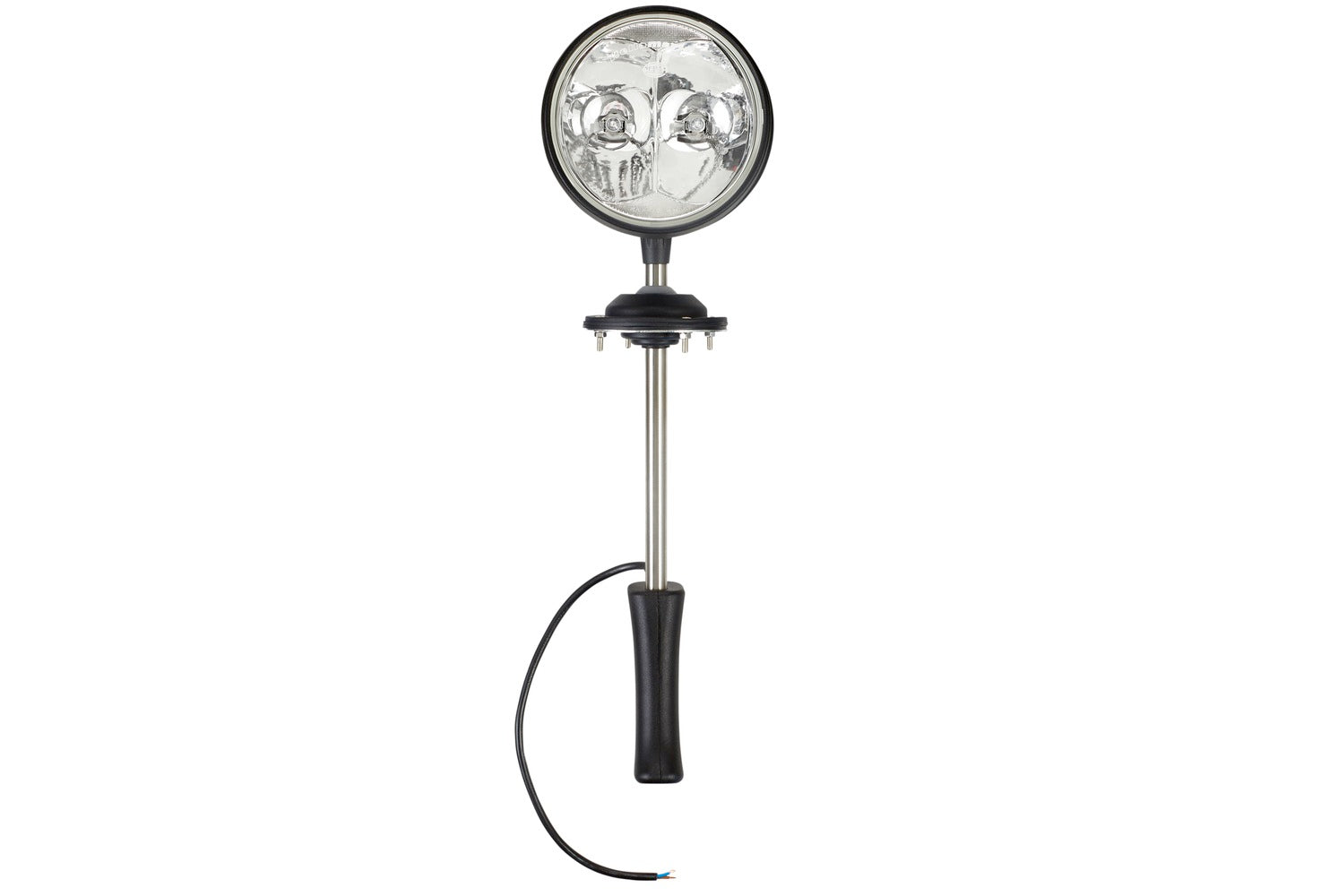

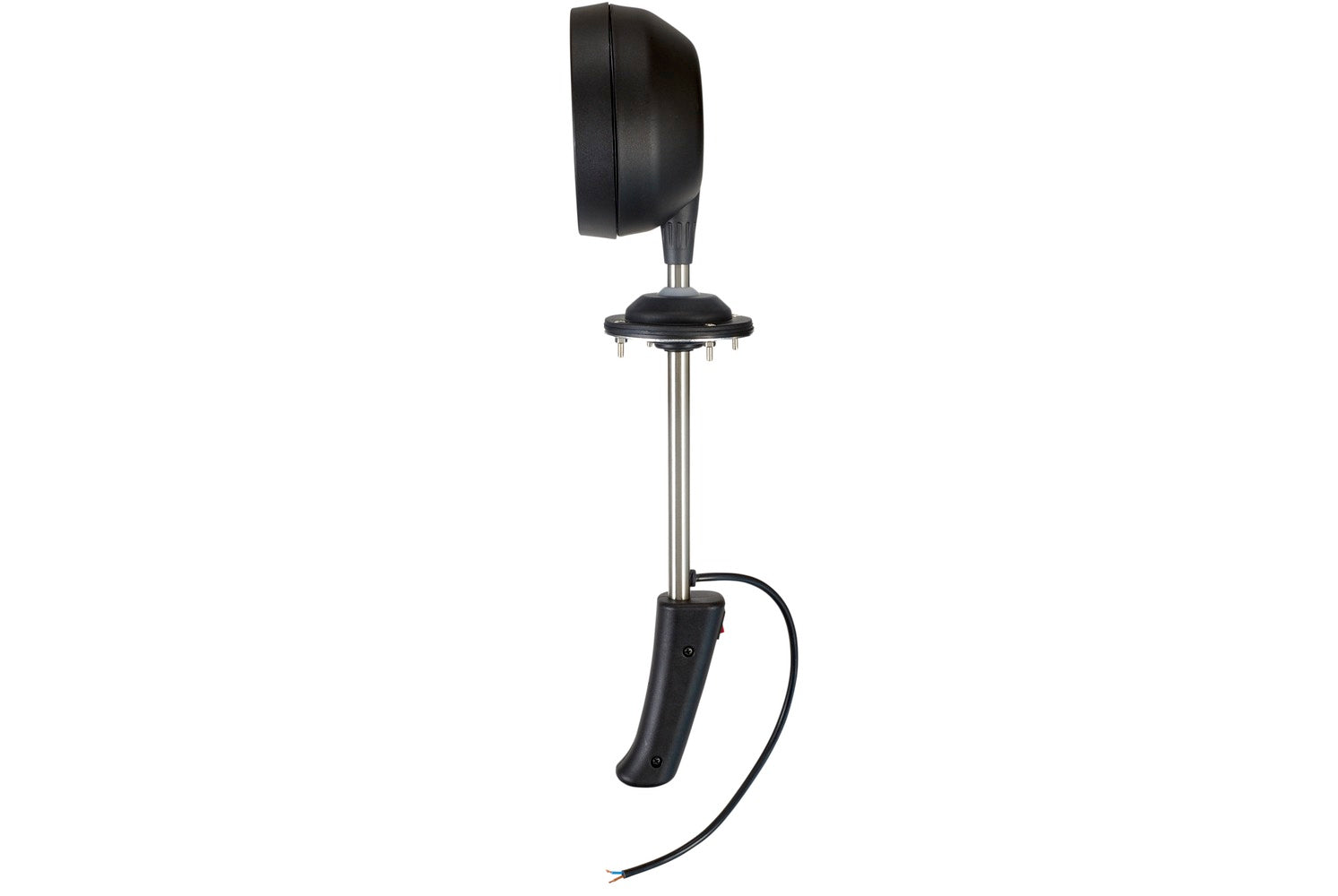

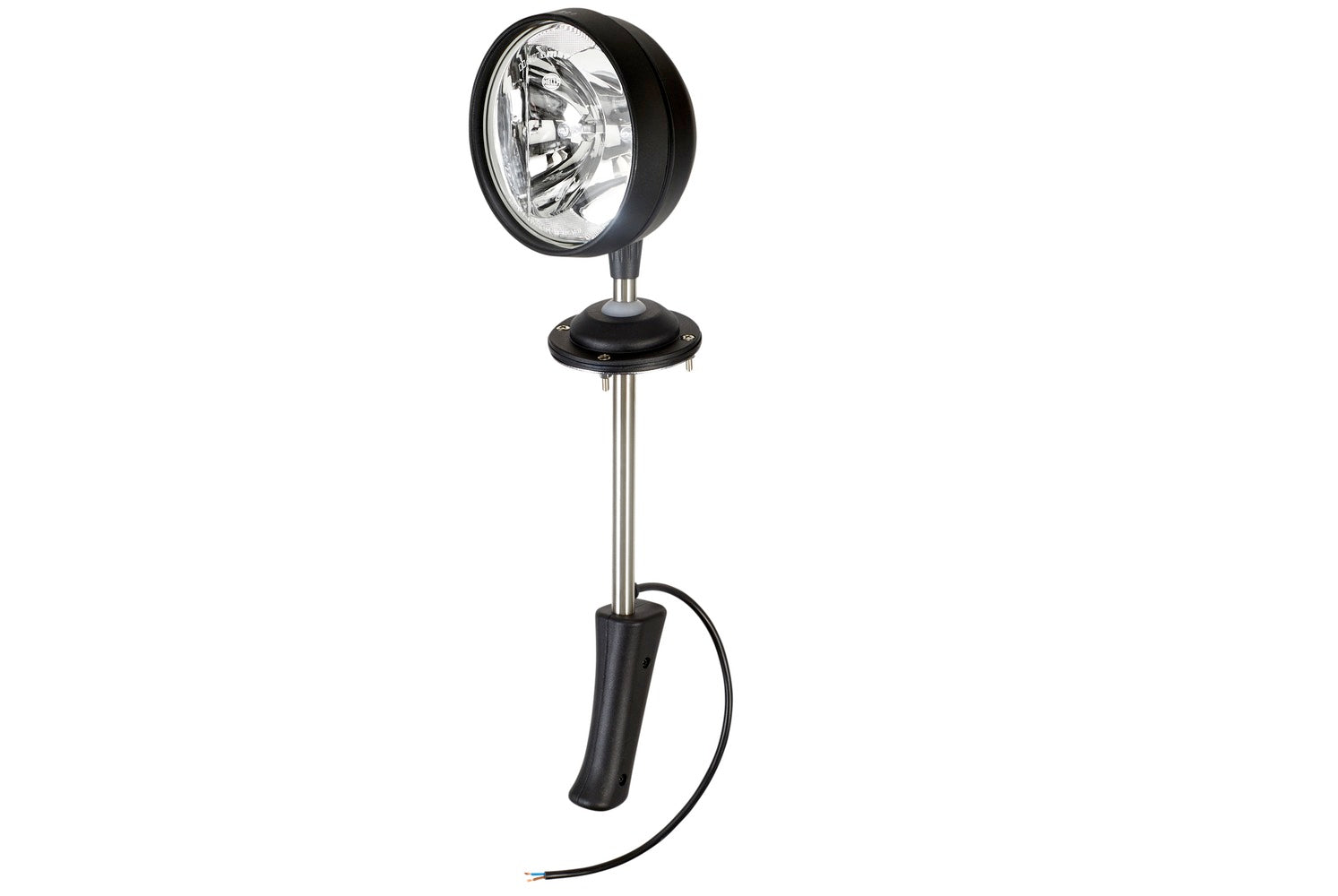

Halogen-Searchlight - 12/24V
- Interior steering searchlight, light emission: Ø 139 mm. Action radius ball joint horizontal 360° and vertical 30°.
- Illumination range at 12V: 460 m, luminous range at 24V: 520 m. Light emission: Ø 139 mm.
- Housing, glass holder frame, ball joint and handle made of black plastic. Guide tube made of stainless steel. Pre-tensioned glass retaining frame to protect the optics-free glass pane.
- Double reflector made of aluminium. Toggle switch in the handle switches both bulbs at the same time.

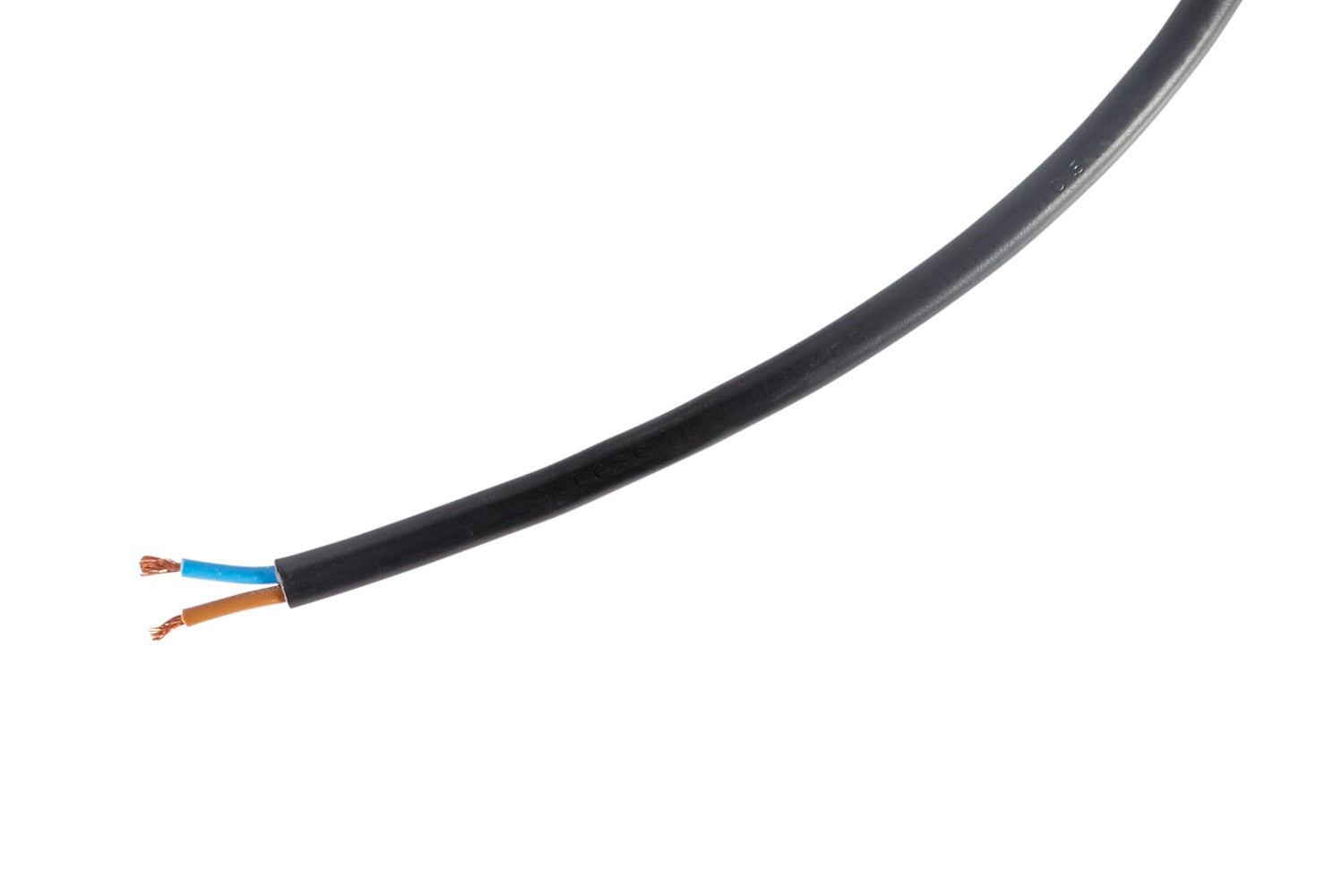

- Installation opening: Ø 72 mm. Connecting 330 mm cable with grommet led out of the guide tube. Protection class: IP5K4K.
- Lamp Type: H3
- Light functions: 1 - with high beam
Item Attributes:
Voltage: 12 V / 24 V
Height: 154 mm
Depth: 166 mm
Supplementary Article/Supplementary Info: with bulb
Light Design: Halogen
Light functions: 1
Overall Height: 488 mm
Lamp Type: H3
Light Function: with high beam
Illuminated Area: 139 mm
Assembly by qualified personnel required!
OE references: DAF 906499; KÄSSBOHRER 7.517.136.000; KÄSSBOHRER 7.517.136.000.0; MAFI 000,580,0725
