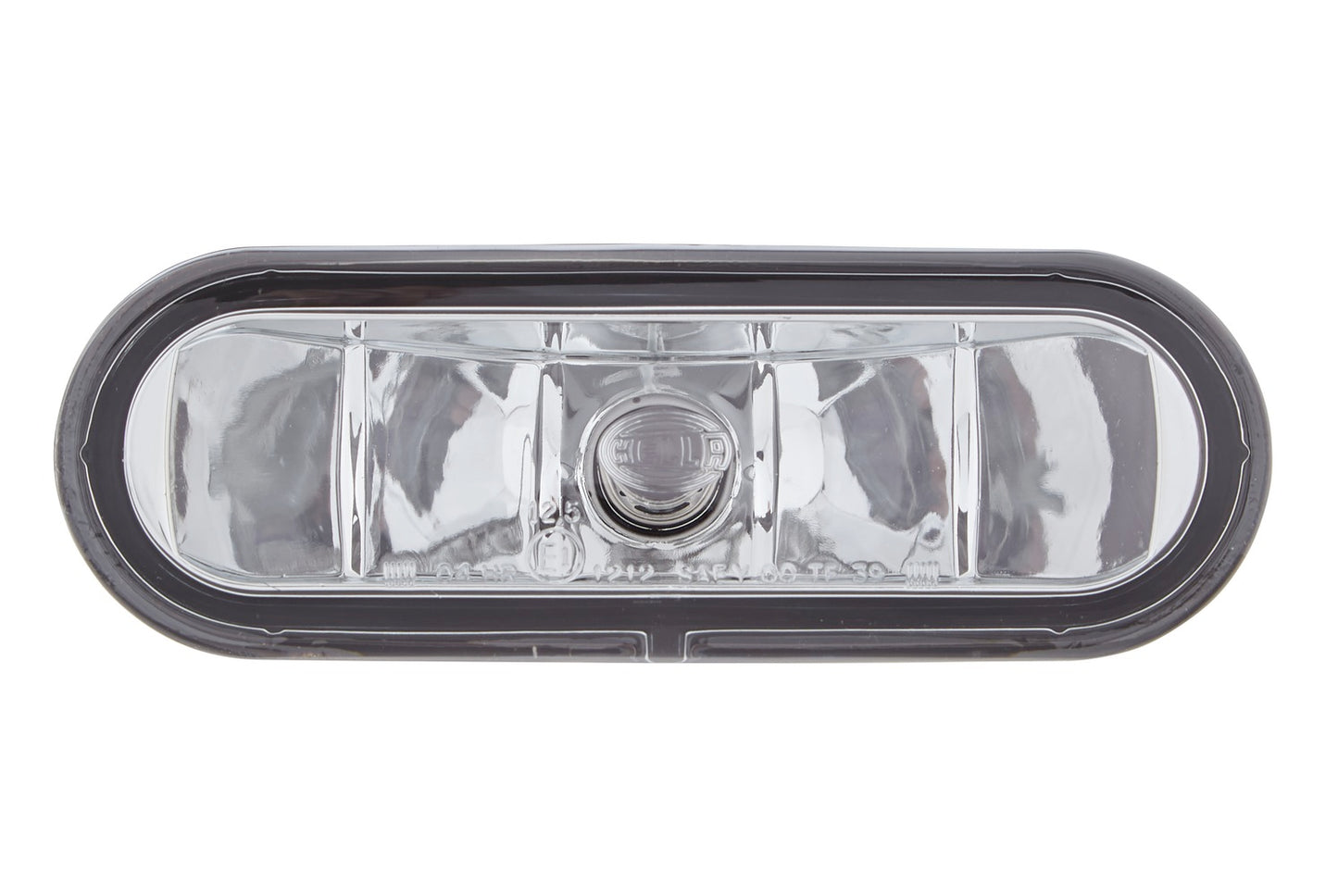

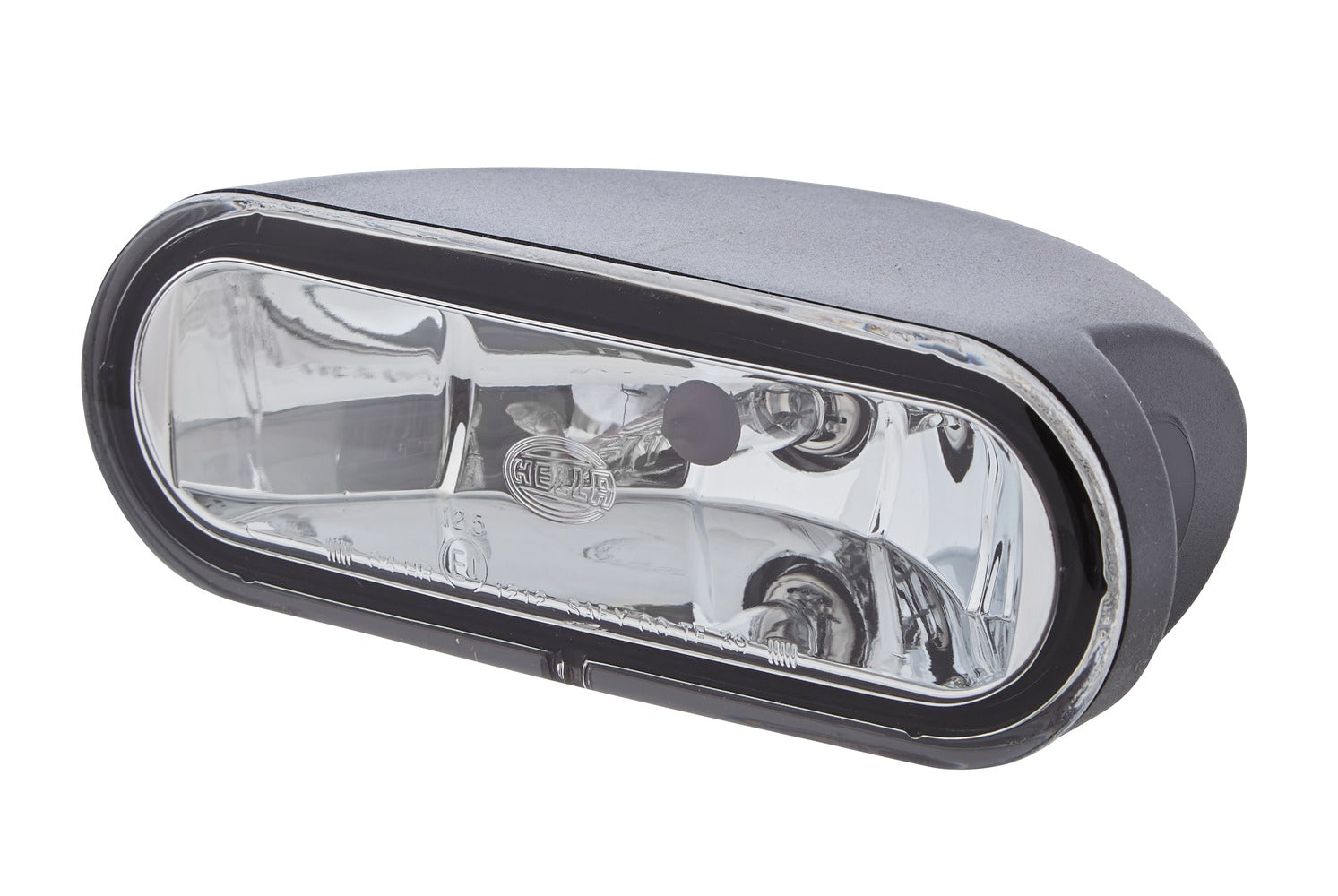

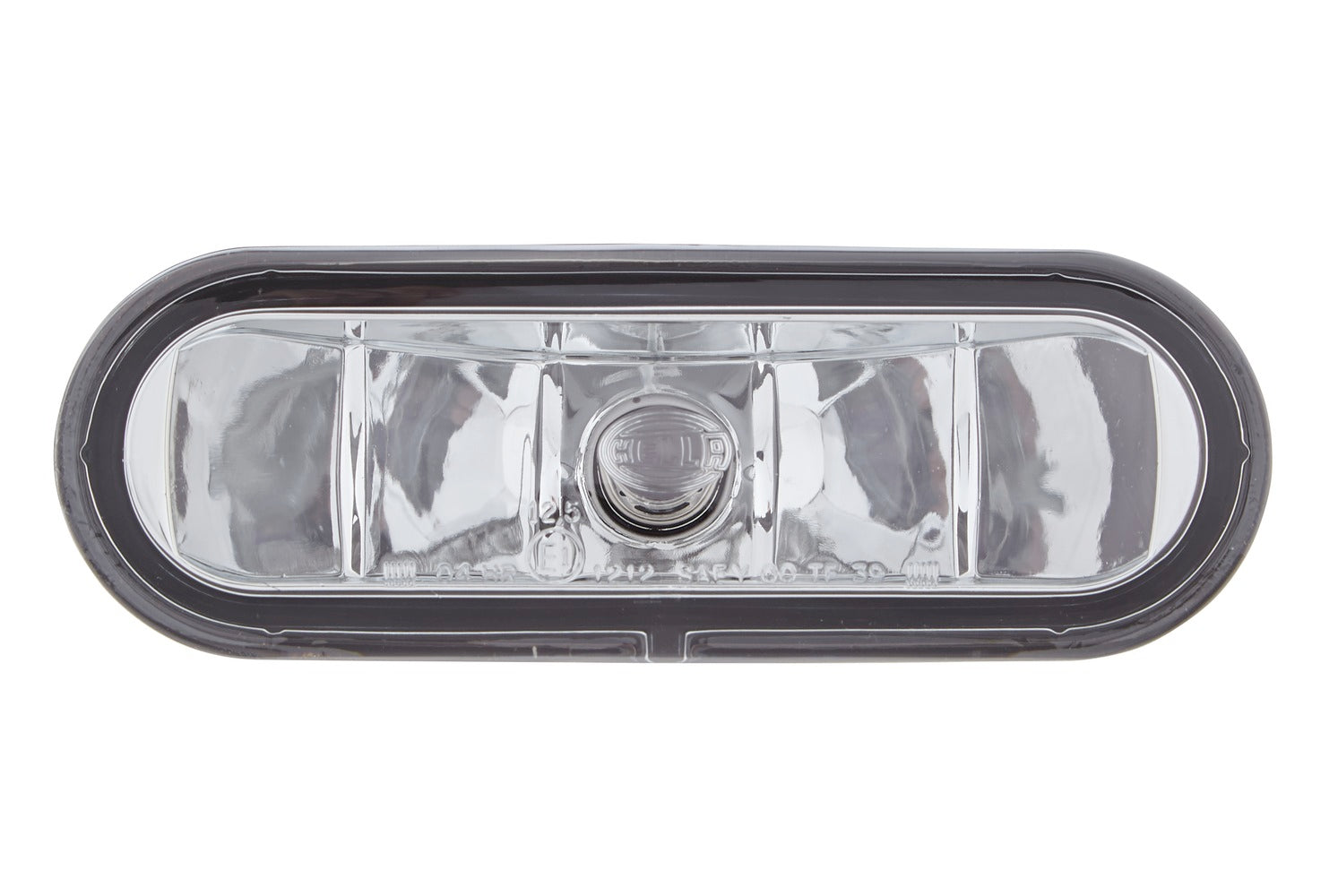

HELLA Halogen-Spotlight - FF 75 - 12V 1FA008284-011

Halogen-Spotlight - FF 75 - 12V - oval - Reference number: 12.5 - CCC - Clear diffusing lens - Crystal clear - left/right

Auxiliary Lamp Series FF 50 and FF 75. There are vehicles whose small dimensions or lack of mounting options make it difficult to use conventional auxiliary lamps. This is why HELLA engineers expanded the FF series to include several high-performance compact models. To ensure that your light is always where you need it. The FF series is available in 2 model variants: the FF 50 with an oval design and the FF 75 with a flat design. Both variants are available as highbeam headlamps and fog lamps. Thanks to the metal bracket, universal assembly is possible either in the upright or suspended positions.

• The compact design of the headlamp enables the auxiliary headlamp to be mounted even where space is limited
• The reflector with free-form lighting technology ensures optimum light distribution on the road

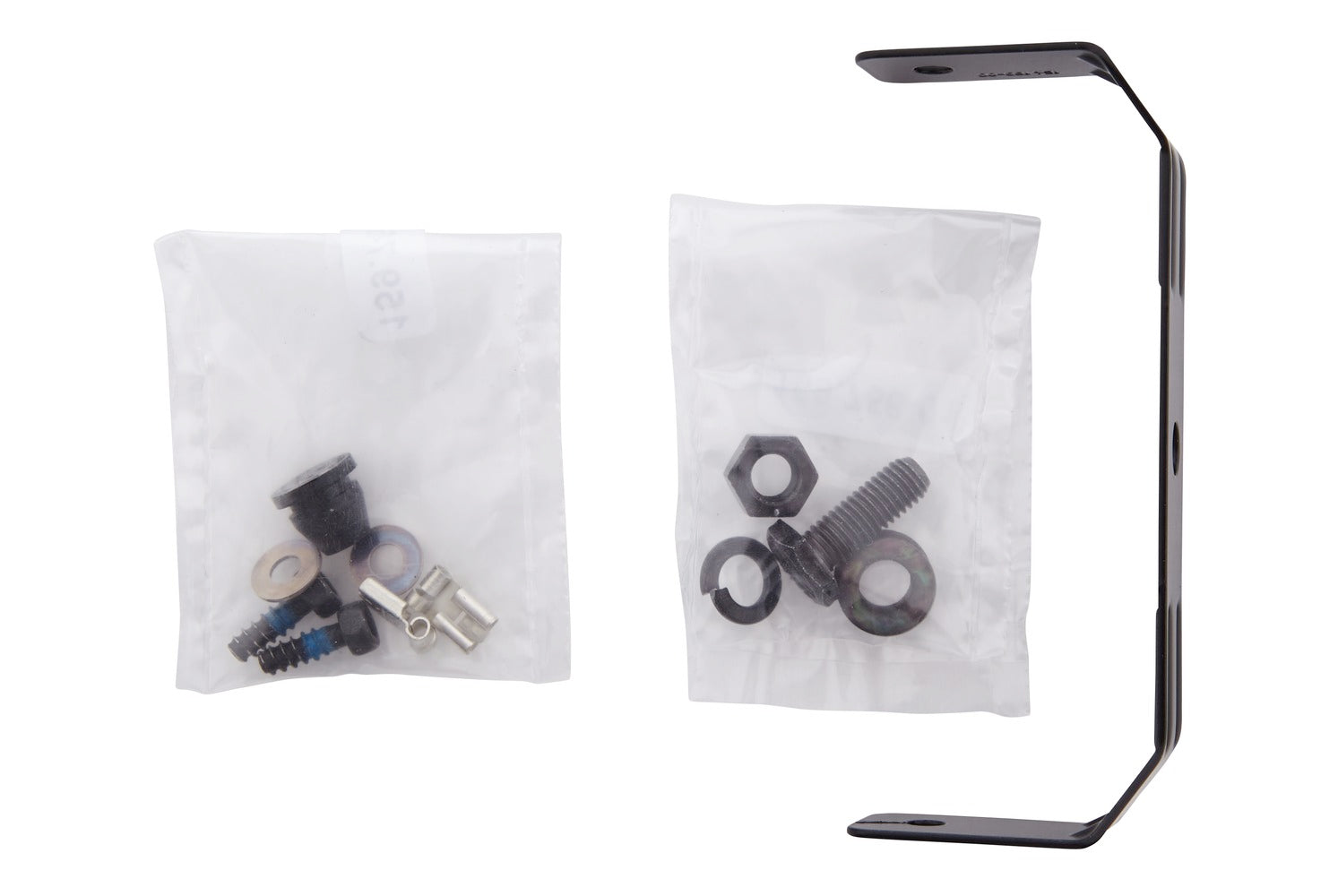

• Thanks to the metal bracket, universal mounting is possible both standing and hanging
• The spotlight has a very light reflector material with high inherent strength
• Resistant to high-pressure cleaners and protection against water during high-pressure / steam jet cleaning due to IP protection classes 5K4K and IP X9K
• Width: 156mm - Height: 54mm - Depth: 98mm - Fitting Depth: 70mm - Overall Height: 64mm - Lamp Type: H7 - with holder/with bulb - without top
• Light functions: 1 - with high beam

Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H7
Voltage: 12 V
Fitting Position: right / left
Height: 54 mm
Overall Height: 64 mm
Width: 156 mm
Depth: 98 mm
Fitting Depth: 70 mm
Light Function: with high beam
Light functions: 1
fulfils ECE standard: R8
Registration Type: CCC
Reference number: 12.5
Housing Colour: black
Lens Colour: Crystal clear
Shape: oval
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with bulb / with holder
Assembly by qualified personnel required!

OE references: DAF 0867690; DAF 152 4396; MACK 4381 74326; SCANIA 1 934 117
