HELLA Halogen-Spotlight - Jumbo 320 - 24/12V 1FE008773-001

Halogen-Spotlight - Jumbo 320 - 24/12V - rectangular - Reference number: 37.5 - Clear diffusing lens - Crystal clear - right/left

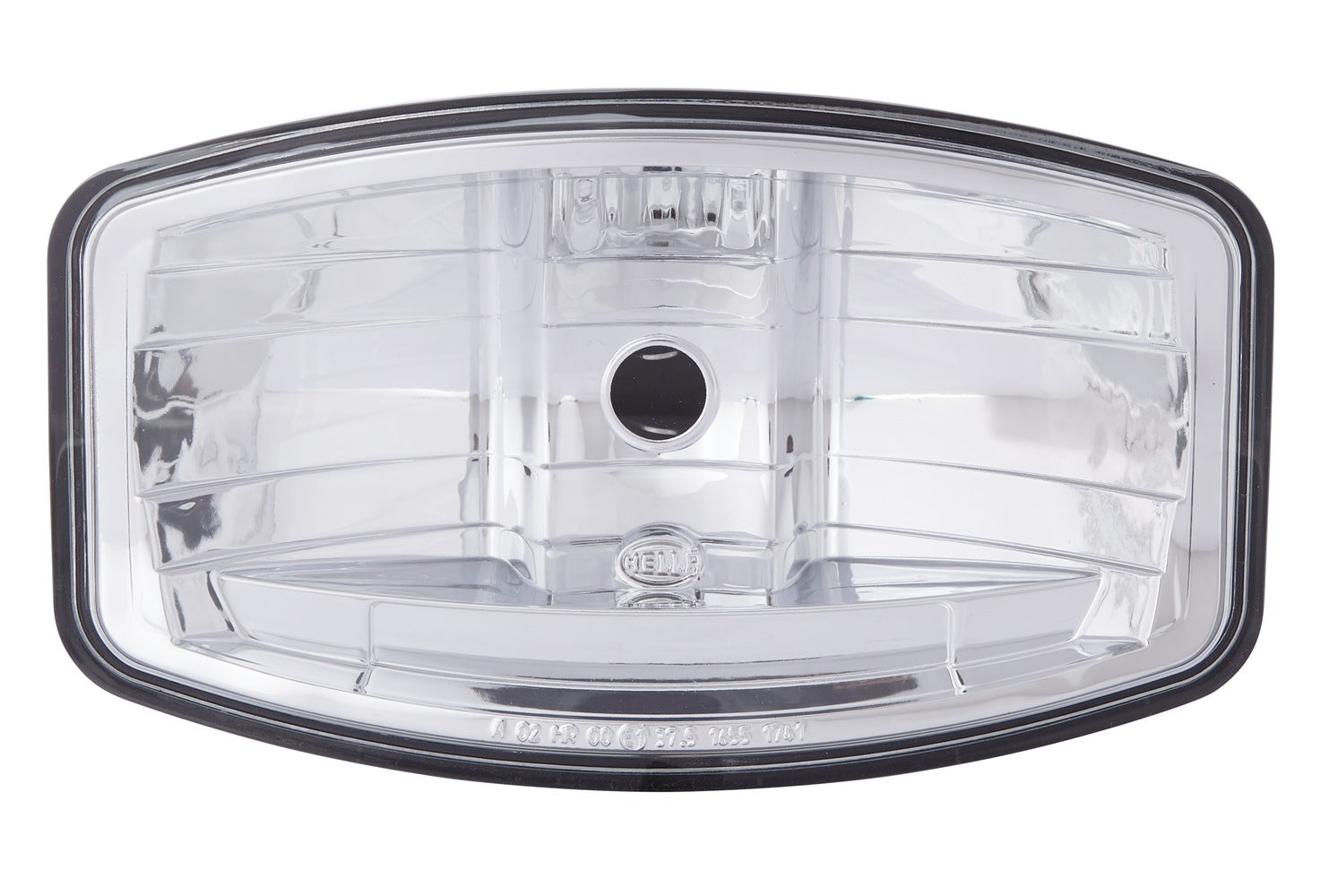

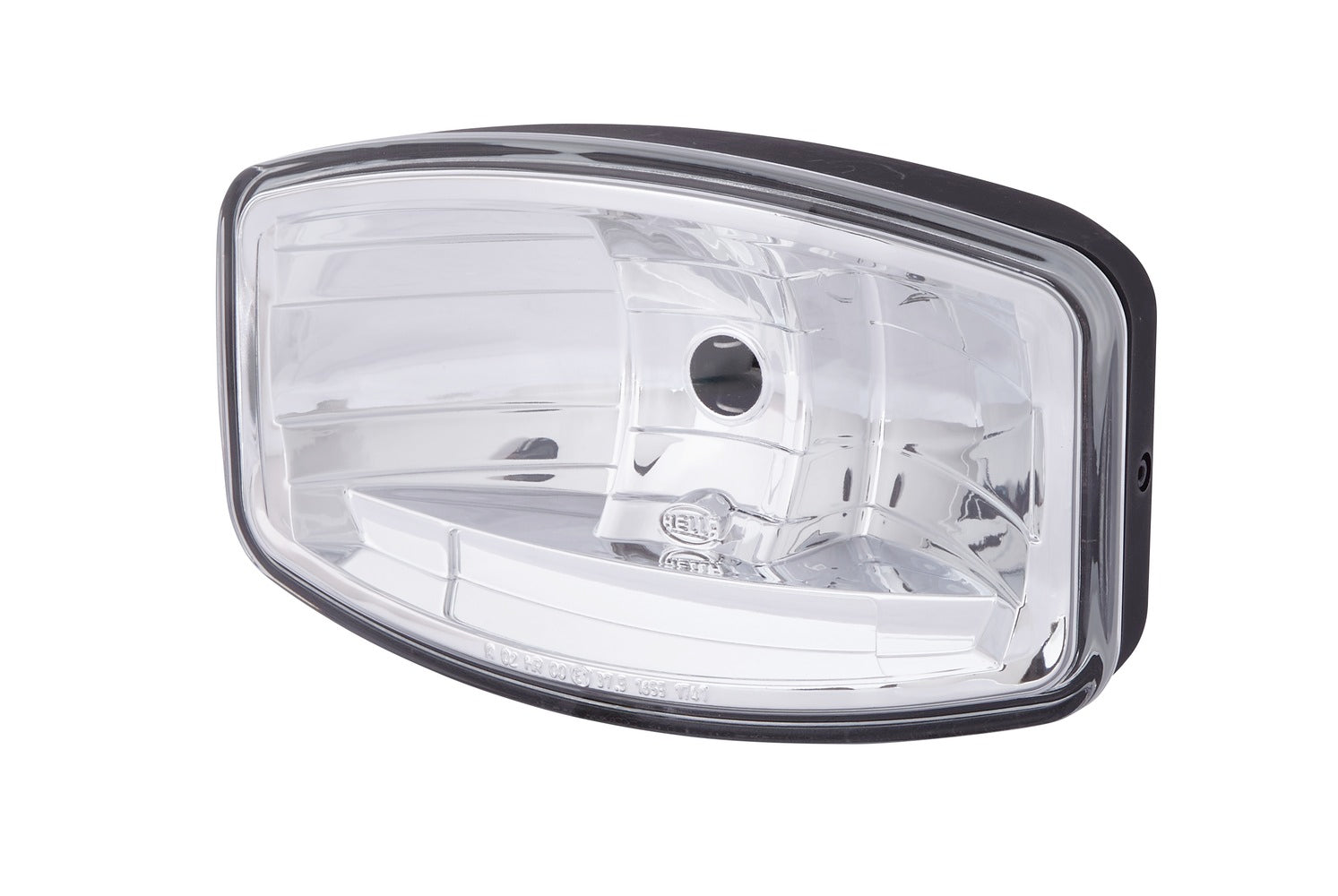

The HELLA Jumbo 320: A large headlamp for large vehicles. This auxiliary headlamp not only makes an impressive impression from the outside, but also knows how to convince with its technical specifications and material properties. The housings are made of robust plastic. High-boost reflectors specially developed for the rectangular shape provide maximum light output. The variant with additional LED position light with 6 high-performance LEDs also leads to significantly improved vehicle visibility and thus offers an additional safety gain.

• H7 driving lamp with position light made of 6 high-power LEDs with bluish-white light
• High-boost reflectors specially developed for the rectangular shape offer maximum luminous efficiency
• Robust plastic housing
• Die-cast metal reflector
• Width: 247mm - Height: 141mm - Depth: 109mm - Fitting Depth: 23mm - Overall Height: 161mm - Lamp Type: H7 - without bulb - without top
• Light functions: 1 - with high beam
• fulfils ECE standard: R112

Item Attributes:
Mounting Type: Bolted

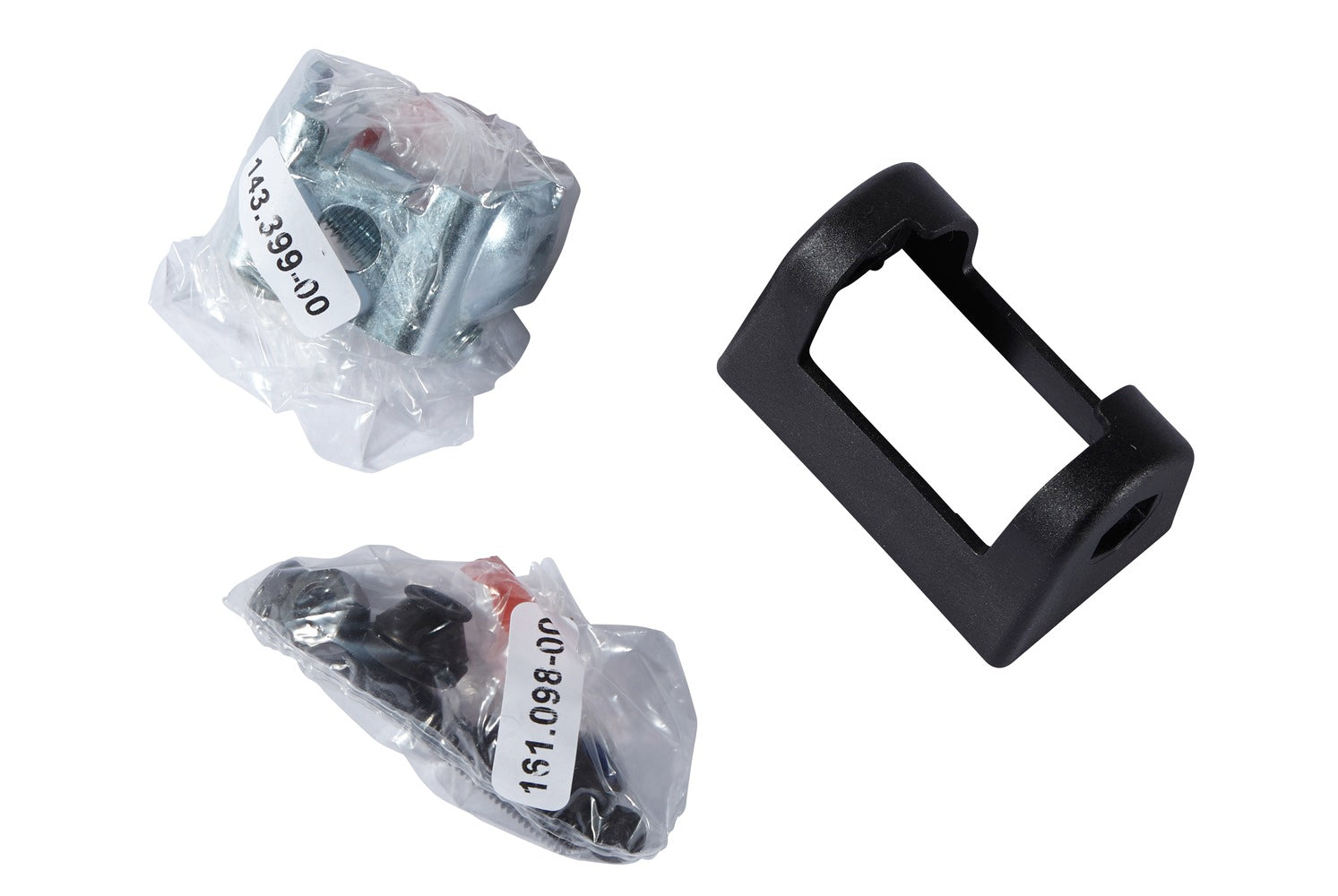

Fastening Type: Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H7
Voltage: 24 V / 12 V
Fitting Position: left / right
Height: 141 mm
Overall Height: 161 mm
Width: 247 mm
Depth: 109 mm
Fitting Depth: 23 mm
Light Function: with high beam
Light functions: 1
fulfils ECE standard: R112
Reference number: 37.5
Housing Colour: black
Lens Colour: Crystal clear
Shape: rectangular
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: without bulb
Assembly by qualified personnel required!

OE references: DAF 088 8539; MAN ZF920006612
