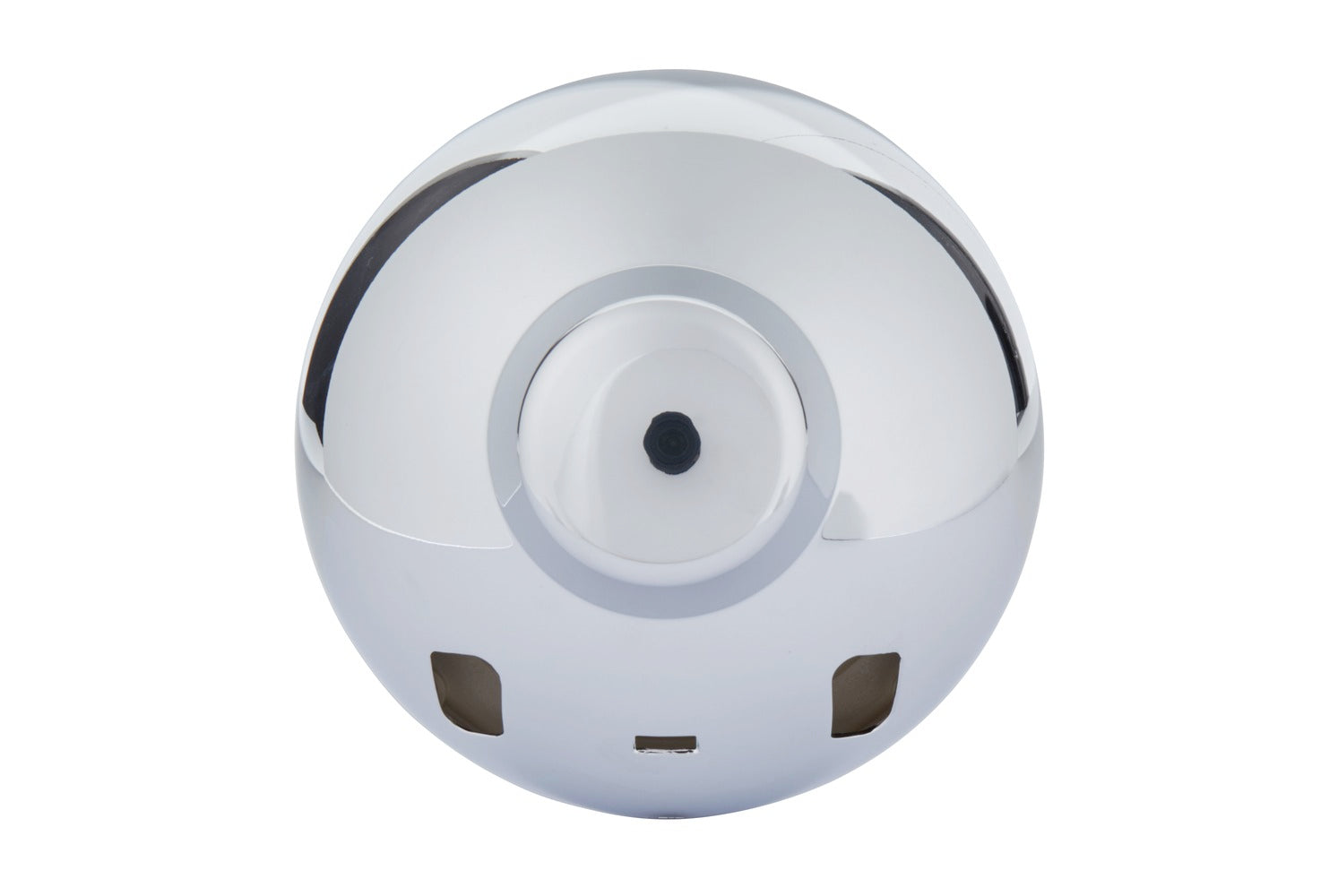

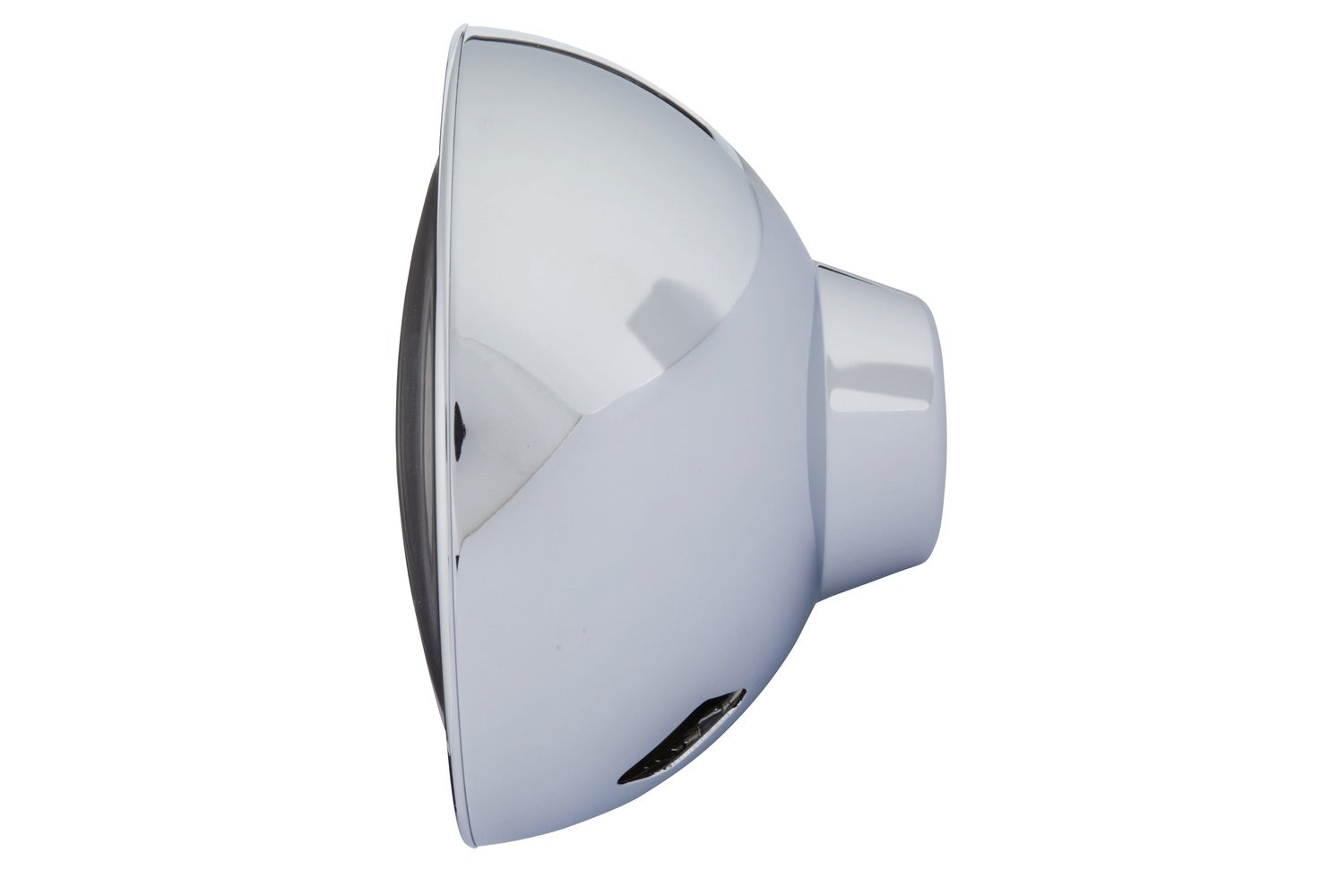

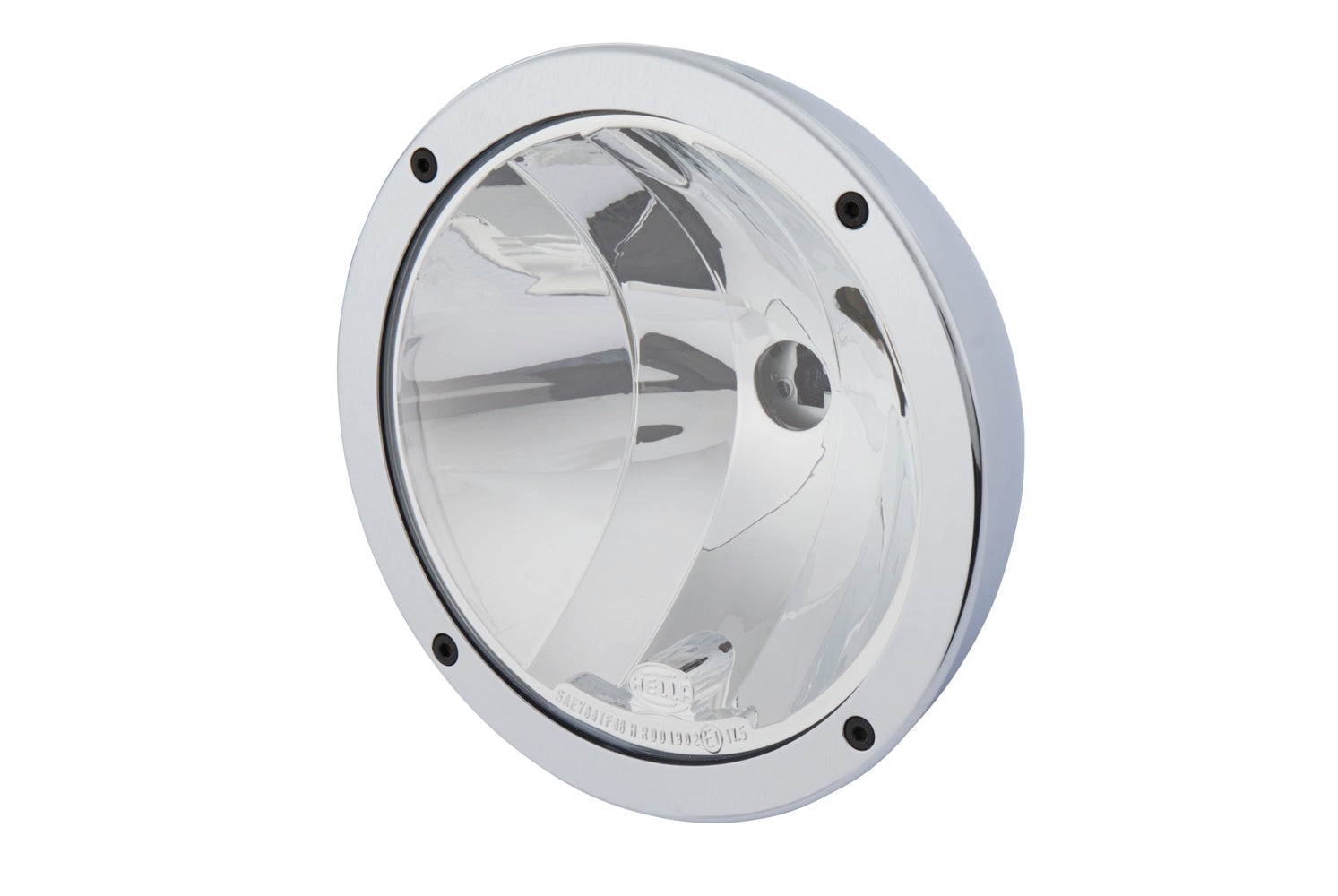

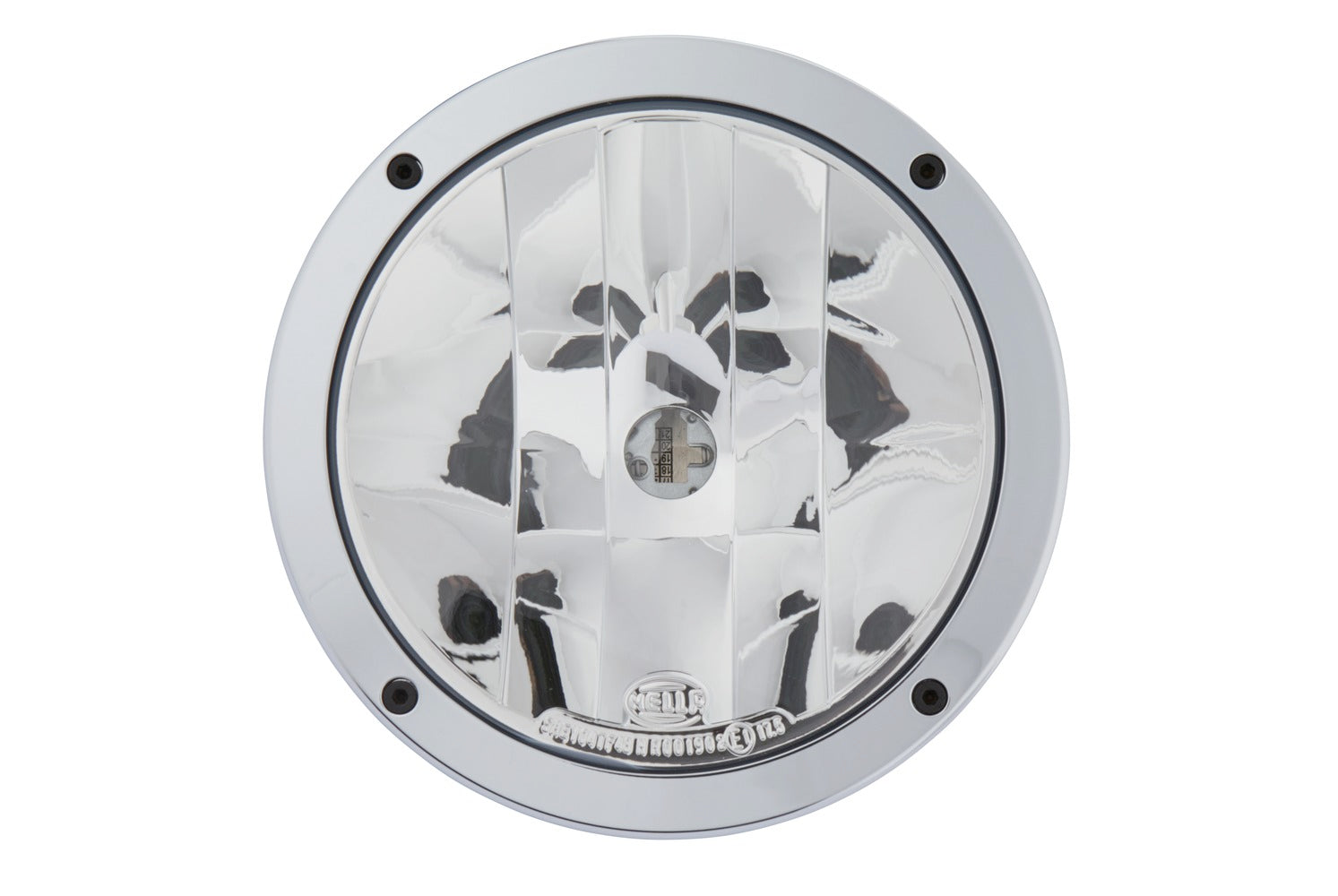

HELLA Halogen-Spotlight - Luminator Compact - 12/24V 1F3009094-071

Halogen-Spotlight - Luminator Compact - 12/24V - round - Reference number: 17.5 - ECE/SAE - Clear diffusing lens - Crystal clear - Cable: 800mm - left/right

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

• Driving lamp, 12V / 24V (ECE Ref. 17,5)
• Due to its impressive external dimensions, it is particularly suitable for trucks, large pick-ups and off-roaders
• High-quality chrome-plated zinc die-cast housing
• ECE type-approved main beam for 12V and 24V vehicle electrical systems
• Width: 171mm - Height: 173mm - Depth: 113mm - Fitting Depth: 49mm - Overall Height: 173mm - Lamp Type: H1 - without bulb - without top
• Light functions: 1 - with high beam
• Registration Type: ECE/SAE

Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H1
Voltage: 24 V / 12 V
Fitting Position: right / left
Height: 173 mm
Overall Height: 173 mm
Width: 171 mm
Depth: 113 mm
Fitting Depth: 49 mm
Light Function: with high beam
Light functions: 1
Registration Type: SAE / ECE
Reference number: 17.5

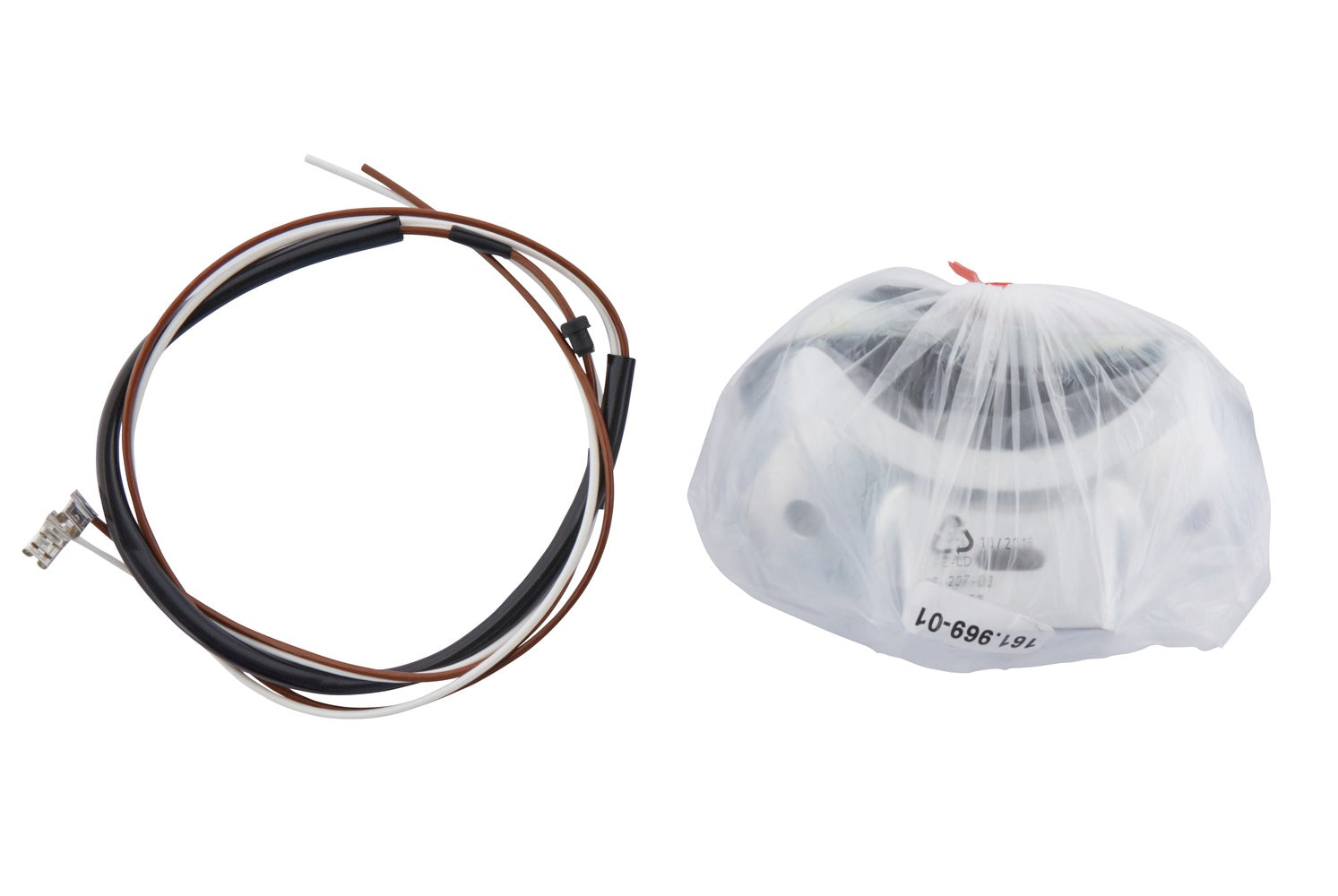

Cable: 800 mm
Housing Colour: chrome
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: without bulb
Assembly by qualified personnel required!

OE references: DAF 1529517; MITSUBISHI SMZ313637
