HELLA Halogen-Spotlight - Luminator Compact - 24/12V 1F3009094-021

Halogen-Spotlight - Luminator Compact - 24/12V - round - Reference number: 37.5 - Clear diffusing lens - Crystal clear - Cable: 800mm - right/left

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

• H1 spotlight black, 12V / 24V (ECE Ref. 37,5)
• Due to its impressive external dimensions, it is particularly suitable for trucks, large pick-ups and off-roaders

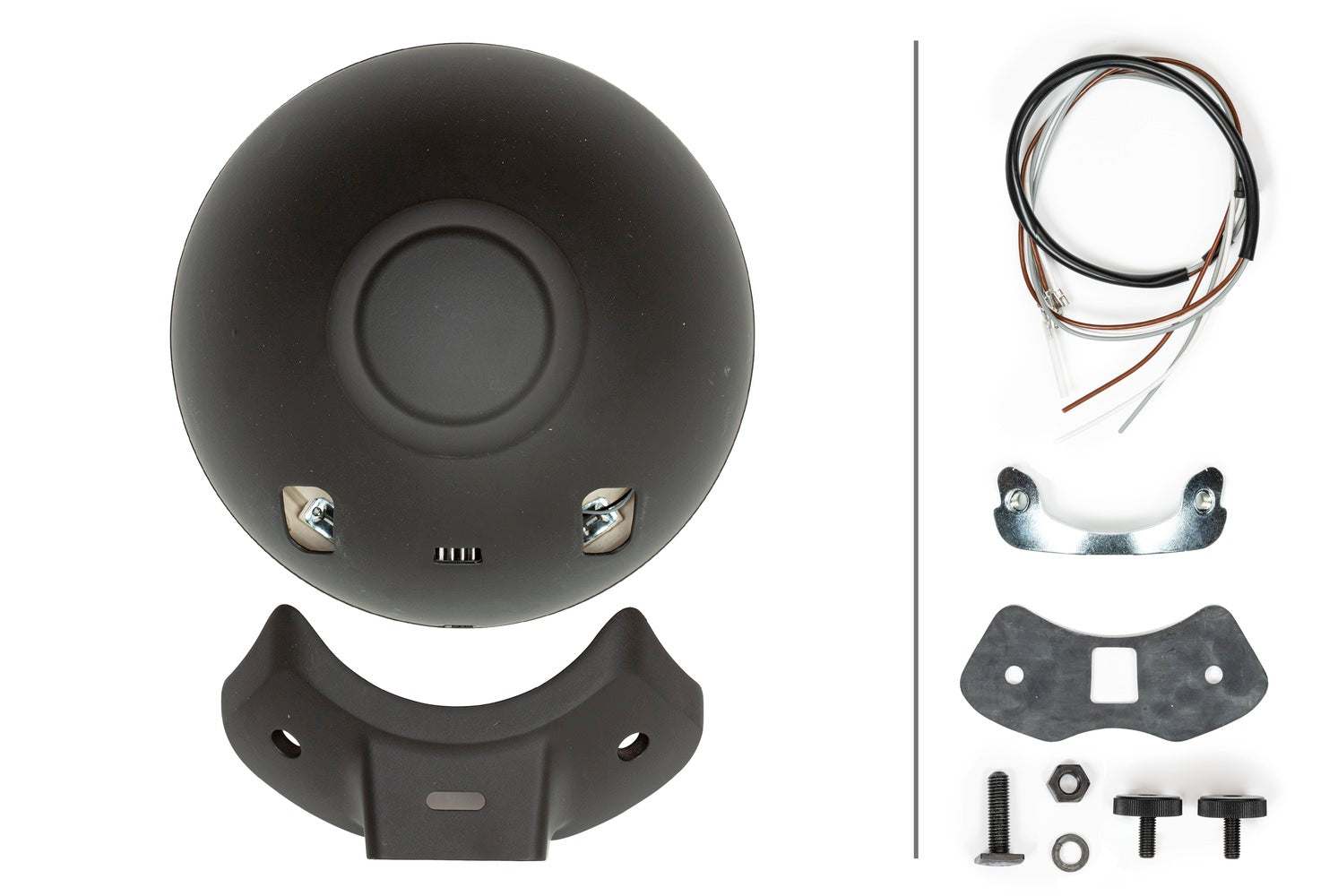

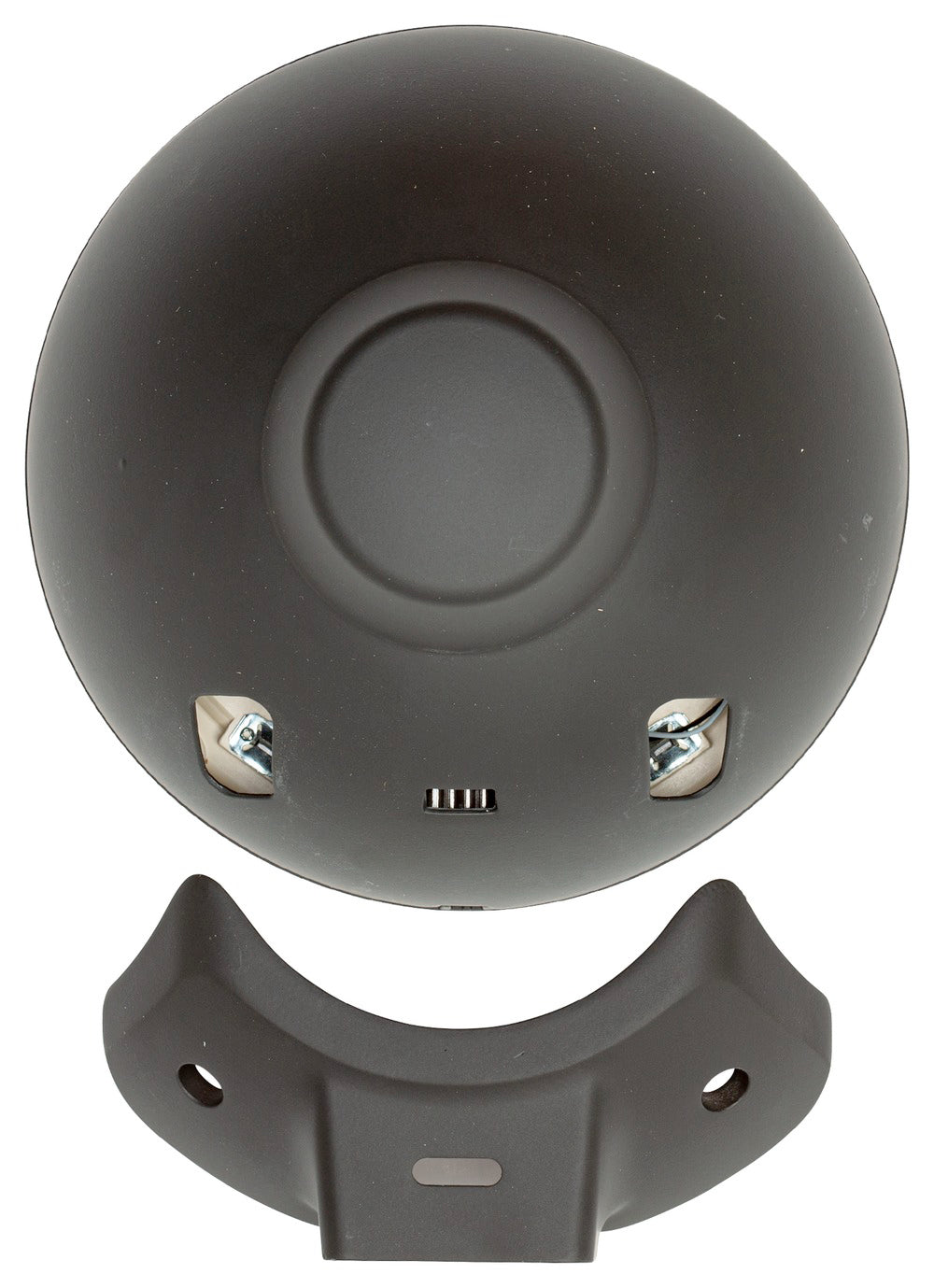

• Housing, holder and ring made of die-cast zinc
• Width: 171mm - Height: 173mm - Depth: 113mm - Fitting Depth: 49mm - Overall Height: 173mm - Lamp Type: H1 - without bulb - without top
• Light functions: 1 - with high beam
• fulfils ECE standard: R112
• Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Bolted

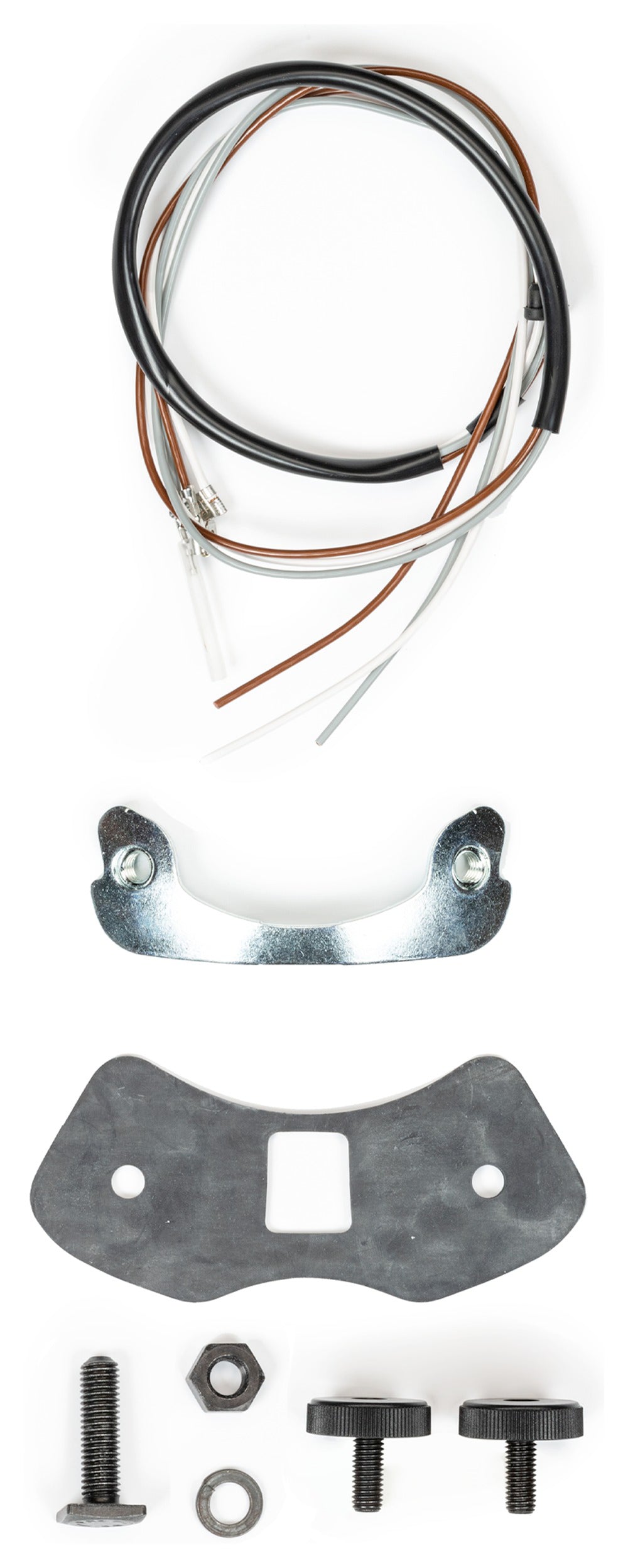

Fastening Type: Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H1
Voltage: 24 V / 12 V
Fitting Position: left / right
Height: 173 mm
Overall Height: 173 mm
Width: 171 mm
Depth: 113 mm
Fitting Depth: 49 mm
Light Function: with high beam
Light functions: 1
fulfils ECE standard: R112
Reference number: 37.5
Cable: 800 mm
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: black
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: without bulb
SVHC: 117-81-7; Bis (2-ethylhexyl)phthalate (DEHP)
Assembly by qualified personnel required!

OE references: DAF 0866712; DAF 1529515; SCANIA 2111479
