HELLA Halogen-Worklight - Double-Beam - 12/24V 1GA006991-051

Halogen-Worklight - Double-Beam - 12/24V - Screw Connection/mounting - Four-point attachment - Long-range illumination - Cable: 250mm - Plug: open cable ends

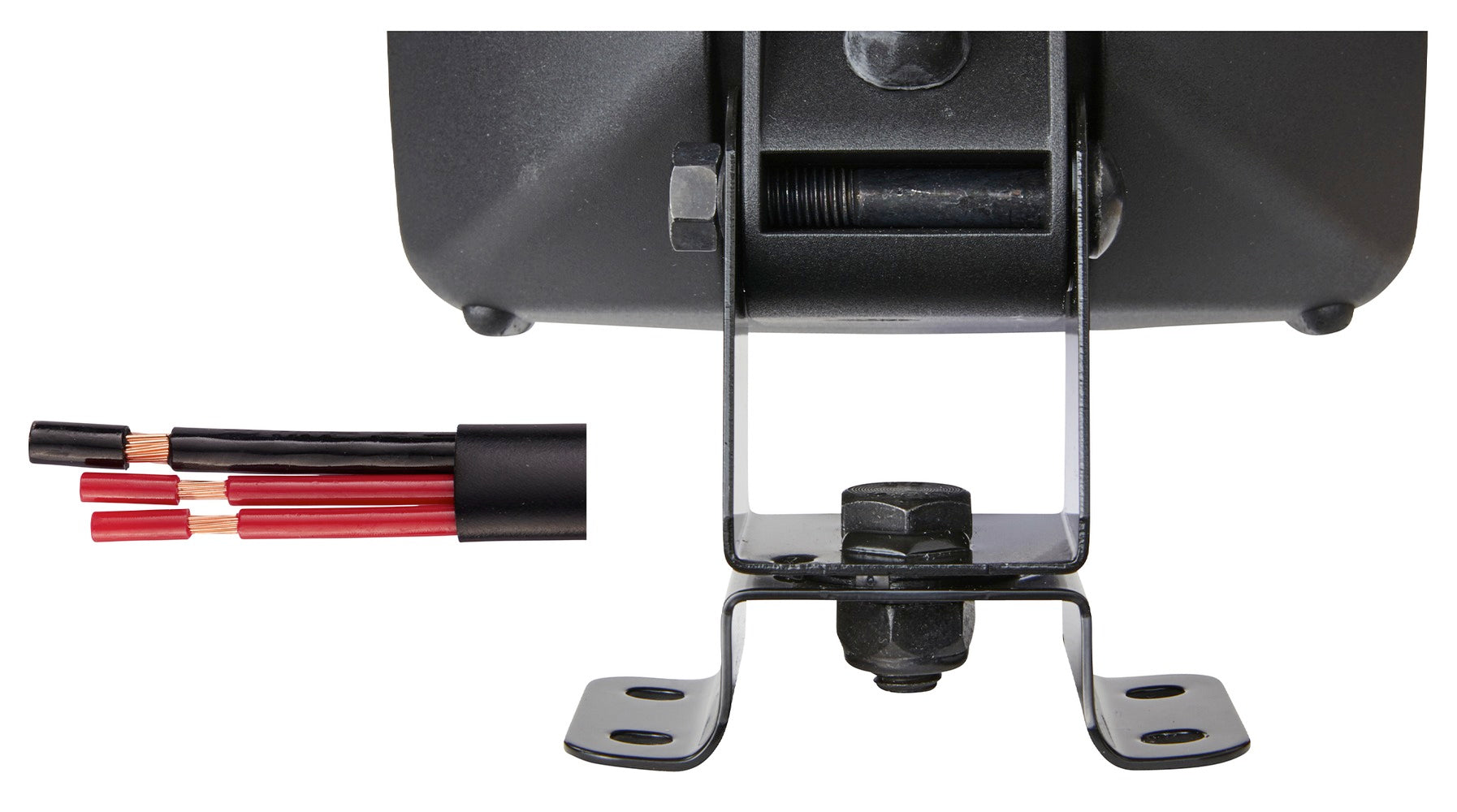

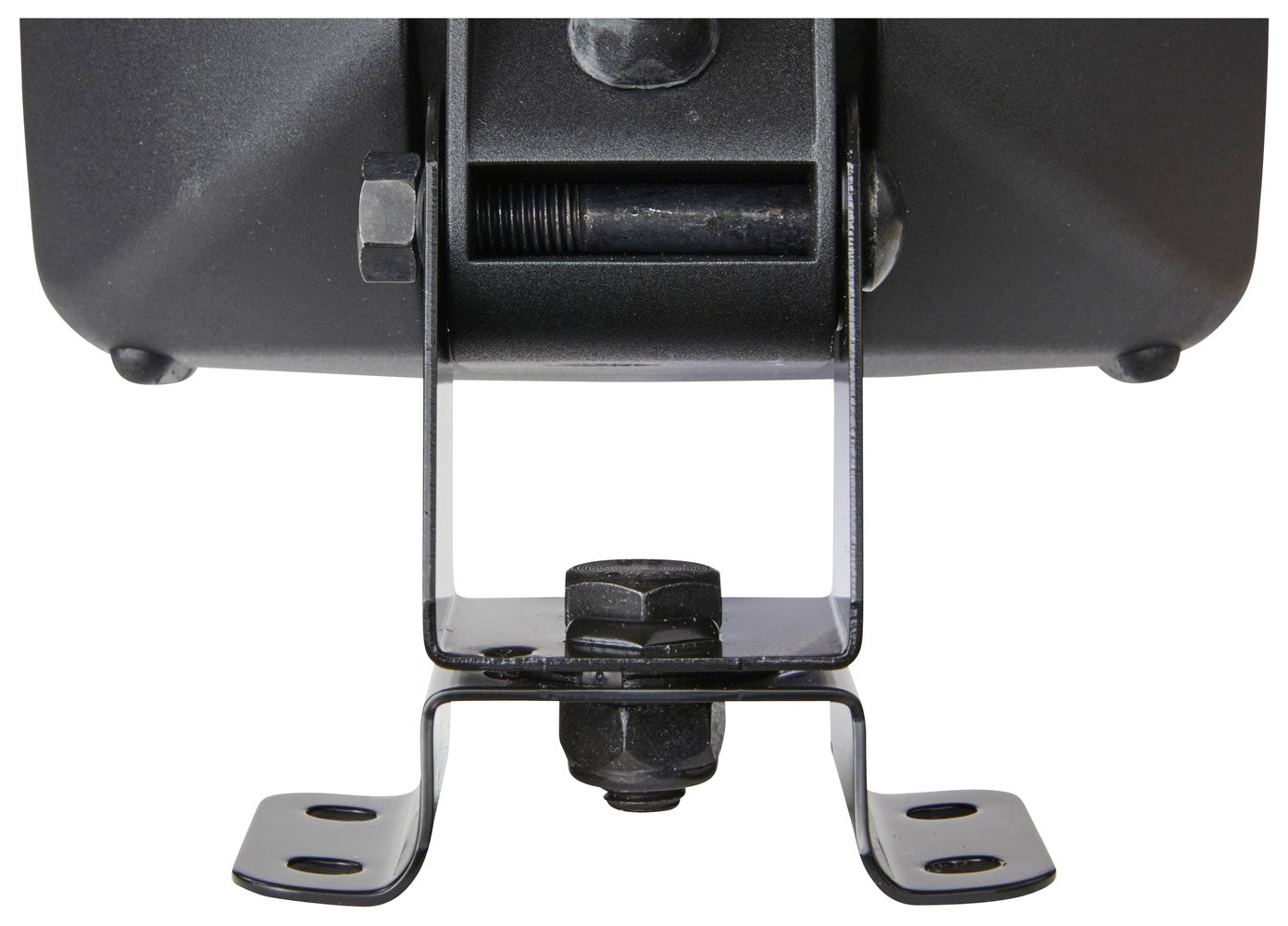

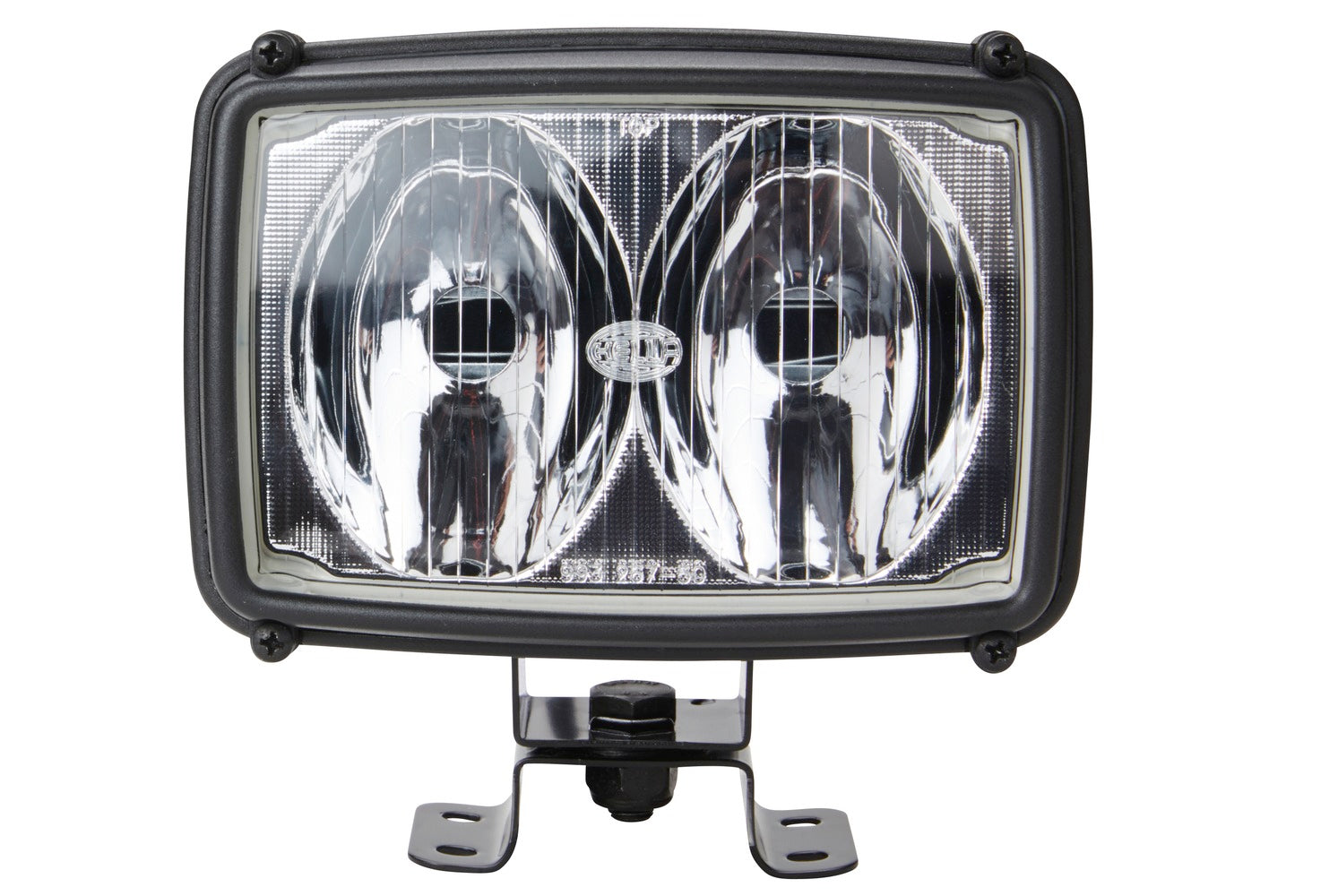

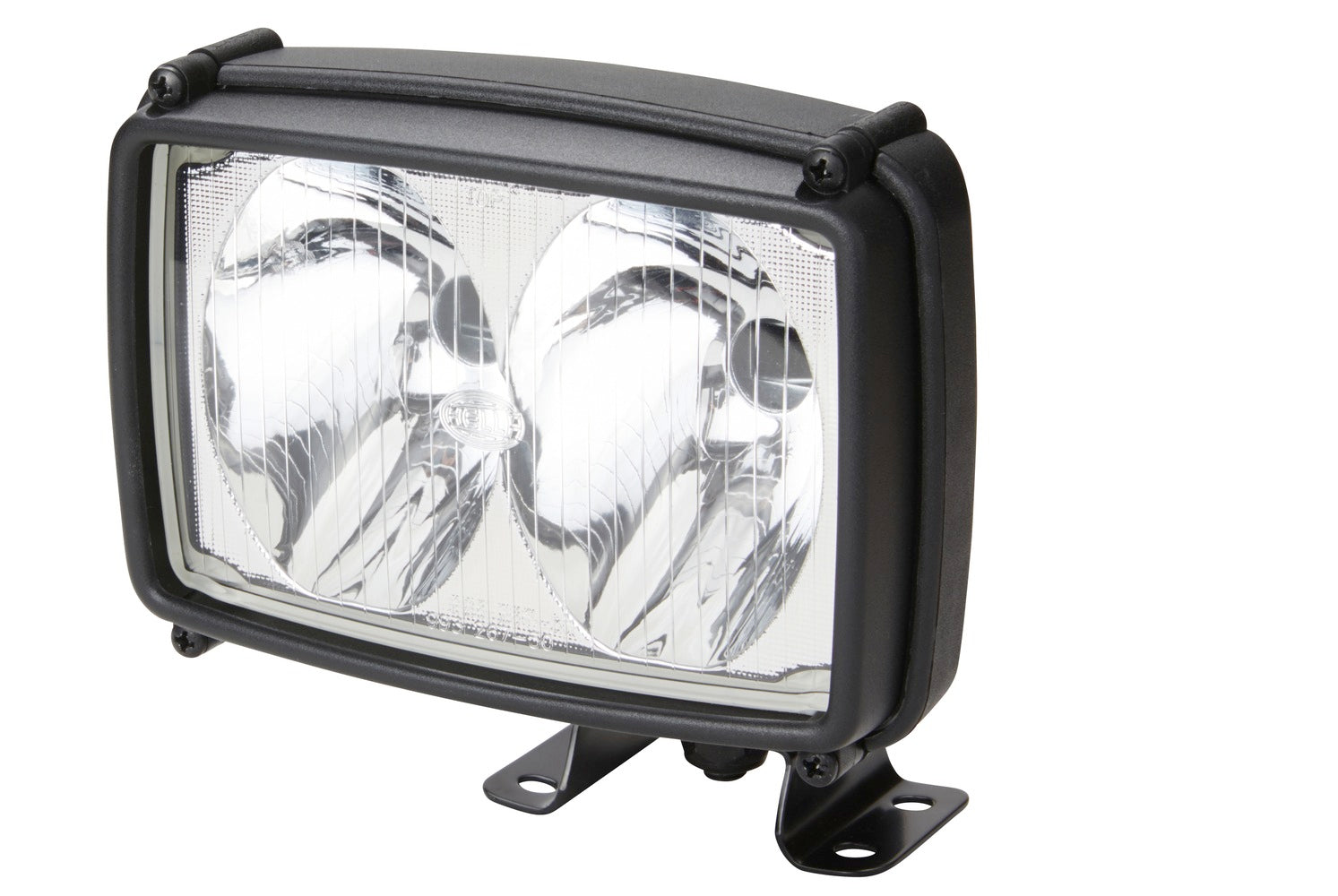

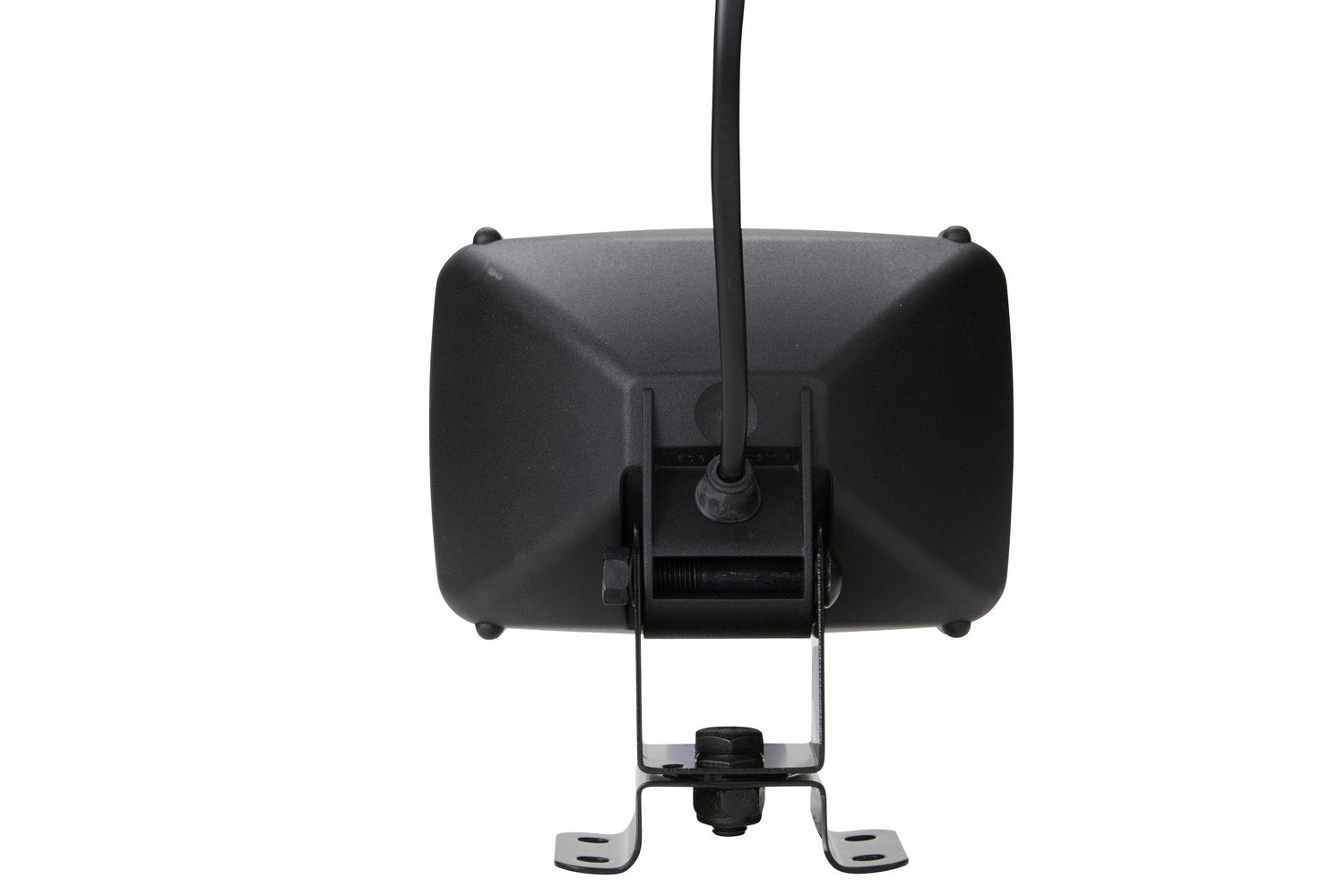

The Double Beam offers double the light output in comparison with conventional worklights of the same dimensions. The double reflector is based on free-form technology. In conjunction with a patterned glass lens, this ensures intense illumination of the working area in four different light distributions. Two H3 bulbs are used as the light source (not included with the light). As a result the worklight can be used with both 12V and 24V vehicle-electrical systems. Design: The black housing of this sturdy worklight is made of glassfibrereinforced plastic, which is both acid and corrosion-resistant. To protect the lens, the housing has a raised edge at the front. The Double Beam FF is suitable both for pendant and upright mounting by turning the light insert 180°. The bracket allows stable four-point fastening of the worklight. Power connection is via a pre-fitted 250 mm-long connection cable with silicone insulation. This means that the worklight is suitable for use in the case of hazardous goods transport.

• The Double Beam offers twice the light output compared to conventional worklights of the same size.
• The open-space technology in combination with the structured glass diffusing panel provides intensive illumination of the work area in four different illuminations.
• The black housing of these robust worklights is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
• To protect the diffusing lens, the housing is provided with a protruding edge at its front.

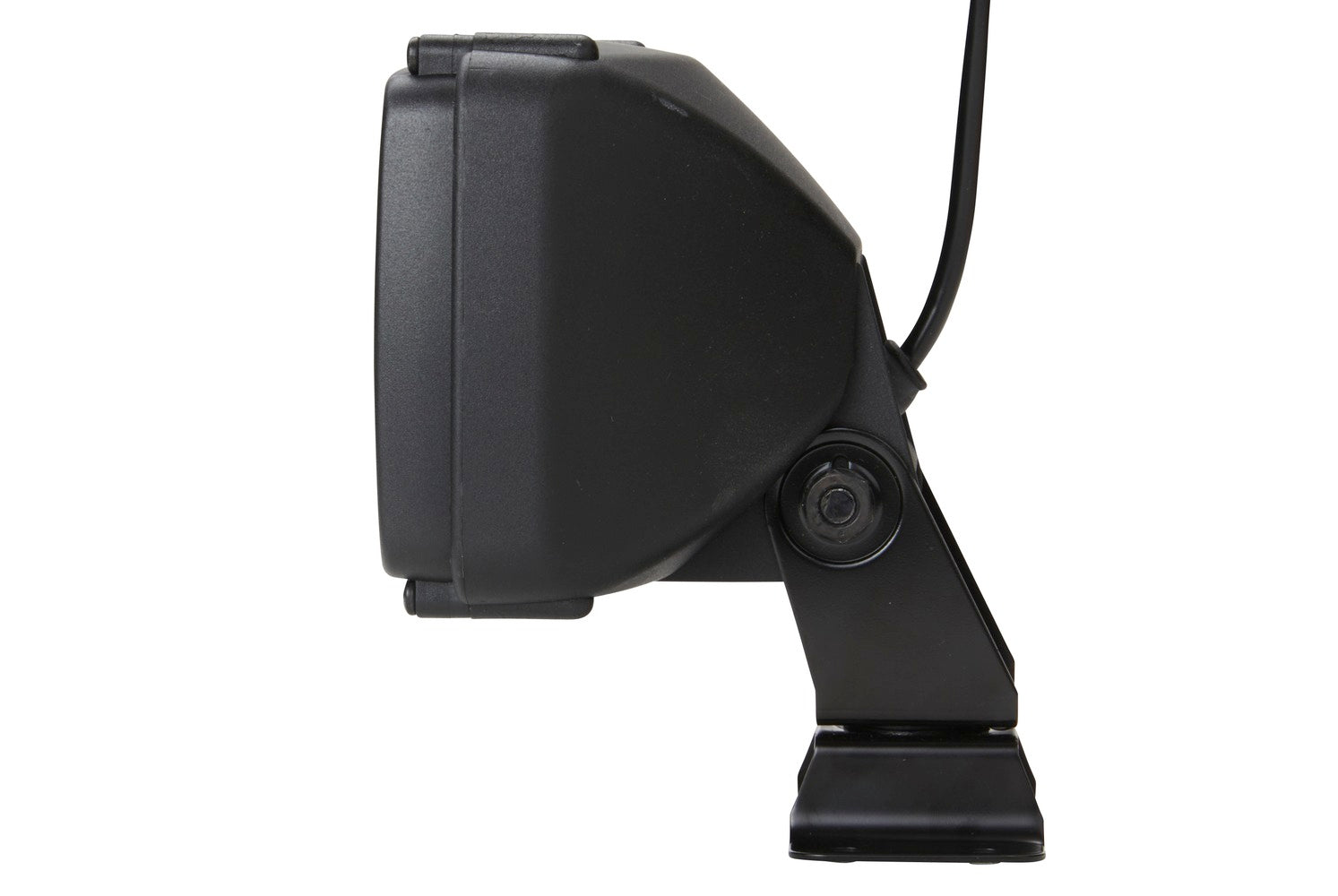

• The Double Beam FF is suitable for both pendant and upright mounting by rotating the spotlight insert through 180°.
• Lamp Type: H3 - Power consumption: 70/140W
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 162 mm
Width: 158 mm
Depth: 127 mm
Light Distribution: Long-range illumination
Plug: open cable ends
Prot.type (IP Code): IP5K4K
Power consumption: 140 W / 70 W
Supplementary Article/Supplementary Info 2: without bulbs
Cable: 250 mm
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: ATLAS COPCO 5350658680; BUCHER 622035B; CATERPILLAR L04030; CATERPILLAR LO4030; DAF 867589; DOLL 7221223; FENDT G 312 900 111 030; FRUEHAUF L-SX0311-012; IVECO 41730324; LIEBHERR 0 100 465; LIEBHERR 1 000 729 5; MASSEY FERGUSON 31196; MASSEY FERGUSON U.31196; TEREX 5350658680
