HELLA Halogen-Worklight - Double-Beam - 24/12V 1GA006991-041

Halogen-Worklight - Double-Beam - 24/12V - Screw Connection/mounting - Four-point attachment - Ground Illumination - Cable: 250mm - Plug: open cable ends

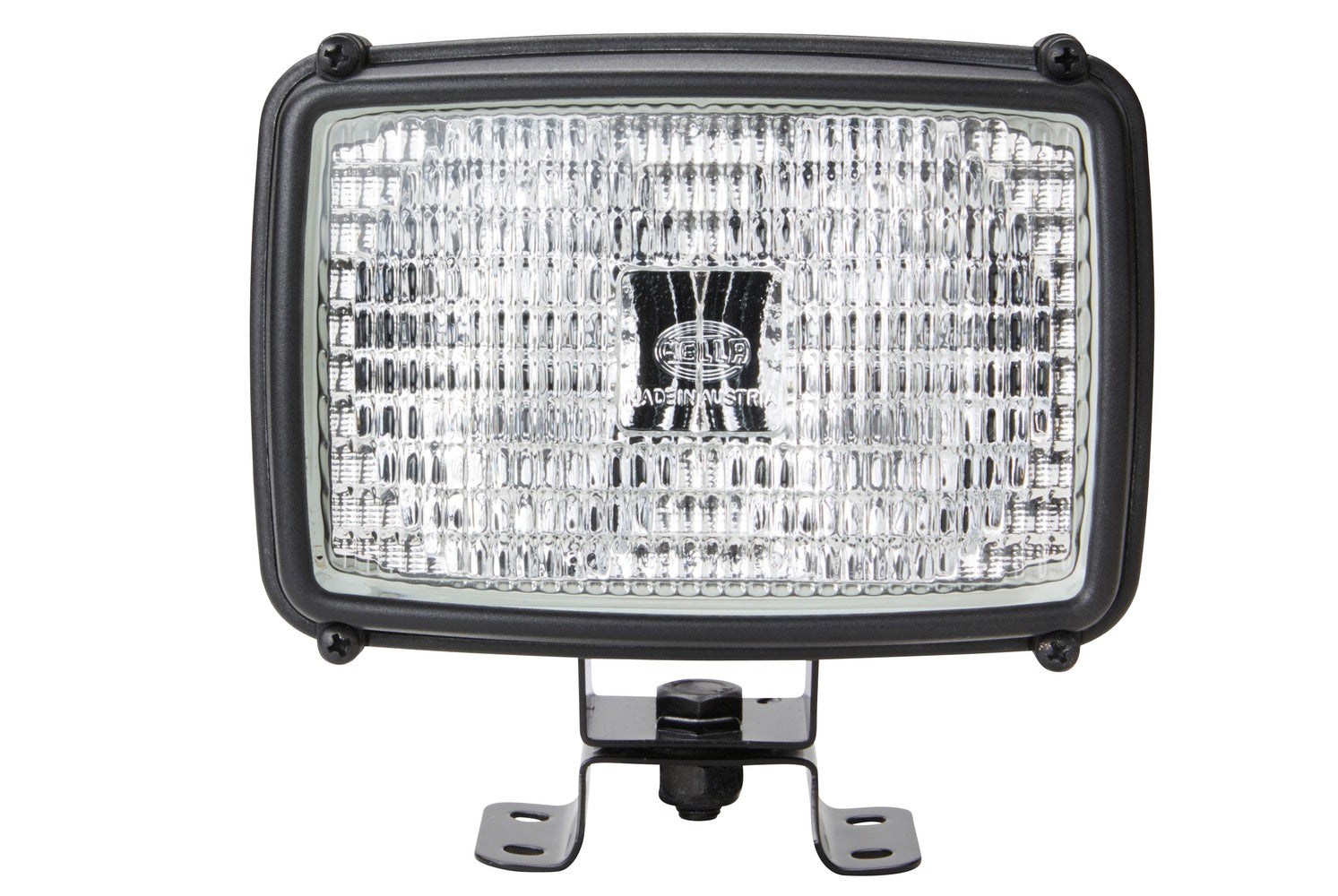

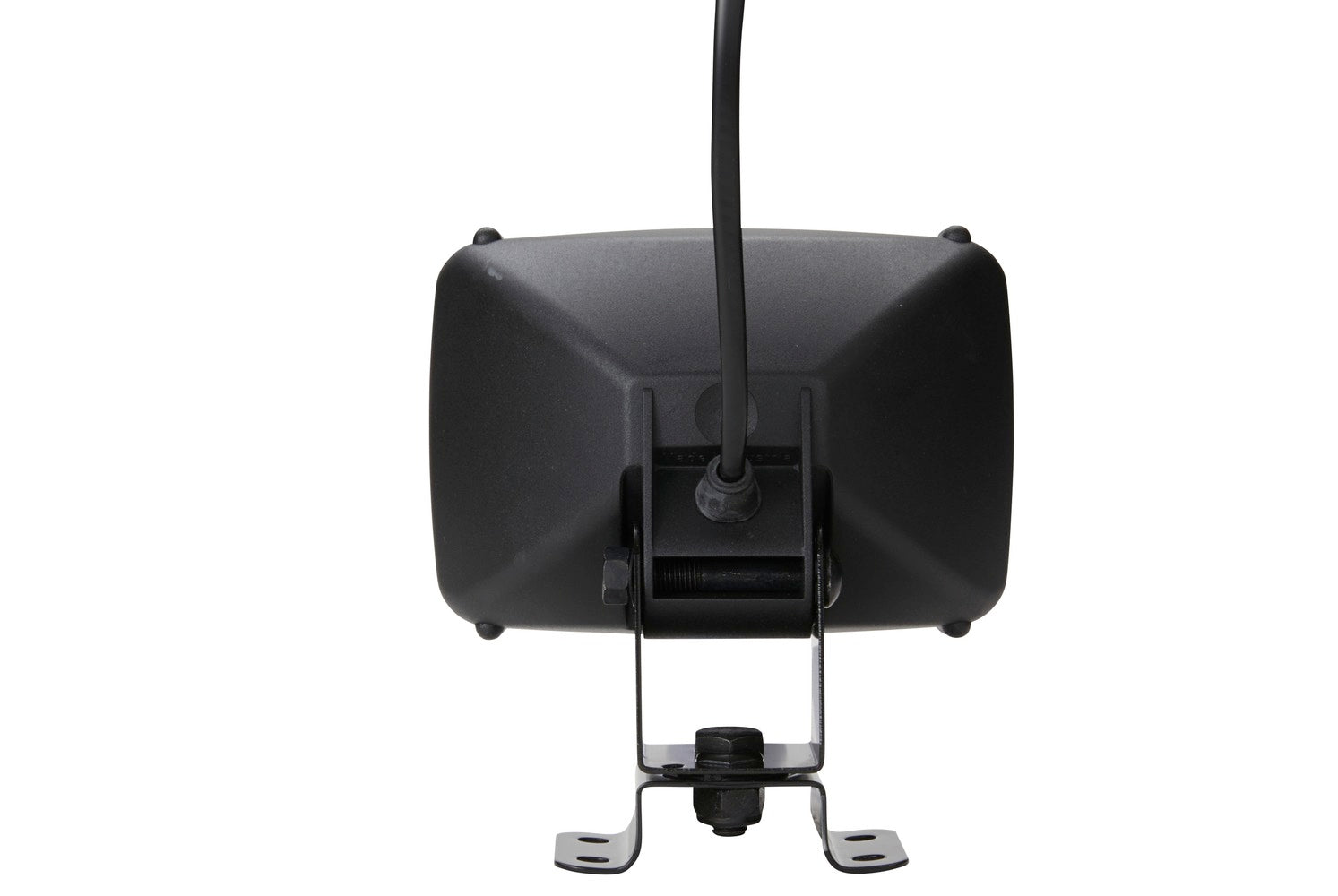

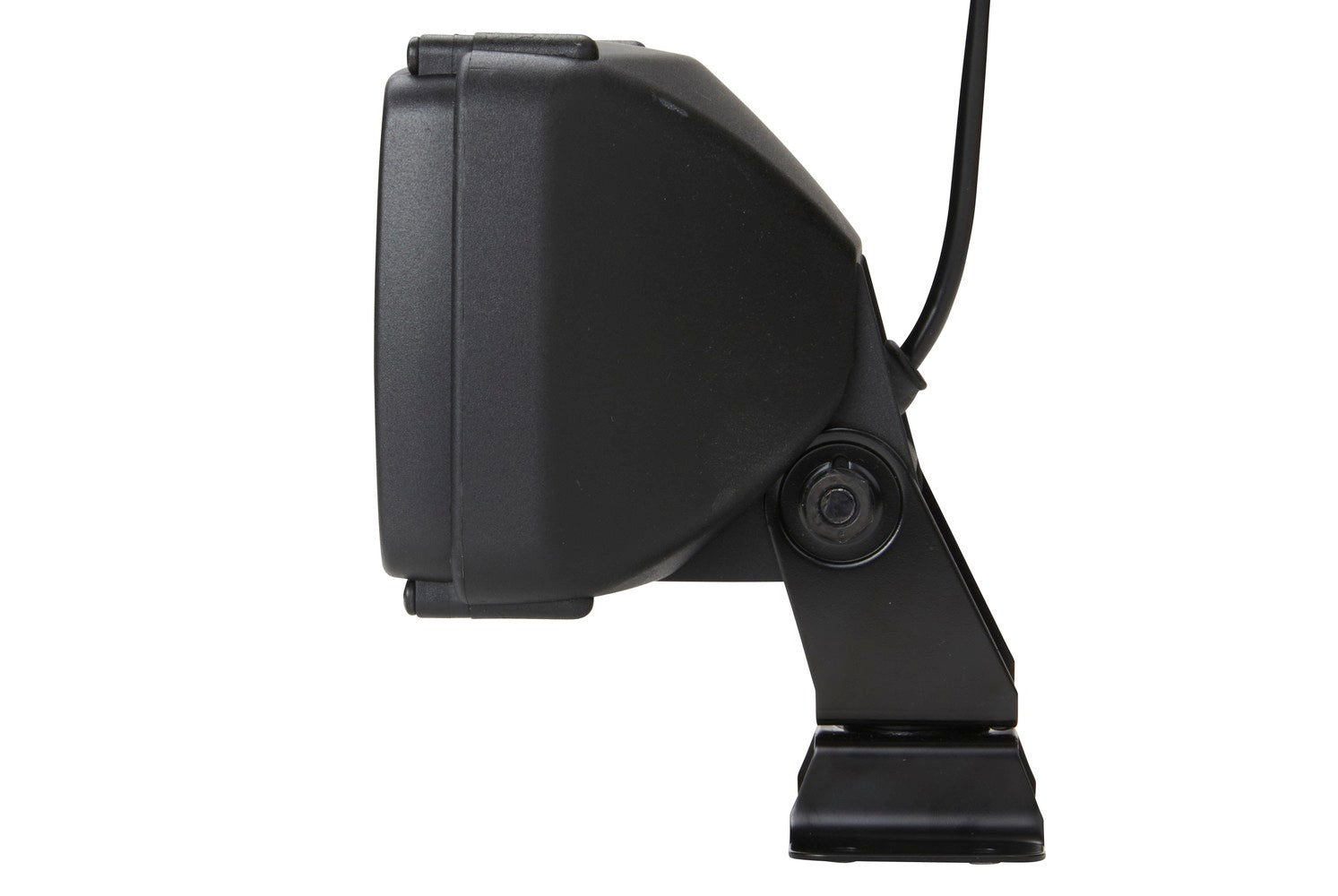

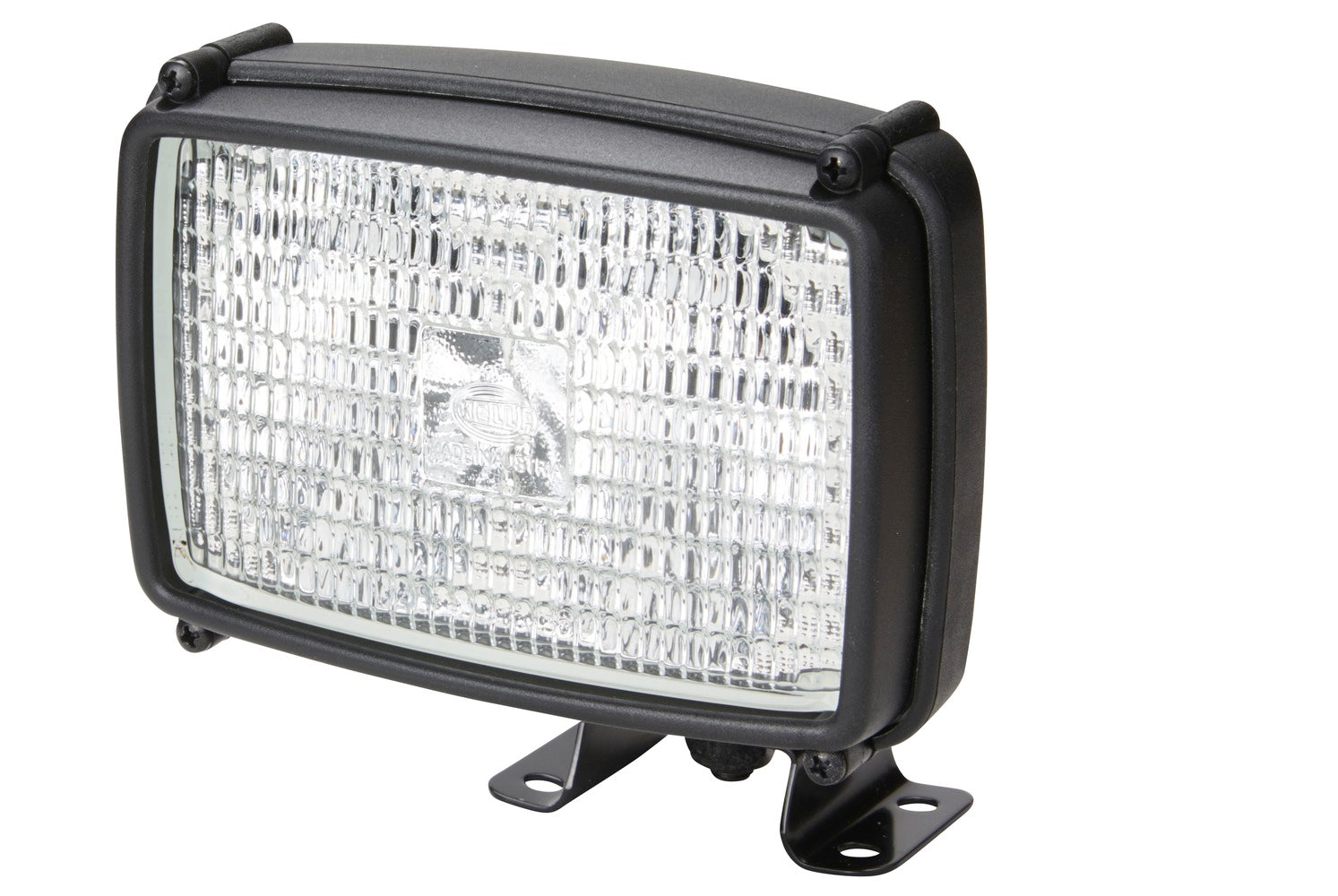

The Double Beam offers double the light output in comparison with conventional worklights of the same dimensions. The double reflector is based on free-form technology. In conjunction with a patterned glass lens, this ensures intense illumination of the working area in four different light distributions. Two H3 bulbs are used as the light source (not included with the light). As a result the worklight can be used with both 12V and 24V vehicle-electrical systems. Design: The black housing of this sturdy worklight is made of glassfibrereinforced plastic, which is both acid and corrosion-resistant. To protect the lens, the housing has a raised edge at the front. The Double Beam FF is suitable both for pendant and upright mounting by turning the light insert 180°. The bracket allows stable four-point fastening of the worklight. Power connection is via a pre-fitted 250 mm-long connection cable with silicone insulation. This means that the worklight is suitable for use in the case of hazardous goods transport.

• The Double Beam offers twice the light output compared to conventional worklights of the same size.
• The open-space technology in combination with the structured glass diffusing panel provides intensive illumination of the work area in four different illuminations.
• The black housing of these robust worklights is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
• To protect the diffusing lens, the housing is provided with a protruding edge at its front.
• The Double Beam FF is suitable for both pendant and upright mounting by rotating the spotlight insert through 180°.
• Lamp Type: H3 - Power consumption: 70/140W
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Screw Connection

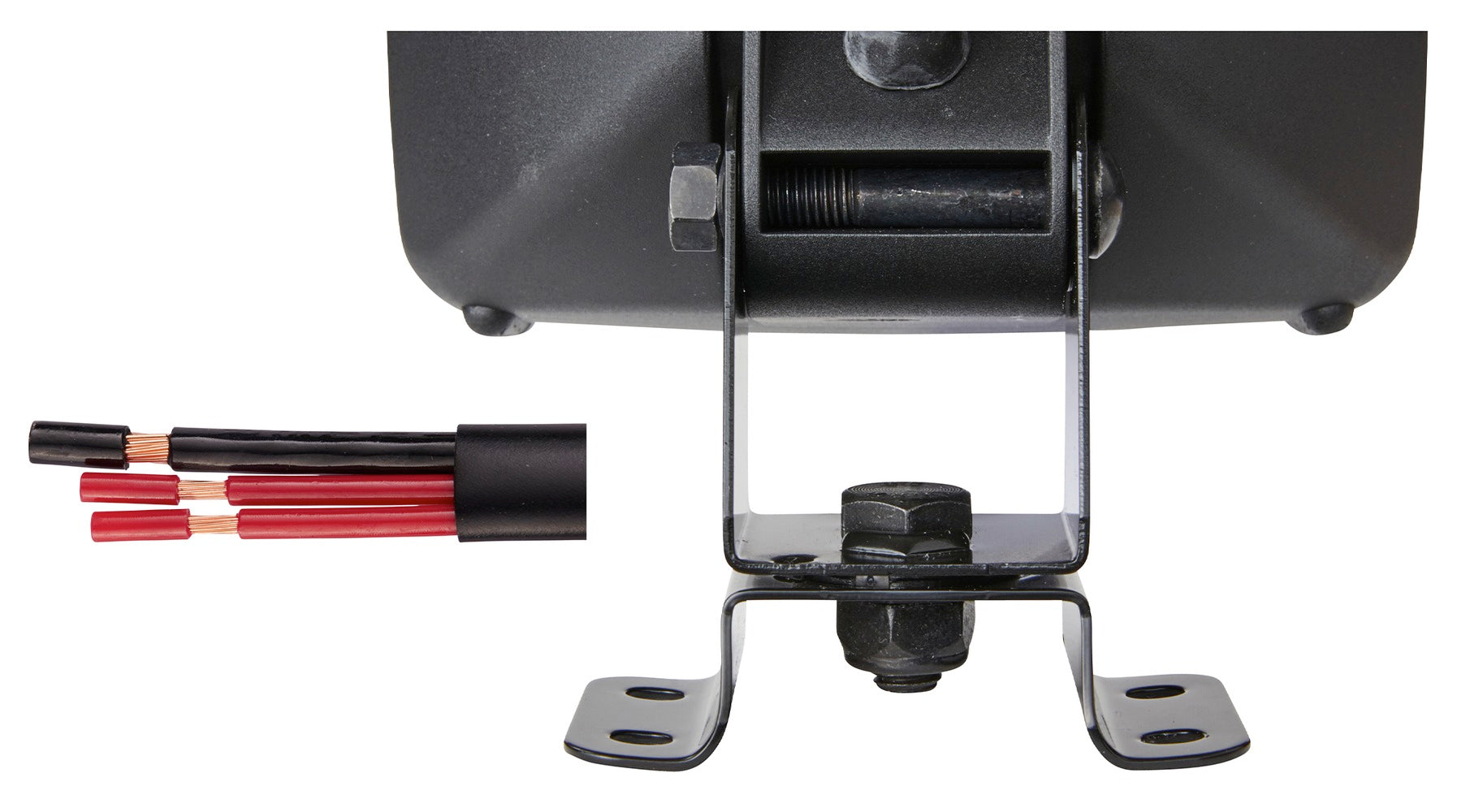

Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 162 mm
Width: 158 mm
Depth: 127 mm
Light Distribution: Ground Illumination
Plug: open cable ends
Prot.type (IP Code): IP5K4K
Power consumption: 140 W / 70 W
Supplementary Article/Supplementary Info 2: without bulbs
Cable: 250 mm
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AGCO E400131; AHLMANN 4117957A; ATLAS COPCO 3603754; ATLAS COPCO 5350658675; CASE IH 2465155; CATERPILLAR 246-5155; CATERPILLAR 533-9227; DAF 0867230; DAF 867448; DEMAG 3603754; DOLL 7054241; JCB 700/32200; JCB 700/34700; JOHN DEERE F0 23 711; KOMATSU 503 6014; KOMATSU 5036014; LIEBHERR 6 905 738; MASSEY FERGUSON 3713 130 M91A; MASSEY FERGUSON 3778 456 M92; MASSEY FERGUSON 4272782M91; MASSEY FERGUSON 4272837M91; MASSEY FERGUSON 4295856M91; MASSEY FERGUSON 56228; MASSEY FERGUSON S.56228; NOOTEBOOM 1250616; O&K 2465155; SCANIA 1906628; SCHAEFF 5350658675; SENNEBOGEN 038347; TEREX 2465155; TEREX 3530658675; TEREX 3603754; TEREX 5350658675; TIMBERJACK 51210102220; TIMBERJACK F023711; VALMET 3 713 130 M91A; VALMET 3 778 456 M92; VALMET 4 272 782 M91; VALMET 4 272 837 M91; VALMET 4 295 856 M91; VALMET 5036014; VALMET 51210102220; VALMET 65713318; VALMET 65713330; VAN HOOL 11275917; VDL 11275917; YANMAR 5350658675
